BDSBeamPipe Class Reference

A holder class for all information required for a piece of beampipe. This does not implement the construction of the beampipe. More...

#include <BDSBeamPipe.hh>

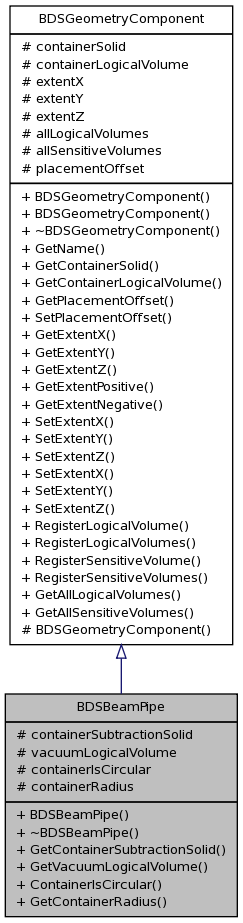

Inheritance diagram for BDSBeamPipe:

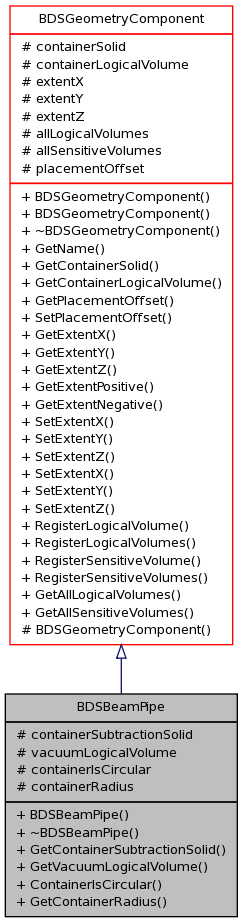

[legend]Collaboration diagram for BDSBeamPipe:

[legend]

Public Member Functions
	BDSBeamPipe (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, std::pair< double, double > extentXIn, std::pair< double, double > extentYIn, std::pair< double, double > extentZIn, G4VSolid *containerSubtractionSolidIn, G4LogicalVolume *vacuumLVIn, G4bool containerIsCircularIn=false, G4double containerRadiusIn=0.0)
G4VSolid *	GetContainerSubtractionSolid ()
	default destructor sufficient as G4 manages solids and LVs
G4LogicalVolume *	GetVacuumLogicalVolume ()
	access the vacuum volume to set fields and limits
G4bool	ContainerIsCircular ()
G4double	GetContainerRadius ()
	if it is circular, we need the radius
Protected Attributes
G4VSolid *	containerSubtractionSolid
G4LogicalVolume *	vacuumLogicalVolume
G4bool	containerIsCircular
G4double	containerRadius

---

Detailed Description

A holder class for all information required for a piece of beampipe. This does not implement the construction of the beampipe.

Author:

Laurie Nevay <laurie.nevay@rhul.ac.uk>

Definition at line 19 of file BDSBeamPipe.hh.

---

Constructor & Destructor Documentation

BDSBeamPipe::BDSBeamPipe	(	G4VSolid *	containerSolidIn,
		G4LogicalVolume *	containerLVIn,
		std::pair< double, double >	extentXIn,
		std::pair< double, double >	extentYIn,
		std::pair< double, double >	extentZIn,
		G4VSolid *	containerSubtractionSolidIn,
		G4LogicalVolume *	vacuumLVIn,
		G4bool	containerIsCircularIn = false,
		G4double	containerRadiusIn = 0.0
	)

constructor has BDSGeometryComponent members first, then everything extra for this derived class

Definition at line 8 of file BDSBeamPipe.cc.

---

Member Function Documentation

G4bool BDSBeamPipe::ContainerIsCircular

(

)

[inline]

flag to tell whether the parent volume needn't use a subtraction solid and can simply use a G4Tubs for example

Definition at line 60 of file BDSBeamPipe.hh.

References containerIsCircular.

Referenced by BDSMagnetOuterFactoryLHC::CreateCylindricalSolids(), BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateQuadrupole(), BDSMagnetOuterFactoryLHC::CreateSectorBend(), BDSMagnetOuterFactoryCylindrical::CreateSectorBend(), BDSMagnetOuterFactoryPolesBase::TestInputParameters(), and BDSMagnetOuterFactoryCylindrical::TestInputParameters().

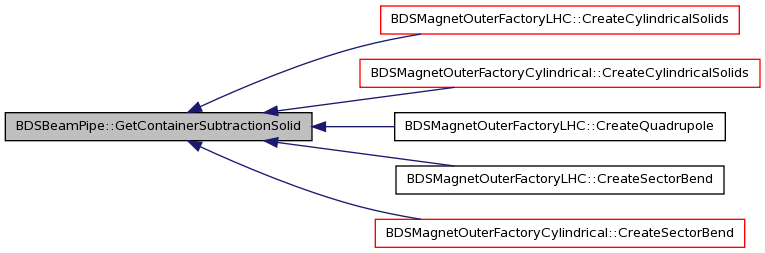

Here is the caller graph for this function:

G4VSolid * BDSBeamPipe::GetContainerSubtractionSolid

(

)

[inline]

default destructor sufficient as G4 manages solids and LVs

access a solid for beampipe subtraction - note this is typically longer than the actual beampipe for unambiguous subtraction

Definition at line 54 of file BDSBeamPipe.hh.

References containerSubtractionSolid.

Referenced by BDSMagnetOuterFactoryLHC::CreateCylindricalSolids(), BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateQuadrupole(), BDSMagnetOuterFactoryLHC::CreateSectorBend(), and BDSMagnetOuterFactoryCylindrical::CreateSectorBend().

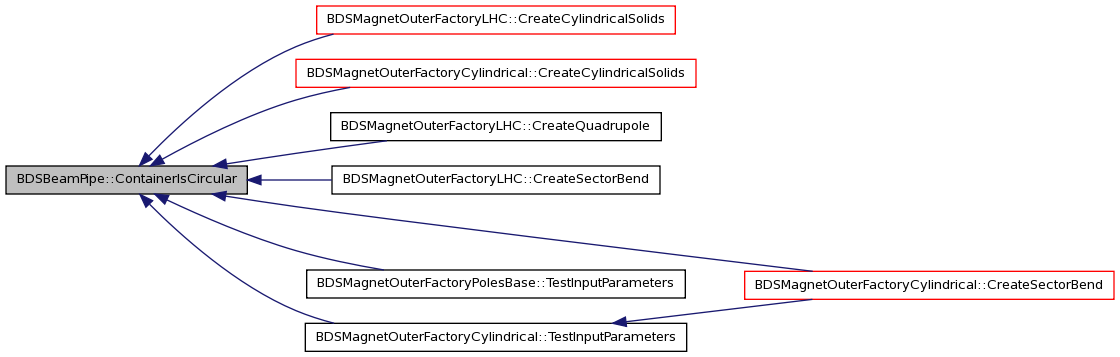

Here is the caller graph for this function:

---
