BDSMagnetOuterFactoryPolesFacet Class Reference

Factory class for outer volume of magnets. Produces magnets with 2N-poles around the beampipe with a faceted yoke - the yoke is perpendiular to the pole direction where the pole joins the yoke. More...

#include <BDSMagnetOuterFactoryPolesFacet.hh>

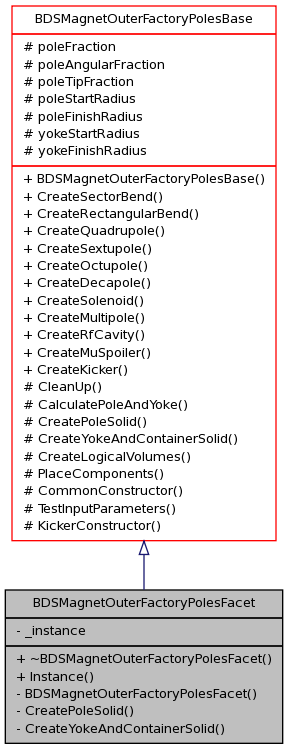

Inheritance diagram for BDSMagnetOuterFactoryPolesFacet:

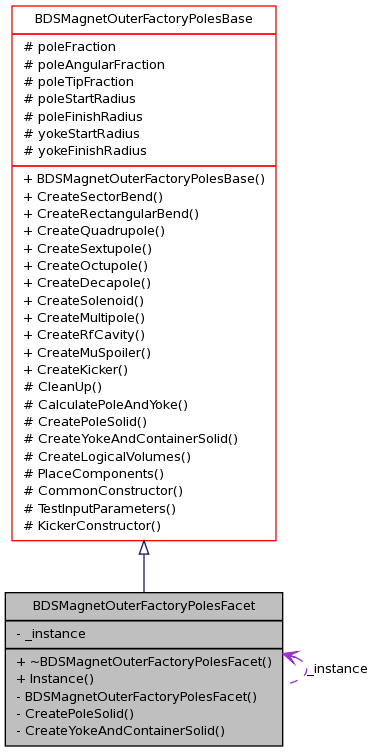

[legend]Collaboration diagram for BDSMagnetOuterFactoryPolesFacet:

[legend]

Public Member Functions
	~BDSMagnetOuterFactoryPolesFacet ()
	singleton pattern
Static Public Member Functions
static BDSMagnetOuterFactoryPolesFacet *	Instance ()
Private Member Functions
	BDSMagnetOuterFactoryPolesFacet ()
	Private constructor as singleton - nothing special here - all in parent class.
virtual void	CreatePoleSolid (G4String name, G4double length, G4int order)
	Create pole for magnet of order N where npoles = Nx2.
virtual void	CreateYokeAndContainerSolid (G4String name, G4double length, G4int order)
	Create yoke that connects poles and container to put them in.
Static Private Attributes
static BDSMagnetOuterFactoryPolesFacet *	_instance = 0

---

Detailed Description

Factory class for outer volume of magnets. Produces magnets with 2N-poles around the beampipe with a faceted yoke - the yoke is perpendiular to the pole direction where the pole joins the yoke.

Most magnets are 2N poles, but sector- and r-bends as well as muon spoilers, and h/v kickers are unique.

Author:

Laurie Nevay <laurie.nevay@rhul.ac.uk>

Definition at line 20 of file BDSMagnetOuterFactoryPolesFacet.hh.

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSMagnetOuterFactoryPolesFacet.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSMagnetOuterFactoryPolesFacet.cc

---
