BDSMaterials Class Reference

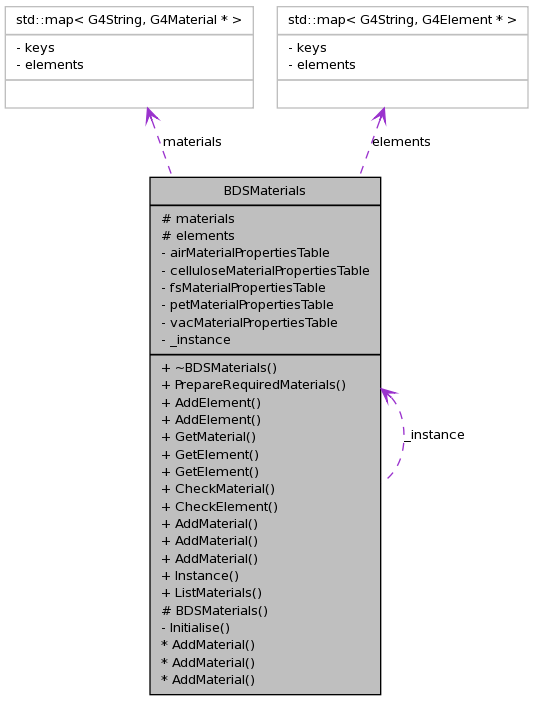

Collaboration diagram for BDSMaterials:

[legend]

Public Member Functions
	~BDSMaterials ()
void	PrepareRequiredMaterials ()
	converts parser material list
void	AddElement (G4Element *aElement, G4String aName)
void	AddElement (G4String aName, G4String aSymbol, G4double itsZ, G4double itsA)
G4Material *	GetMaterial (G4String aMaterial)
G4Element *	GetElement (G4String aSymbol)
G4Element *	GetElement (const char *aSymbol)
G4bool	CheckMaterial (G4String aMaterial)
G4bool	CheckElement (G4String aSymbol)
void	AddMaterial (G4Material *aMaterial, G4String aName)
void	AddMaterial (G4String aName, G4double itsZ, G4double itsA, G4double itsDensity, G4State itsState, G4double itsTemp, G4double itsPressure)
template<typename Type>
void	AddMaterial (G4String aName, G4double itsDensity, G4State itsState, G4double itsTemp, G4double itsPressure, std::list< const char * > itsComponents, std::list< Type > itsComponentsFractions)
Static Public Member Functions
static BDSMaterials *	Instance ()
static void	ListMaterials ()
	output available materials
Protected Member Functions
	BDSMaterials ()
Protected Attributes
std::map< G4String, G4Material * >	materials
std::map< G4String, G4Element * >	elements
Private Member Functions
void	Initialise ()
Private Attributes
G4MaterialPropertiesTable *	airMaterialPropertiesTable
G4MaterialPropertiesTable *	celluloseMaterialPropertiesTable
G4MaterialPropertiesTable *	fsMaterialPropertiesTable
G4MaterialPropertiesTable *	petMaterialPropertiesTable
G4MaterialPropertiesTable *	vacMaterialPropertiesTable
Static Private Attributes
static BDSMaterials *	_instance = 0

---

Detailed Description

Definition at line 17 of file BDSMaterials.hh.

---

Member Function Documentation

template<typename Type>

void BDSMaterials::AddMaterial	(	G4String	aName,
		G4double	itsDensity,
		G4State	itsState,
		G4double	itsTemp,
		G4double	itsPressure,
		std::list< const char * >	itsComponents,
		std::list< Type >	itsComponentsFractions
	)

Add materials

Parameters:

[in]	Z	atomic number
[in]	A	mole mass in g/mole
[in]	density	in g/cm3
[in]	state	solid/gas
[in]	temp	in kelvin
[in]	pressure	in atm

Definition at line 960 of file BDSMaterials.cc.

References CheckElement(), GetElement(), GetMaterial(), and materials.

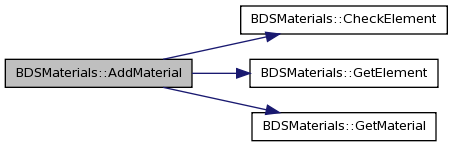

Here is the call graph for this function:

void BDSMaterials::AddMaterial	(	G4String	aName,
		G4double	itsZ,
		G4double	itsA,
		G4double	itsDensity,
		G4State	itsState,
		G4double	itsTemp,
		G4double	itsPressure
	)

Add materials

Parameters:

[in]	Z	atomic number
[in]	A	mole mass in g/mole
[in]	density	in g/cm3
[in]	state	solid/gas
[in]	temp	in kelvin
[in]	pressure	in atm

Definition at line 940 of file BDSMaterials.cc.

References materials.

void BDSMaterials::AddMaterial	(	G4Material *	aMaterial,
		G4String	aName
	)

Add materials

Parameters:

[in]	Z	atomic number
[in]	A	mole mass in g/mole
[in]	density	in g/cm3
[in]	state	solid/gas
[in]	temp	in kelvin
[in]	pressure	in atm

Definition at line 925 of file BDSMaterials.cc.

References materials.

Referenced by BDSGeometryLCDD::parseMATERIALS(), and PrepareRequiredMaterials().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSMaterials.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSMaterials.cc

---
