BDSBeamline Class Reference

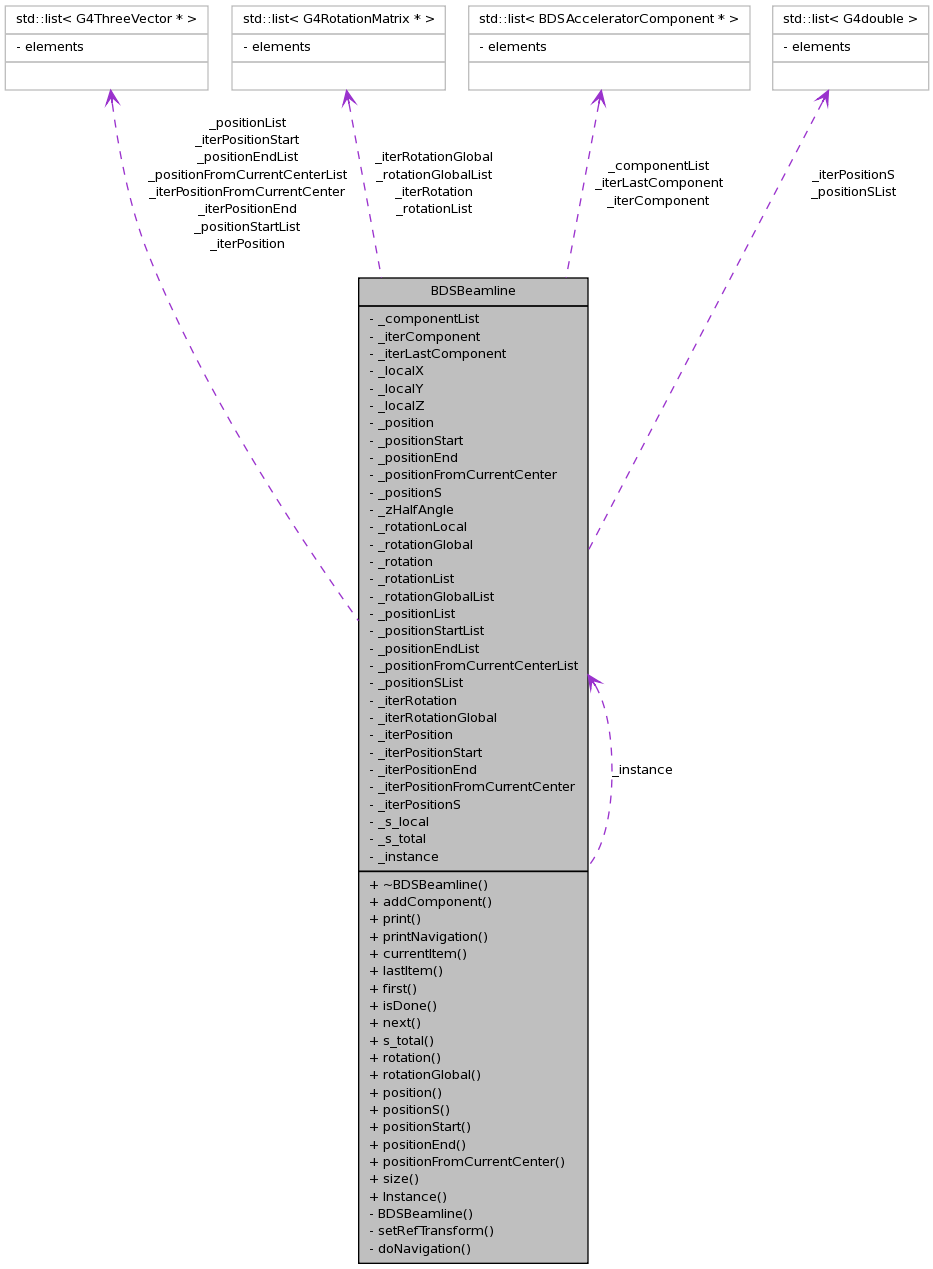

Collaboration diagram for BDSBeamline:

[legend]

Public Member Functions
	~BDSBeamline ()
void	addComponent (BDSAcceleratorComponent *var)
void	print ()
void	printNavigation ()
BDSAcceleratorComponent *	currentItem ()
BDSAcceleratorComponent *	lastItem ()
void	first ()
bool	isDone ()
void	next ()
G4double	s_total ()
G4RotationMatrix *	rotation ()
G4RotationMatrix *	rotationGlobal ()
G4ThreeVector *	position ()
G4double	positionS ()
G4ThreeVector *	positionStart ()
G4ThreeVector *	positionEnd ()
G4ThreeVector *	positionFromCurrentCenter ()
G4int	size ()
Static Public Member Functions
static BDSBeamline *	Instance ()
Private Member Functions
	BDSBeamline ()
void	setRefTransform (BDSAcceleratorComponent *var)
void	doNavigation ()
Private Attributes
std::list< BDSAcceleratorComponent * >	_componentList
std::list< BDSAcceleratorComponent * >::const_iterator	_iterComponent
std::list< BDSAcceleratorComponent * >::const_iterator	_iterLastComponent
G4ThreeVector *	_localX
G4ThreeVector *	_localY
G4ThreeVector *	_localZ
G4ThreeVector *	_position
G4ThreeVector *	_positionStart
G4ThreeVector *	_positionEnd
G4ThreeVector *	_positionFromCurrentCenter
G4double	_positionS
G4ThreeVector *	_zHalfAngle
G4RotationMatrix *	_rotationLocal
G4RotationMatrix *	_rotationGlobal
G4RotationMatrix *	_rotation
std::list< G4RotationMatrix * >	_rotationList
std::list< G4RotationMatrix * >	_rotationGlobalList
std::list< G4ThreeVector * >	_positionList
std::list< G4ThreeVector * >	_positionStartList
std::list< G4ThreeVector * >	_positionEndList
std::list< G4ThreeVector * >	_positionFromCurrentCenterList
std::list< G4double >	_positionSList
std::list< G4RotationMatrix * >::const_iterator	_iterRotation
std::list< G4RotationMatrix * >::const_iterator	_iterRotationGlobal
std::list< G4ThreeVector * >::const_iterator	_iterPosition
std::list< G4ThreeVector * >::const_iterator	_iterPositionStart
std::list< G4ThreeVector * >::const_iterator	_iterPositionEnd
std::list< G4ThreeVector * >::const_iterator	_iterPositionFromCurrentCenter
std::list< G4double >::const_iterator	_iterPositionS
G4double	_s_local
G4double	_s_total
Static Private Attributes
static BDSBeamline *	_instance = 0

---

Detailed Description

Definition at line 10 of file BDSBeamline.hh.

---

The documentation for this class was generated from the following files:

• include/BDSBeamline.hh
• src/BDSBeamline.cc

---
