A registry of constructed BDSAcceleratorComponent instances that can be searched. More...

#include <BDSAcceleratorComponentRegistry.hh>

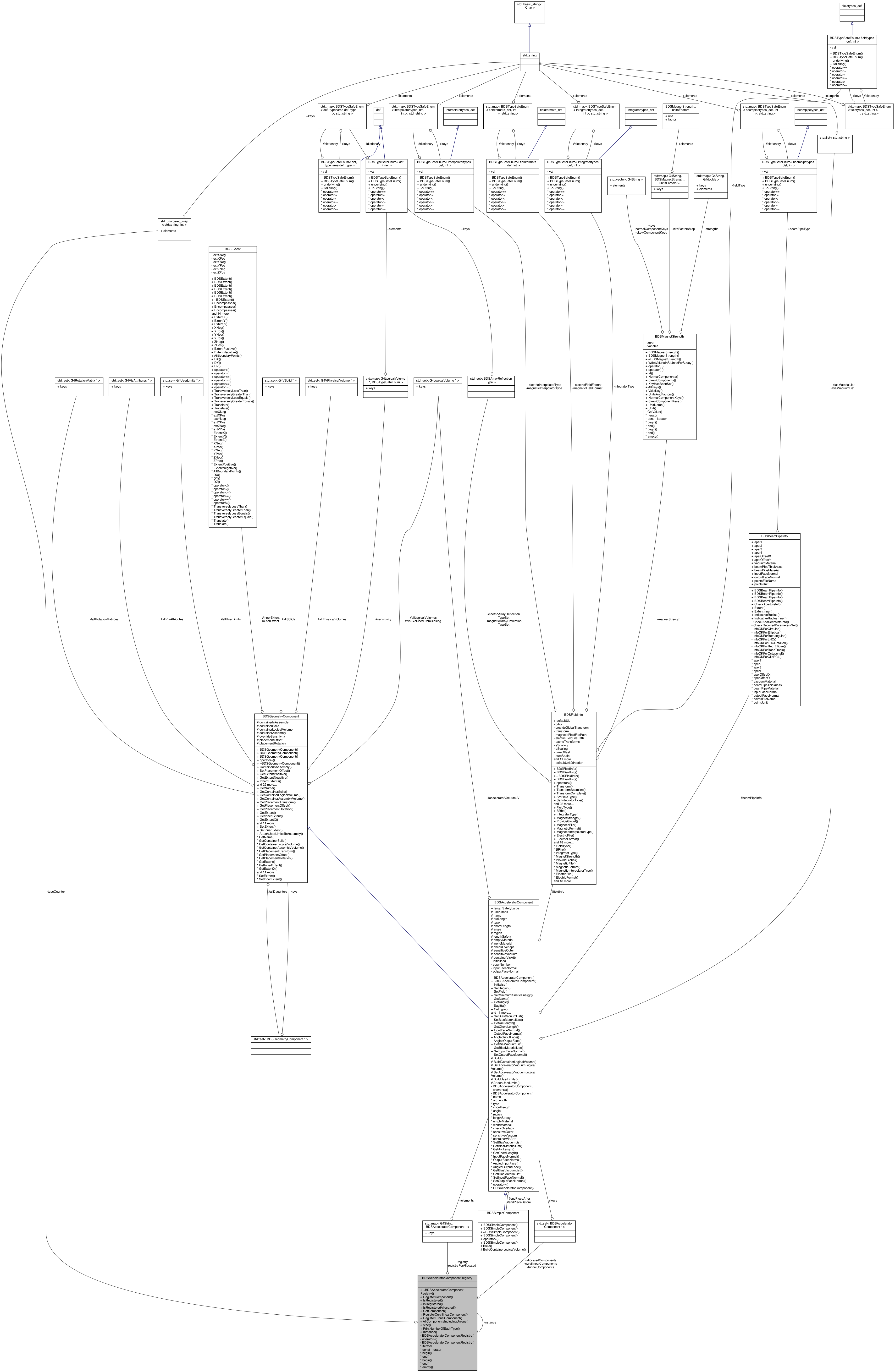

Collaboration diagram for BDSAcceleratorComponentRegistry:

Public Member Functions
	~BDSAcceleratorComponentRegistry ()

void	RegisterComponent (BDSAcceleratorComponent *component, bool isModified=false)

G4bool	IsRegistered (BDSAcceleratorComponent *component)
	Check whether an accelerator component is already registered. More...

G4bool	IsRegistered (const G4String &componentName)
	Check whether an accelerator component is already registered by name. More...

G4bool	IsRegisteredAllocated (const BDSAcceleratorComponent *componentName) const
	Check if a unique component is registered in the allocatedComponents. More...

BDSAcceleratorComponent *	GetComponent (const G4String &name)

void	RegisterCurvilinearComponent (BDSAcceleratorComponent *component)

void	RegisterTunnelComponent (BDSAcceleratorComponent *component)

std::map< G4String, BDSAcceleratorComponent * >	AllComponentsIncludingUnique () const

size_t	size () const
	Size of registry. More...

void	PrintNumberOfEachType () const
	Print out the number of each type of component registered. More...

Static Public Member Functions
static BDSAcceleratorComponentRegistry *	Instance ()
	Singleton accessor. More...

Private Types
typedef std::map< G4String, BDSAcceleratorComponent * >	RegistryMap

Private Member Functions
	BDSAcceleratorComponentRegistry ()
	Default constructor is private as singleton. More...

BDSAcceleratorComponentRegistry &	operator= (const BDSAcceleratorComponentRegistry &)
	assignment and copy constructor not implemented nor used

	BDSAcceleratorComponentRegistry (BDSAcceleratorComponentRegistry &)

Private Attributes
RegistryMap	registry
	Registry is a map - note 'register' is a protected keyword. More...

RegistryMap	registryForAllocated
	A map for absolutely everything including components that are unique. More...

std::set< BDSAcceleratorComponent * >	allocatedComponents
	Set of created components not in registry, for memory management. More...

std::set< BDSAcceleratorComponent * >	curvilinearComponents
	Set of curvilinear components - purely for memory management. More...

std::set< BDSAcceleratorComponent * >	tunnelComponents

std::unordered_map< std::string, int >	typeCounter

Static Private Attributes
static BDSAcceleratorComponentRegistry *	instance = nullptr
	The singleton instance. More...

Friends
std::ostream &	operator<< (std::ostream &out, BDSAcceleratorComponentRegistry const &r)
	Output stream. More...

typedef RegistryMap::iterator	iterator

typedef RegistryMap::const_iterator	const_iterator

iterator	begin ()

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

G4bool	empty () const

Detailed Description

A registry of constructed BDSAcceleratorComponent instances that can be searched.

Uses an std::map rather than unordered map as although slower to access (less often and only at construction), a map is faster for iterating than an unordered map, which will be required to apply wrapper physics processes - relatively common.

NOTE, the iterations of the registry applies only to components that can be reused. The AllAllocatedComponents function should be used to access all components held in memory in the registry.

Author: Laurie Nevay

Definition at line 48 of file BDSAcceleratorComponentRegistry.hh.

Member Typedef Documentation

◆ const_iterator

typedef RegistryMap::const_iterator BDSAcceleratorComponentRegistry::const_iterator

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 111 of file BDSAcceleratorComponentRegistry.hh.

◆ iterator

typedef RegistryMap::iterator BDSAcceleratorComponentRegistry::iterator

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 110 of file BDSAcceleratorComponentRegistry.hh.

◆ RegistryMap

typedef std::map<G4String, BDSAcceleratorComponent*> BDSAcceleratorComponentRegistry::RegistryMap

private

Use a typedef for this specific map implementation so we can easily define iterators and internal member variables without risking getting the exact map declaration wrong.

Definition at line 55 of file BDSAcceleratorComponentRegistry.hh.

Constructor & Destructor Documentation

◆ ~BDSAcceleratorComponentRegistry()

BDSAcceleratorComponentRegistry::~BDSAcceleratorComponentRegistry ( )

Destructor resets instance to 0 so that the class can be reinstantiated if necessary.

Definition at line 40 of file BDSAcceleratorComponentRegistry.cc.

References allocatedComponents, curvilinearComponents, instance, and registry.

◆ BDSAcceleratorComponentRegistry()

BDSAcceleratorComponentRegistry::BDSAcceleratorComponentRegistry ( )

private

Default constructor is private as singleton.

Definition at line 37 of file BDSAcceleratorComponentRegistry.cc.

Referenced by Instance().

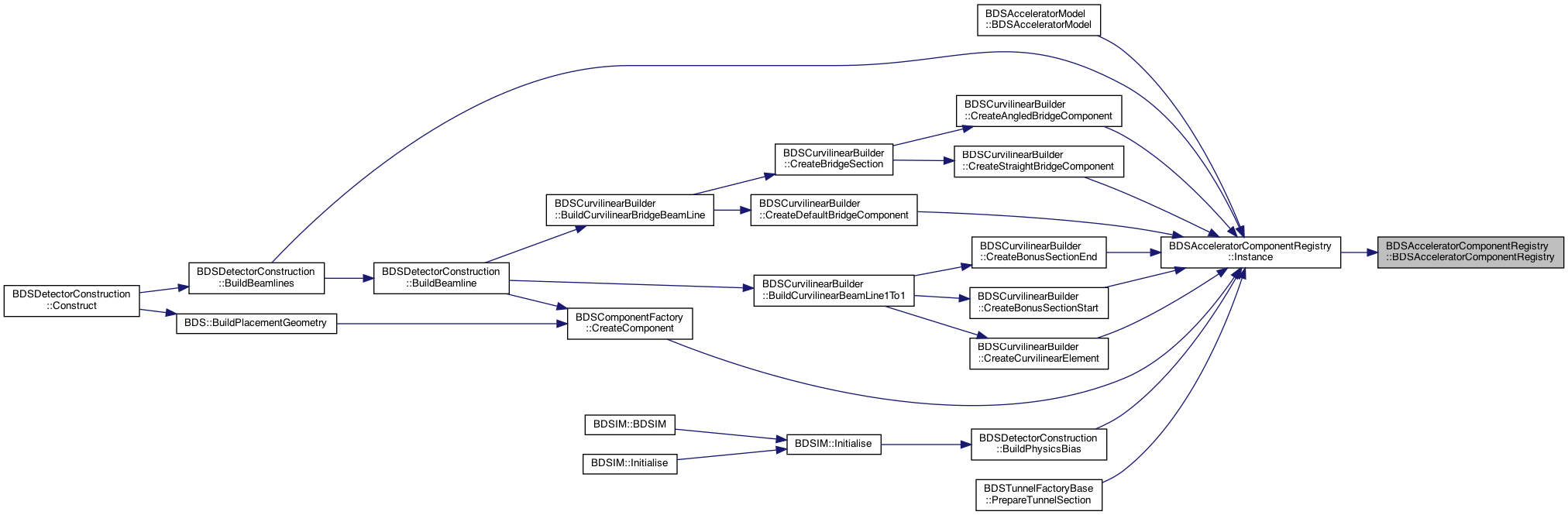

Here is the caller graph for this function:

Member Function Documentation

◆ AllComponentsIncludingUnique()

std::map< G4String, BDSAcceleratorComponent * > BDSAcceleratorComponentRegistry::AllComponentsIncludingUnique ( ) const

Access a map of all accelerator components by name, including ones that are uniquely built and stored only for memory management.

Definition at line 133 of file BDSAcceleratorComponentRegistry.cc.

References registry, and registryForAllocated.

Referenced by BDSDetectorConstruction::BuildPhysicsBias().

Here is the caller graph for this function:

◆ begin() [1/2]

iterator BDSAcceleratorComponentRegistry::begin ( )

inline

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 112 of file BDSAcceleratorComponentRegistry.hh.

References registry.

◆ begin() [2/2]

const_iterator BDSAcceleratorComponentRegistry::begin ( ) const

inline

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 114 of file BDSAcceleratorComponentRegistry.hh.

References registry.

◆ empty()

G4bool BDSAcceleratorComponentRegistry::empty ( ) const

inline

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 116 of file BDSAcceleratorComponentRegistry.hh.

References registry.

◆ end() [1/2]

iterator BDSAcceleratorComponentRegistry::end ( )

inline

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 113 of file BDSAcceleratorComponentRegistry.hh.

References registry.

◆ end() [2/2]

const_iterator BDSAcceleratorComponentRegistry::end ( ) const

inline

NOTE the iterator works only over components that can be reused and not allocated components. Iterator mechanics

Definition at line 115 of file BDSAcceleratorComponentRegistry.hh.

References registry.

◆ GetComponent()

BDSAcceleratorComponent * BDSAcceleratorComponentRegistry::GetComponent ( const G4String & name )

Access an already constructed component - will return null if no such component found. This is safe as this registry is primarily used by BDSComponentFactory which can return nullptr to BDSDetectorConstruction safely if an invalid component is requested.

Definition at line 112 of file BDSAcceleratorComponentRegistry.cc.

References registry.

Referenced by BDSComponentFactory::CreateComponent().

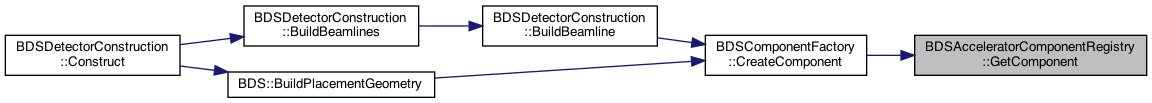

Here is the caller graph for this function:

◆ Instance()

BDSAcceleratorComponentRegistry * BDSAcceleratorComponentRegistry::Instance ( )

static

Singleton accessor.

Definition at line 30 of file BDSAcceleratorComponentRegistry.cc.

References BDSAcceleratorComponentRegistry(), and instance.

Referenced by BDSAcceleratorModel::BDSAcceleratorModel(), BDSDetectorConstruction::BuildBeamlines(), BDSDetectorConstruction::BuildPhysicsBias(), BDSCurvilinearBuilder::CreateAngledBridgeComponent(), BDSCurvilinearBuilder::CreateBonusSectionEnd(), BDSCurvilinearBuilder::CreateBonusSectionStart(), BDSComponentFactory::CreateComponent(), BDSCurvilinearBuilder::CreateCurvilinearElement(), BDSCurvilinearBuilder::CreateDefaultBridgeComponent(), BDSCurvilinearBuilder::CreateStraightBridgeComponent(), and BDSTunnelFactoryBase::PrepareTunnelSection().

Here is the call graph for this function:

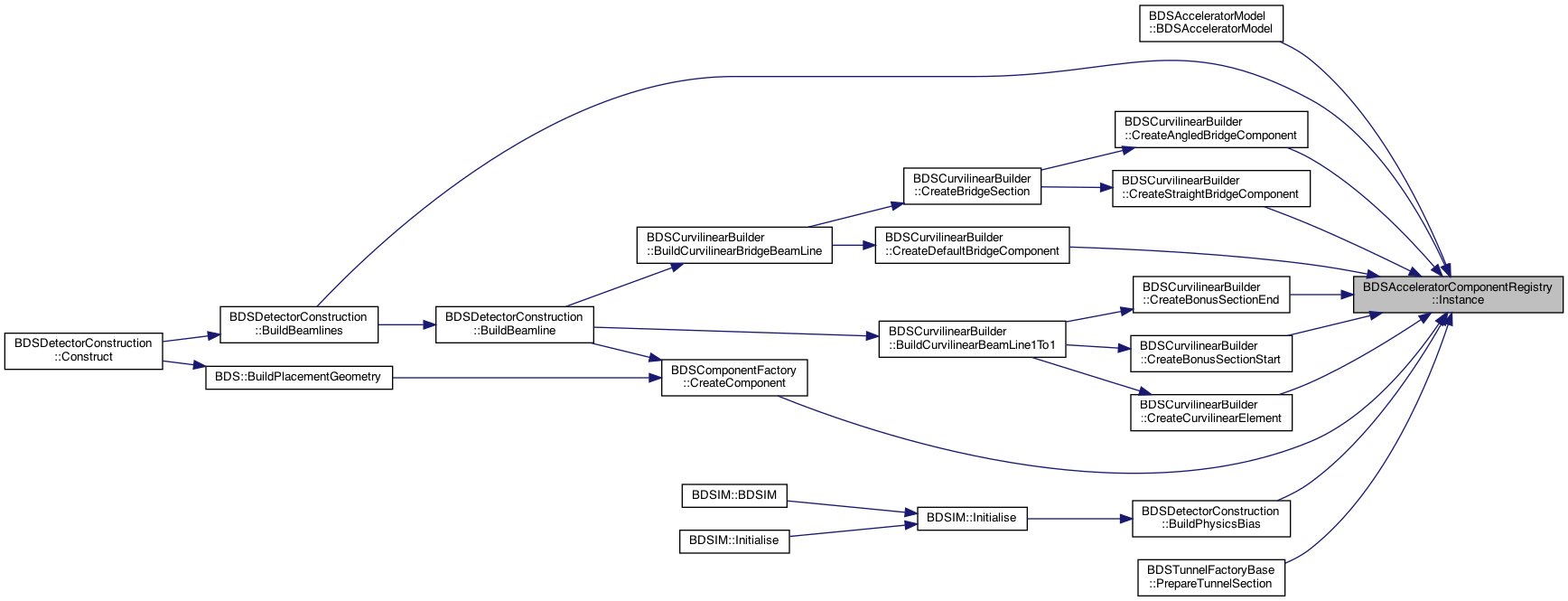

Here is the caller graph for this function:

◆ IsRegistered() [1/2]

G4bool BDSAcceleratorComponentRegistry::IsRegistered ( BDSAcceleratorComponent * component )

Check whether an accelerator component is already registered.

Definition at line 96 of file BDSAcceleratorComponentRegistry.cc.

References BDSAcceleratorComponent::GetName(), and IsRegistered().

Referenced by IsRegistered(), and RegisterComponent().

Here is the call graph for this function:

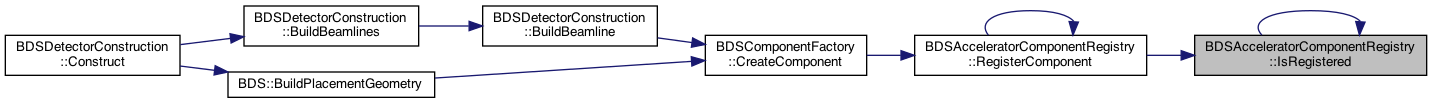

Here is the caller graph for this function:

◆ IsRegistered() [2/2]

G4bool BDSAcceleratorComponentRegistry::IsRegistered ( const G4String & componentName )

Check whether an accelerator component is already registered by name.

Definition at line 106 of file BDSAcceleratorComponentRegistry.cc.

References registry.

◆ IsRegisteredAllocated()

G4bool BDSAcceleratorComponentRegistry::IsRegisteredAllocated ( const BDSAcceleratorComponent * componentName ) const

Check if a unique component is registered in the allocatedComponents.

Definition at line 101 of file BDSAcceleratorComponentRegistry.cc.

References allocatedComponents.

Referenced by RegisterComponent().

Here is the caller graph for this function:

◆ PrintNumberOfEachType()

void BDSAcceleratorComponentRegistry::PrintNumberOfEachType ( ) const

Print out the number of each type of component registered.

Definition at line 152 of file BDSAcceleratorComponentRegistry.cc.

References typeCounter.

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the caller graph for this function:

◆ RegisterComponent()

void BDSAcceleratorComponentRegistry::RegisterComponent	(	BDSAcceleratorComponent *	component,
		bool	isModified = `false`
	)

Register a BDSAcceleratorComponent. Once in the registry, can be reused through GetComponent function. Optional flag isModified indicates that the component was modified beyond its original parser definition (ie likely to match the face of another component) and should not be reused even if it appears later in the lattice. In this case, it is stored here, purely for memory management. Note, the registry of allocated components relies on unique naming for unique components. ie sb1_mod_0 and sb1_mod_1.

Definition at line 57 of file BDSAcceleratorComponentRegistry.cc.

References allocatedComponents, BDSAcceleratorComponent::GetName(), BDSAcceleratorComponent::GetType(), IsRegistered(), IsRegisteredAllocated(), RegisterComponent(), registry, registryForAllocated, and typeCounter.

Referenced by BDSComponentFactory::CreateComponent(), and RegisterComponent().

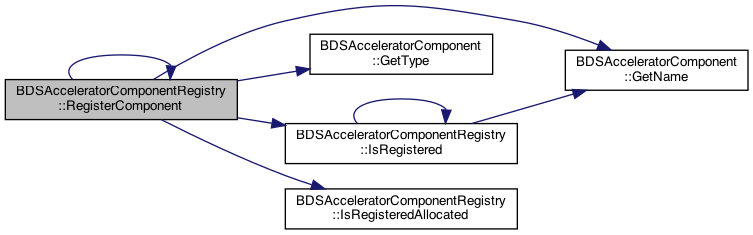

Here is the call graph for this function:

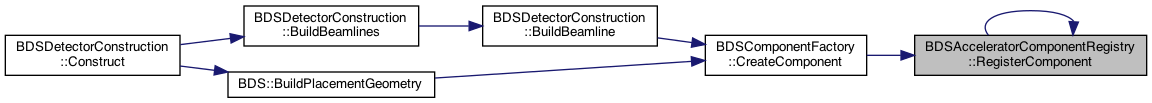

Here is the caller graph for this function:

◆ RegisterCurvilinearComponent()

void BDSAcceleratorComponentRegistry::RegisterCurvilinearComponent ( BDSAcceleratorComponent * component )

Register a curvilinear component - purely to keep track of and delete at the end of the program.

Definition at line 123 of file BDSAcceleratorComponentRegistry.cc.

References curvilinearComponents.

Referenced by BDSCurvilinearBuilder::CreateAngledBridgeComponent(), BDSCurvilinearBuilder::CreateBonusSectionEnd(), BDSCurvilinearBuilder::CreateBonusSectionStart(), BDSCurvilinearBuilder::CreateCurvilinearElement(), BDSCurvilinearBuilder::CreateDefaultBridgeComponent(), and BDSCurvilinearBuilder::CreateStraightBridgeComponent().

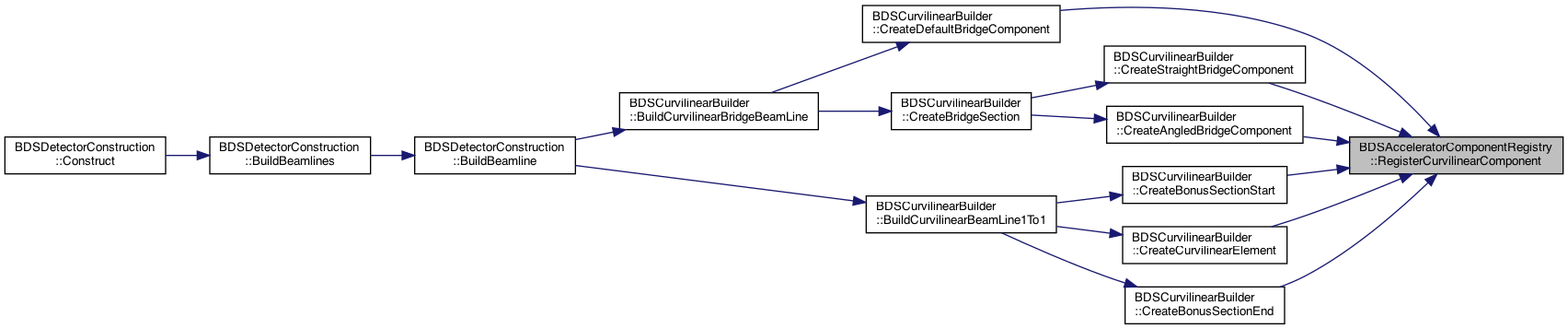

Here is the caller graph for this function:

◆ RegisterTunnelComponent()

void BDSAcceleratorComponentRegistry::RegisterTunnelComponent ( BDSAcceleratorComponent * component )

Register a tunnel component - purely to keep track of and delete at the end of the program.

Definition at line 128 of file BDSAcceleratorComponentRegistry.cc.

Referenced by BDSTunnelFactoryBase::PrepareTunnelSection().

Here is the caller graph for this function:

◆ size()

size_t BDSAcceleratorComponentRegistry::size ( ) const

inline

Size of registry.

Definition at line 120 of file BDSAcceleratorComponentRegistry.hh.

References registry.

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSAcceleratorComponentRegistry const &	r
	)

friend

Output stream.

Definition at line 141 of file BDSAcceleratorComponentRegistry.cc.

Field Documentation

◆ allocatedComponents

std::set<BDSAcceleratorComponent*> BDSAcceleratorComponentRegistry::allocatedComponents

private

Set of created components not in registry, for memory management.

Definition at line 140 of file BDSAcceleratorComponentRegistry.hh.

Referenced by IsRegisteredAllocated(), RegisterComponent(), and ~BDSAcceleratorComponentRegistry().

◆ curvilinearComponents

std::set<BDSAcceleratorComponent*> BDSAcceleratorComponentRegistry::curvilinearComponents

private

Set of curvilinear components - purely for memory management.

Definition at line 143 of file BDSAcceleratorComponentRegistry.hh.

Referenced by RegisterCurvilinearComponent(), and ~BDSAcceleratorComponentRegistry().

◆ instance

BDSAcceleratorComponentRegistry * BDSAcceleratorComponentRegistry::instance = nullptr

staticprivate

The singleton instance.

Definition at line 133 of file BDSAcceleratorComponentRegistry.hh.

Referenced by Instance(), and ~BDSAcceleratorComponentRegistry().

◆ registry

RegistryMap BDSAcceleratorComponentRegistry::registry

private

Registry is a map - note 'register' is a protected keyword.

Definition at line 58 of file BDSAcceleratorComponentRegistry.hh.

Referenced by AllComponentsIncludingUnique(), begin(), empty(), end(), GetComponent(), IsRegistered(), RegisterComponent(), size(), and ~BDSAcceleratorComponentRegistry().

◆ registryForAllocated

RegistryMap BDSAcceleratorComponentRegistry::registryForAllocated

private

A map for absolutely everything including components that are unique.

Definition at line 61 of file BDSAcceleratorComponentRegistry.hh.

Referenced by AllComponentsIncludingUnique(), and RegisterComponent().

◆ tunnelComponents

std::set<BDSAcceleratorComponent*> BDSAcceleratorComponentRegistry::tunnelComponents

private

Definition at line 145 of file BDSAcceleratorComponentRegistry.hh.

◆ typeCounter

std::unordered_map<std::string, int> BDSAcceleratorComponentRegistry::typeCounter

private

Map to count the number of each type registered. We have to use std::string as G4String doesn't provide a hash for the unordered map. We use unordered map because it's faster for insertions and retrievals but slow for range iteration which we only do for debug print out or once.

Definition at line 151 of file BDSAcceleratorComponentRegistry.hh.

Referenced by PrintNumberOfEachType(), and RegisterComponent().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSAcceleratorComponentRegistry.hh
/Users/nevay/physics/reps/bdsim/src/BDSAcceleratorComponentRegistry.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ iterator

◆ RegistryMap

Constructor & Destructor Documentation

◆ ~BDSAcceleratorComponentRegistry()

◆ BDSAcceleratorComponentRegistry()

Member Function Documentation

◆ AllComponentsIncludingUnique()

◆ begin() [1/2]

◆ begin() [2/2]

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ GetComponent()

◆ Instance()

◆ IsRegistered() [1/2]

◆ IsRegistered() [2/2]

◆ IsRegisteredAllocated()

◆ PrintNumberOfEachType()

◆ RegisterComponent()

◆ RegisterCurvilinearComponent()

◆ RegisterTunnelComponent()

◆ size()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ allocatedComponents

◆ curvilinearComponents

◆ instance

◆ registry

◆ registryForAllocated

◆ tunnelComponents

◆ typeCounter
