Factory to produce all types of BDSAcceleratorComponents. More...

#include <BDSComponentFactory.hh>

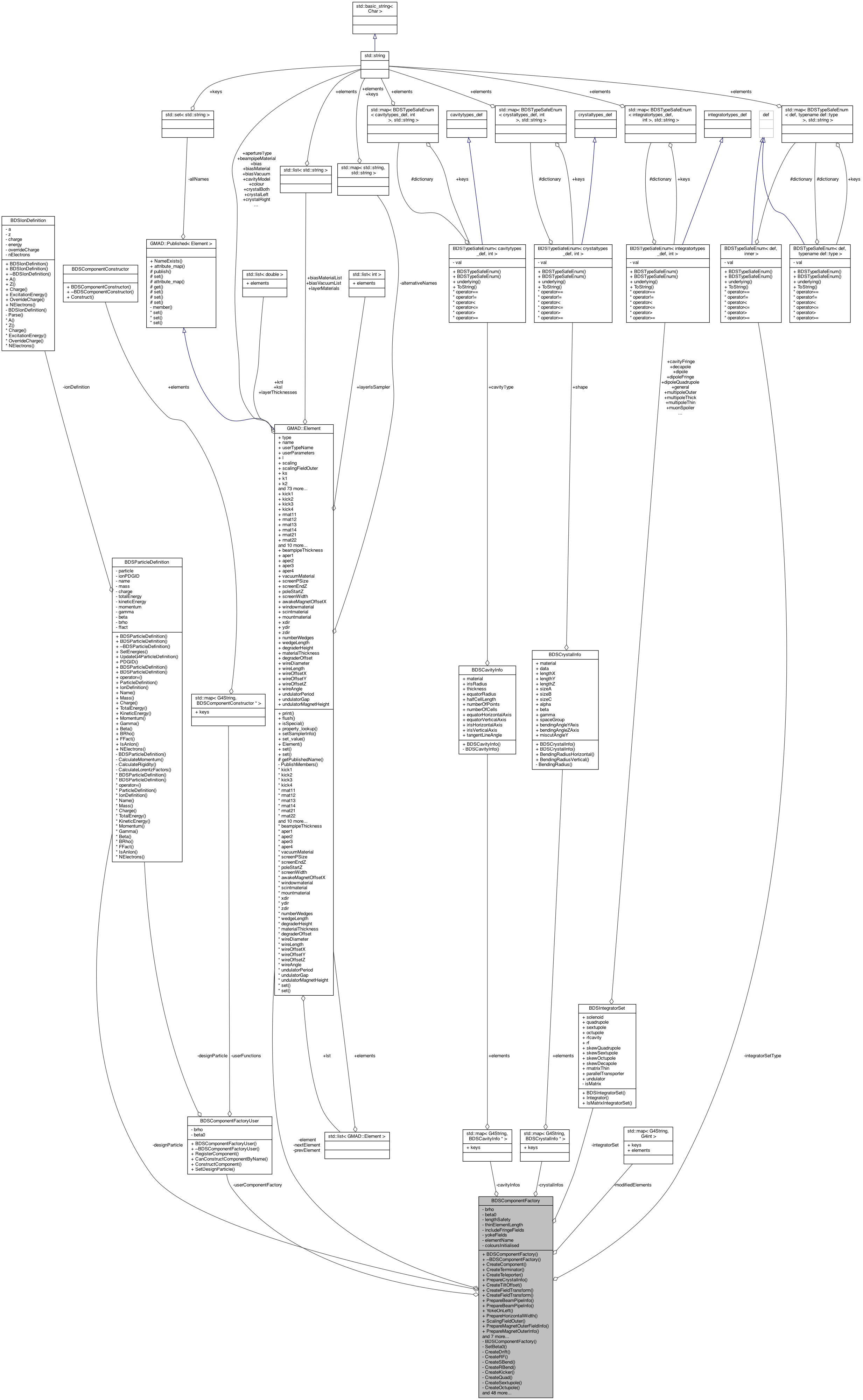

Collaboration diagram for BDSComponentFactory:

Public Member Functions
	BDSComponentFactory (const BDSParticleDefinition designParticleIn, BDSComponentFactoryUser userComponentFactoryIn=nullptr, G4bool usualPrintOut=true)

BDSAcceleratorComponent *	CreateComponent (GMAD::Element const elementIn, GMAD::Element const prevElementIn, GMAD::Element const *nextElementIn, G4double currentArcLength=0)

BDSAcceleratorComponent *	CreateTerminator (G4double witdth)

BDSAcceleratorComponent *	CreateTeleporter (const G4double teleporterLength, const G4double teleporterWidth, const G4Transform3D &transformIn)

BDSCrystalInfo *	PrepareCrystalInfo (const G4String &crystalName) const

Static Public Member Functions
static BDSTiltOffset *	CreateTiltOffset (GMAD::Element const *el)
	Create the tilt and offset information object by inspecting the parser element. More...

static G4Transform3D	CreateFieldTransform (const BDSTiltOffset *tiltOffset)
	Create a transform from a tilt offset. If nullptr, returns identity transform. More...

static G4Transform3D	CreateFieldTransform (GMAD::Element const *el)

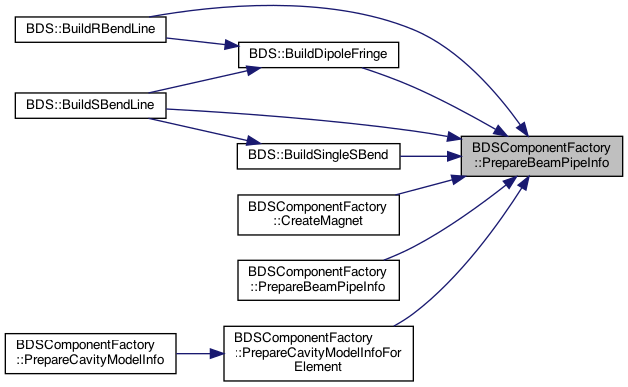

static BDSBeamPipeInfo *	PrepareBeamPipeInfo (GMAD::Element const *el, const G4ThreeVector &inputFaceNormal=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormal=G4ThreeVector(0, 0, 1))

static BDSBeamPipeInfo *	PrepareBeamPipeInfo (GMAD::Element const *el, G4double angleIn, G4double angleOut)

static G4bool	YokeOnLeft (const GMAD::Element el, const BDSMagnetStrength st)

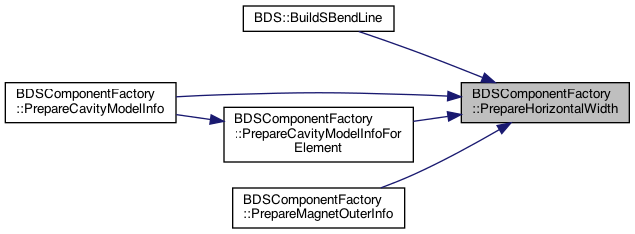

static G4double	PrepareHorizontalWidth (GMAD::Element const *el, G4double defaultHorizontalWidth=-1)
	Prepare the element horizontal width in Geant4 units - if not set, use the global default. More...

static G4double	ScalingFieldOuter (const GMAD::Element *ele)

static BDSFieldInfo *	PrepareMagnetOuterFieldInfo (const BDSMagnetStrength vacuumSt, const BDSFieldType &fieldType, const BDSBeamPipeInfo bpInfo, const BDSMagnetOuterInfo outerInfo, const G4Transform3D &fieldTransform, const BDSIntegratorSet integratorSetIn, G4double brhoIn, G4double outerFieldScaling=1.0)
	Prepare the field definition for the yoke of a magnet. More...

static BDSMagnetOuterInfo *	PrepareMagnetOuterInfo (const G4String &elementNameIn, const GMAD::Element el, const BDSMagnetStrength st, const BDSBeamPipeInfo *beamPipe, G4double defaultHorizontalWidth=-1, G4double defaultVHRatio=1.0, G4double defaultCoilWidthFraction=-1, G4double defaultCoilHeightFraction=-1)

static BDSMagnetGeometryType	MagnetGeometryType (const GMAD::Element *el)

static BDSMagnetOuterInfo *	PrepareMagnetOuterInfo (const G4String &elementNameIn, const GMAD::Element el, const G4double angleIn, const G4double angleOut, const BDSBeamPipeInfo beamPipe, const G4bool yokeOnLeft=false, G4double defaultHorizontalWidth=-1, G4double defaultVHRatio=-1, G4double defaultCoilWidthFraction=-1, G4double defaultCoilHeightFraction=-1)

static G4Colour *	PrepareColour (GMAD::Element const *element)
	Checks if colour is specified for element, else uses the default for that element type. More...

static G4Material *	PrepareMaterial (GMAD::Element const *element, const G4String &defaultMaterialName)
	Checks if a material is named in Element::material, else uses the supplied default. More...

static G4Material *	PrepareMaterial (GMAD::Element const *element)
	Try and get a material and exit if no such material. More...

static void	CheckBendLengthAngleWidthCombo (G4double arcLength, G4double angle, G4double horizontalWidth, const G4String &name="not given")

static void	PoleFaceRotationsNotTooLarge (const GMAD::Element el, G4double maxAngle=0.5 CLHEP::halfpi)
	Check whether the pole face rotation angles are too big for practical construction. More...

Private Types
enum class	KickerType { horizontal , vertical , general }
	Private enum for kicker types. More...

Private Member Functions
	BDSComponentFactory ()=delete
	No default constructor.

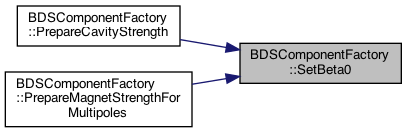

void	SetBeta0 (BDSMagnetStrength *stIn) const
	Simple setter used to add Beta0 to a strength instance. More...

BDSAcceleratorComponent *	CreateDrift (G4double angleIn, G4double angleOut)

BDSAcceleratorComponent *	CreateRF (G4double currentArcLength)

BDSAcceleratorComponent *	CreateSBend ()

BDSAcceleratorComponent *	CreateRBend ()

BDSAcceleratorComponent *	CreateKicker (KickerType type)

BDSAcceleratorComponent *	CreateQuad ()

BDSAcceleratorComponent *	CreateSextupole ()

BDSAcceleratorComponent *	CreateOctupole ()

BDSAcceleratorComponent *	CreateDecapole ()

BDSAcceleratorComponent *	CreateMultipole ()

BDSAcceleratorComponent *	CreateThinMultipole (G4double angleIn)

BDSAcceleratorComponent *	CreateElement ()

BDSAcceleratorComponent *	CreateSolenoid ()

BDSAcceleratorComponent *	CreateParallelTransporter ()

BDSAcceleratorComponent *	CreateRectangularCollimator ()

BDSAcceleratorComponent *	CreateTarget ()

BDSAcceleratorComponent *	CreateEllipticalCollimator ()

BDSAcceleratorComponent *	CreateJawCollimator ()

BDSAcceleratorComponent *	CreateMuonSpoiler ()

BDSAcceleratorComponent *	CreateShield ()

BDSAcceleratorComponent *	CreateDegrader ()

BDSAcceleratorComponent *	CreateGap ()

BDSAcceleratorComponent *	CreateCrystalCollimator ()

BDSAcceleratorComponent *	CreateLaser ()

BDSAcceleratorComponent *	CreateScreen ()

BDSAcceleratorComponent *	CreateTransform3D ()

BDSAcceleratorComponent *	CreateWireScanner ()

BDSAcceleratorComponent *	CreateRMatrix ()

BDSAcceleratorComponent *	CreateThinRMatrix (G4double angleIn, const G4String &name)

BDSAcceleratorComponent *	CreateThinRMatrix (G4double angleIn, BDSMagnetStrength *stIn, const G4String &name, BDSIntegratorType intType=BDSIntegratorType::rmatrixthin, BDSFieldType fieldType=BDSFieldType::rmatrix, G4double beamPipeRadius=0)

BDSAcceleratorComponent *	CreateUndulator ()

BDSAcceleratorComponent *	CreateDump ()

BDSAcceleratorComponent *	CreateCT ()

BDSAcceleratorComponent *	CreateCavityFringe (G4double angleIn, BDSMagnetStrength *stIn, const G4String &name, G4double irisRadius)

BDSAcceleratorComponent *	CreateAwakeScreen ()

BDSAcceleratorComponent *	CreateAwakeSpectrometer ()

BDSMagnet *	CreateMagnet (const GMAD::Element el, BDSMagnetStrength st, BDSFieldType fieldType, BDSMagnetType magnetType, G4double angle=0.0, const G4String &nameSuffix="") const
	Helper method for common magnet construction. More...

G4bool	HasSufficientMinimumLength (GMAD::Element const *el, G4bool printWarning=true)
	Test the component length is sufficient for practical construction. More...

G4Material *	PrepareVacuumMaterial (GMAD::Element const *el) const
	Prepare the vacuum material from the element or resort to default in options. More...

void	PrepareCavityModels ()

void	PrepareColours ()
	Prepare all colours defined in the parser. More...

void	PrepareCrystals ()
	Prepare all crystals in defined the parser. More...

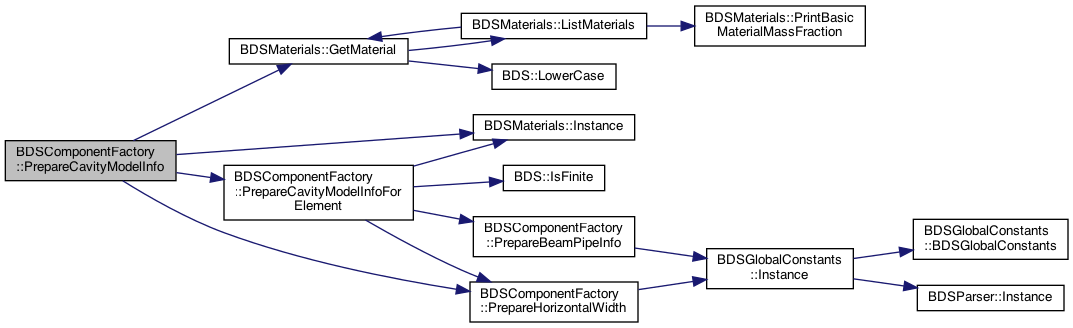

BDSCavityInfo *	PrepareCavityModelInfo (GMAD::Element const *el, G4double frequency) const

BDSCavityInfo *	PrepareCavityModelInfoForElement (GMAD::Element const *el, G4double frequency) const

BDSMagnetStrength *	PrepareCavityStrength (GMAD::Element const el, G4double cavityLength, G4double currentArcLength, BDSMagnetStrength &fringeIn, BDSMagnetStrength *&fringeOut) const

void	SetFieldDefinitions (GMAD::Element const el, BDSAcceleratorComponent component) const

BDSMagnetStrength *	PrepareMagnetStrengthForMultipoles (GMAD::Element const *el) const
	Prepare magnet strength for multipoles. More...

BDSMagnetStrength *	PrepareMagnetStrengthForRMatrix (GMAD::Element const *el) const
	Prepare magnet strength for rmatrix. More...

G4double	FieldFromAngle (const G4double angle, const G4double arcLength) const

G4double	AngleFromField (const G4double field, const G4double arcLength) const

void	CalculateAngleAndFieldSBend (GMAD::Element const *el, G4double &angle, G4double &field) const

void	CalculateAngleAndFieldRBend (const GMAD::Element *el, G4double &arcLength, G4double &chordLength, G4double &field, G4double &angle) const

G4double	BendAngle (const GMAD::Element *el) const
	Calculate the angle of a bend whether it's an rbend or an sbend. More...

G4double	OutgoingFaceAngle (const GMAD::Element *el) const

G4double	IncomingFaceAngle (const GMAD::Element *el) const

void	GetKickValue (G4double &hkick, G4double &vkick, const KickerType type) const

Private Attributes
const BDSParticleDefinition *	designParticle
	Particle w.r.t. which elements are built. More...

G4double	brho
	Rigidity in T*m (G4units) for beam particles. More...

G4double	beta0
	Cache of relativisitic beta for primary particle. More...

BDSComponentFactoryUser *	userComponentFactory
	User component factory if any. More...

G4double	lengthSafety
	Length safety from global constants. More...

G4double	thinElementLength
	Length of a thin element. More...

G4bool	includeFringeFields
	Cache of whether to include fringe fields. More...

G4bool	yokeFields
	Cache of whether to include yoke magnetic fields. More...

GMAD::Element const *	element = nullptr
	element for storing instead of passing around More...

GMAD::Element const *	prevElement = nullptr
	element access to previous element (can be nullptr) More...

GMAD::Element const *	nextElement = nullptr
	element access to previous element (can be nullptr) More...

std::map< G4String, BDSCavityInfo * >	cavityInfos
	Map of cavity model info instances by name. More...

std::map< G4String, BDSCrystalInfo * >	crystalInfos
	Maps of crystal info instances by name. More...

const BDSIntegratorSet *	integratorSet
	Local copy of reference to integrator set to use. More...

const BDSIntegratorSetType	integratorSetType
	Local copy of enum of the integrator set, i.e. which one it is specifically. More...

std::map< G4String, G4int >	modifiedElements

G4String	elementName
	Variable used to pass around the possibly modified name of an element. More...

Static Private Attributes
static G4bool	coloursInitialised = false

Detailed Description

Factory to produce all types of BDSAcceleratorComponents.

Creates from a parser Element the appropriate object (that inherits BDSAcceleratorComponent) and returns it. Will return nullptr if invalid type or nothing to be constructed for that particular type. Calculations on field strength and angle as well as basic parameter validity (minimum length) are done here.

The main interface requires both a previous and next GMAD::Element that the element is constructed with respect to. This is so that drifts can be matched to the faces of bends with pole face rotations etc. If required in future, a simple interface for a single element could be added that uses this one with nullptrs.

Functions for common functionality, checks and preparation of recipe classes are provided publicly (and statically) for use elsewhere.

Definition at line 75 of file BDSComponentFactory.hh.

Member Enumeration Documentation

◆ KickerType

enum class BDSComponentFactory::KickerType

strongprivate

Private enum for kicker types.

Definition at line 224 of file BDSComponentFactory.hh.

Constructor & Destructor Documentation

◆ BDSComponentFactory()

BDSComponentFactory::BDSComponentFactory	(	const BDSParticleDefinition *	designParticleIn,
		BDSComponentFactoryUser *	userComponentFactoryIn = `nullptr`,
		G4bool	usualPrintOut = `true`
	)

explicit

Definition at line 111 of file BDSComponentFactory.cc.

◆ ~BDSComponentFactory()

BDSComponentFactory::~BDSComponentFactory ( )

Definition at line 136 of file BDSComponentFactory.cc.

Member Function Documentation

◆ AngleFromField()

G4double BDSComponentFactory::AngleFromField	(	const G4double	field,
		const G4double	arcLength
	)		const

private

Calculate the angle through a length of field - uses member rigidity and charge. Length & field in g4 m / tesla units

Definition at line 2730 of file BDSComponentFactory.cc.

References brho, and BDS::IsFinite().

Referenced by CalculateAngleAndFieldSBend().

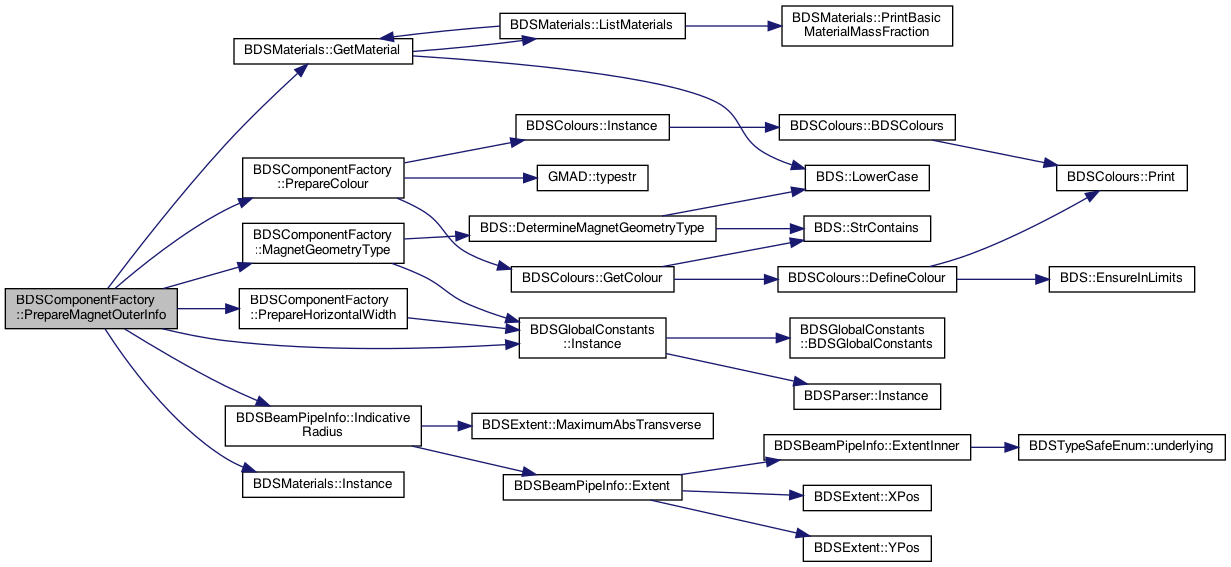

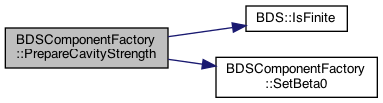

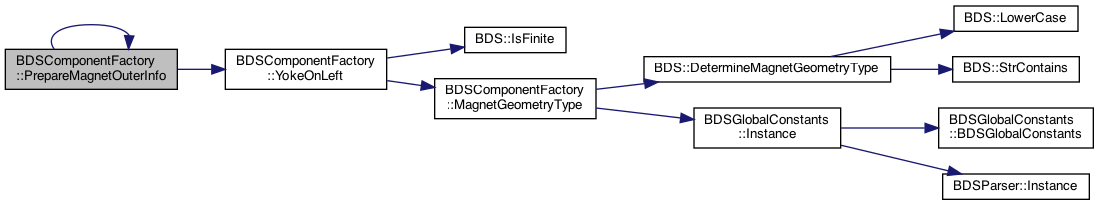

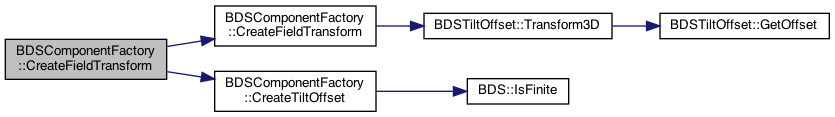

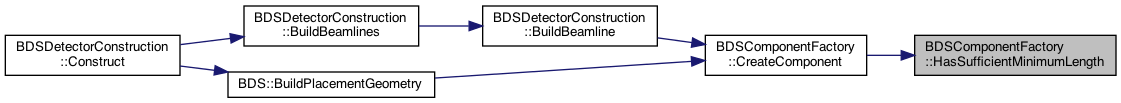

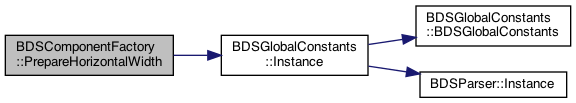

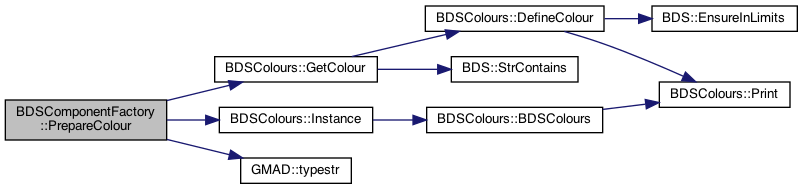

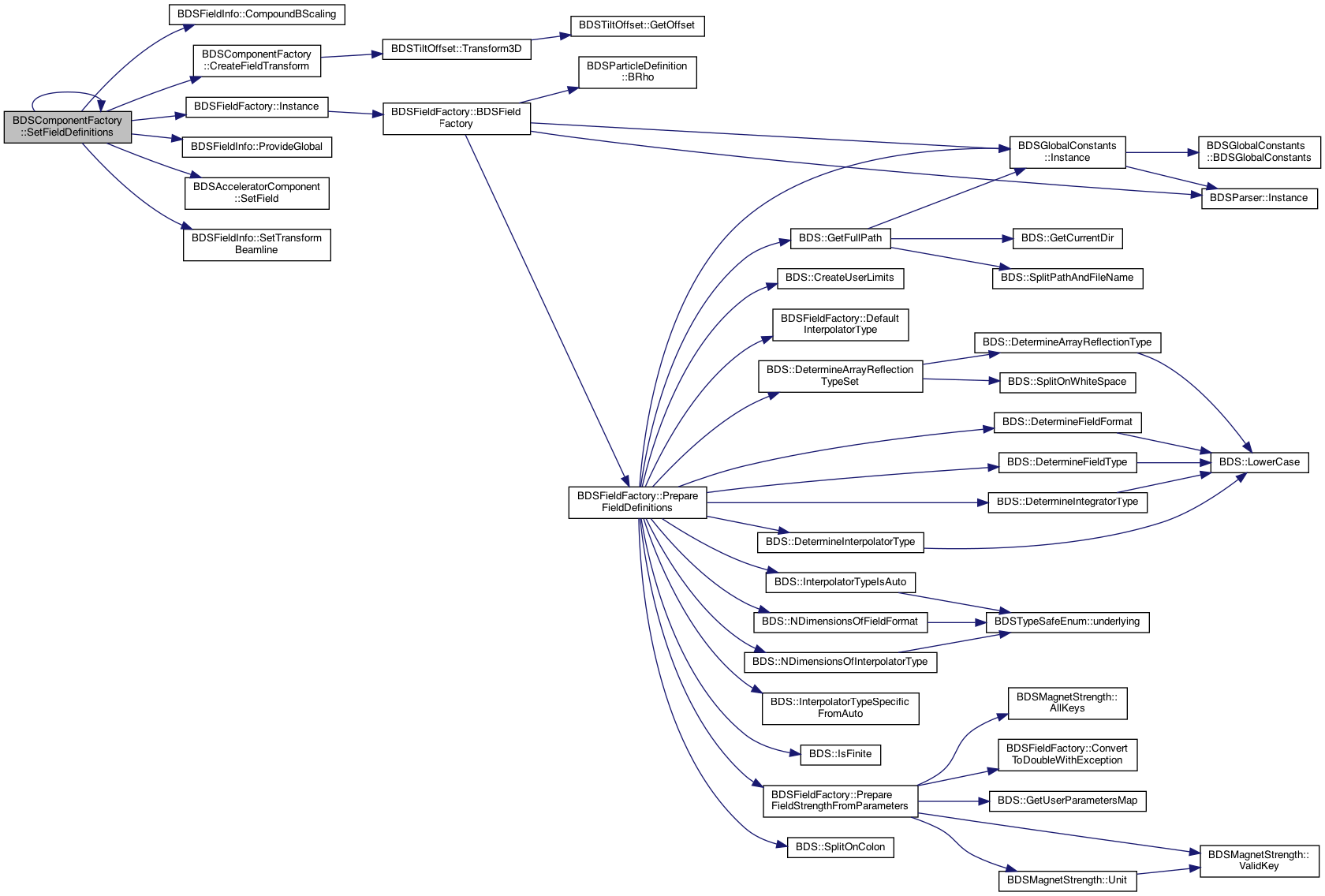

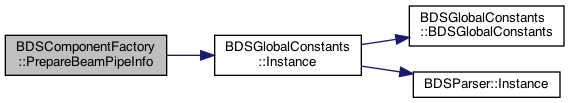

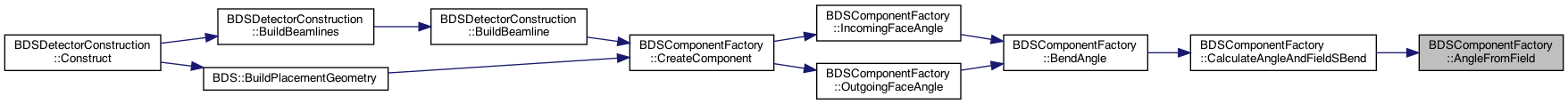

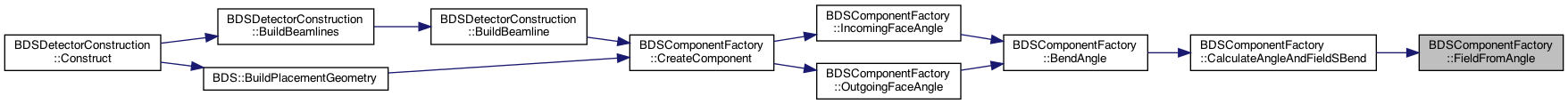

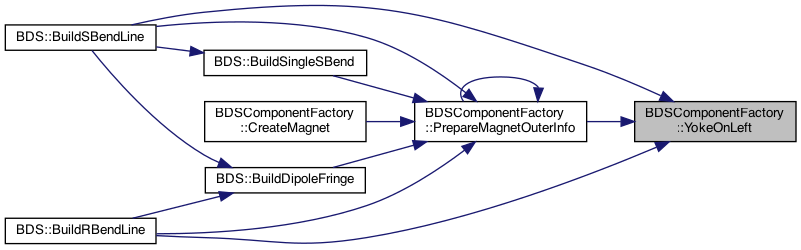

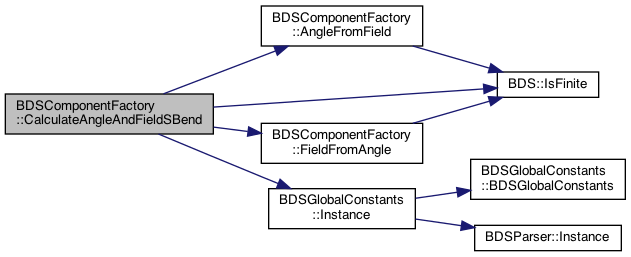

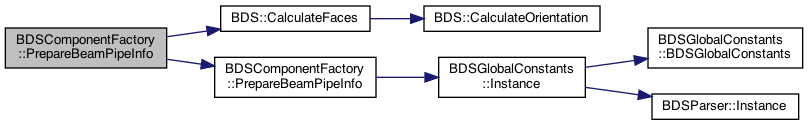

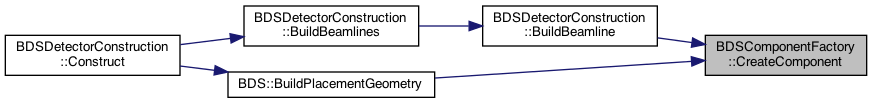

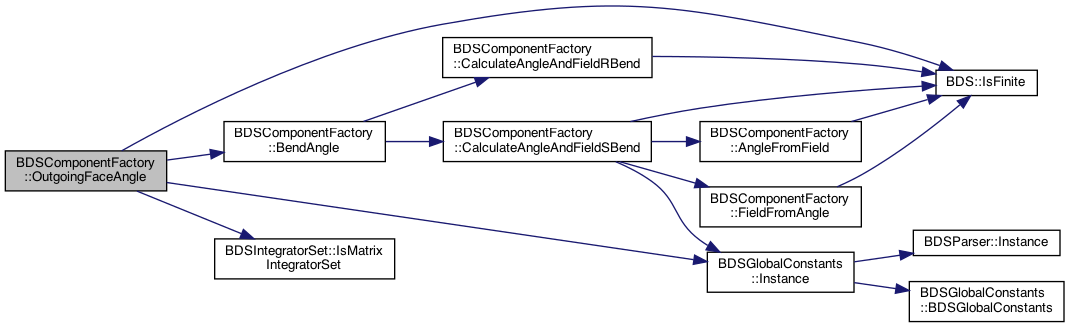

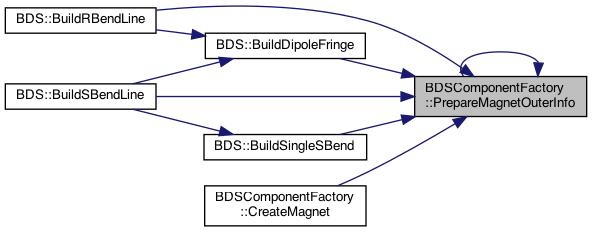

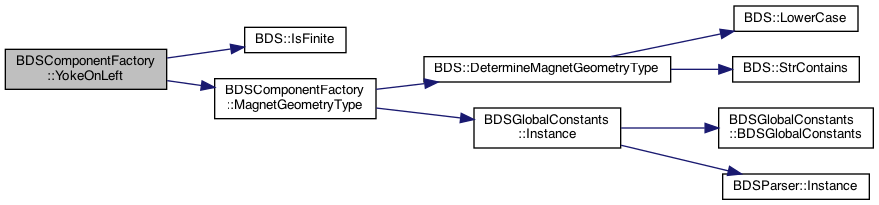

Here is the call graph for this function:

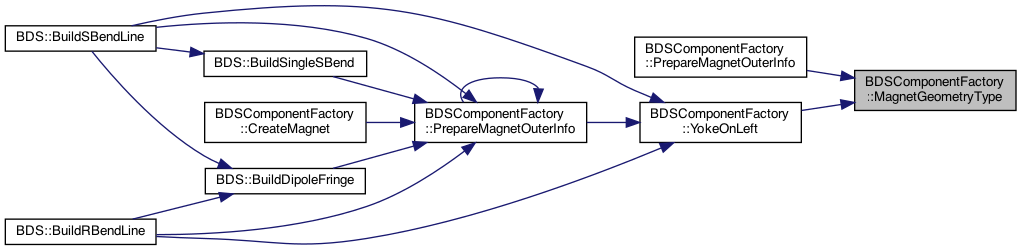

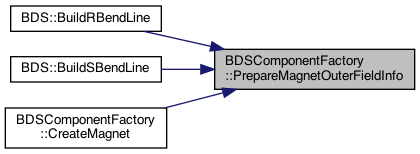

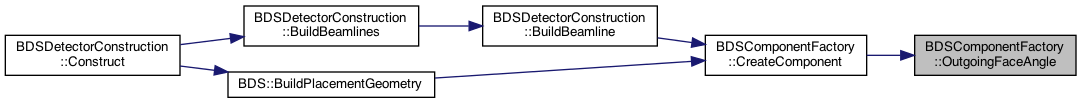

Here is the caller graph for this function:

◆ BendAngle()

G4double BDSComponentFactory::BendAngle ( const GMAD::Element * el ) const

private

Calculate the angle of a bend whether it's an rbend or an sbend.

Definition at line 2826 of file BDSComponentFactory.cc.

References CalculateAngleAndFieldRBend(), CalculateAngleAndFieldSBend(), and GMAD::Element::type.

Referenced by IncomingFaceAngle(), and OutgoingFaceAngle().

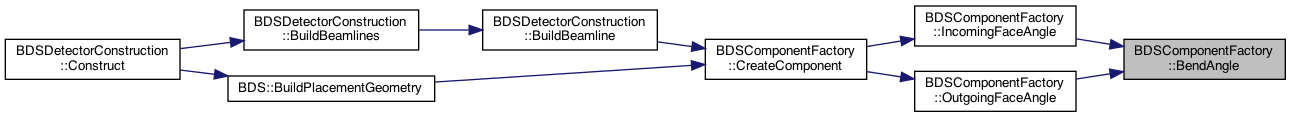

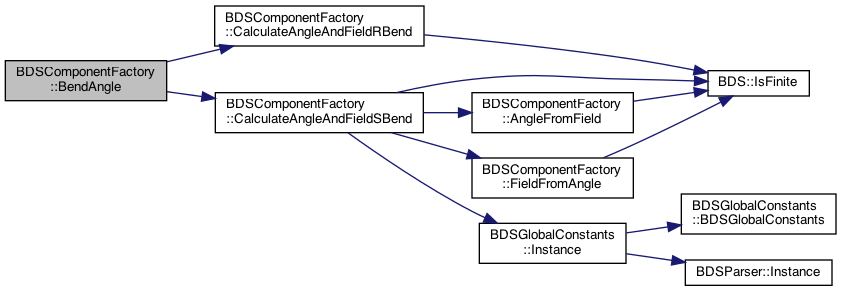

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateAngleAndFieldRBend()

void BDSComponentFactory::CalculateAngleAndFieldRBend	(	const GMAD::Element *	el,
		G4double &	arcLength,
		G4double &	chordLength,
		G4double &	field,
		G4double &	angle
	)		const

private

Calculate the field and angle of an rbend from information in the element noting the 'l' in an element is the chord length of an rbend. Variables passed by reference and are updated as output. Note, this uses the MADX convention of +ve angle -> deflection in -ve x.

Definition at line 2768 of file BDSComponentFactory.cc.

References GMAD::Element::angle, GMAD::Element::angleSet, GMAD::Element::B, brho, BDS::IsFinite(), and GMAD::Element::l.

Referenced by BendAngle().

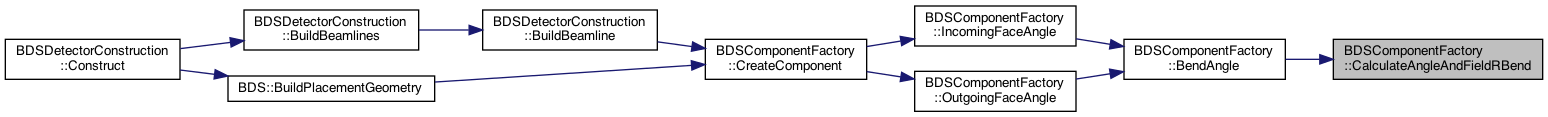

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalculateAngleAndFieldSBend()

void BDSComponentFactory::CalculateAngleAndFieldSBend	(	GMAD::Element const *	el,
		G4double &	angle,
		G4double &	field
	)		const

private

Calculate field and angle of a sector bend. Note, this uses the MADX convention of +ve angle -> deflection in -ve x.

Definition at line 2739 of file BDSComponentFactory.cc.

References GMAD::Element::angle, AngleFromField(), GMAD::Element::angleSet, GMAD::Element::B, FieldFromAngle(), BDSGlobalConstants::Instance(), BDS::IsFinite(), and GMAD::Element::l.

Referenced by BendAngle().

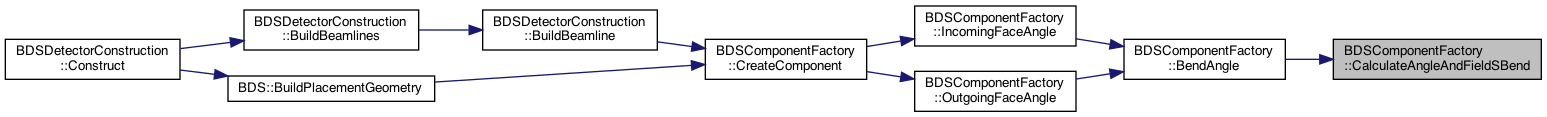

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckBendLengthAngleWidthCombo()

void BDSComponentFactory::CheckBendLengthAngleWidthCombo	(	G4double	arcLength,
		G4double	angle,
		G4double	horizontalWidth,
		const G4String &	name = `"not given"`
	)

static

Utility function to check if the combination of horizontal width, angle and length will result in overlapping entrance and exit faces and therefore whether to abort.

Definition at line 2312 of file BDSComponentFactory.cc.

Referenced by BDS::BuildSBendLine().

Here is the caller graph for this function:

◆ CreateAwakeScreen()

BDSAcceleratorComponent * BDSComponentFactory::CreateAwakeScreen ( )

private

Definition at line 1751 of file BDSComponentFactory.cc.

◆ CreateAwakeSpectrometer()

BDSAcceleratorComponent * BDSComponentFactory::CreateAwakeSpectrometer ( )

private

Definition at line 1762 of file BDSComponentFactory.cc.

◆ CreateCavityFringe()

BDSAcceleratorComponent * BDSComponentFactory::CreateCavityFringe	(	G4double	angleIn,
		BDSMagnetStrength *	stIn,
		const G4String &	name,
		G4double	irisRadius
	)

private

Definition at line 1914 of file BDSComponentFactory.cc.

◆ CreateComponent()

BDSAcceleratorComponent * BDSComponentFactory::CreateComponent	(	GMAD::Element const *	elementIn,
		GMAD::Element const *	prevElementIn,
		GMAD::Element const *	nextElementIn,
		G4double	currentArcLength = `0`
	)

Create component from parser Element pointers to next and previous Element are used to ensure the component will fit and may optionally be made to be so in the case of a drift. The optional last argument is the current s position at the end of the beam line for components that are distance or phase dependent such as an RF cavity.

Definition at line 154 of file BDSComponentFactory.cc.

Referenced by BDSDetectorConstruction::BuildBeamline(), and BDS::BuildPlacementGeometry().

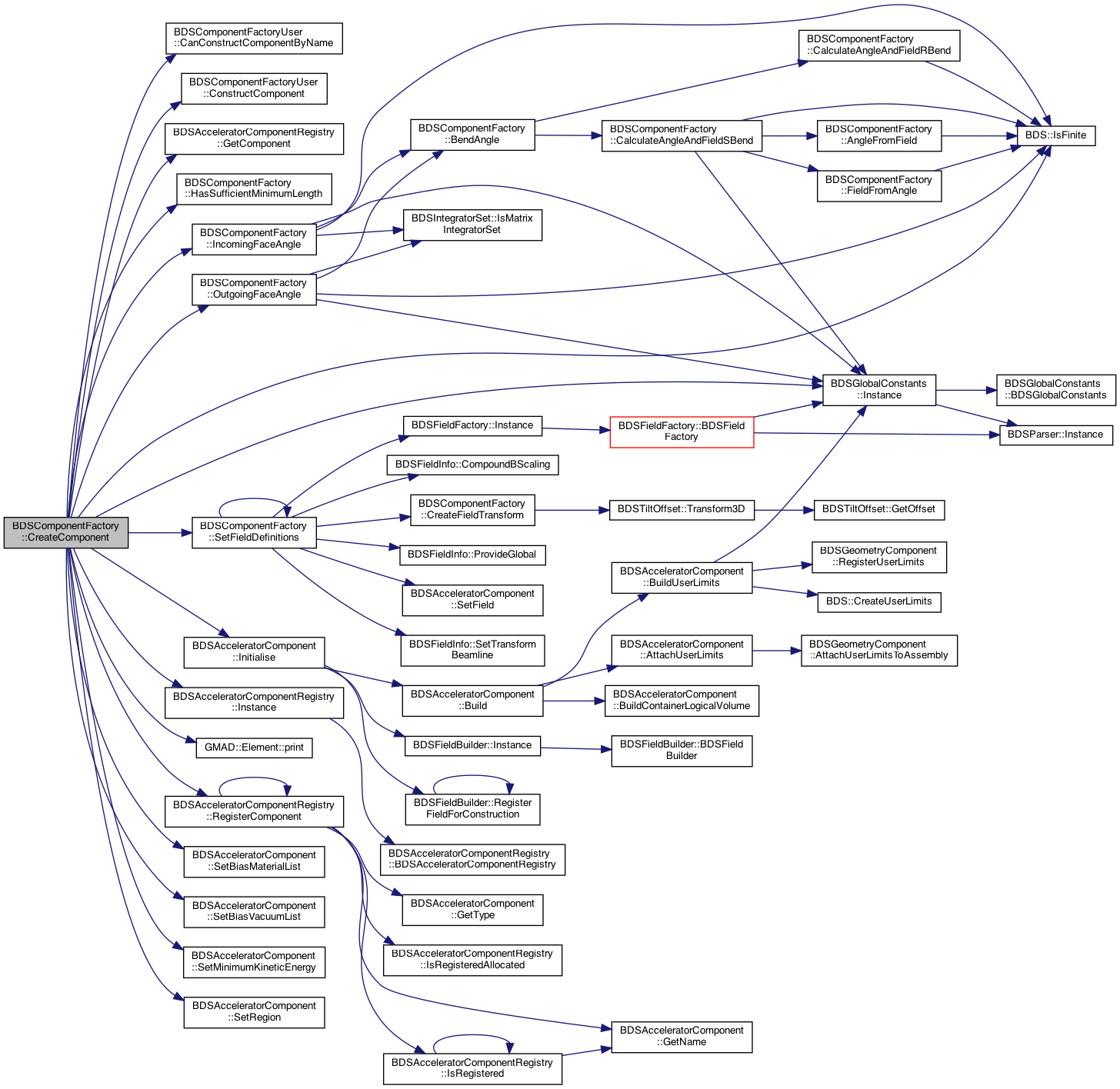

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCrystalCollimator()

BDSAcceleratorComponent * BDSComponentFactory::CreateCrystalCollimator ( )

private

Definition at line 1641 of file BDSComponentFactory.cc.

◆ CreateCT()

BDSAcceleratorComponent * BDSComponentFactory::CreateCT ( )

private

Definition at line 1617 of file BDSComponentFactory.cc.

◆ CreateDecapole()

BDSAcceleratorComponent * BDSComponentFactory::CreateDecapole ( )

private

Definition at line 1133 of file BDSComponentFactory.cc.

◆ CreateDegrader()

BDSAcceleratorComponent * BDSComponentFactory::CreateDegrader ( )

private

Definition at line 1481 of file BDSComponentFactory.cc.

◆ CreateDrift()

BDSAcceleratorComponent * BDSComponentFactory::CreateDrift	(	G4double	angleIn,
		G4double	angleOut
	)

private

Definition at line 467 of file BDSComponentFactory.cc.

◆ CreateDump()

BDSAcceleratorComponent * BDSComponentFactory::CreateDump ( )

private

Definition at line 1593 of file BDSComponentFactory.cc.

◆ CreateElement()

BDSAcceleratorComponent * BDSComponentFactory::CreateElement ( )

private

Definition at line 1190 of file BDSComponentFactory.cc.

◆ CreateEllipticalCollimator()

BDSAcceleratorComponent * BDSComponentFactory::CreateEllipticalCollimator ( )

private

Definition at line 1381 of file BDSComponentFactory.cc.

◆ CreateFieldTransform() [1/2]

G4Transform3D BDSComponentFactory::CreateFieldTransform ( const BDSTiltOffset * tiltOffset )

static

Create a transform from a tilt offset. If nullptr, returns identity transform.

Definition at line 2299 of file BDSComponentFactory.cc.

References BDSTiltOffset::Transform3D().

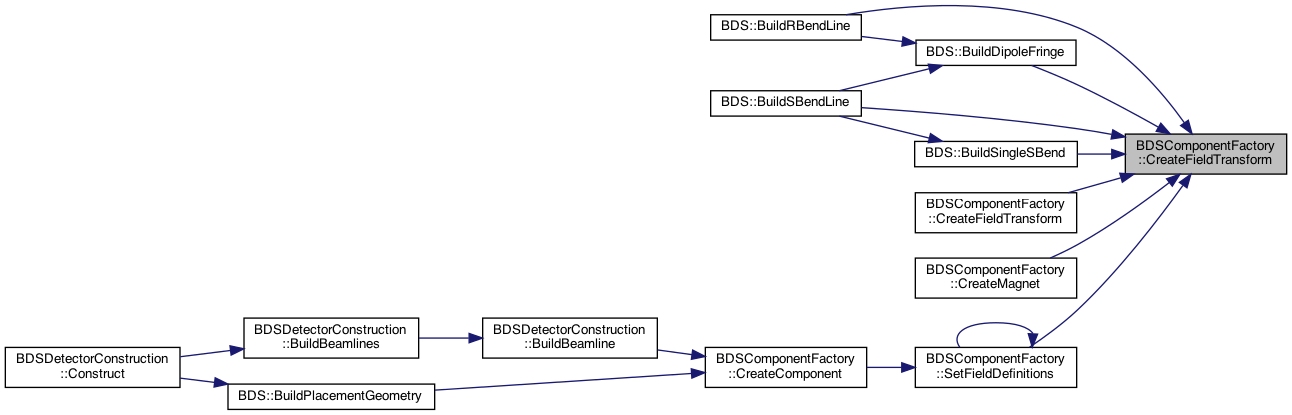

Referenced by BDS::BuildDipoleFringe(), BDS::BuildRBendLine(), BDS::BuildSBendLine(), BDS::BuildSingleSBend(), CreateFieldTransform(), CreateMagnet(), and SetFieldDefinitions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateFieldTransform() [2/2]

G4Transform3D BDSComponentFactory::CreateFieldTransform ( GMAD::Element const * el )

static

Create a transform for the field for a given element to account for the difference from the curvilinear coordinates for the tilt and offset of the magnet.

Definition at line 2304 of file BDSComponentFactory.cc.

References CreateFieldTransform(), and CreateTiltOffset().

Here is the call graph for this function:

◆ CreateGap()

BDSAcceleratorComponent * BDSComponentFactory::CreateGap ( )

private

Definition at line 1631 of file BDSComponentFactory.cc.

◆ CreateJawCollimator()

BDSAcceleratorComponent * BDSComponentFactory::CreateJawCollimator ( )

private

Definition at line 1403 of file BDSComponentFactory.cc.

◆ CreateKicker()

BDSAcceleratorComponent * BDSComponentFactory::CreateKicker ( KickerType type )

private

Definition at line 784 of file BDSComponentFactory.cc.

◆ CreateLaser()

BDSAcceleratorComponent * BDSComponentFactory::CreateLaser ( )

private

Definition at line 1687 of file BDSComponentFactory.cc.

◆ CreateMagnet()

BDSMagnet * BDSComponentFactory::CreateMagnet	(	const GMAD::Element *	el,
		BDSMagnetStrength *	st,
		BDSFieldType	fieldType,
		BDSMagnetType	magnetType,
		G4double	angle = `0.0`,
		const G4String &	nameSuffix = `""`
	)		const

private

Helper method for common magnet construction.

Definition at line 1925 of file BDSComponentFactory.cc.

References brho, CreateFieldTransform(), element, elementName, GMAD::Element::fieldOuter, BDSIntegratorSet::Integrator(), integratorSet, GMAD::Element::l, PrepareBeamPipeInfo(), PrepareMagnetOuterFieldInfo(), PrepareMagnetOuterInfo(), and yokeFields.

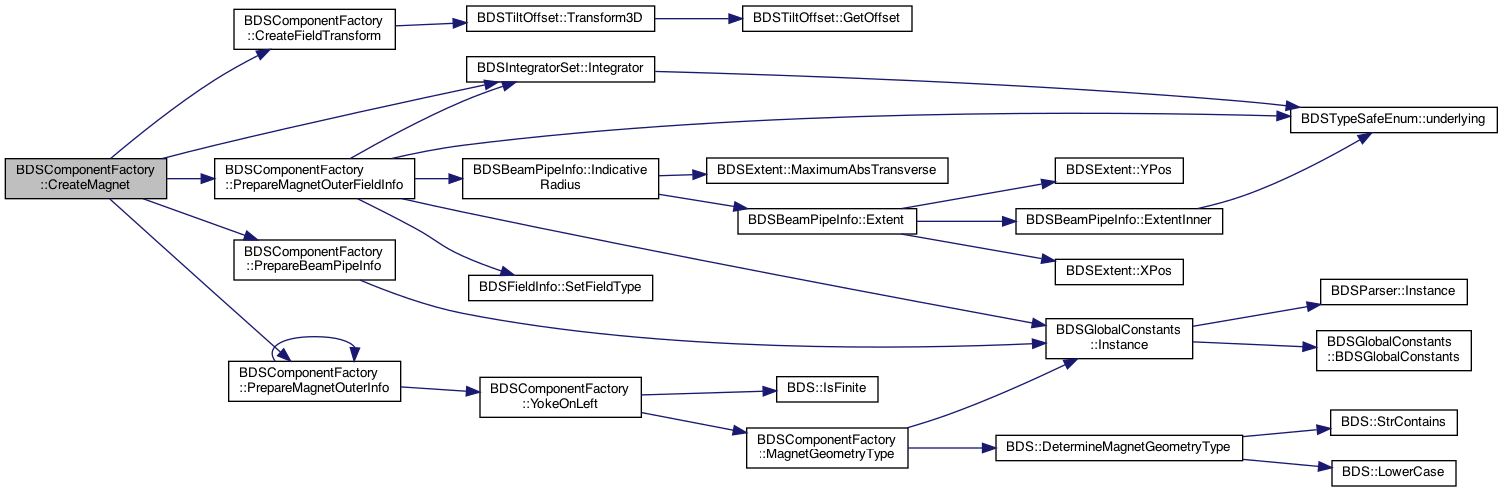

Here is the call graph for this function:

◆ CreateMultipole()

BDSAcceleratorComponent * BDSComponentFactory::CreateMultipole ( )

private

Definition at line 1145 of file BDSComponentFactory.cc.

◆ CreateMuonSpoiler()

BDSAcceleratorComponent * BDSComponentFactory::CreateMuonSpoiler ( )

private

Definition at line 1422 of file BDSComponentFactory.cc.

◆ CreateOctupole()

BDSAcceleratorComponent * BDSComponentFactory::CreateOctupole ( )

private

Definition at line 1121 of file BDSComponentFactory.cc.

◆ CreateParallelTransporter()

BDSAcceleratorComponent * BDSComponentFactory::CreateParallelTransporter ( )

private

Definition at line 1338 of file BDSComponentFactory.cc.

◆ CreateQuad()

BDSAcceleratorComponent * BDSComponentFactory::CreateQuad ( )

private

Definition at line 1097 of file BDSComponentFactory.cc.

◆ CreateRBend()

BDSAcceleratorComponent * BDSComponentFactory::CreateRBend ( )

private

Definition at line 694 of file BDSComponentFactory.cc.

◆ CreateRectangularCollimator()

BDSAcceleratorComponent * BDSComponentFactory::CreateRectangularCollimator ( )

private

Definition at line 1344 of file BDSComponentFactory.cc.

◆ CreateRF()

BDSAcceleratorComponent * BDSComponentFactory::CreateRF ( G4double currentArcLength )

private

Definition at line 518 of file BDSComponentFactory.cc.

◆ CreateRMatrix()

BDSAcceleratorComponent * BDSComponentFactory::CreateRMatrix ( )

private

Definition at line 1835 of file BDSComponentFactory.cc.

◆ CreateSBend()

BDSAcceleratorComponent * BDSComponentFactory::CreateSBend ( )

private

Definition at line 655 of file BDSComponentFactory.cc.

◆ CreateScreen()

BDSAcceleratorComponent * BDSComponentFactory::CreateScreen ( )

private

Definition at line 1701 of file BDSComponentFactory.cc.

◆ CreateSextupole()

BDSAcceleratorComponent * BDSComponentFactory::CreateSextupole ( )

private

Definition at line 1109 of file BDSComponentFactory.cc.

◆ CreateShield()

BDSAcceleratorComponent * BDSComponentFactory::CreateShield ( )

private

Definition at line 1460 of file BDSComponentFactory.cc.

◆ CreateSolenoid()

BDSAcceleratorComponent * BDSComponentFactory::CreateSolenoid ( )

private

Definition at line 1209 of file BDSComponentFactory.cc.

◆ CreateTarget()

BDSAcceleratorComponent * BDSComponentFactory::CreateTarget ( )

private

Definition at line 1365 of file BDSComponentFactory.cc.

◆ CreateTeleporter()

BDSAcceleratorComponent * BDSComponentFactory::CreateTeleporter	(	const G4double	teleporterLength,
		const G4double	teleporterWidth,
		const G4Transform3D &	transformIn
	)

Public creation for object that accounts for slight offset between ends of a ring. The z component of the delta three vector is used for the length of the teleporter.

Definition at line 447 of file BDSComponentFactory.cc.

References brho.

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the caller graph for this function:

◆ CreateTerminator()

BDSAcceleratorComponent * BDSComponentFactory::CreateTerminator ( G4double witdth )

Public creation for object that dynamically stops all particles once the primary has completed a certain number of turns.

Definition at line 1827 of file BDSComponentFactory.cc.

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the caller graph for this function:

◆ CreateThinMultipole()

BDSAcceleratorComponent * BDSComponentFactory::CreateThinMultipole ( G4double angleIn )

private

Definition at line 1156 of file BDSComponentFactory.cc.

◆ CreateThinRMatrix() [1/2]

BDSAcceleratorComponent * BDSComponentFactory::CreateThinRMatrix	(	G4double	angleIn,
		BDSMagnetStrength *	stIn,
		const G4String &	name,
		BDSIntegratorType	intType = `BDSIntegratorType::rmatrixthin`,
		BDSFieldType	fieldType = `BDSFieldType::rmatrix`,
		G4double	beamPipeRadius = `0`
	)

private

Definition at line 1871 of file BDSComponentFactory.cc.

◆ CreateThinRMatrix() [2/2]

BDSAcceleratorComponent * BDSComponentFactory::CreateThinRMatrix	(	G4double	angleIn,
		const G4String &	name
	)

private

Definition at line 1864 of file BDSComponentFactory.cc.

◆ CreateTiltOffset()

BDSTiltOffset * BDSComponentFactory::CreateTiltOffset ( GMAD::Element const * el )

static

Create the tilt and offset information object by inspecting the parser element.

Definition at line 2284 of file BDSComponentFactory.cc.

References BDS::IsFinite(), GMAD::Element::offsetX, GMAD::Element::offsetY, and GMAD::Element::tilt.

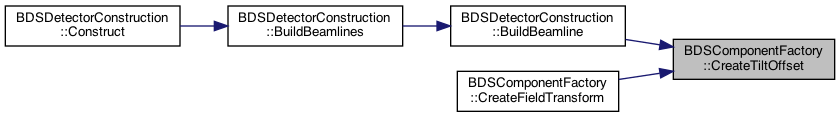

Referenced by BDSDetectorConstruction::BuildBeamline(), and CreateFieldTransform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateTransform3D()

BDSAcceleratorComponent * BDSComponentFactory::CreateTransform3D ( )

private

Definition at line 1802 of file BDSComponentFactory.cc.

◆ CreateUndulator()

BDSAcceleratorComponent * BDSComponentFactory::CreateUndulator ( )

private

Definition at line 1550 of file BDSComponentFactory.cc.

◆ CreateWireScanner()

BDSAcceleratorComponent * BDSComponentFactory::CreateWireScanner ( )

private

Definition at line 1528 of file BDSComponentFactory.cc.

◆ FieldFromAngle()

G4double BDSComponentFactory::FieldFromAngle	(	const G4double	angle,
		const G4double	arcLength
	)		const

private

Calculate the field from a given angle through a length of field - uses member rigidity and charge. Length & angle in g4 m / rad units.

Definition at line 2721 of file BDSComponentFactory.cc.

References brho, and BDS::IsFinite().

Referenced by CalculateAngleAndFieldSBend().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetKickValue()

void BDSComponentFactory::GetKickValue	(	G4double &	hkick,
		G4double &	vkick,
		const KickerType	type
	)		const

private

Pull out the right value - either 'kick' or 'h/vkick' for the appropriate type of kicker from the current member element.

Definition at line 744 of file BDSComponentFactory.cc.

References GMAD::Element::angle, element, elementName, GMAD::Element::hkick, BDS::IsFinite(), GMAD::Element::kick, and GMAD::Element::vkick.

Here is the call graph for this function:

◆ HasSufficientMinimumLength()

G4bool BDSComponentFactory::HasSufficientMinimumLength	(	GMAD::Element const *	el,
		G4bool	printWarning = `true`
	)

private

Test the component length is sufficient for practical construction.

Definition at line 1971 of file BDSComponentFactory.cc.

References GMAD::Element::l.

Referenced by CreateComponent().

Here is the caller graph for this function:

◆ IncomingFaceAngle()

G4double BDSComponentFactory::IncomingFaceAngle ( const GMAD::Element * el ) const

private

Calculate the incoming angel of the face (in the horizontal plane) for a given element. Calculates the bend angle and applies e1 / e2 pole face rotations the correct way depending on sign of angle. The angle is w.r.t. incoming curvilinear coordinates, so for an rbend with e1=0, the returned angle will be half the bend angle. For an sbend, with e1=0, it'll be 0.

Definition at line 2883 of file BDSComponentFactory.cc.

References BendAngle(), GMAD::Element::e1, BDSGlobalConstants::Instance(), integratorSet, BDS::IsFinite(), BDSIntegratorSet::IsMatrixIntegratorSet(), GMAD::Element::k1, and GMAD::Element::type.

Referenced by CreateComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MagnetGeometryType()

BDSMagnetGeometryType BDSComponentFactory::MagnetGeometryType ( const GMAD::Element * el )

static

Determine the magnet geometry type. If not specified or the global option to ignore local magnet geometry definitions is on, then the global default is used

Definition at line 2114 of file BDSComponentFactory.cc.

References BDS::DetermineMagnetGeometryType(), and BDSGlobalConstants::Instance().

Referenced by PrepareMagnetOuterInfo(), and YokeOnLeft().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OutgoingFaceAngle()

G4double BDSComponentFactory::OutgoingFaceAngle ( const GMAD::Element * el ) const

private

Calculate the outgoing angle of the face (in the horizontal plane) for a given element. Calculates the bend angle and applies e1 / e2 pole face rotations the correct way depending on sign of angle. The angle is w.r.t. outgoing curvilinear coordinates, so for an rbend with e2=0, the returned angle will be half the bend angle. For an sbend, with e2=0, it'll be 0.

Definition at line 2843 of file BDSComponentFactory.cc.

References BendAngle(), GMAD::Element::e2, BDSGlobalConstants::Instance(), integratorSet, BDS::IsFinite(), BDSIntegratorSet::IsMatrixIntegratorSet(), GMAD::Element::k1, and GMAD::Element::type.

Referenced by CreateComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PoleFaceRotationsNotTooLarge()

void BDSComponentFactory::PoleFaceRotationsNotTooLarge	(	const GMAD::Element *	el,
		G4double	maxAngle = `0.5*CLHEP::halfpi`
	)

static

Check whether the pole face rotation angles are too big for practical construction.

Definition at line 1984 of file BDSComponentFactory.cc.

References GMAD::Element::e1, GMAD::Element::e2, and element.

◆ PrepareBeamPipeInfo() [1/2]

BDSBeamPipeInfo * BDSComponentFactory::PrepareBeamPipeInfo	(	GMAD::Element const *	el,
		const G4ThreeVector &	inputFaceNormal = `G4ThreeVector(0,0,-1)`,
		const G4ThreeVector &	outputFaceNormal = `G4ThreeVector(0,0,1)`
	)

static

Prepare the recipe for a piece of beam pipe. Static and public so it can be used by SBendBuilder.

Definition at line 2237 of file BDSComponentFactory.cc.

References GMAD::Element::aper1, GMAD::Element::aper2, GMAD::Element::aper3, GMAD::Element::aper4, GMAD::Element::apertureType, GMAD::Element::beampipeMaterial, GMAD::Element::beampipeThickness, BDSBeamPipeInfo::inputFaceNormal, BDSGlobalConstants::Instance(), BDSBeamPipeInfo::outputFaceNormal, and GMAD::Element::vacuumMaterial.

Referenced by BDS::BuildDipoleFringe(), BDS::BuildRBendLine(), BDS::BuildSBendLine(), BDS::BuildSingleSBend(), CreateMagnet(), PrepareBeamPipeInfo(), and PrepareCavityModelInfoForElement().

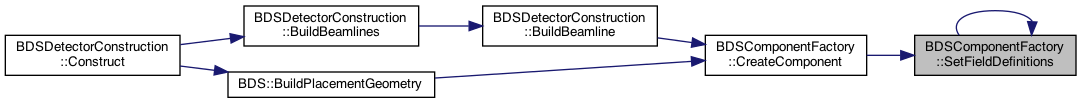

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareBeamPipeInfo() [2/2]

BDSBeamPipeInfo * BDSComponentFactory::PrepareBeamPipeInfo	(	GMAD::Element const *	el,
		G4double	angleIn,
		G4double	angleOut
	)

static

Interface to other PrepareBeamPipeInfo() for convenience to avoid preparing face normal vectors repeatedly.

Definition at line 2275 of file BDSComponentFactory.cc.

References BDS::CalculateFaces(), and PrepareBeamPipeInfo().

Here is the call graph for this function:

◆ PrepareCavityModelInfo()

BDSCavityInfo * BDSComponentFactory::PrepareCavityModelInfo	(	GMAD::Element const *	el,
		G4double	frequency
	)		const

private

Utility function to prepare model info. Retrieve from cache of ones translated parser objects or create a default based on the element's aperture if none specified. Will always return a unique object that's not owned by this class. We need the frequency in case there are no good defaults and we'll make the cavity size according to the wavelength of the rf field.

Definition at line 2413 of file BDSComponentFactory.cc.

References cavityInfos, GMAD::Element::cavityModel, elementName, BDSCavityInfo::equatorRadius, BDSMaterials::GetMaterial(), BDSMaterials::Instance(), lengthSafety, BDSCavityInfo::material, PrepareCavityModelInfoForElement(), PrepareHorizontalWidth(), and BDSCavityInfo::thickness.

Here is the call graph for this function:

◆ PrepareCavityModelInfoForElement()

BDSCavityInfo * BDSComponentFactory::PrepareCavityModelInfoForElement	(	GMAD::Element const *	el,
		G4double	frequency
	)		const

private

Create a default cavity model based on an element's aperture and material. Will always return a unique object that's not owned by this class.

prepare aperture information for this element to base default cavity on.

Definition at line 2459 of file BDSComponentFactory.cc.

References BDSBeamPipeInfo::aper1, BDSBeamPipeInfo::beamPipeThickness, BDSMaterials::Instance(), BDS::IsFinite(), GMAD::Element::l, PrepareBeamPipeInfo(), and PrepareHorizontalWidth().

Referenced by PrepareCavityModelInfo().

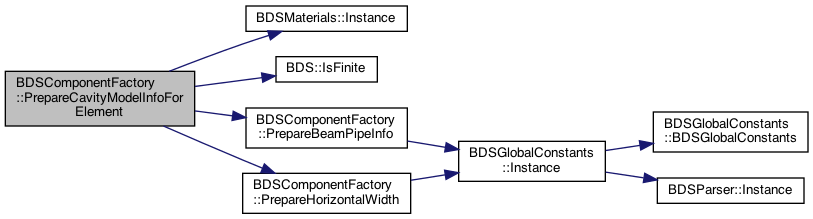

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareCavityModels()

void BDSComponentFactory::PrepareCavityModels ( )

private

Prepare all RF cavity models in the component factory. Kept here and copies delivered. This class deletes them upon destruction.

Definition at line 2326 of file BDSComponentFactory.cc.

References cavityInfos, BDS::DetermineCavityType(), BDSMaterials::GetMaterial(), BDSMaterials::Instance(), and BDSParser::Instance().

Here is the call graph for this function:

◆ PrepareCavityStrength()

BDSMagnetStrength * BDSComponentFactory::PrepareCavityStrength	(	GMAD::Element const *	el,
		G4double	cavityLength,
		G4double	currentArcLength,
		BDSMagnetStrength *&	fringeIn,
		BDSMagnetStrength *&	fringeOut
	)		const

private

Utility function to prepare field strength object for rf cavity. This takes a pointer for both incoming and outgoing strengths that this function will allocate by reference.

Definition at line 2509 of file BDSComponentFactory.cc.

References GMAD::Element::E, element, GMAD::Element::frequency, GMAD::Element::gradient, BDS::IsFinite(), GMAD::Element::l, GMAD::Element::phase, GMAD::Element::scaling, SetBeta0(), and GMAD::Element::tOffset.

Here is the call graph for this function:

◆ PrepareColour()

G4Colour * BDSComponentFactory::PrepareColour ( GMAD::Element const * element )

static

Checks if colour is specified for element, else uses the default for that element type.

Definition at line 2586 of file BDSComponentFactory.cc.

References GMAD::Element::colour, BDSColours::GetColour(), BDSColours::Instance(), GMAD::Element::type, and GMAD::typestr().

Referenced by PrepareMagnetOuterInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareColours()

void BDSComponentFactory::PrepareColours ( )

private

Prepare all colours defined in the parser.

Definition at line 2353 of file BDSComponentFactory.cc.

References coloursInitialised, BDSColours::DefineColour(), BDSColours::Instance(), and BDSParser::Instance().

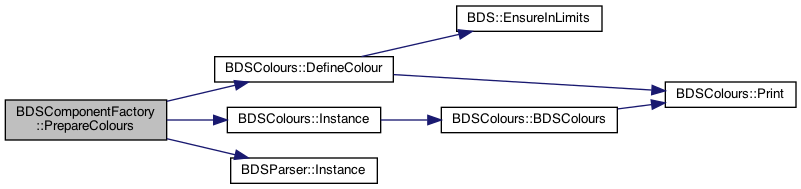

Here is the call graph for this function:

◆ PrepareCrystalInfo()

BDSCrystalInfo * BDSComponentFactory::PrepareCrystalInfo ( const G4String & crystalName ) const

Utility function to prepare crystal recipe for an element. Produces a unique object this class doesn't own.

Definition at line 2397 of file BDSComponentFactory.cc.

References crystalInfos.

◆ PrepareCrystals()

void BDSComponentFactory::PrepareCrystals ( )

private

Prepare all crystals in defined the parser.

Definition at line 2370 of file BDSComponentFactory.cc.

References crystalInfos, BDS::DetermineCrystalType(), BDSMaterials::GetMaterial(), BDSMaterials::Instance(), and BDSParser::Instance().

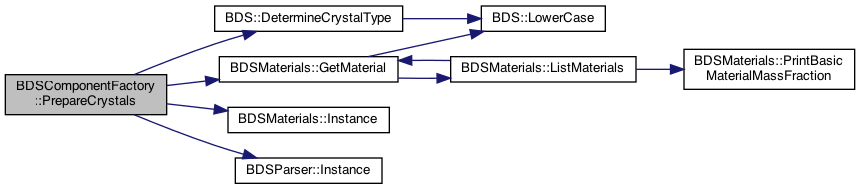

Here is the call graph for this function:

◆ PrepareHorizontalWidth()

G4double BDSComponentFactory::PrepareHorizontalWidth	(	GMAD::Element const *	el,
		G4double	defaultHorizontalWidth = `-1`
	)

static

Prepare the element horizontal width in Geant4 units - if not set, use the global default.

Definition at line 2213 of file BDSComponentFactory.cc.

References BDSGlobalConstants::Instance().

Referenced by BDS::BuildSBendLine(), PrepareCavityModelInfo(), PrepareCavityModelInfoForElement(), and PrepareMagnetOuterInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareMagnetOuterFieldInfo()

BDSFieldInfo * BDSComponentFactory::PrepareMagnetOuterFieldInfo	(	const BDSMagnetStrength *	vacuumSt,
		const BDSFieldType &	fieldType,
		const BDSBeamPipeInfo *	bpInfo,
		const BDSMagnetOuterInfo *	outerInfo,
		const G4Transform3D &	fieldTransform,
		const BDSIntegratorSet *	integratorSetIn,
		G4double	brhoIn,
		G4double	outerFieldScaling = `1.0`
	)

static

Prepare the field definition for the yoke of a magnet.

Definition at line 2027 of file BDSComponentFactory.cc.

References BDSBeamPipeInfo::IndicativeRadius(), BDSGlobalConstants::Instance(), BDSIntegratorSet::Integrator(), BDSFieldInfo::SetFieldType(), and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by BDS::BuildRBendLine(), BDS::BuildSBendLine(), and CreateMagnet().

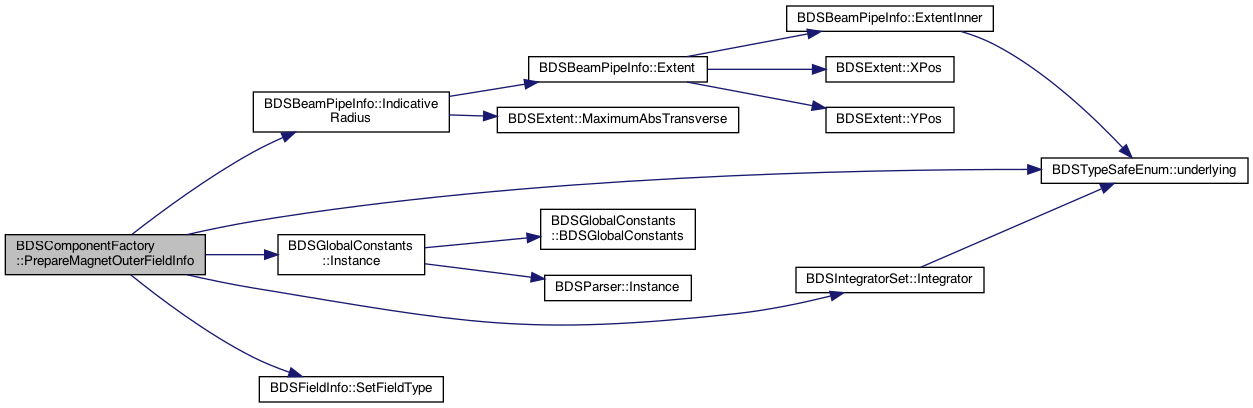

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareMagnetOuterInfo() [1/2]

BDSMagnetOuterInfo * BDSComponentFactory::PrepareMagnetOuterInfo	(	const G4String &	elementNameIn,
		const GMAD::Element *	el,
		const BDSMagnetStrength *	st,
		const BDSBeamPipeInfo *	beamPipe,
		G4double	defaultHorizontalWidth = `-1`,
		G4double	defaultVHRatio = `1.0`,
		G4double	defaultCoilWidthFraction = `-1`,
		G4double	defaultCoilHeightFraction = `-1`
	)

static

Prepare the recipe for magnet outer geometry for an element. This uses a strength instance which (we assume) represents the element. Evenly splits angle between input and output faces.

Definition at line 2097 of file BDSComponentFactory.cc.

References PrepareMagnetOuterInfo(), and YokeOnLeft().

Referenced by BDS::BuildDipoleFringe(), BDS::BuildRBendLine(), BDS::BuildSBendLine(), BDS::BuildSingleSBend(), CreateMagnet(), and PrepareMagnetOuterInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrepareMagnetOuterInfo() [2/2]

BDSMagnetOuterInfo * BDSComponentFactory::PrepareMagnetOuterInfo	(	const G4String &	elementNameIn,
		const GMAD::Element *	el,
		const G4double	angleIn,
		const G4double	angleOut,
		const BDSBeamPipeInfo *	beamPipe,
		const G4bool	yokeOnLeft = `false`,
		G4double	defaultHorizontalWidth = `-1`,
		G4double	defaultVHRatio = `-1`,
		G4double	defaultCoilWidthFraction = `-1`,
		G4double	defaultCoilHeightFraction = `-1`
	)

static

Prepare the recipe for magnet outer geometry with full control of the angled faces and which side the yoke is on. The angle in and out are the face angles relative to a chord for a straight section of outer magnet geometry.

Definition at line 2126 of file BDSComponentFactory.cc.

References GMAD::Element::autoColour, GMAD::Element::coilHeightFraction, GMAD::Element::coilWidthFraction, BDSMaterials::GetMaterial(), BDSMagnetOuterInfo::hStyle, GMAD::Element::hStyle, BDSBeamPipeInfo::IndicativeRadius(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), MagnetGeometryType(), PrepareColour(), PrepareHorizontalWidth(), GMAD::Element::stripOuterVolume, and GMAD::Element::vhRatio.

Here is the call graph for this function:

◆ PrepareMagnetStrengthForMultipoles()

BDSMagnetStrength * BDSComponentFactory::PrepareMagnetStrengthForMultipoles ( GMAD::Element const * el ) const

private

Prepare magnet strength for multipoles.

Definition at line 2663 of file BDSComponentFactory.cc.

References BDS::IsFinite(), GMAD::Element::knl, GMAD::Element::ksl, GMAD::Element::l, BDSMagnetStrength::NormalComponentKeys(), GMAD::Element::scaling, SetBeta0(), BDSMagnetStrength::SkewComponentKeys(), and GMAD::Element::type.

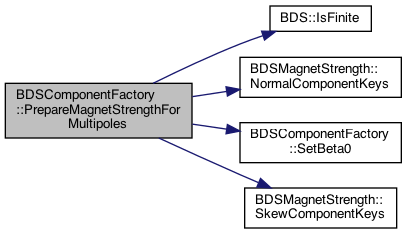

Here is the call graph for this function:

◆ PrepareMagnetStrengthForRMatrix()

BDSMagnetStrength * BDSComponentFactory::PrepareMagnetStrengthForRMatrix ( GMAD::Element const * el ) const

private

Prepare magnet strength for rmatrix.

Definition at line 2687 of file BDSComponentFactory.cc.

References GMAD::Element::kick1, GMAD::Element::kick2, GMAD::Element::kick3, GMAD::Element::kick4, GMAD::Element::rmat11, GMAD::Element::rmat12, GMAD::Element::rmat13, GMAD::Element::rmat14, GMAD::Element::rmat21, GMAD::Element::rmat22, GMAD::Element::rmat23, GMAD::Element::rmat24, GMAD::Element::rmat31, GMAD::Element::rmat32, GMAD::Element::rmat33, GMAD::Element::rmat34, GMAD::Element::rmat41, GMAD::Element::rmat42, GMAD::Element::rmat43, GMAD::Element::rmat44, and GMAD::Element::scaling.

◆ PrepareMaterial() [1/2]

G4Material * BDSComponentFactory::PrepareMaterial ( GMAD::Element const * element )

static

Try and get a material and exit if no such material.

Definition at line 2605 of file BDSComponentFactory.cc.

References BDSMaterials::GetMaterial(), and BDSMaterials::Instance().

Here is the call graph for this function:

◆ PrepareMaterial() [2/2]

G4Material * BDSComponentFactory::PrepareMaterial	(	GMAD::Element const *	element,
		const G4String &	defaultMaterialName
	)

static

Checks if a material is named in Element::material, else uses the supplied default.

Definition at line 2595 of file BDSComponentFactory.cc.

References BDSMaterials::GetMaterial(), and BDSMaterials::Instance().

Here is the call graph for this function:

◆ PrepareVacuumMaterial()

G4Material * BDSComponentFactory::PrepareVacuumMaterial ( GMAD::Element const * el ) const

private

Prepare the vacuum material from the element or resort to default in options.

Definition at line 2227 of file BDSComponentFactory.cc.

References element, BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), and GMAD::Element::vacuumMaterial.

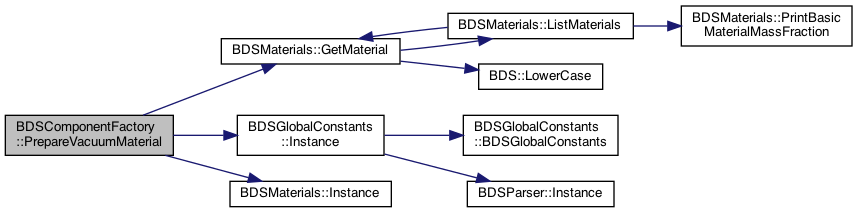

Here is the call graph for this function:

◆ ScalingFieldOuter()

G4double BDSComponentFactory::ScalingFieldOuter ( const GMAD::Element * ele )

static

Definition at line 2022 of file BDSComponentFactory.cc.

◆ SetBeta0()

void BDSComponentFactory::SetBeta0 ( BDSMagnetStrength * stIn ) const

inlineprivate

Simple setter used to add Beta0 to a strength instance.

Definition at line 214 of file BDSComponentFactory.hh.

References beta0.

Referenced by PrepareCavityStrength(), and PrepareMagnetStrengthForMultipoles().

Here is the caller graph for this function:

◆ SetFieldDefinitions()

void BDSComponentFactory::SetFieldDefinitions	(	GMAD::Element const *	el,
		BDSAcceleratorComponent *	component
	)		const

private

Set the field definition on a BDSAcceleratorComponent from the string definition name in a parser element. In the case of a BDSMagnet, (exclusively) set the vacuum and outer field in place of the one general field.

Definition at line 2614 of file BDSComponentFactory.cc.

References BDSFieldInfo::CompoundBScaling(), CreateFieldTransform(), element, elementName, GMAD::Element::fieldAll, GMAD::Element::fieldOuter, GMAD::Element::fieldVacuum, BDSFieldFactory::Instance(), BDSFieldInfo::ProvideGlobal(), GMAD::Element::scalingFieldOuter, BDSAcceleratorComponent::SetField(), SetFieldDefinitions(), and BDSFieldInfo::SetTransformBeamline().

Referenced by CreateComponent(), and SetFieldDefinitions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ YokeOnLeft()

G4bool BDSComponentFactory::YokeOnLeft	(	const GMAD::Element *	el,
		const BDSMagnetStrength *	st
	)

static

Determine which side the yoke of an asymmetric bend should go on based on the angle of the bend and the overriding setting in the element.

Definition at line 1995 of file BDSComponentFactory.cc.

References element, BDS::IsFinite(), and MagnetGeometryType().

Referenced by BDS::BuildRBendLine(), BDS::BuildSBendLine(), and PrepareMagnetOuterInfo().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ beta0

G4double BDSComponentFactory::beta0

private

Cache of relativisitic beta for primary particle.

Definition at line 206 of file BDSComponentFactory.hh.

Referenced by SetBeta0().

◆ brho

G4double BDSComponentFactory::brho

private

Rigidity in T*m (G4units) for beam particles.

Definition at line 205 of file BDSComponentFactory.hh.

Referenced by AngleFromField(), CalculateAngleAndFieldRBend(), CreateMagnet(), CreateTeleporter(), and FieldFromAngle().

◆ cavityInfos

std::map<G4String, BDSCavityInfo*> BDSComponentFactory::cavityInfos

private

Map of cavity model info instances by name.

Definition at line 336 of file BDSComponentFactory.hh.

Referenced by PrepareCavityModelInfo(), and PrepareCavityModels().

◆ coloursInitialised

G4bool BDSComponentFactory::coloursInitialised = false

staticprivate

Only allow colours to be constructed from parser definitions once. Static so we can use a component factory many times without calling multiple times.

Definition at line 408 of file BDSComponentFactory.hh.

Referenced by PrepareColours().

◆ crystalInfos

std::map<G4String, BDSCrystalInfo*> BDSComponentFactory::crystalInfos

private

Maps of crystal info instances by name.

Definition at line 339 of file BDSComponentFactory.hh.

Referenced by PrepareCrystalInfo(), and PrepareCrystals().

◆ designParticle

const BDSParticleDefinition* BDSComponentFactory::designParticle

private

Particle w.r.t. which elements are built.

Definition at line 204 of file BDSComponentFactory.hh.

◆ element

GMAD::Element const* BDSComponentFactory::element = nullptr

private

element for storing instead of passing around

Definition at line 217 of file BDSComponentFactory.hh.

Referenced by CreateComponent(), CreateMagnet(), GetKickValue(), PoleFaceRotationsNotTooLarge(), PrepareCavityStrength(), PrepareVacuumMaterial(), SetFieldDefinitions(), and YokeOnLeft().

◆ elementName

G4String BDSComponentFactory::elementName

private

Variable used to pass around the possibly modified name of an element.

Definition at line 404 of file BDSComponentFactory.hh.

Referenced by CreateComponent(), CreateMagnet(), GetKickValue(), PrepareCavityModelInfo(), and SetFieldDefinitions().

◆ includeFringeFields

G4bool BDSComponentFactory::includeFringeFields

private

Cache of whether to include fringe fields.

Definition at line 210 of file BDSComponentFactory.hh.

Referenced by CreateComponent().

◆ integratorSet

const BDSIntegratorSet* BDSComponentFactory::integratorSet

private

Local copy of reference to integrator set to use.

Definition at line 342 of file BDSComponentFactory.hh.

Referenced by CreateMagnet(), IncomingFaceAngle(), and OutgoingFaceAngle().

◆ integratorSetType

const BDSIntegratorSetType BDSComponentFactory::integratorSetType

private

Local copy of enum of the integrator set, i.e. which one it is specifically.

Definition at line 345 of file BDSComponentFactory.hh.

◆ lengthSafety

G4double BDSComponentFactory::lengthSafety

private

Length safety from global constants.

Definition at line 208 of file BDSComponentFactory.hh.

Referenced by PrepareCavityModelInfo().

◆ modifiedElements

std::map<G4String, G4int> BDSComponentFactory::modifiedElements

private

Registry of modified elements stored by original name and number of times modified - 0 counting. This is so when we modify elements beyond their definition they get a unique name as they're literally not the same object as the unmodified one so they don't share the placement counter for unique naming. This allows accurate geometry trees in the visualiser.

Definition at line 401 of file BDSComponentFactory.hh.

Referenced by CreateComponent().

◆ nextElement

GMAD::Element const* BDSComponentFactory::nextElement = nullptr

private

element access to previous element (can be nullptr)

Definition at line 221 of file BDSComponentFactory.hh.

Referenced by CreateComponent().

◆ prevElement

GMAD::Element const* BDSComponentFactory::prevElement = nullptr

private

element access to previous element (can be nullptr)

Definition at line 219 of file BDSComponentFactory.hh.

Referenced by CreateComponent().

◆ thinElementLength

G4double BDSComponentFactory::thinElementLength

private

Length of a thin element.

Definition at line 209 of file BDSComponentFactory.hh.

◆ userComponentFactory

BDSComponentFactoryUser* BDSComponentFactory::userComponentFactory

private

User component factory if any.

Definition at line 207 of file BDSComponentFactory.hh.

Referenced by CreateComponent().

◆ yokeFields

G4bool BDSComponentFactory::yokeFields

private

Cache of whether to include yoke magnetic fields.

Definition at line 211 of file BDSComponentFactory.hh.

Referenced by CreateMagnet().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSComponentFactory.hh
/Users/nevay/physics/reps/bdsim/src/BDSComponentFactory.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

◆ KickerType

Constructor & Destructor Documentation

◆ BDSComponentFactory()

◆ ~BDSComponentFactory()

Member Function Documentation

◆ AngleFromField()

◆ BendAngle()

◆ CalculateAngleAndFieldRBend()

◆ CalculateAngleAndFieldSBend()

◆ CheckBendLengthAngleWidthCombo()

◆ CreateAwakeScreen()

◆ CreateAwakeSpectrometer()

◆ CreateCavityFringe()

◆ CreateComponent()

◆ CreateCrystalCollimator()

◆ CreateCT()

◆ CreateDecapole()

◆ CreateDegrader()

◆ CreateDrift()

◆ CreateDump()

◆ CreateElement()

◆ CreateEllipticalCollimator()

◆ CreateFieldTransform() [1/2]

◆ CreateFieldTransform() [2/2]

◆ CreateGap()

◆ CreateJawCollimator()

◆ CreateKicker()

◆ CreateLaser()

◆ CreateMagnet()

◆ CreateMultipole()

◆ CreateMuonSpoiler()

◆ CreateOctupole()

◆ CreateParallelTransporter()

◆ CreateQuad()

◆ CreateRBend()

◆ CreateRectangularCollimator()

◆ CreateRF()

◆ CreateRMatrix()

◆ CreateSBend()

◆ CreateScreen()

◆ CreateSextupole()

◆ CreateShield()

◆ CreateSolenoid()

◆ CreateTarget()

◆ CreateTeleporter()

◆ CreateTerminator()

◆ CreateThinMultipole()

◆ CreateThinRMatrix() [1/2]

◆ CreateThinRMatrix() [2/2]

◆ CreateTiltOffset()

◆ CreateTransform3D()

◆ CreateUndulator()

◆ CreateWireScanner()

◆ FieldFromAngle()

◆ GetKickValue()

◆ HasSufficientMinimumLength()

◆ IncomingFaceAngle()

◆ MagnetGeometryType()

◆ OutgoingFaceAngle()

◆ PoleFaceRotationsNotTooLarge()

◆ PrepareBeamPipeInfo() [1/2]

◆ PrepareBeamPipeInfo() [2/2]

◆ PrepareCavityModelInfo()

◆ PrepareCavityModelInfoForElement()

◆ PrepareCavityModels()

◆ PrepareCavityStrength()

◆ PrepareColour()

◆ PrepareColours()

◆ PrepareCrystalInfo()

◆ PrepareCrystals()

◆ PrepareHorizontalWidth()

◆ PrepareMagnetOuterFieldInfo()
