Factory for detailed lhc aperture model beam pipes. More...

#include <BDSBeamPipeFactoryLHCDetailed.hh>

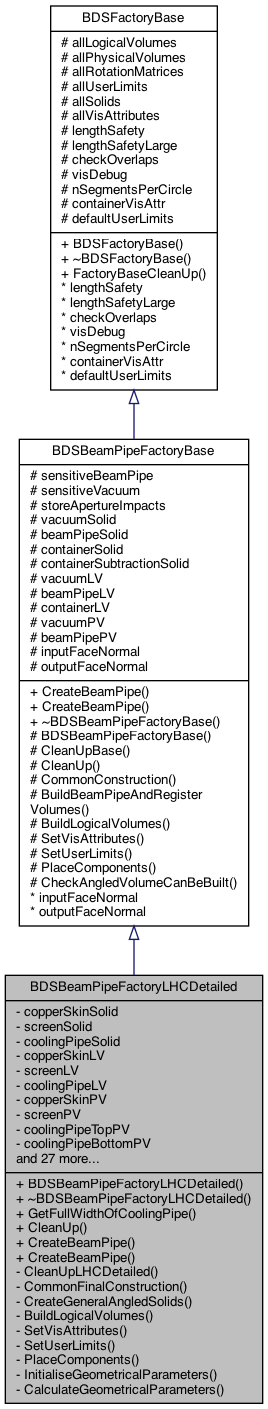

Inheritance diagram for BDSBeamPipeFactoryLHCDetailed:

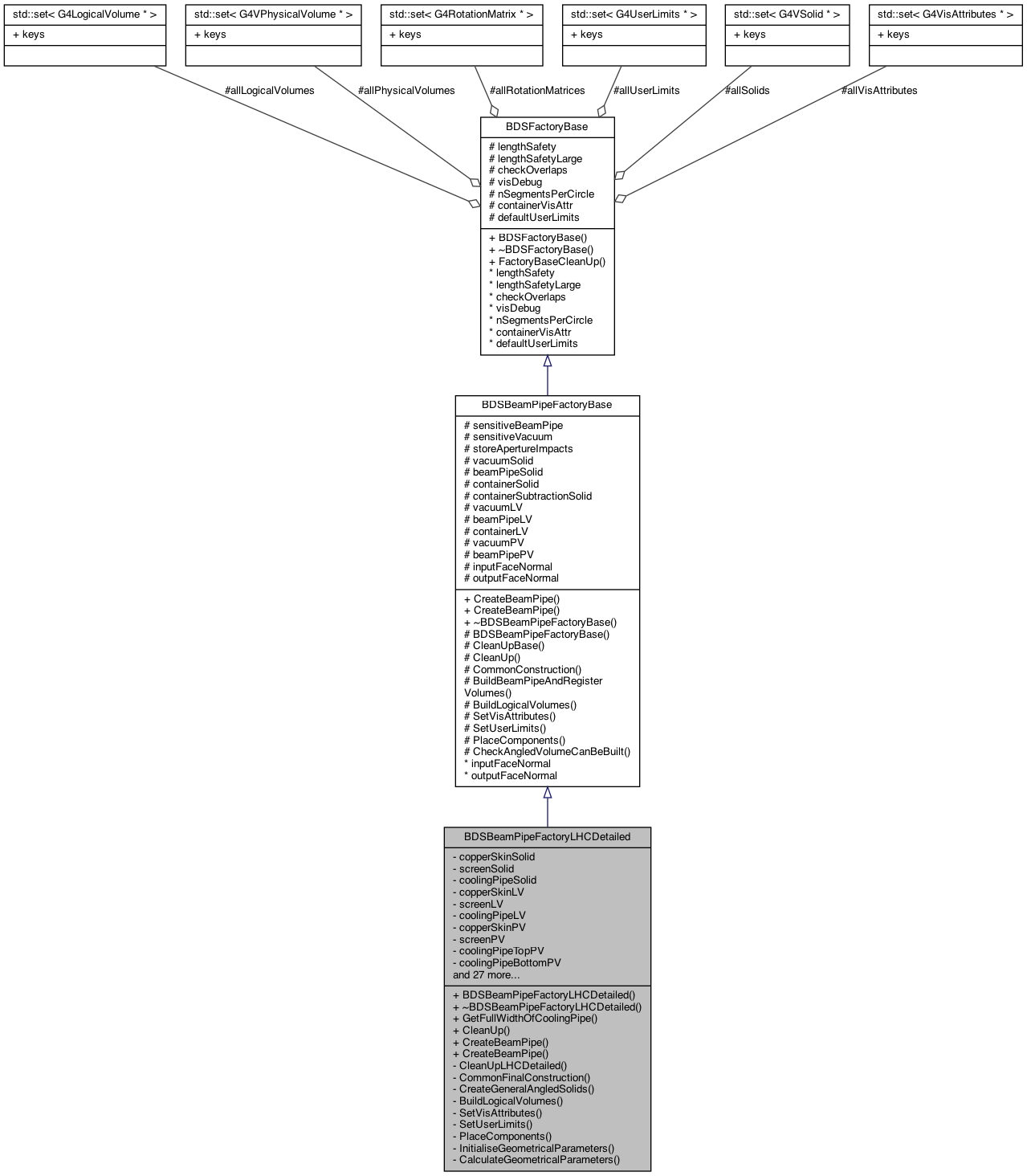

Collaboration diagram for BDSBeamPipeFactoryLHCDetailed:

Public Member Functions
G4double	GetFullWidthOfCoolingPipe ()
	Access cooling pipe information from factory for parameter tests. More...

virtual void	CleanUp ()
	Clean up extra pointers particular to this factory before use. More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
	create a flat ended beampipe More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")

Public Member Functions inherited from BDSBeamPipeFactoryBase
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0
	create a flat ended beampipe More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0

virtual	~BDSBeamPipeFactoryBase ()
	Virtual base destructor. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Private Member Functions
void	CleanUpLHCDetailed ()

BDSBeamPipe *	CommonFinalConstruction (const G4String &name, G4Material vacuumMaterial, G4Material beamPipeMaterial, G4double length, G4double containerRadius)

G4double	CreateGeneralAngledSolids (const G4String &name, G4double length, const G4ThreeVector &inputface, const G4ThreeVector &outputface)

virtual void	BuildLogicalVolumes (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn)
	build logical volumes More...

virtual void	SetVisAttributes (G4Material *beamPipeMaterialIn)
	Set visual attributes. More...

virtual void	SetUserLimits (G4double length)
	Set user limits. More...

virtual void	PlaceComponents (const G4String &nameIn)
	Place volumes. More...

void	InitialiseGeometricalParameters ()
	Utility function to initialise the geometry parameters. More...

void	CalculateGeometricalParameters (G4double aper1, G4double aper2, G4double aper3, G4double beamPipeThickness, G4double length)

Private Attributes
G4VSolid *	copperSkinSolid

G4VSolid *	screenSolid

G4VSolid *	coolingPipeSolid

G4LogicalVolume *	copperSkinLV

G4LogicalVolume *	screenLV

G4LogicalVolume *	coolingPipeLV

G4PVPlacement *	copperSkinPV

G4PVPlacement *	screenPV

G4PVPlacement *	coolingPipeTopPV

G4PVPlacement *	coolingPipeBottomPV

G4double	coldBoreThickness
	Parameters that control the design. More...

G4double	coolingPipeThickness

G4double	coolingPipeRadius

G4double	copperSkinThickness

G4double	vacRadius

G4double	vacBoxX

G4double	vacBoxY

G4double	cuInnerRadius
	Copper skin geometrical parameters. More...

G4double	cuInnerBoxX

G4double	cuInnerBoxY

G4double	cuOuterRadius

G4double	cuOuterBoxX

G4double	cuOuterBoxY

G4double	bsInnerRadius
	Beam screen geometrical parameters. More...

G4double	bsInnerBoxX

G4double	bsInnerBoxY

G4double	bsOuterRadius

G4double	bsOuterBoxX

G4double	bsOuterBoxY

G4double	cbInnerRadius
	Cold bore geometrical parameters. More...

G4double	cbOuterRadius

G4double	containerRadius
	Container geometrical parameters. More...

G4double	vacHalfLength
	General length variable (to avoid mistakes) More...

G4double	halfLength

G4double	coolingPipeOffset
	Cooling pipe geometrical parameters. More...

G4bool	verticalOrientation

G4bool	buildCoolingPipe
	Whether to build the cooling pipes on either side. More...

Additional Inherited Members
Protected Member Functions inherited from BDSBeamPipeFactoryBase
	BDSBeamPipeFactoryBase ()
	base constructor More...

void	CleanUpBase ()

virtual void	CleanUp ()

void	CommonConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double length)
	finalise beampipe construction More...

BDSBeamPipe *	BuildBeamPipeAndRegisterVolumes (BDSExtent extent, G4double containerRadius, G4bool containerIsCircular=false)
	build beampipe and register logical volumes More...

virtual void	BuildLogicalVolumes (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn)
	build logical volumes More...

virtual void	SetVisAttributes (G4Material *beamPipeMaterialIn)
	Set visual attributes. More...

virtual void	SetUserLimits (G4double length)
	Set user limits. More...

virtual void	PlaceComponents (const G4String &nameIn)
	Place volumes. More...

Static Protected Member Functions inherited from BDSBeamPipeFactoryBase
static void	CheckAngledVolumeCanBeBuilt (G4double length, const G4ThreeVector &inputfaceAngle, const G4ThreeVector &outputfaceAngle, G4double horizontalWidth, const G4String &name)
	check if a beam pipe volume with angled faces can be constructed More...

Protected Attributes inherited from BDSBeamPipeFactoryBase
G4bool	sensitiveBeamPipe
	Whether the beam pipe will record energy deposition. More...

G4bool	sensitiveVacuum
	Whether the vacuum will record any energy deposition. More...

G4bool	storeApertureImpacts
	Whether to store aperture impacts. More...

G4VSolid *	vacuumSolid

G4VSolid *	beamPipeSolid

G4VSolid *	containerSolid

G4VSolid *	containerSubtractionSolid
	Longer (in length) version of container solid for unambiguous subtraction. More...

G4LogicalVolume *	vacuumLV

G4LogicalVolume *	beamPipeLV

G4LogicalVolume *	containerLV

G4PVPlacement *	vacuumPV

G4PVPlacement *	beamPipePV

G4ThreeVector	inputFaceNormal
	For recording the face normals in the finished pipe component. More...

G4ThreeVector	outputFaceNormal
	For recording the face normals in the finished pipe component. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Detailed Description

Factory for detailed lhc aperture model beam pipes.

Author: Laurie Nevay

Definition at line 33 of file BDSBeamPipeFactoryLHCDetailed.hh.

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryLHCDetailed()

BDSBeamPipeFactoryLHCDetailed::BDSBeamPipeFactoryLHCDetailed ( )

Definition at line 45 of file BDSBeamPipeFactoryLHCDetailed.cc.

◆ ~BDSBeamPipeFactoryLHCDetailed()

virtual BDSBeamPipeFactoryLHCDetailed::~BDSBeamPipeFactoryLHCDetailed ( )

inlinevirtual

Definition at line 37 of file BDSBeamPipeFactoryLHCDetailed.hh.

Member Function Documentation

◆ BuildLogicalVolumes()

void BDSBeamPipeFactoryLHCDetailed::BuildLogicalVolumes	(	const G4String &	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn
	)

privatevirtual

build logical volumes

Reimplemented from BDSBeamPipeFactoryBase.

Definition at line 399 of file BDSBeamPipeFactoryLHCDetailed.cc.

References buildCoolingPipe, BDSBeamPipeFactoryBase::BuildLogicalVolumes(), BDSMaterials::GetMaterial(), and BDSMaterials::Instance().

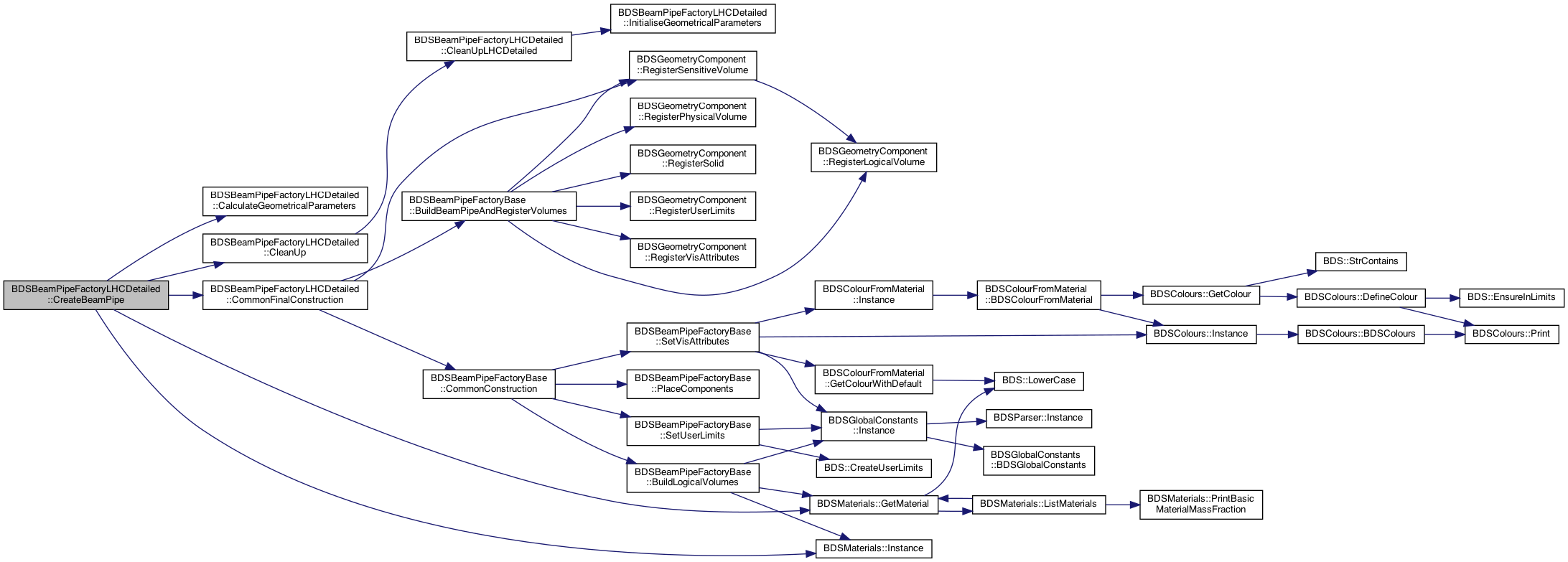

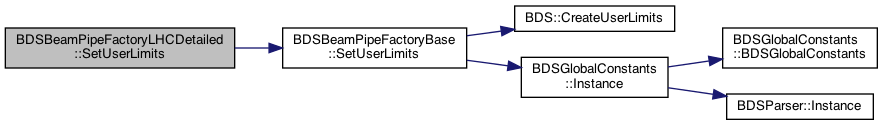

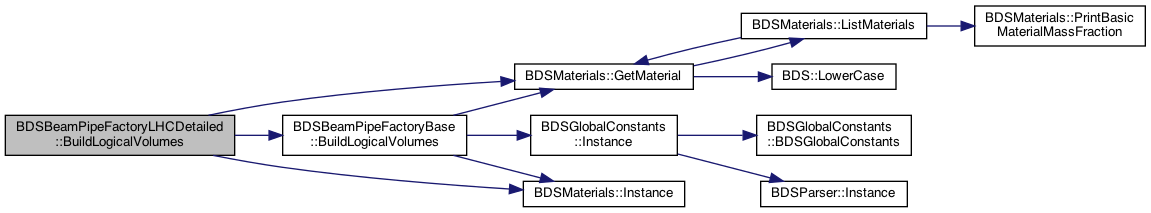

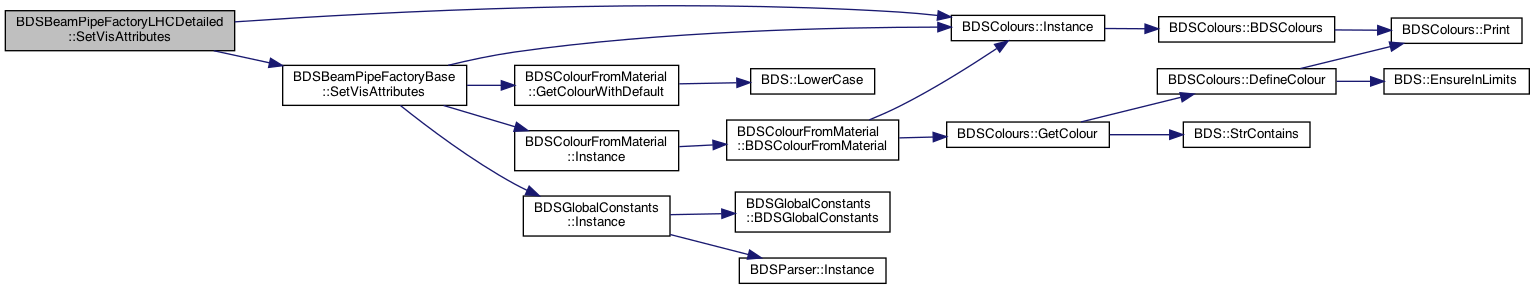

Here is the call graph for this function:

◆ CalculateGeometricalParameters()

void BDSBeamPipeFactoryLHCDetailed::CalculateGeometricalParameters	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	beamPipeThickness,
		G4double	length
	)

private

Calculate the various radii and geometrical parameters for this design based on the input aperture parameters

Definition at line 105 of file BDSBeamPipeFactoryLHCDetailed.cc.

References bsInnerRadius, buildCoolingPipe, cbInnerRadius, coldBoreThickness, containerRadius, coolingPipeOffset, cuInnerRadius, BDSFactoryBase::lengthSafety, vacHalfLength, vacRadius, and verticalOrientation.

Referenced by CreateBeamPipe().

Here is the caller graph for this function:

◆ CleanUp()

void BDSBeamPipeFactoryLHCDetailed::CleanUp ( )

virtual

Clean up extra pointers particular to this factory before use.

Reimplemented from BDSBeamPipeFactoryBase.

Definition at line 55 of file BDSBeamPipeFactoryLHCDetailed.cc.

References CleanUpLHCDetailed().

Referenced by CreateBeamPipe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUpLHCDetailed()

void BDSBeamPipeFactoryLHCDetailed::CleanUpLHCDetailed ( )

private

Do the actual clean up of members here in a non-virtual function so it can be used in the constructor.

Definition at line 61 of file BDSBeamPipeFactoryLHCDetailed.cc.

References InitialiseGeometricalParameters().

Referenced by CleanUp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CommonFinalConstruction()

BDSBeamPipe * BDSBeamPipeFactoryLHCDetailed::CommonFinalConstruction	(	const G4String &	name,
		G4Material *	vacuumMaterial,
		G4Material *	beamPipeMaterial,
		G4double	length,
		G4double	containerRadius
	)

private

only the solids are unique, once we have those, the logical volumes and placement in the container are the same. group all this functionality together

Definition at line 372 of file BDSBeamPipeFactoryLHCDetailed.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), buildCoolingPipe, BDSBeamPipeFactoryBase::CommonConstruction(), BDSGeometryComponent::RegisterSensitiveVolume(), and BDSBeamPipeFactoryBase::sensitiveBeamPipe.

Referenced by CreateBeamPipe().

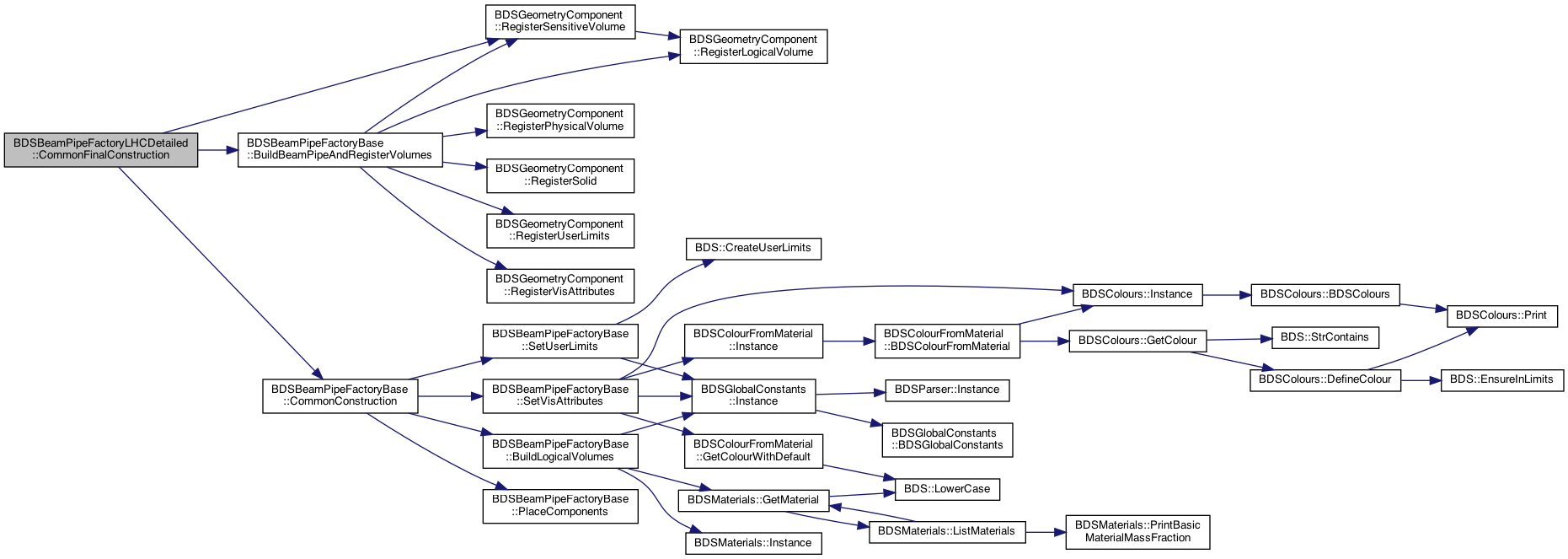

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBeamPipe() [1/2]

BDSBeamPipe * BDSBeamPipeFactoryLHCDetailed::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		const G4ThreeVector &	inputFaceNormalIn,
		const G4ThreeVector &	outputFaceNormalIn,
		G4double	aper1 = `0`,
		G4double	aper2 = `0`,
		G4double	aper3 = `0`,
		G4double	aper4 = `0`,
		G4Material *	vacuumMaterialIn = `nullptr`,
		G4double	beamPipeThicknessIn = `0`,
		G4Material *	beamPipeMaterialIn = `nullptr`,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

virtual

Create a beam pipe with angled faces as described by unit normal vectors. The input face normal vector must have a negative z component and the output face a positive z component.

Implements BDSBeamPipeFactoryBase.

Definition at line 342 of file BDSBeamPipeFactoryLHCDetailed.cc.

References CalculateGeometricalParameters(), CleanUp(), CommonFinalConstruction(), CreateGeneralAngledSolids(), BDSBeamPipeFactoryBase::inputFaceNormal, and BDSBeamPipeFactoryBase::outputFaceNormal.

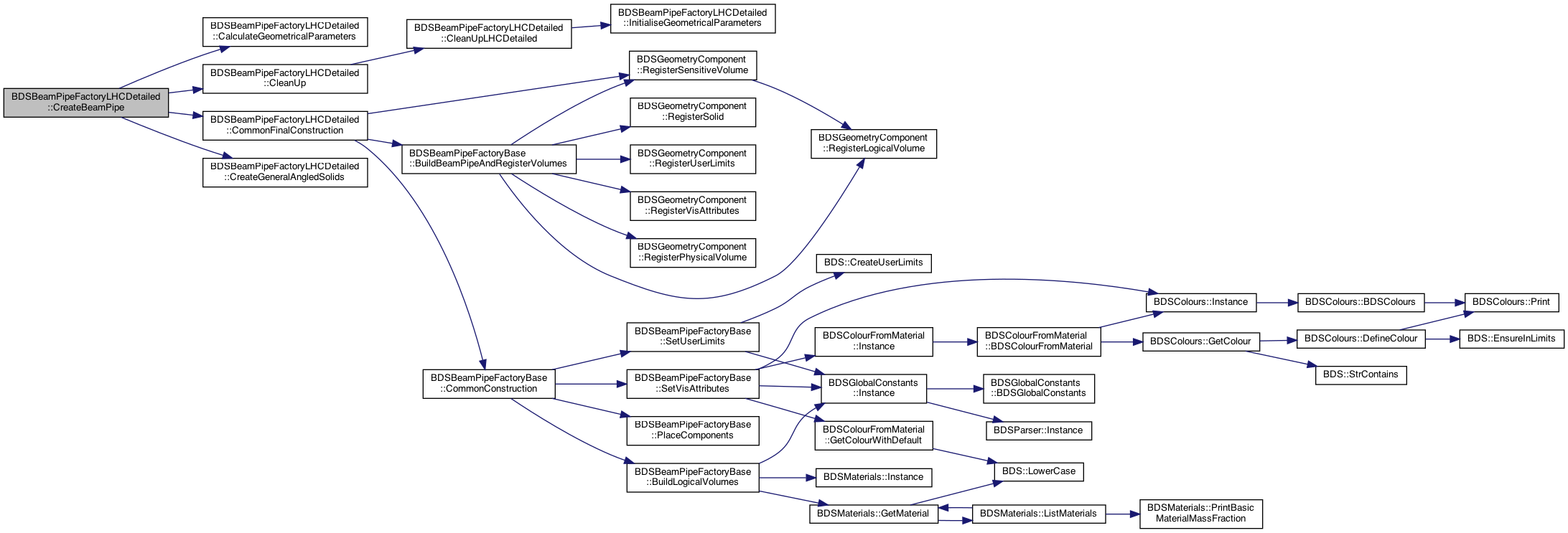

Here is the call graph for this function:

◆ CreateBeamPipe() [2/2]

BDSBeamPipe * BDSBeamPipeFactoryLHCDetailed::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		G4double	aper1 = `0`,
		G4double	aper2 = `0`,
		G4double	aper3 = `0`,
		G4double	aper4 = `0`,
		G4Material *	vacuumMaterialIn = `nullptr`,
		G4double	beamPipeThicknessIn = `0`,
		G4Material *	beamPipeMaterialIn = `nullptr`,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

virtual

create a flat ended beampipe

Implements BDSBeamPipeFactoryBase.

Definition at line 168 of file BDSBeamPipeFactoryLHCDetailed.cc.

References bsInnerRadius, buildCoolingPipe, CalculateGeometricalParameters(), cbInnerRadius, CleanUp(), CommonFinalConstruction(), containerRadius, BDSBeamPipeFactoryBase::containerSubtractionSolid, cuInnerRadius, BDSMaterials::GetMaterial(), BDSMaterials::Instance(), BDSFactoryBase::lengthSafety, vacHalfLength, and vacRadius.

Here is the call graph for this function:

◆ CreateGeneralAngledSolids()

G4double BDSBeamPipeFactoryLHCDetailed::CreateGeneralAngledSolids	(	const G4String &	name,
		G4double	length,
		const G4ThreeVector &	inputface,
		const G4ThreeVector &	outputface
	)

private

the angled ones have degeneracy in the geant4 solids they used so we can avoid code duplication by grouping common construction tasks

Definition at line 527 of file BDSBeamPipeFactoryLHCDetailed.cc.

References bsInnerRadius, buildCoolingPipe, cbInnerRadius, containerRadius, BDSBeamPipeFactoryBase::containerSubtractionSolid, cuInnerRadius, BDSFactoryBase::lengthSafety, vacHalfLength, and vacRadius.

Referenced by CreateBeamPipe().

Here is the caller graph for this function:

◆ GetFullWidthOfCoolingPipe()

G4double BDSBeamPipeFactoryLHCDetailed::GetFullWidthOfCoolingPipe ( )

Access cooling pipe information from factory for parameter tests.

Definition at line 100 of file BDSBeamPipeFactoryLHCDetailed.cc.

References BDSFactoryBase::lengthSafety.

◆ InitialiseGeometricalParameters()

void BDSBeamPipeFactoryLHCDetailed::InitialiseGeometricalParameters ( )

private

Utility function to initialise the geometry parameters.

Definition at line 77 of file BDSBeamPipeFactoryLHCDetailed.cc.

References bsInnerRadius, buildCoolingPipe, cbInnerRadius, containerRadius, coolingPipeOffset, cuInnerRadius, vacHalfLength, vacRadius, and verticalOrientation.

Referenced by CleanUpLHCDetailed().

Here is the caller graph for this function:

◆ PlaceComponents()

void BDSBeamPipeFactoryLHCDetailed::PlaceComponents ( const G4String & nameIn )

privatevirtual

Place volumes.

Reimplemented from BDSBeamPipeFactoryBase.

Definition at line 462 of file BDSBeamPipeFactoryLHCDetailed.cc.

References buildCoolingPipe, BDSFactoryBase::checkOverlaps, coolingPipeOffset, BDSBeamPipeFactoryBase::PlaceComponents(), and verticalOrientation.

Here is the call graph for this function:

◆ SetUserLimits()

void BDSBeamPipeFactoryLHCDetailed::SetUserLimits ( G4double length )

privatevirtual

Set user limits.

Reimplemented from BDSBeamPipeFactoryBase.

Definition at line 449 of file BDSBeamPipeFactoryLHCDetailed.cc.

References buildCoolingPipe, and BDSBeamPipeFactoryBase::SetUserLimits().

Here is the call graph for this function:

◆ SetVisAttributes()

void BDSBeamPipeFactoryLHCDetailed::SetVisAttributes ( G4Material * beamPipeMaterialIn )

privatevirtual

Set visual attributes.

Reimplemented from BDSBeamPipeFactoryBase.

Definition at line 427 of file BDSBeamPipeFactoryLHCDetailed.cc.

References buildCoolingPipe, BDSColours::Instance(), BDSFactoryBase::nSegmentsPerCircle, and BDSBeamPipeFactoryBase::SetVisAttributes().

Here is the call graph for this function:

Field Documentation

◆ bsInnerBoxX

G4double BDSBeamPipeFactoryLHCDetailed::bsInnerBoxX

private

Definition at line 132 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ bsInnerBoxY

G4double BDSBeamPipeFactoryLHCDetailed::bsInnerBoxY

private

Definition at line 132 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ bsInnerRadius

G4double BDSBeamPipeFactoryLHCDetailed::bsInnerRadius

private

Beam screen geometrical parameters.

Definition at line 132 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ bsOuterBoxX

G4double BDSBeamPipeFactoryLHCDetailed::bsOuterBoxX

private

Definition at line 133 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ bsOuterBoxY

G4double BDSBeamPipeFactoryLHCDetailed::bsOuterBoxY

private

Definition at line 133 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ bsOuterRadius

G4double BDSBeamPipeFactoryLHCDetailed::bsOuterRadius

private

Definition at line 133 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ buildCoolingPipe

G4bool BDSBeamPipeFactoryLHCDetailed::buildCoolingPipe

private

Whether to build the cooling pipes on either side.

Definition at line 153 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by BuildLogicalVolumes(), CalculateGeometricalParameters(), CommonFinalConstruction(), CreateBeamPipe(), CreateGeneralAngledSolids(), InitialiseGeometricalParameters(), PlaceComponents(), SetUserLimits(), and SetVisAttributes().

◆ cbInnerRadius

G4double BDSBeamPipeFactoryLHCDetailed::cbInnerRadius

private

Cold bore geometrical parameters.

Definition at line 136 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ cbOuterRadius

G4double BDSBeamPipeFactoryLHCDetailed::cbOuterRadius

private

Definition at line 136 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coldBoreThickness

G4double BDSBeamPipeFactoryLHCDetailed::coldBoreThickness

private

Parameters that control the design.

Definition at line 118 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters().

◆ containerRadius

G4double BDSBeamPipeFactoryLHCDetailed::containerRadius

private

Container geometrical parameters.

Definition at line 139 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ coolingPipeBottomPV

G4PVPlacement* BDSBeamPipeFactoryLHCDetailed::coolingPipeBottomPV

private

Definition at line 115 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coolingPipeLV

G4LogicalVolume* BDSBeamPipeFactoryLHCDetailed::coolingPipeLV

private

Definition at line 111 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coolingPipeOffset

G4double BDSBeamPipeFactoryLHCDetailed::coolingPipeOffset

private

Cooling pipe geometrical parameters.

Definition at line 146 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), InitialiseGeometricalParameters(), and PlaceComponents().

◆ coolingPipeRadius

G4double BDSBeamPipeFactoryLHCDetailed::coolingPipeRadius

private

Definition at line 120 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coolingPipeSolid

G4VSolid* BDSBeamPipeFactoryLHCDetailed::coolingPipeSolid

private

Definition at line 108 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coolingPipeThickness

G4double BDSBeamPipeFactoryLHCDetailed::coolingPipeThickness

private

Definition at line 119 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ coolingPipeTopPV

G4PVPlacement* BDSBeamPipeFactoryLHCDetailed::coolingPipeTopPV

private

Definition at line 114 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ copperSkinLV

G4LogicalVolume* BDSBeamPipeFactoryLHCDetailed::copperSkinLV

private

Definition at line 109 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ copperSkinPV

G4PVPlacement* BDSBeamPipeFactoryLHCDetailed::copperSkinPV

private

Definition at line 112 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ copperSkinSolid

G4VSolid* BDSBeamPipeFactoryLHCDetailed::copperSkinSolid

private

Definition at line 106 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ copperSkinThickness

G4double BDSBeamPipeFactoryLHCDetailed::copperSkinThickness

private

Definition at line 121 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ cuInnerBoxX

G4double BDSBeamPipeFactoryLHCDetailed::cuInnerBoxX

private

Definition at line 128 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ cuInnerBoxY

G4double BDSBeamPipeFactoryLHCDetailed::cuInnerBoxY

private

Definition at line 128 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ cuInnerRadius

G4double BDSBeamPipeFactoryLHCDetailed::cuInnerRadius

private

Copper skin geometrical parameters.

Definition at line 128 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ cuOuterBoxX

G4double BDSBeamPipeFactoryLHCDetailed::cuOuterBoxX

private

Definition at line 129 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ cuOuterBoxY

G4double BDSBeamPipeFactoryLHCDetailed::cuOuterBoxY

private

Definition at line 129 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ cuOuterRadius

G4double BDSBeamPipeFactoryLHCDetailed::cuOuterRadius

private

Definition at line 129 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ halfLength

G4double BDSBeamPipeFactoryLHCDetailed::halfLength

private

Definition at line 143 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ screenLV

G4LogicalVolume* BDSBeamPipeFactoryLHCDetailed::screenLV

private

Definition at line 110 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ screenPV

G4PVPlacement* BDSBeamPipeFactoryLHCDetailed::screenPV

private

Definition at line 113 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ screenSolid

G4VSolid* BDSBeamPipeFactoryLHCDetailed::screenSolid

private

Definition at line 107 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ vacBoxX

G4double BDSBeamPipeFactoryLHCDetailed::vacBoxX

private

Definition at line 125 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ vacBoxY

G4double BDSBeamPipeFactoryLHCDetailed::vacBoxY

private

Definition at line 125 of file BDSBeamPipeFactoryLHCDetailed.hh.

◆ vacHalfLength

G4double BDSBeamPipeFactoryLHCDetailed::vacHalfLength

private

General length variable (to avoid mistakes)

Definition at line 142 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ vacRadius

G4double BDSBeamPipeFactoryLHCDetailed::vacRadius

private

Calculated parameters below here vacuum volume

Definition at line 125 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), CreateBeamPipe(), CreateGeneralAngledSolids(), and InitialiseGeometricalParameters().

◆ verticalOrientation

G4bool BDSBeamPipeFactoryLHCDetailed::verticalOrientation

private

Whether given the aperture parameters the pipe is square on the sides and round at the top

the 'vertical'.

Definition at line 150 of file BDSBeamPipeFactoryLHCDetailed.hh.

Referenced by CalculateGeometricalParameters(), InitialiseGeometricalParameters(), and PlaceComponents().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSBeamPipeFactoryLHCDetailed.hh
/Users/nevay/physics/reps/bdsim/src/BDSBeamPipeFactoryLHCDetailed.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryLHCDetailed()

◆ ~BDSBeamPipeFactoryLHCDetailed()

Member Function Documentation

◆ BuildLogicalVolumes()

◆ CalculateGeometricalParameters()

◆ CleanUp()

◆ CleanUpLHCDetailed()

◆ CommonFinalConstruction()

◆ CreateBeamPipe() [1/2]

◆ CreateBeamPipe() [2/2]

◆ CreateGeneralAngledSolids()

◆ GetFullWidthOfCoolingPipe()

◆ InitialiseGeometricalParameters()

◆ PlaceComponents()

◆ SetUserLimits()

◆ SetVisAttributes()

Field Documentation

◆ bsInnerBoxX

◆ bsInnerBoxY

◆ bsInnerRadius

◆ bsOuterBoxX

◆ bsOuterBoxY

◆ bsOuterRadius

◆ buildCoolingPipe

◆ cbInnerRadius

◆ cbOuterRadius

◆ coldBoreThickness

◆ containerRadius

◆ coolingPipeBottomPV

◆ coolingPipeLV

◆ coolingPipeOffset

◆ coolingPipeRadius

◆ coolingPipeSolid

◆ coolingPipeThickness

◆ coolingPipeTopPV

◆ copperSkinLV

◆ copperSkinPV

◆ copperSkinSolid

◆ copperSkinThickness

◆ cuInnerBoxX

◆ cuInnerBoxY

◆ cuInnerRadius

◆ cuOuterBoxX

◆ cuOuterBoxY

◆ cuOuterRadius

◆ halfLength

◆ screenLV

◆ screenPV

◆ screenSolid

◆ vacBoxX

◆ vacBoxY

◆ vacHalfLength

◆ vacRadius

◆ verticalOrientation
