Abstract base class for beampipe factory classes. More...

#include <BDSBeamPipeFactoryBase.hh>

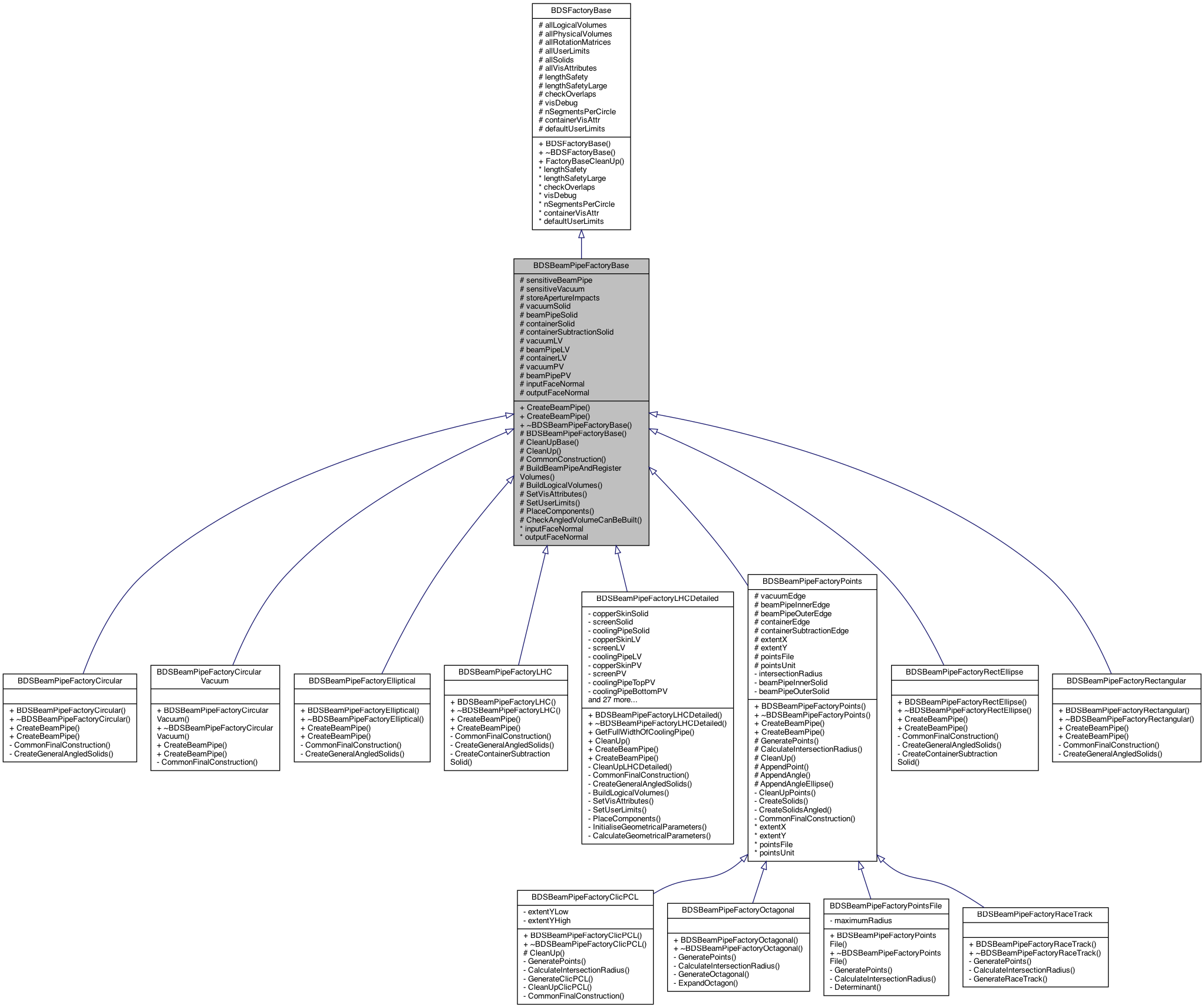

Inheritance diagram for BDSBeamPipeFactoryBase:

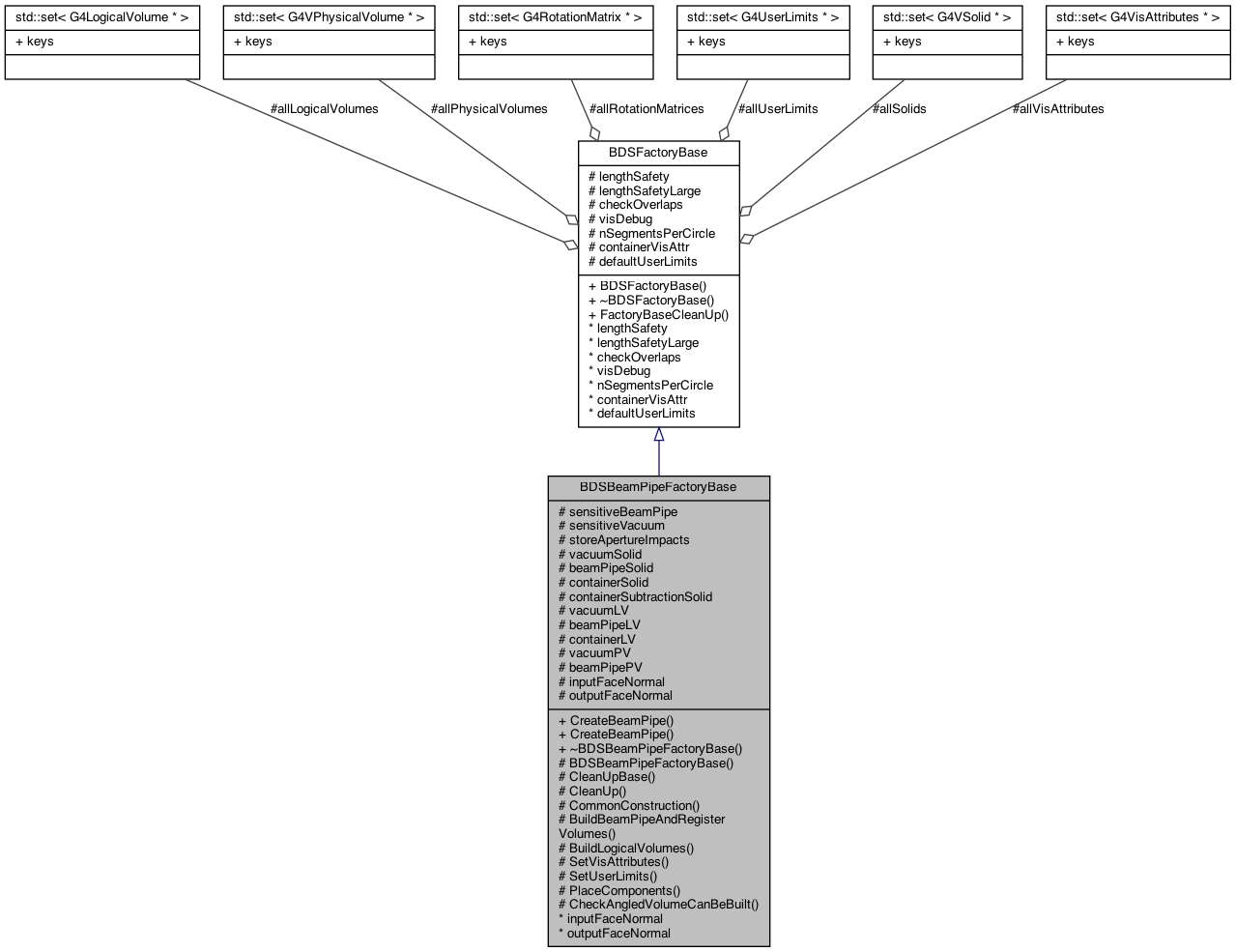

Collaboration diagram for BDSBeamPipeFactoryBase:

Public Member Functions
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0
	create a flat ended beampipe More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0

virtual	~BDSBeamPipeFactoryBase ()
	Virtual base destructor. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Protected Member Functions
	BDSBeamPipeFactoryBase ()
	base constructor More...

void	CleanUpBase ()

virtual void	CleanUp ()

void	CommonConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double length)
	finalise beampipe construction More...

BDSBeamPipe *	BuildBeamPipeAndRegisterVolumes (BDSExtent extent, G4double containerRadius, G4bool containerIsCircular=false)
	build beampipe and register logical volumes More...

virtual void	BuildLogicalVolumes (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn)
	build logical volumes More...

virtual void	SetVisAttributes (G4Material *beamPipeMaterialIn)
	Set visual attributes. More...

virtual void	SetUserLimits (G4double length)
	Set user limits. More...

virtual void	PlaceComponents (const G4String &nameIn)
	Place volumes. More...

Static Protected Member Functions
static void	CheckAngledVolumeCanBeBuilt (G4double length, const G4ThreeVector &inputfaceAngle, const G4ThreeVector &outputfaceAngle, G4double horizontalWidth, const G4String &name)
	check if a beam pipe volume with angled faces can be constructed More...

Protected Attributes
G4bool	sensitiveBeamPipe
	Whether the beam pipe will record energy deposition. More...

G4bool	sensitiveVacuum
	Whether the vacuum will record any energy deposition. More...

G4bool	storeApertureImpacts
	Whether to store aperture impacts. More...

G4VSolid *	vacuumSolid

G4VSolid *	beamPipeSolid

G4VSolid *	containerSolid

G4VSolid *	containerSubtractionSolid
	Longer (in length) version of container solid for unambiguous subtraction. More...

G4LogicalVolume *	vacuumLV

G4LogicalVolume *	beamPipeLV

G4LogicalVolume *	containerLV

G4PVPlacement *	vacuumPV

G4PVPlacement *	beamPipePV


G4ThreeVector	inputFaceNormal
	For recording the face normals in the finished pipe component. More...

G4ThreeVector	outputFaceNormal
	For recording the face normals in the finished pipe component. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Detailed Description

Abstract base class for beampipe factory classes.

Abstract base class that defines the interface of each factory to build any type of beampipe required. There are four general possibilities apart from the shape (each derived class will give a different cross-section) and these dictate the angled faces.

Uses Geant4 default units by default, ie mm, rad (not metres)

Note, any type of aperture (in MADX) requires up to 4 parameters

Default values in constructors result in global defaults being used ie beampipe material will be steel - the default from options.

'In' in argument variables is used to distinguish between that and possible internal member variables with the same name - avoiding 'itsVariable'

Author: Laurie Nevay

Definition at line 57 of file BDSBeamPipeFactoryBase.hh.

Constructor & Destructor Documentation

◆ ~BDSBeamPipeFactoryBase()

virtual BDSBeamPipeFactoryBase::~BDSBeamPipeFactoryBase ( )

inlinevirtual

Virtual base destructor.

Definition at line 92 of file BDSBeamPipeFactoryBase.hh.

◆ BDSBeamPipeFactoryBase()

BDSBeamPipeFactoryBase::BDSBeamPipeFactoryBase ( )

protected

base constructor

Definition at line 40 of file BDSBeamPipeFactoryBase.cc.

References CleanUpBase(), BDSGlobalConstants::Instance(), sensitiveBeamPipe, sensitiveVacuum, and storeApertureImpacts.

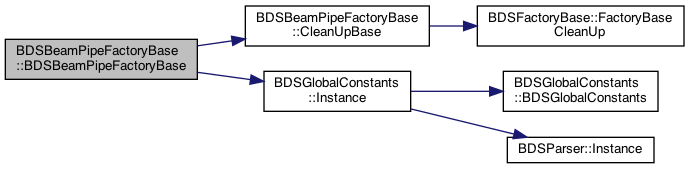

Here is the call graph for this function:

Member Function Documentation

◆ BuildBeamPipeAndRegisterVolumes()

BDSBeamPipe * BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes	(	BDSExtent	extent,
		G4double	containerRadius,
		G4bool	containerIsCircular = `false`
	)

protected

build beampipe and register logical volumes

Definition at line 168 of file BDSBeamPipeFactoryBase.cc.

References containerSubtractionSolid, inputFaceNormal, outputFaceNormal, BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryComponent::RegisterSensitiveVolume(), BDSGeometryComponent::RegisterSolid(), BDSGeometryComponent::RegisterUserLimits(), BDSGeometryComponent::RegisterVisAttributes(), sensitiveBeamPipe, sensitiveVacuum, and storeApertureImpacts.

Referenced by BDSBeamPipeFactoryLHCDetailed::CommonFinalConstruction(), BDSBeamPipeFactoryCircularVacuum::CommonFinalConstruction(), BDSBeamPipeFactoryClicPCL::CommonFinalConstruction(), BDSBeamPipeFactoryPoints::CommonFinalConstruction(), BDSBeamPipeFactoryRectangular::CommonFinalConstruction(), BDSBeamPipeFactoryCircular::CommonFinalConstruction(), BDSBeamPipeFactoryElliptical::CommonFinalConstruction(), BDSBeamPipeFactoryLHC::CommonFinalConstruction(), and BDSBeamPipeFactoryRectEllipse::CommonFinalConstruction().

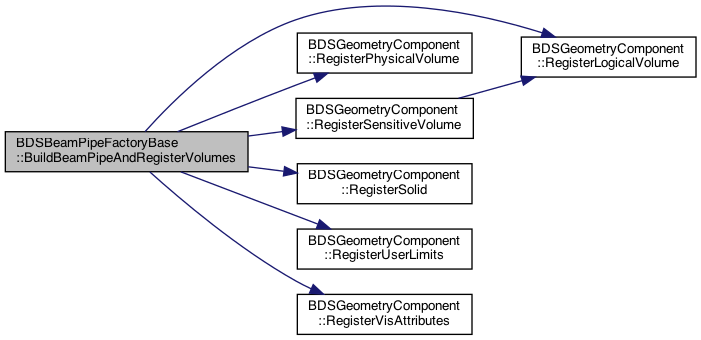

Here is the call graph for this function:

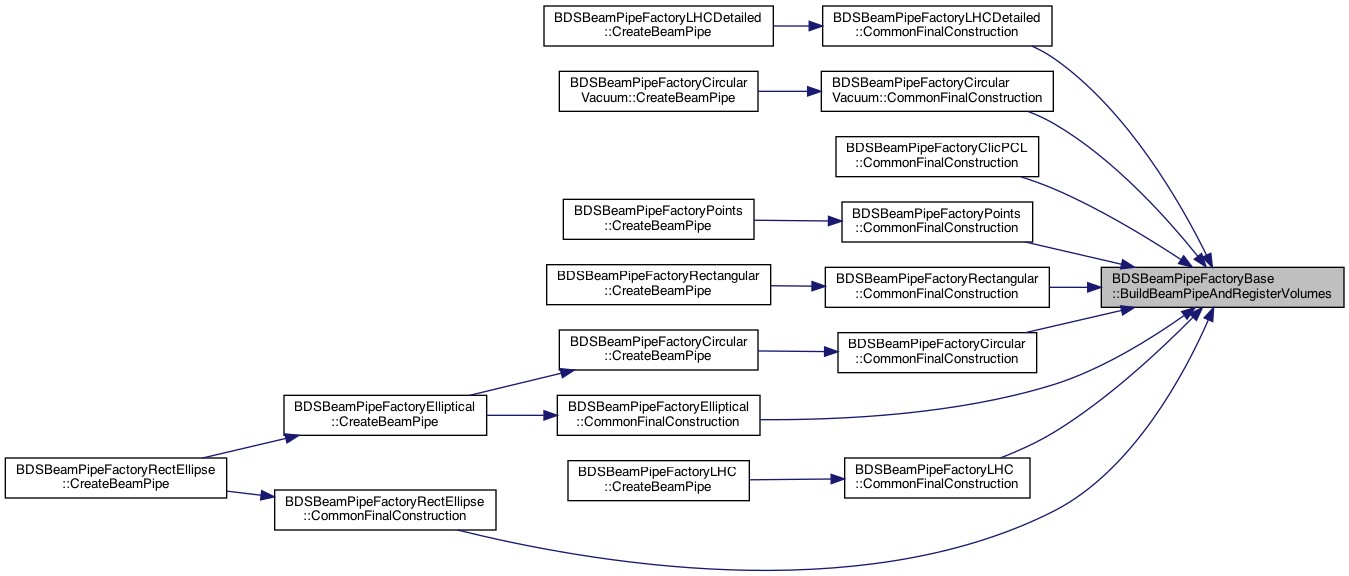

Here is the caller graph for this function:

◆ BuildLogicalVolumes()

void BDSBeamPipeFactoryBase::BuildLogicalVolumes	(	const G4String &	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn
	)

protectedvirtual

build logical volumes

Reimplemented in BDSBeamPipeFactoryLHCDetailed.

Definition at line 88 of file BDSBeamPipeFactoryBase.cc.

References BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), and BDSMaterials::Instance().

Referenced by BDSBeamPipeFactoryLHCDetailed::BuildLogicalVolumes(), and CommonConstruction().

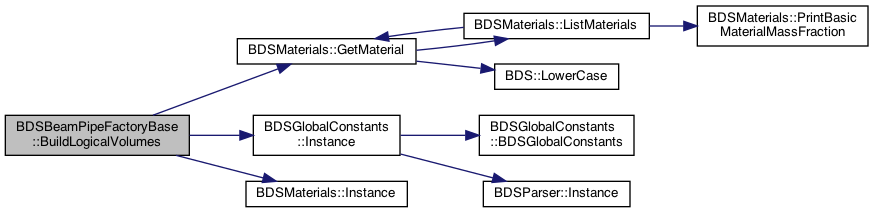

Here is the call graph for this function:

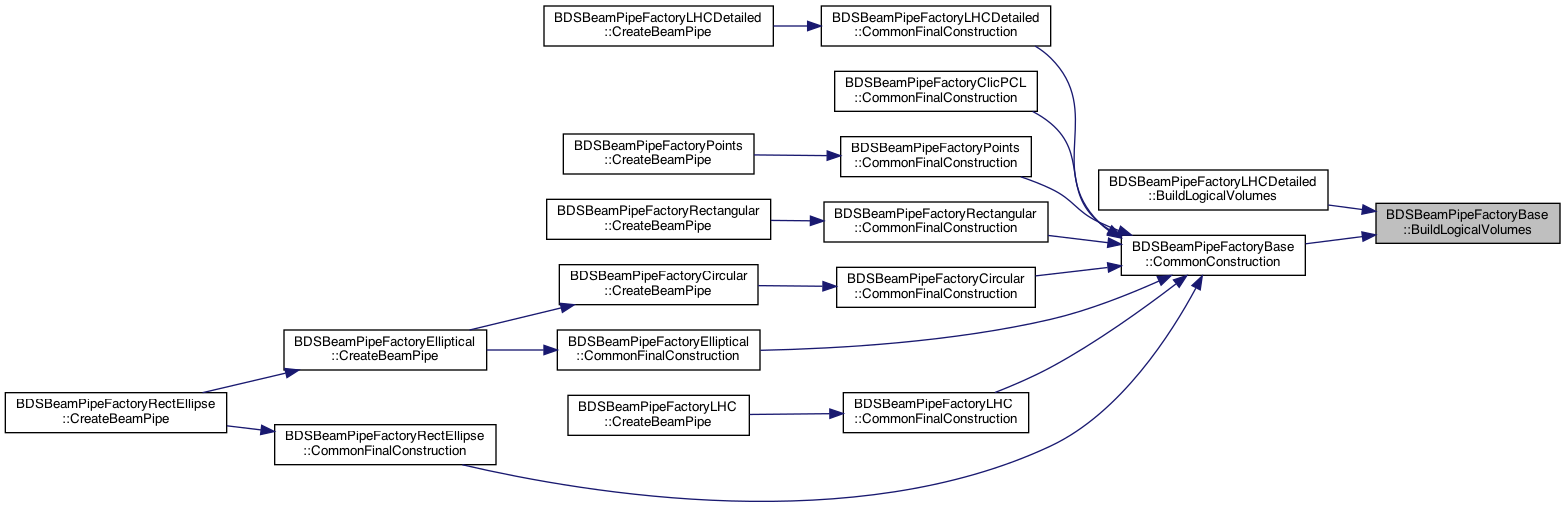

Here is the caller graph for this function:

◆ CheckAngledVolumeCanBeBuilt()

void BDSBeamPipeFactoryBase::CheckAngledVolumeCanBeBuilt	(	G4double	length,
		const G4ThreeVector &	inputfaceAngle,
		const G4ThreeVector &	outputfaceAngle,
		G4double	horizontalWidth,
		const G4String &	name
	)

staticprotected

check if a beam pipe volume with angled faces can be constructed

Definition at line 199 of file BDSBeamPipeFactoryBase.cc.

References BDS::WillIntersect().

Referenced by BDSBeamPipeFactoryCircularVacuum::CreateBeamPipe(), BDSBeamPipeFactoryRectEllipse::CreateGeneralAngledSolids(), BDSBeamPipeFactoryRectangular::CreateGeneralAngledSolids(), BDSBeamPipeFactoryElliptical::CreateGeneralAngledSolids(), BDSBeamPipeFactoryCircular::CreateGeneralAngledSolids(), and BDSBeamPipeFactoryPoints::CreateSolidsAngled().

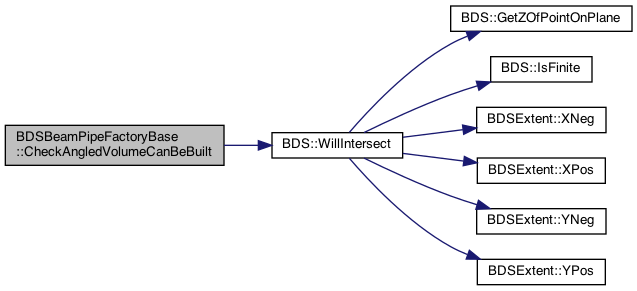

Here is the call graph for this function:

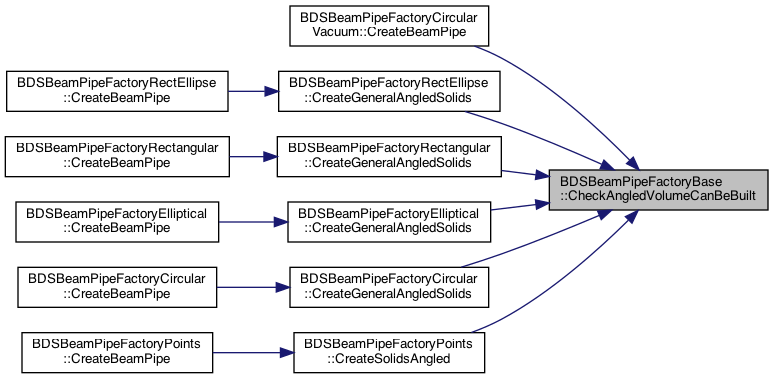

Here is the caller graph for this function:

◆ CleanUp()

void BDSBeamPipeFactoryBase::CleanUp ( )

protectedvirtual

Reimplemented in BDSBeamPipeFactoryClicPCL, BDSBeamPipeFactoryLHCDetailed, and BDSBeamPipeFactoryPoints.

Definition at line 49 of file BDSBeamPipeFactoryBase.cc.

◆ CleanUpBase()

void BDSBeamPipeFactoryBase::CleanUpBase ( )

protected

Initialiser and can be used to reset factory pointers after use. Non-virtual as it's used in the constructor to avoid duplication of code, but it can't be virtual there.

Definition at line 54 of file BDSBeamPipeFactoryBase.cc.

References containerSubtractionSolid, BDSFactoryBase::FactoryBaseCleanUp(), inputFaceNormal, and outputFaceNormal.

Referenced by BDSBeamPipeFactoryBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CommonConstruction()

void BDSBeamPipeFactoryBase::CommonConstruction	(	const G4String &	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn,
		G4double	length
	)

protected

finalise beampipe construction

build logical volumes

set visual attributes

set user limits

place volumes

Definition at line 71 of file BDSBeamPipeFactoryBase.cc.

References BuildLogicalVolumes(), PlaceComponents(), SetUserLimits(), and SetVisAttributes().

Referenced by BDSBeamPipeFactoryLHCDetailed::CommonFinalConstruction(), BDSBeamPipeFactoryClicPCL::CommonFinalConstruction(), BDSBeamPipeFactoryPoints::CommonFinalConstruction(), BDSBeamPipeFactoryRectangular::CommonFinalConstruction(), BDSBeamPipeFactoryCircular::CommonFinalConstruction(), BDSBeamPipeFactoryElliptical::CommonFinalConstruction(), BDSBeamPipeFactoryLHC::CommonFinalConstruction(), and BDSBeamPipeFactoryRectEllipse::CommonFinalConstruction().

Here is the call graph for this function:

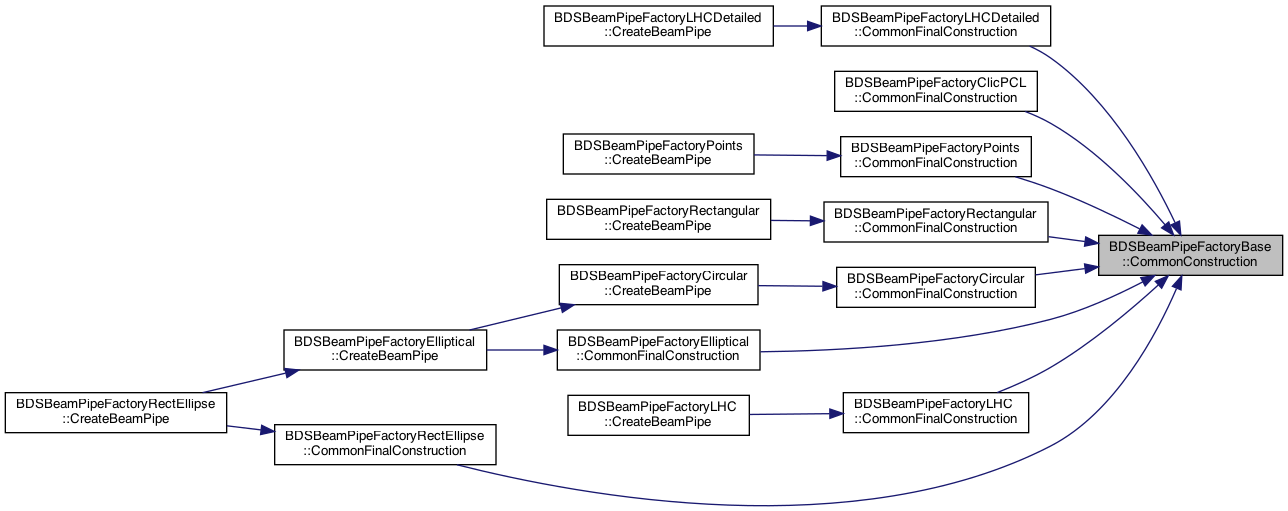

Here is the caller graph for this function:

◆ CreateBeamPipe() [1/2]

virtual BDSBeamPipe * BDSBeamPipeFactoryBase::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		const G4ThreeVector &	inputFaceNormalIn,
		const G4ThreeVector &	outputFaceNormalIn,
		G4double	aper1 = `0`,
		G4double	aper2 = `0`,
		G4double	aper3 = `0`,
		G4double	aper4 = `0`,
		G4Material *	vacuumMaterialIn = `nullptr`,
		G4double	beamPipeThicknessIn = `0`,
		G4Material *	beamPipeMaterialIn = `nullptr`,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

pure virtual

Create a beam pipe with angled faces as described by unit normal vectors. The input face normal vector must have a negative z component and the output face a positive z component.

Implemented in BDSBeamPipeFactoryCircular, BDSBeamPipeFactoryCircularVacuum, BDSBeamPipeFactoryElliptical, BDSBeamPipeFactoryLHC, BDSBeamPipeFactoryLHCDetailed, BDSBeamPipeFactoryRectangular, BDSBeamPipeFactoryRectEllipse, and BDSBeamPipeFactoryPoints.

◆ CreateBeamPipe() [2/2]

virtual BDSBeamPipe * BDSBeamPipeFactoryBase::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		G4double	aper1 = `0`,
		G4double	aper2 = `0`,
		G4double	aper3 = `0`,
		G4double	aper4 = `0`,
		G4Material *	vacuumMaterialIn = `nullptr`,
		G4double	beamPipeThicknessIn = `0`,
		G4Material *	beamPipeMaterialIn = `nullptr`,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

pure virtual

create a flat ended beampipe

Implemented in BDSBeamPipeFactoryCircular, BDSBeamPipeFactoryCircularVacuum, BDSBeamPipeFactoryElliptical, BDSBeamPipeFactoryLHC, BDSBeamPipeFactoryLHCDetailed, BDSBeamPipeFactoryRectangular, BDSBeamPipeFactoryRectEllipse, and BDSBeamPipeFactoryPoints.

◆ PlaceComponents()

void BDSBeamPipeFactoryBase::PlaceComponents ( const G4String & nameIn )

protectedvirtual

Place volumes.

Reimplemented in BDSBeamPipeFactoryLHCDetailed.

Definition at line 142 of file BDSBeamPipeFactoryBase.cc.

References BDSFactoryBase::checkOverlaps.

Referenced by CommonConstruction(), and BDSBeamPipeFactoryLHCDetailed::PlaceComponents().

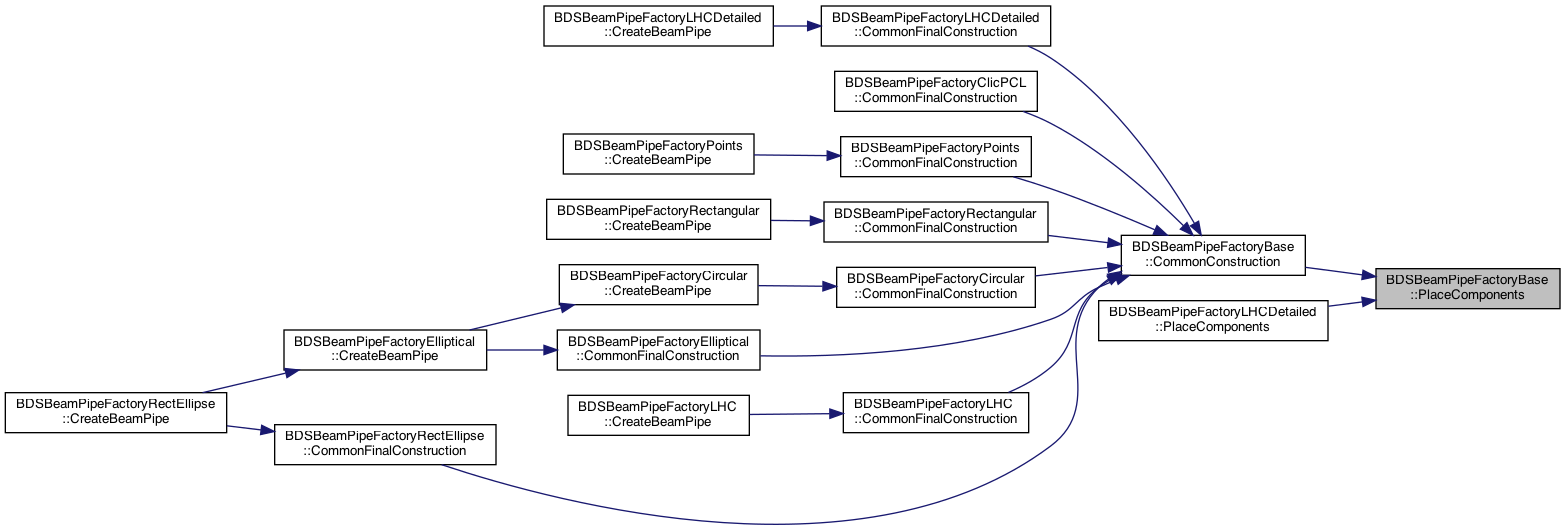

Here is the caller graph for this function:

◆ SetUserLimits()

void BDSBeamPipeFactoryBase::SetUserLimits ( G4double length )

protectedvirtual

Set user limits.

Reimplemented in BDSBeamPipeFactoryLHCDetailed.

Definition at line 122 of file BDSBeamPipeFactoryBase.cc.

References BDS::CreateUserLimits(), and BDSGlobalConstants::Instance().

Referenced by CommonConstruction(), and BDSBeamPipeFactoryLHCDetailed::SetUserLimits().

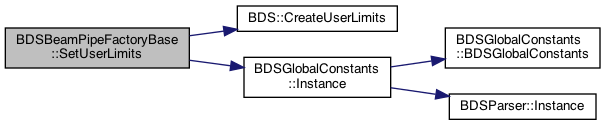

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVisAttributes()

void BDSBeamPipeFactoryBase::SetVisAttributes ( G4Material * beamPipeMaterialIn )

protectedvirtual

Set visual attributes.

Reimplemented in BDSBeamPipeFactoryLHCDetailed.

Definition at line 109 of file BDSBeamPipeFactoryBase.cc.

References BDSColourFromMaterial::GetColourWithDefault(), BDSColourFromMaterial::Instance(), BDSColours::Instance(), BDSGlobalConstants::Instance(), and BDSFactoryBase::nSegmentsPerCircle.

Referenced by CommonConstruction(), and BDSBeamPipeFactoryLHCDetailed::SetVisAttributes().

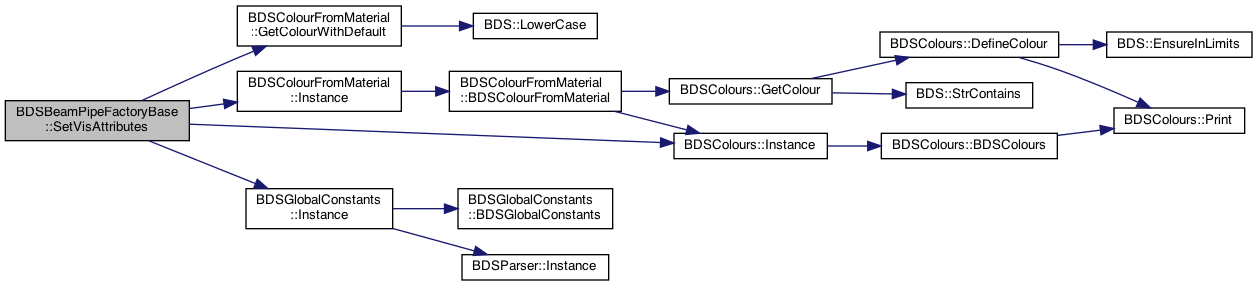

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

◆ beamPipeLV

G4LogicalVolume* BDSBeamPipeFactoryBase::beamPipeLV

protected

Definition at line 146 of file BDSBeamPipeFactoryBase.hh.

◆ beamPipePV

G4PVPlacement* BDSBeamPipeFactoryBase::beamPipePV

protected

Definition at line 149 of file BDSBeamPipeFactoryBase.hh.

◆ beamPipeSolid

G4VSolid* BDSBeamPipeFactoryBase::beamPipeSolid

protected

Definition at line 141 of file BDSBeamPipeFactoryBase.hh.

◆ containerLV

G4LogicalVolume* BDSBeamPipeFactoryBase::containerLV

protected

Definition at line 147 of file BDSBeamPipeFactoryBase.hh.

◆ containerSolid

G4VSolid* BDSBeamPipeFactoryBase::containerSolid

protected

Definition at line 142 of file BDSBeamPipeFactoryBase.hh.

◆ containerSubtractionSolid

G4VSolid* BDSBeamPipeFactoryBase::containerSubtractionSolid

protected

Longer (in length) version of container solid for unambiguous subtraction.

Definition at line 144 of file BDSBeamPipeFactoryBase.hh.

Referenced by BuildBeamPipeAndRegisterVolumes(), CleanUpBase(), BDSBeamPipeFactoryCircularVacuum::CommonFinalConstruction(), BDSBeamPipeFactoryRectangular::CommonFinalConstruction(), BDSBeamPipeFactoryCircular::CommonFinalConstruction(), BDSBeamPipeFactoryElliptical::CommonFinalConstruction(), BDSBeamPipeFactoryLHCDetailed::CreateBeamPipe(), BDSBeamPipeFactoryLHC::CreateContainerSubtractionSolid(), BDSBeamPipeFactoryLHCDetailed::CreateGeneralAngledSolids(), and BDSBeamPipeFactoryPoints::CreateSolids().

◆ inputFaceNormal

G4ThreeVector BDSBeamPipeFactoryBase::inputFaceNormal

protected

For recording the face normals in the finished pipe component.

Definition at line 152 of file BDSBeamPipeFactoryBase.hh.

Referenced by BuildBeamPipeAndRegisterVolumes(), CleanUpBase(), BDSBeamPipeFactoryCircular::CreateBeamPipe(), BDSBeamPipeFactoryCircularVacuum::CreateBeamPipe(), BDSBeamPipeFactoryElliptical::CreateBeamPipe(), BDSBeamPipeFactoryLHC::CreateBeamPipe(), BDSBeamPipeFactoryLHCDetailed::CreateBeamPipe(), BDSBeamPipeFactoryRectangular::CreateBeamPipe(), BDSBeamPipeFactoryRectEllipse::CreateBeamPipe(), and BDSBeamPipeFactoryPoints::CreateBeamPipe().

◆ outputFaceNormal

G4ThreeVector BDSBeamPipeFactoryBase::outputFaceNormal

protected

For recording the face normals in the finished pipe component.

Definition at line 153 of file BDSBeamPipeFactoryBase.hh.

Referenced by BuildBeamPipeAndRegisterVolumes(), CleanUpBase(), BDSBeamPipeFactoryCircular::CreateBeamPipe(), BDSBeamPipeFactoryCircularVacuum::CreateBeamPipe(), BDSBeamPipeFactoryElliptical::CreateBeamPipe(), BDSBeamPipeFactoryLHC::CreateBeamPipe(), BDSBeamPipeFactoryLHCDetailed::CreateBeamPipe(), BDSBeamPipeFactoryRectangular::CreateBeamPipe(), BDSBeamPipeFactoryRectEllipse::CreateBeamPipe(), and BDSBeamPipeFactoryPoints::CreateBeamPipe().

◆ sensitiveBeamPipe

G4bool BDSBeamPipeFactoryBase::sensitiveBeamPipe

protected

Whether the beam pipe will record energy deposition.

Definition at line 137 of file BDSBeamPipeFactoryBase.hh.

Referenced by BDSBeamPipeFactoryBase(), BuildBeamPipeAndRegisterVolumes(), and BDSBeamPipeFactoryLHCDetailed::CommonFinalConstruction().

◆ sensitiveVacuum

G4bool BDSBeamPipeFactoryBase::sensitiveVacuum

protected

Whether the vacuum will record any energy deposition.

Definition at line 138 of file BDSBeamPipeFactoryBase.hh.

Referenced by BDSBeamPipeFactoryBase(), and BuildBeamPipeAndRegisterVolumes().

◆ storeApertureImpacts

G4bool BDSBeamPipeFactoryBase::storeApertureImpacts

protected

Whether to store aperture impacts.

Definition at line 139 of file BDSBeamPipeFactoryBase.hh.

Referenced by BDSBeamPipeFactoryBase(), and BuildBeamPipeAndRegisterVolumes().

◆ vacuumLV

G4LogicalVolume* BDSBeamPipeFactoryBase::vacuumLV

protected

Definition at line 145 of file BDSBeamPipeFactoryBase.hh.

◆ vacuumPV

G4PVPlacement* BDSBeamPipeFactoryBase::vacuumPV

protected

Definition at line 148 of file BDSBeamPipeFactoryBase.hh.

◆ vacuumSolid

G4VSolid* BDSBeamPipeFactoryBase::vacuumSolid

protected

Definition at line 140 of file BDSBeamPipeFactoryBase.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSBeamPipeFactoryBase.hh
/Users/nevay/physics/reps/bdsim/src/BDSBeamPipeFactoryBase.cc
