Factory for beam pipes defined by a series of x,y points that are extruded. More...

#include <BDSBeamPipeFactoryPoints.hh>

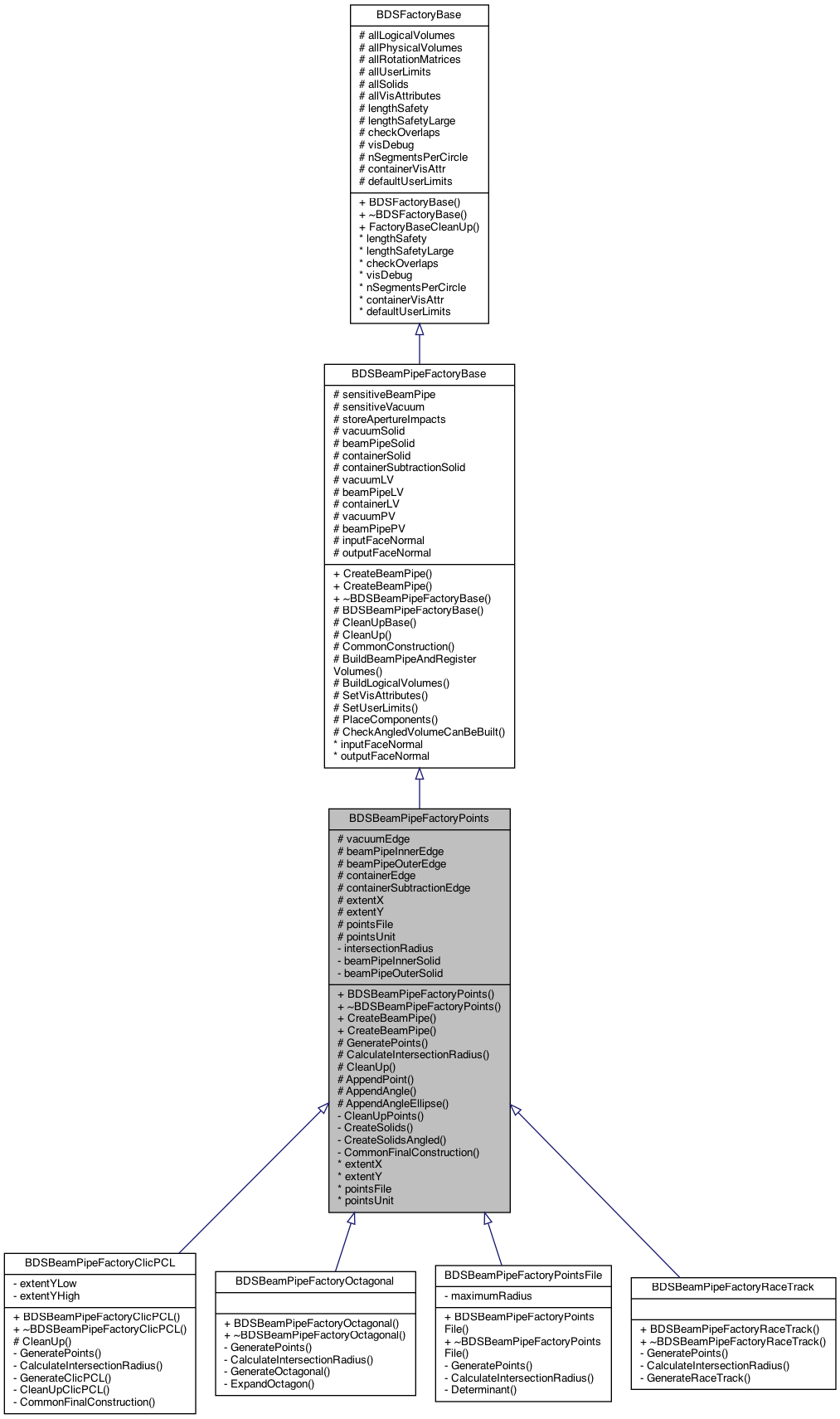

Inheritance diagram for BDSBeamPipeFactoryPoints:

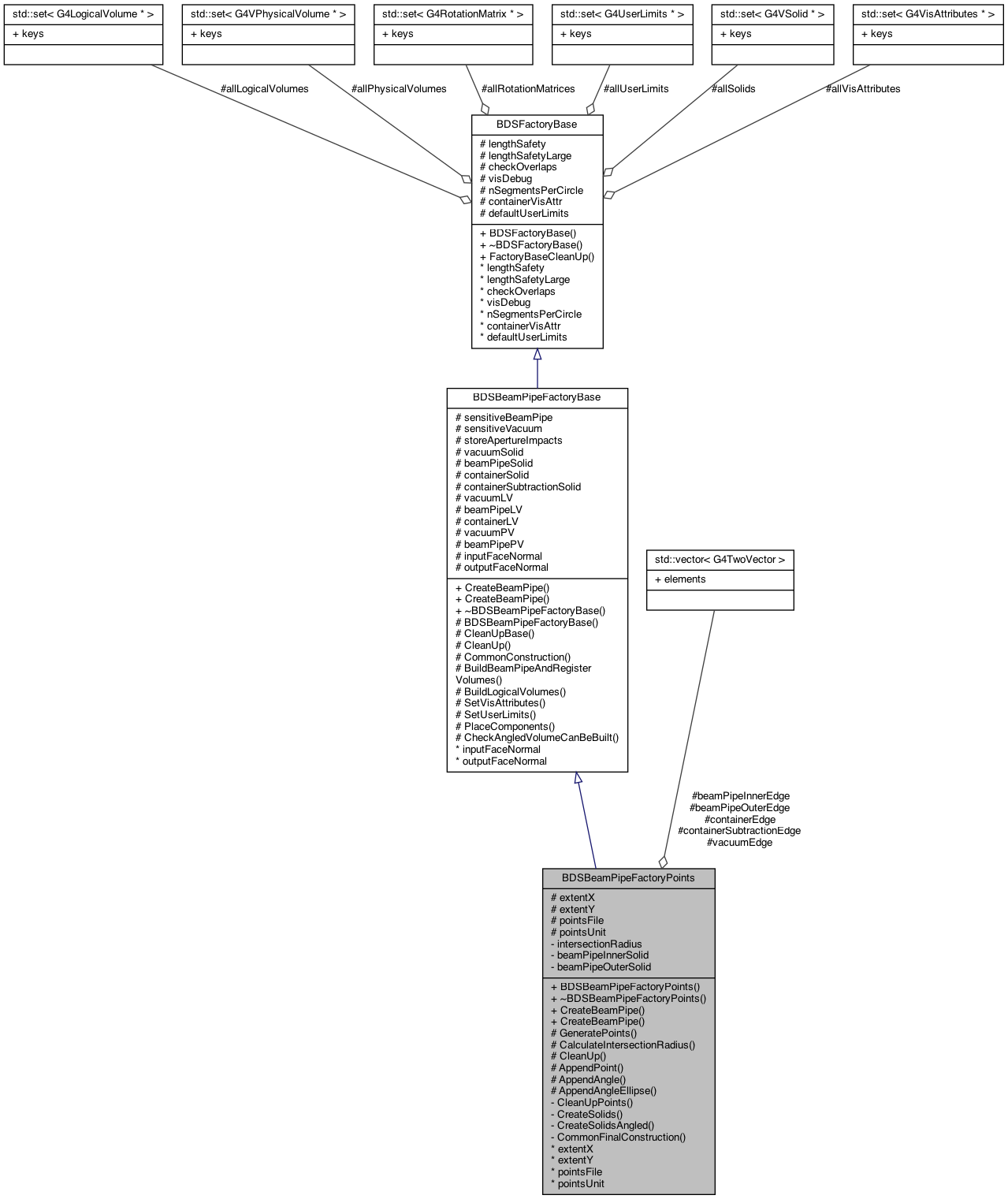

Collaboration diagram for BDSBeamPipeFactoryPoints:

Public Member Functions
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
	Required overloaded method from BDSBeamPipeFactoryBase to build straight piece of beam pipe. More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
	Required overloaded method from BDSBeamPipeFactoryBase to build angled piece of beam pipe. More...

Public Member Functions inherited from BDSBeamPipeFactoryBase
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0
	create a flat ended beampipe More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0

virtual	~BDSBeamPipeFactoryBase ()
	Virtual base destructor. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Protected Member Functions
virtual void	GeneratePoints (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness, G4int pointsPerTwoPi=40)=0

virtual G4double	CalculateIntersectionRadius (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness)=0

virtual void	CleanUp ()
	Clear member vectors and run base class clean up to clear pointers between runs. More...

void	AppendPoint (std::vector< G4TwoVector > &vec, G4double x, G4double y)

void	AppendAngle (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radius, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)

void	AppendAngleEllipse (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radiusA, G4double radiusB, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)
	Generate 2-vector points (and append them) about an ellipse. More...

Protected Member Functions inherited from BDSBeamPipeFactoryBase
	BDSBeamPipeFactoryBase ()
	base constructor More...

void	CleanUpBase ()

virtual void	CleanUp ()

void	CommonConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double length)
	finalise beampipe construction More...

BDSBeamPipe *	BuildBeamPipeAndRegisterVolumes (BDSExtent extent, G4double containerRadius, G4bool containerIsCircular=false)
	build beampipe and register logical volumes More...

virtual void	BuildLogicalVolumes (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn)
	build logical volumes More...

virtual void	SetVisAttributes (G4Material *beamPipeMaterialIn)
	Set visual attributes. More...

virtual void	SetUserLimits (G4double length)
	Set user limits. More...

virtual void	PlaceComponents (const G4String &nameIn)
	Place volumes. More...

Protected Attributes
std::vector< G4TwoVector >	vacuumEdge
	Vector of x,y coordinates for vacuum extruded solid edge. More...

std::vector< G4TwoVector >	beamPipeInnerEdge
	Vector of x,y coordinates for beam pipe inner edge. More...

std::vector< G4TwoVector >	beamPipeOuterEdge
	Vector of x,y coordinates for beam pipe outer edge. More...

std::vector< G4TwoVector >	containerEdge
	Vector of x,y coordinates for the container volume. More...

std::vector< G4TwoVector >	containerSubtractionEdge
	Vector of x,y coordinates for the container subtraction volume. More...


G4double	extentX
	Extents prepared by GeneratePoints function as only it knows the extents. More...

G4double	extentY
	Extents prepared by GeneratePoints function as only it knows the extents. More...


G4String	pointsFile
	Temporary copy of input variables. More...

G4String	pointsUnit
	Temporary copy of input variables. More...

Protected Attributes inherited from BDSBeamPipeFactoryBase
G4bool	sensitiveBeamPipe
	Whether the beam pipe will record energy deposition. More...

G4bool	sensitiveVacuum
	Whether the vacuum will record any energy deposition. More...

G4bool	storeApertureImpacts
	Whether to store aperture impacts. More...

G4VSolid *	vacuumSolid

G4VSolid *	beamPipeSolid

G4VSolid *	containerSolid

G4VSolid *	containerSubtractionSolid
	Longer (in length) version of container solid for unambiguous subtraction. More...

G4LogicalVolume *	vacuumLV

G4LogicalVolume *	beamPipeLV

G4LogicalVolume *	containerLV

G4PVPlacement *	vacuumPV

G4PVPlacement *	beamPipePV

G4ThreeVector	inputFaceNormal
	For recording the face normals in the finished pipe component. More...

G4ThreeVector	outputFaceNormal
	For recording the face normals in the finished pipe component. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Private Member Functions
void	CleanUpPoints ()
	Actual clean up here for this class only. More...

void	CreateSolids (const G4String &name, G4double length, G4bool buildLongForIntersection=false)

void	CreateSolidsAngled (const G4String &name, G4double length, const G4ThreeVector &inputFace, const G4ThreeVector &outputFace)
	Create angled solids. Uses CreateSolids() method. More...

virtual BDSBeamPipe *	CommonFinalConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double lengthIn)

Private Attributes
G4double	intersectionRadius

G4VSolid *	beamPipeInnerSolid
	Solid for inner surface of beam pipe. More...

G4VSolid *	beamPipeOuterSolid
	Solid for outer surface of beam pipe. More...

Additional Inherited Members
Static Protected Member Functions inherited from BDSBeamPipeFactoryBase
static void	CheckAngledVolumeCanBeBuilt (G4double length, const G4ThreeVector &inputfaceAngle, const G4ThreeVector &outputfaceAngle, G4double horizontalWidth, const G4String &name)
	check if a beam pipe volume with angled faces can be constructed More...

Detailed Description

Factory for beam pipes defined by a series of x,y points that are extruded.

This is a pure virtual class that provides common functionality for aperture models derived from a series of points transversely. The derived class need therefore only generate the vector of points that will make the edges of the vacuum and inner & outer beam pipe surfaces. The solids are of type G4ExtrudedSolid, or in the case of angled faces, a G4ExtrudedSolid intersected with a G4CutTubs (cylinder with angled faces).

Author: Laurie Nevay

Definition at line 47 of file BDSBeamPipeFactoryPoints.hh.

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryPoints()

BDSBeamPipeFactoryPoints::BDSBeamPipeFactoryPoints ( )

Definition at line 36 of file BDSBeamPipeFactoryPoints.cc.

◆ ~BDSBeamPipeFactoryPoints()

BDSBeamPipeFactoryPoints::~BDSBeamPipeFactoryPoints ( )

virtual

Definition at line 41 of file BDSBeamPipeFactoryPoints.cc.

Member Function Documentation

◆ AppendAngle()

void BDSBeamPipeFactoryPoints::AppendAngle	(	std::vector< G4TwoVector > &	vec,
		G4double	startAngle,
		G4double	finishAngle,
		G4double	radius,
		G4int	nPoints = `10`,
		G4double	xOffset = `0`,
		G4double	yOffset = `0`
	)

protected

Generate 2-vector points (and append them) about a circle. Uses ellipse code with equal radii.

Definition at line 76 of file BDSBeamPipeFactoryPoints.cc.

References AppendAngleEllipse().

Here is the call graph for this function:

◆ AppendAngleEllipse()

void BDSBeamPipeFactoryPoints::AppendAngleEllipse	(	std::vector< G4TwoVector > &	vec,
		G4double	startAngle,
		G4double	finishAngle,
		G4double	radiusA,
		G4double	radiusB,
		G4int	nPoints = `10`,
		G4double	xOffset = `0`,
		G4double	yOffset = `0`
	)

protected

Generate 2-vector points (and append them) about an ellipse.

Definition at line 87 of file BDSBeamPipeFactoryPoints.cc.

Referenced by AppendAngle().

Here is the caller graph for this function:

◆ AppendPoint()

void BDSBeamPipeFactoryPoints::AppendPoint	(	std::vector< G4TwoVector > &	vec,
		G4double	x,
		G4double	y
	)

protected

Definition at line 69 of file BDSBeamPipeFactoryPoints.cc.

◆ CalculateIntersectionRadius()

virtual G4double BDSBeamPipeFactoryPoints::CalculateIntersectionRadius	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	aper4,
		G4double	beamPipeThickness
	)

protectedpure virtual

Function derived class must provide to calculated the intersection radius, which is the radius of the intersection cylinder to create the aperture faces. This should be big enough to contain the cross-section of the beam pipe but not overly large, so as to avoid intersecting plane errors (and therefore exits) from large angles on short elements.

Implemented in BDSBeamPipeFactoryClicPCL, BDSBeamPipeFactoryOctagonal, BDSBeamPipeFactoryPointsFile, and BDSBeamPipeFactoryRaceTrack.

Referenced by CreateBeamPipe().

Here is the caller graph for this function:

◆ CleanUp()

void BDSBeamPipeFactoryPoints::CleanUp ( )

protectedvirtual

Clear member vectors and run base class clean up to clear pointers between runs.

Reimplemented from BDSBeamPipeFactoryBase.

Reimplemented in BDSBeamPipeFactoryClicPCL.

Definition at line 44 of file BDSBeamPipeFactoryPoints.cc.

References CleanUpPoints().

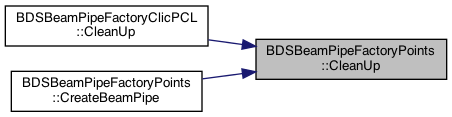

Referenced by BDSBeamPipeFactoryClicPCL::CleanUp(), and CreateBeamPipe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUpPoints()

void BDSBeamPipeFactoryPoints::CleanUpPoints ( )

private

Actual clean up here for this class only.

Definition at line 50 of file BDSBeamPipeFactoryPoints.cc.

References beamPipeInnerEdge, beamPipeInnerSolid, beamPipeOuterEdge, beamPipeOuterSolid, containerEdge, containerSubtractionEdge, extentX, extentY, intersectionRadius, pointsFile, pointsUnit, and vacuumEdge.

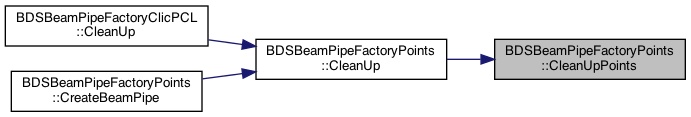

Referenced by CleanUp().

Here is the caller graph for this function:

◆ CommonFinalConstruction()

BDSBeamPipe * BDSBeamPipeFactoryPoints::CommonFinalConstruction	(	const G4String &	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn,
		G4double	lengthIn
	)

privatevirtual

Overloads BDSBeamPipeFactoryBase method to do common construction tasks and constructs BDSBeamPipe instance to return.

Reimplemented in BDSBeamPipeFactoryClicPCL.

Definition at line 284 of file BDSBeamPipeFactoryPoints.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), BDSBeamPipeFactoryBase::CommonConstruction(), extentX, extentY, and intersectionRadius.

Referenced by CreateBeamPipe().

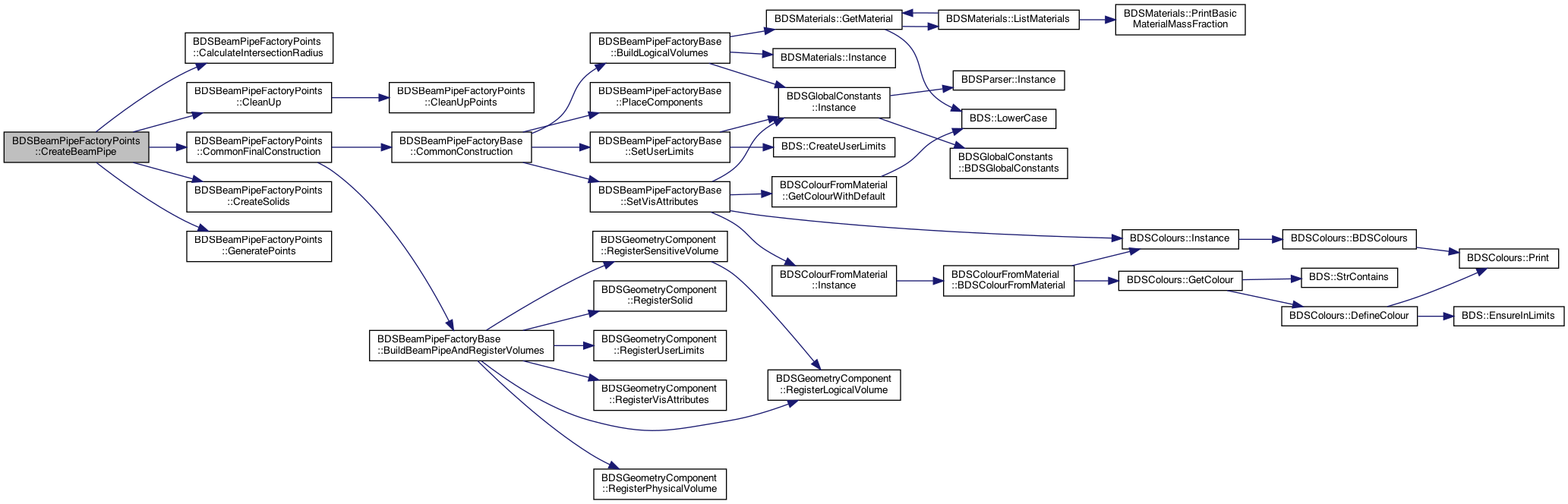

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateBeamPipe() [1/2]

BDSBeamPipe * BDSBeamPipeFactoryPoints::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		const G4ThreeVector &	inputFaceNormalIn,
		const G4ThreeVector &	outputFaceNormalIn,
		G4double	aper1In,
		G4double	aper2In,
		G4double	aper3In,
		G4double	aper4In,
		G4Material *	vacuumMaterialIn,
		G4double	beamPipeThicknessIn,
		G4Material *	beamPipeMaterialIn,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

virtual

Required overloaded method from BDSBeamPipeFactoryBase to build angled piece of beam pipe.

Implements BDSBeamPipeFactoryBase.

Definition at line 249 of file BDSBeamPipeFactoryPoints.cc.

References CalculateIntersectionRadius(), CleanUp(), CommonFinalConstruction(), CreateSolidsAngled(), GeneratePoints(), BDSBeamPipeFactoryBase::inputFaceNormal, intersectionRadius, BDSBeamPipeFactoryBase::outputFaceNormal, pointsFile, and pointsUnit.

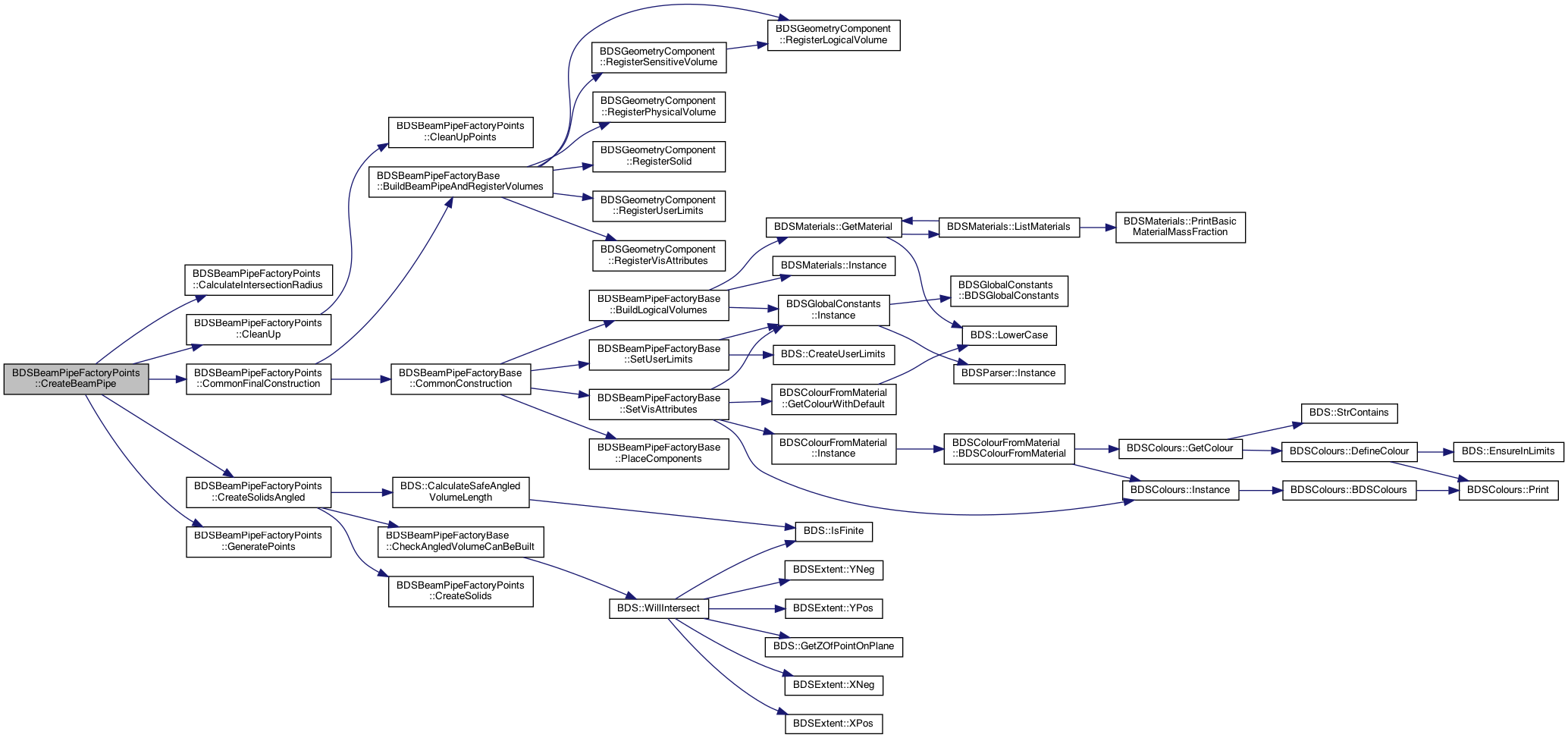

Here is the call graph for this function:

◆ CreateBeamPipe() [2/2]

BDSBeamPipe * BDSBeamPipeFactoryPoints::CreateBeamPipe	(	const G4String &	nameIn,
		G4double	lengthIn,
		G4double	aper1In,
		G4double	aper2In,
		G4double	aper3In,
		G4double	aper4In,
		G4Material *	vacuumMaterialIn,
		G4double	beamPipeThicknessIn,
		G4Material *	beamPipeMaterialIn,
		const G4String &	pointsFileIn = `""`,
		const G4String &	pointsUnitIn = `""`
	)

virtual

Required overloaded method from BDSBeamPipeFactoryBase to build straight piece of beam pipe.

Implements BDSBeamPipeFactoryBase.

Definition at line 219 of file BDSBeamPipeFactoryPoints.cc.

References CalculateIntersectionRadius(), CleanUp(), CommonFinalConstruction(), CreateSolids(), GeneratePoints(), intersectionRadius, pointsFile, and pointsUnit.

Here is the call graph for this function:

◆ CreateSolids()

void BDSBeamPipeFactoryPoints::CreateSolids	(	const G4String &	name,
		G4double	length,
		G4bool	buildLongForIntersection = `false`
	)

private

Create the vacuum, inner & outer, container and container subtraction solids. Optional flag buildLongForIntersection builds the solids longer by 1.5x length in preparation for them to be intersected for angled faces, saving code duplication.

Make the solids all longer for intersection

Definition at line 108 of file BDSBeamPipeFactoryPoints.cc.

References beamPipeInnerEdge, beamPipeInnerSolid, beamPipeOuterEdge, beamPipeOuterSolid, containerEdge, containerSubtractionEdge, BDSBeamPipeFactoryBase::containerSubtractionSolid, BDSFactoryBase::lengthSafety, and vacuumEdge.

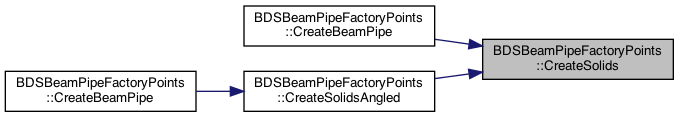

Referenced by CreateBeamPipe(), and CreateSolidsAngled().

Here is the caller graph for this function:

◆ CreateSolidsAngled()

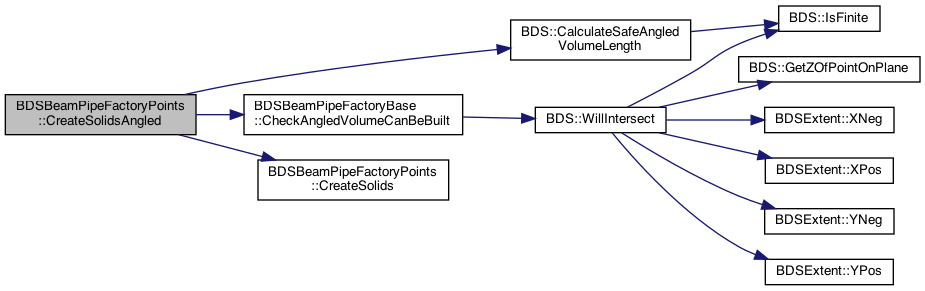

void BDSBeamPipeFactoryPoints::CreateSolidsAngled	(	const G4String &	name,
		G4double	length,
		const G4ThreeVector &	inputFace,
		const G4ThreeVector &	outputFace
	)

private

Create angled solids. Uses CreateSolids() method.

Definition at line 157 of file BDSBeamPipeFactoryPoints.cc.

References BDS::CalculateSafeAngledVolumeLength(), BDSBeamPipeFactoryBase::CheckAngledVolumeCanBeBuilt(), CreateSolids(), intersectionRadius, and BDSFactoryBase::lengthSafety.

Referenced by CreateBeamPipe().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GeneratePoints()

virtual void BDSBeamPipeFactoryPoints::GeneratePoints	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	aper4,
		G4double	beamPipeThickness,
		G4int	pointsPerTwoPi = `40`
	)

protectedpure virtual

Function to generate transverse points. Should set member variables vacuumEdge, beamPipeInnerEdge, beamPipeOuterEdge, containerEdge and containerSubtractionEdge. This must also set extentX and extentY member variables for +ve symmetric extents.

Implemented in BDSBeamPipeFactoryClicPCL, BDSBeamPipeFactoryOctagonal, BDSBeamPipeFactoryRaceTrack, and BDSBeamPipeFactoryPointsFile.

Referenced by CreateBeamPipe().

Here is the caller graph for this function:

Field Documentation

◆ beamPipeInnerEdge

std::vector<G4TwoVector> BDSBeamPipeFactoryPoints::beamPipeInnerEdge

protected

Vector of x,y coordinates for beam pipe inner edge.

Definition at line 134 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateSolids(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), BDSBeamPipeFactoryRaceTrack::GeneratePoints(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ beamPipeInnerSolid

G4VSolid* BDSBeamPipeFactoryPoints::beamPipeInnerSolid

private

Solid for inner surface of beam pipe.

Definition at line 164 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), and CreateSolids().

◆ beamPipeOuterEdge

std::vector<G4TwoVector> BDSBeamPipeFactoryPoints::beamPipeOuterEdge

protected

Vector of x,y coordinates for beam pipe outer edge.

Definition at line 137 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateSolids(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), BDSBeamPipeFactoryRaceTrack::GeneratePoints(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ beamPipeOuterSolid

G4VSolid* BDSBeamPipeFactoryPoints::beamPipeOuterSolid

private

Solid for outer surface of beam pipe.

Definition at line 167 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), and CreateSolids().

◆ containerEdge

std::vector<G4TwoVector> BDSBeamPipeFactoryPoints::containerEdge

protected

Vector of x,y coordinates for the container volume.

Definition at line 140 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateSolids(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), BDSBeamPipeFactoryRaceTrack::GeneratePoints(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ containerSubtractionEdge

std::vector<G4TwoVector> BDSBeamPipeFactoryPoints::containerSubtractionEdge

protected

Vector of x,y coordinates for the container subtraction volume.

Definition at line 143 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateSolids(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), BDSBeamPipeFactoryRaceTrack::GeneratePoints(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ extentX

G4double BDSBeamPipeFactoryPoints::extentX

protected

Extents prepared by GeneratePoints function as only it knows the extents.

Definition at line 146 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), BDSBeamPipeFactoryClicPCL::CommonFinalConstruction(), CommonFinalConstruction(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), and BDSBeamPipeFactoryRaceTrack::GeneratePoints().

◆ extentY

G4double BDSBeamPipeFactoryPoints::extentY

protected

Extents prepared by GeneratePoints function as only it knows the extents.

Definition at line 147 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CommonFinalConstruction(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), and BDSBeamPipeFactoryRaceTrack::GeneratePoints().

◆ intersectionRadius

G4double BDSBeamPipeFactoryPoints::intersectionRadius

private

Radius of intersection cylinder for angled faced beam pipe pieces. Should be determined and set in GeneratePoints() by derived class. Should be big enough to enclose the beam pipe section transversely but not too large that overlapping z planes errors might occur with short pieces of beam pipe with large angled faces.

Definition at line 161 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CommonFinalConstruction(), CreateBeamPipe(), and CreateSolidsAngled().

◆ pointsFile

G4String BDSBeamPipeFactoryPoints::pointsFile

protected

Temporary copy of input variables.

Definition at line 151 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateBeamPipe(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ pointsUnit

G4String BDSBeamPipeFactoryPoints::pointsUnit

protected

Temporary copy of input variables.

Definition at line 152 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateBeamPipe(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

◆ vacuumEdge

std::vector<G4TwoVector> BDSBeamPipeFactoryPoints::vacuumEdge

protected

Vector of x,y coordinates for vacuum extruded solid edge.

Definition at line 131 of file BDSBeamPipeFactoryPoints.hh.

Referenced by CleanUpPoints(), CreateSolids(), BDSBeamPipeFactoryClicPCL::GeneratePoints(), BDSBeamPipeFactoryOctagonal::GeneratePoints(), BDSBeamPipeFactoryRaceTrack::GeneratePoints(), and BDSBeamPipeFactoryPointsFile::GeneratePoints().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSBeamPipeFactoryPoints.hh
/Users/nevay/physics/reps/bdsim/src/BDSBeamPipeFactoryPoints.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryPoints()

◆ ~BDSBeamPipeFactoryPoints()

Member Function Documentation

◆ AppendAngle()

◆ AppendAngleEllipse()

◆ AppendPoint()

◆ CalculateIntersectionRadius()

◆ CleanUp()

◆ CleanUpPoints()

◆ CommonFinalConstruction()

◆ CreateBeamPipe() [1/2]

◆ CreateBeamPipe() [2/2]

◆ CreateSolids()

◆ CreateSolidsAngled()

◆ GeneratePoints()

Field Documentation

◆ beamPipeInnerEdge

◆ beamPipeInnerSolid

◆ beamPipeOuterEdge

◆ beamPipeOuterSolid

◆ containerEdge

◆ containerSubtractionEdge

◆ extentX

◆ extentY

◆ intersectionRadius

◆ pointsFile

◆ pointsUnit

◆ vacuumEdge
