Factory for CLIC post collision line beam pipes. More...

#include <BDSBeamPipeFactoryClicPCL.hh>

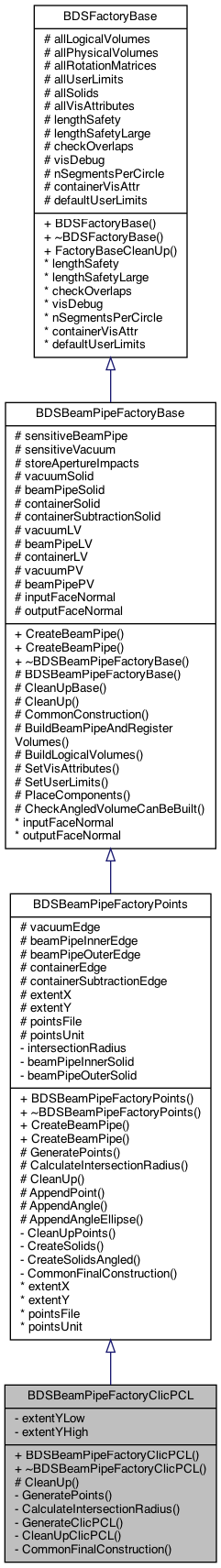

Inheritance diagram for BDSBeamPipeFactoryClicPCL:

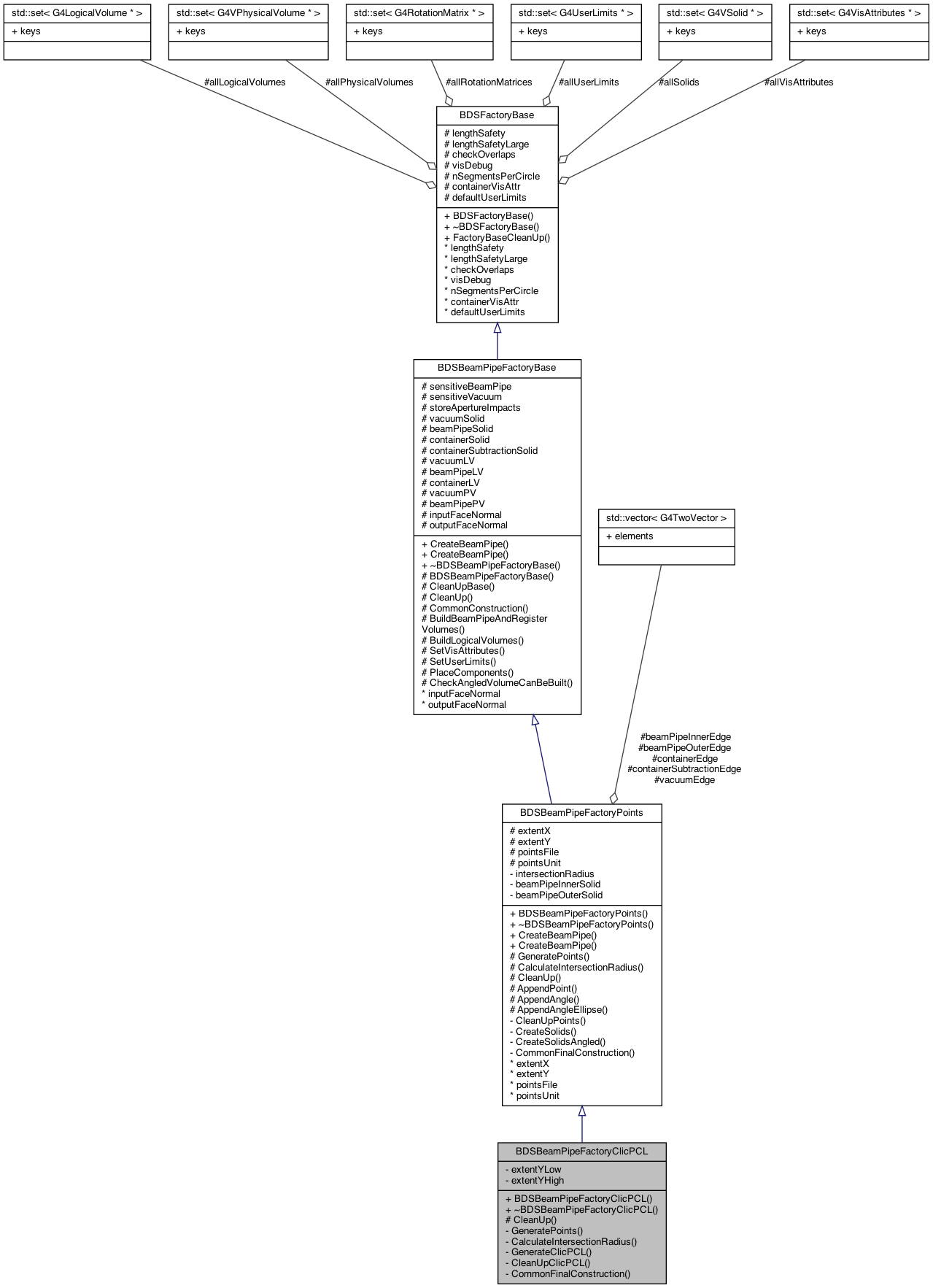

Collaboration diagram for BDSBeamPipeFactoryClicPCL:

Protected Member Functions
virtual void	CleanUp ()
	Clear member vectors and run base class clean up to clear pointers between runs. More...

Protected Member Functions inherited from BDSBeamPipeFactoryPoints
virtual void	GeneratePoints (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness, G4int pointsPerTwoPi=40)=0

virtual G4double	CalculateIntersectionRadius (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness)=0

virtual void	CleanUp ()
	Clear member vectors and run base class clean up to clear pointers between runs. More...

void	AppendPoint (std::vector< G4TwoVector > &vec, G4double x, G4double y)

void	AppendAngle (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radius, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)

void	AppendAngleEllipse (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radiusA, G4double radiusB, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)
	Generate 2-vector points (and append them) about an ellipse. More...

Protected Member Functions inherited from BDSBeamPipeFactoryBase
	BDSBeamPipeFactoryBase ()
	base constructor More...

void	CleanUpBase ()

virtual void	CleanUp ()

void	CommonConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double length)
	finalise beampipe construction More...

BDSBeamPipe *	BuildBeamPipeAndRegisterVolumes (BDSExtent extent, G4double containerRadius, G4bool containerIsCircular=false)
	build beampipe and register logical volumes More...

virtual void	BuildLogicalVolumes (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn)
	build logical volumes More...

virtual void	SetVisAttributes (G4Material *beamPipeMaterialIn)
	Set visual attributes. More...

virtual void	SetUserLimits (G4double length)
	Set user limits. More...

virtual void	PlaceComponents (const G4String &nameIn)
	Place volumes. More...

Private Member Functions
virtual void	GeneratePoints (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness, G4int pointsPerTwoPi=40)

virtual G4double	CalculateIntersectionRadius (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness)
	Calculate the radius of the solid used for intersection for angled faces. More...

void	GenerateClicPCL (std::vector< G4TwoVector > &vec, G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4int pointsPerTowPi, G4double margin=0)

void	CleanUpClicPCL ()
	Clear member vectors - used for both initialisation and virtual CleanUp. More...

virtual BDSBeamPipe *	CommonFinalConstruction (const G4String &nameIn, G4Material vacuumMaterialIn, G4Material beamPipeMaterialIn, G4double lengthIn)
	Overloads BDSBeamPipeFactoryPoints to make asymmetric extents, otherwise the same. More...

Private Attributes
G4double	extentYLow
	Cache of extent to pass around. More...

G4double	extentYHigh
	Cache of extent to pass around. More...

Additional Inherited Members
Public Member Functions inherited from BDSBeamPipeFactoryPoints
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
	Required overloaded method from BDSBeamPipeFactoryBase to build straight piece of beam pipe. More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
	Required overloaded method from BDSBeamPipeFactoryBase to build angled piece of beam pipe. More...

Public Member Functions inherited from BDSBeamPipeFactoryBase
virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0
	create a flat ended beampipe More...

virtual BDSBeamPipe *	CreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0

virtual	~BDSBeamPipeFactoryBase ()
	Virtual base destructor. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Static Protected Member Functions inherited from BDSBeamPipeFactoryBase
static void	CheckAngledVolumeCanBeBuilt (G4double length, const G4ThreeVector &inputfaceAngle, const G4ThreeVector &outputfaceAngle, G4double horizontalWidth, const G4String &name)
	check if a beam pipe volume with angled faces can be constructed More...

Protected Attributes inherited from BDSBeamPipeFactoryPoints
std::vector< G4TwoVector >	vacuumEdge
	Vector of x,y coordinates for vacuum extruded solid edge. More...

std::vector< G4TwoVector >	beamPipeInnerEdge
	Vector of x,y coordinates for beam pipe inner edge. More...

std::vector< G4TwoVector >	beamPipeOuterEdge
	Vector of x,y coordinates for beam pipe outer edge. More...

std::vector< G4TwoVector >	containerEdge
	Vector of x,y coordinates for the container volume. More...

std::vector< G4TwoVector >	containerSubtractionEdge
	Vector of x,y coordinates for the container subtraction volume. More...

G4double	extentX
	Extents prepared by GeneratePoints function as only it knows the extents. More...

G4double	extentY
	Extents prepared by GeneratePoints function as only it knows the extents. More...

G4String	pointsFile
	Temporary copy of input variables. More...

G4String	pointsUnit
	Temporary copy of input variables. More...

Protected Attributes inherited from BDSBeamPipeFactoryBase
G4bool	sensitiveBeamPipe
	Whether the beam pipe will record energy deposition. More...

G4bool	sensitiveVacuum
	Whether the vacuum will record any energy deposition. More...

G4bool	storeApertureImpacts
	Whether to store aperture impacts. More...

G4VSolid *	vacuumSolid

G4VSolid *	beamPipeSolid

G4VSolid *	containerSolid

G4VSolid *	containerSubtractionSolid
	Longer (in length) version of container solid for unambiguous subtraction. More...

G4LogicalVolume *	vacuumLV

G4LogicalVolume *	beamPipeLV

G4LogicalVolume *	containerLV

G4PVPlacement *	vacuumPV

G4PVPlacement *	beamPipePV

G4ThreeVector	inputFaceNormal
	For recording the face normals in the finished pipe component. More...

G4ThreeVector	outputFaceNormal
	For recording the face normals in the finished pipe component. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Detailed Description

Factory for CLIC post collision line beam pipes.

Author: Laurie Nevay

Definition at line 31 of file BDSBeamPipeFactoryClicPCL.hh.

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryClicPCL()

BDSBeamPipeFactoryClicPCL::BDSBeamPipeFactoryClicPCL ( )

Definition at line 35 of file BDSBeamPipeFactoryClicPCL.cc.

◆ ~BDSBeamPipeFactoryClicPCL()

virtual BDSBeamPipeFactoryClicPCL::~BDSBeamPipeFactoryClicPCL ( )

inlinevirtual

Definition at line 35 of file BDSBeamPipeFactoryClicPCL.hh.

Member Function Documentation

◆ CalculateIntersectionRadius()

G4double BDSBeamPipeFactoryClicPCL::CalculateIntersectionRadius	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	aper4,
		G4double	beamPipeThickness
	)

privatevirtual

Calculate the radius of the solid used for intersection for angled faces.

Implements BDSBeamPipeFactoryPoints.

Definition at line 82 of file BDSBeamPipeFactoryClicPCL.cc.

◆ CleanUp()

void BDSBeamPipeFactoryClicPCL::CleanUp ( )

protectedvirtual

Clear member vectors and run base class clean up to clear pointers between runs.

Reimplemented from BDSBeamPipeFactoryPoints.

Definition at line 103 of file BDSBeamPipeFactoryClicPCL.cc.

References BDSBeamPipeFactoryPoints::CleanUp(), and CleanUpClicPCL().

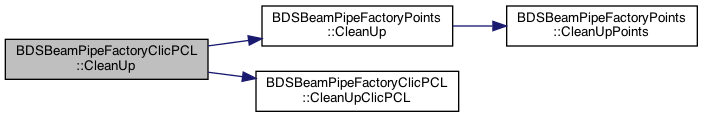

Here is the call graph for this function:

◆ CleanUpClicPCL()

void BDSBeamPipeFactoryClicPCL::CleanUpClicPCL ( )

private

Clear member vectors - used for both initialisation and virtual CleanUp.

Definition at line 97 of file BDSBeamPipeFactoryClicPCL.cc.

References extentYHigh, and extentYLow.

Referenced by CleanUp().

Here is the caller graph for this function:

◆ CommonFinalConstruction()

BDSBeamPipe * BDSBeamPipeFactoryClicPCL::CommonFinalConstruction	(	const G4String &	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn,
		G4double	lengthIn
	)

privatevirtual

Overloads BDSBeamPipeFactoryPoints to make asymmetric extents, otherwise the same.

Reimplemented from BDSBeamPipeFactoryPoints.

Definition at line 109 of file BDSBeamPipeFactoryClicPCL.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), BDSBeamPipeFactoryBase::CommonConstruction(), BDSBeamPipeFactoryPoints::extentX, extentYHigh, extentYLow, and BDSExtent::MaximumAbsTransverse().

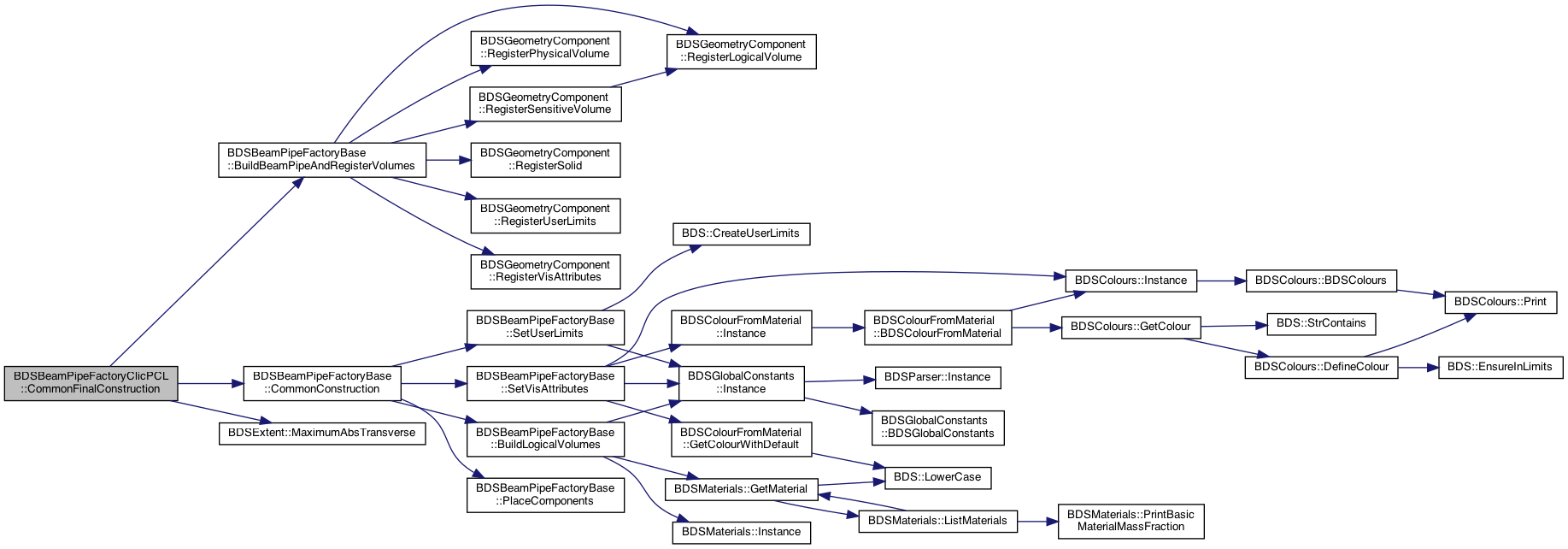

Here is the call graph for this function:

◆ GenerateClicPCL()

void BDSBeamPipeFactoryClicPCL::GenerateClicPCL	(	std::vector< G4TwoVector > &	vec,
		G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	aper4,
		G4int	pointsPerTowPi,
		G4double	margin = `0`
	)

private

Definition at line 40 of file BDSBeamPipeFactoryClicPCL.cc.

◆ GeneratePoints()

void BDSBeamPipeFactoryClicPCL::GeneratePoints	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	aper4,
		G4double	beamPipeThickness,
		G4int	pointsPerTwoPi = `40`
	)
