The base class for bunch distribution generators. More...

#include <BDSBunch.hh>

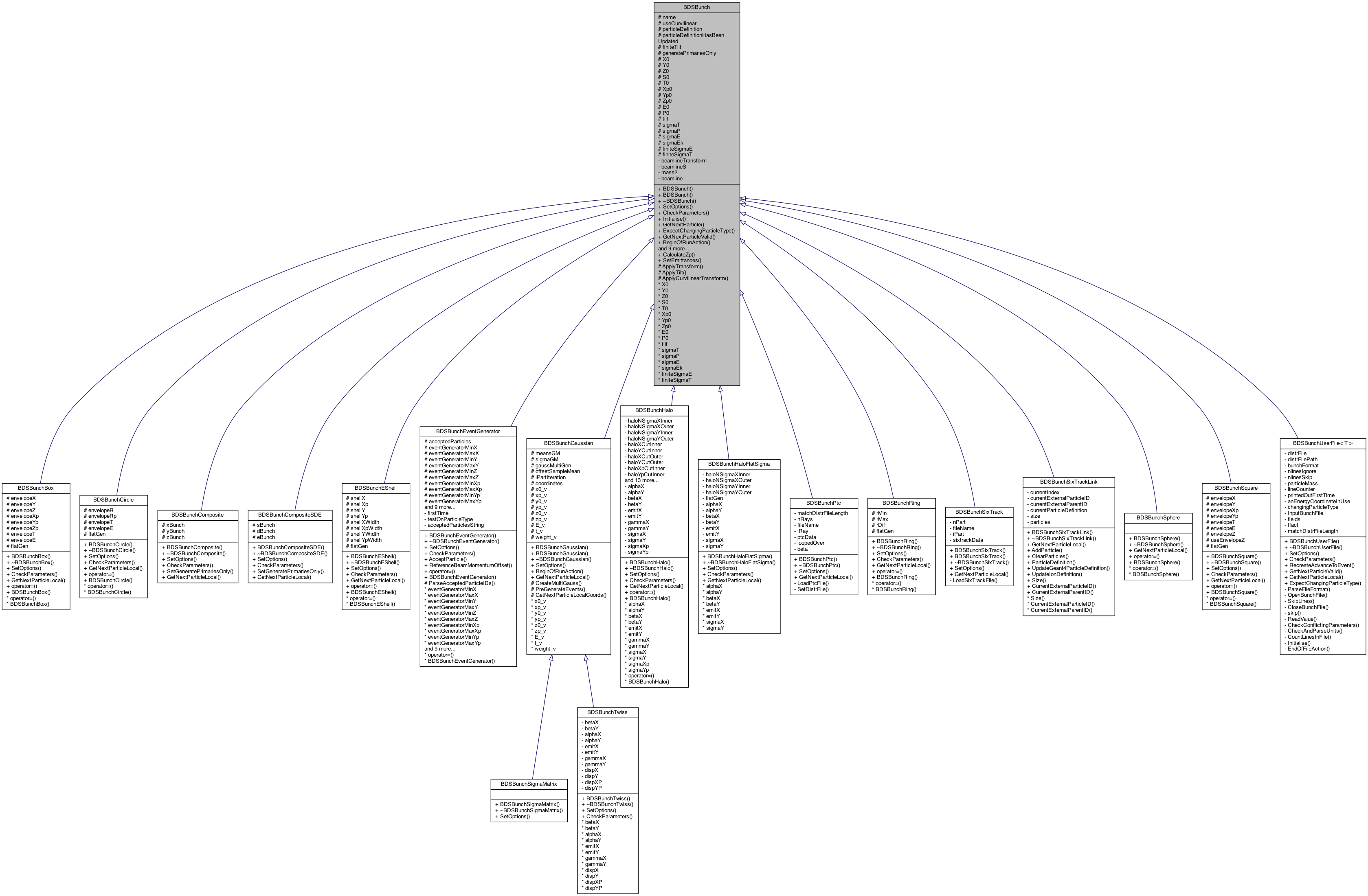

Inheritance diagram for BDSBunch:

Collaboration diagram for BDSBunch:

Public Member Functions
	BDSBunch (const G4String &nameIn)

virtual void	SetOptions (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, const BDSBunchType &distrType, G4Transform3D beamlineTransformIn=G4Transform3D::Identity, const G4double beamlineS=0)

virtual void	CheckParameters ()

virtual void	Initialise ()
	Any initialisation - to be used after SetOptions, then CheckParameters. More...

BDSParticleCoordsFullGlobal	GetNextParticle ()

virtual G4bool	ExpectChangingParticleType () const
	A hint of whether we expect to require and extended particle set (ie pions, kaons, muons). More...

virtual BDSParticleCoordsFullGlobal	GetNextParticleValid (G4int maxTries=100)

virtual void	BeginOfRunAction (G4int numberOfEvents)

virtual const BDSParticleDefinition *	ParticleDefinition () const
	Access the beam particle definition. More...

virtual void	SetGeneratePrimariesOnly (G4bool generatePrimariesOnlyIn)

virtual BDSParticleCoordsFull	GetNextParticleLocal ()

G4bool	UseCurvilinearTransform () const
	Access whether there's a finite S offset and therefore we're using a CL transform. More...

virtual void	RecreateAdvanceToEvent (G4int)

G4bool	BeamParticleIsAnIon () const
	Access whether the beam particle is an ion or not. More...

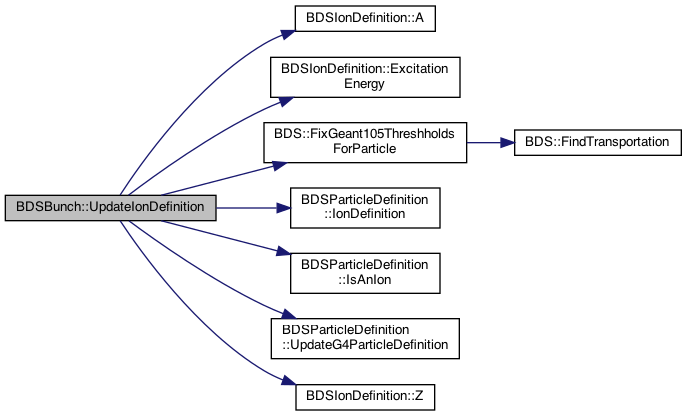

virtual void	UpdateIonDefinition ()

G4bool	ParticleDefinitionHasBeenUpdated () const

G4String	Name () const

Static Public Member Functions
static G4double	CalculateZp (G4double xp, G4double yp, G4double Zp0)
	Calculate zp safely based on other components. More...

static void	SetEmittances (const BDSParticleDefinition *beamParticle, const GMAD::Beam &beam, G4double &emittGeometricX, G4double &emittGeometricY, G4double &emittNormalisedX, G4double &emittNormalisedY)

Protected Member Functions
BDSParticleCoordsFullGlobal	ApplyTransform (const BDSParticleCoordsFull &localIn) const

void	ApplyTilt (BDSParticleCoordsFull &localIn) const
	Apply a rotation about unitZ for the local coordinates according to member variable tilt. More...

BDSParticleCoordsFullGlobal	ApplyCurvilinearTransform (const BDSParticleCoordsFull &localIn) const
	Calculate the global coordinates from curvilinear coordinates of a beam line. More...

Protected Attributes
G4String	name
	Name of distribution. More...

G4bool	useCurvilinear
	Whether to ignore z and use s and transform for curvilinear coordinates. More...

BDSParticleDefinition *	particleDefinition
	Particle definition for bunch - this class owns it. More...

G4bool	particleDefinitionHasBeenUpdated

G4bool	finiteTilt

G4bool	generatePrimariesOnly


G4double	X0
	Centre of distributions. More...

G4double	Y0
	Centre of distributions. More...

G4double	Z0
	Centre of distributions. More...

G4double	S0
	Centre of distributions. More...

G4double	T0
	Centre of distributions. More...

G4double	Xp0
	Centre of distributions. More...

G4double	Yp0
	Centre of distributions. More...

G4double	Zp0
	Centre of distributions. More...

G4double	E0
	Centre of distributions. More...

G4double	P0
	central momentum More...

G4double	tilt
	Centre of distributions. More...

G4double	sigmaT
	Centre of distributions. More...

G4double	sigmaP
	Centre of distributions. More...

G4double	sigmaE
	Centre of distributions. More...

G4double	sigmaEk
	Centre of distributions. More...


G4bool	finiteSigmaE
	Flags to ignore random number generator in case of no finite E or T. More...

G4bool	finiteSigmaT
	Flags to ignore random number generator in case of no finite E or T. More...

Private Attributes
G4Transform3D	beamlineTransform
	Transform that beam line starts with that will also be applied to coordinates. More...

G4double	beamlineS
	Beamline initial S position. More...

G4double	mass2
	Cache of mass squared as required to convert from p to E. More...

const BDSBeamline *	beamline
	A reference to the fully constructed beamline that's lazily instantiated. More...

Friends
class	BDSHepMC3Reader
	Make BDSHepMC3Reader a friend so it can use the protected ApplyTransform function. More...

class	BDSROOTSamplerReader

Detailed Description

The base class for bunch distribution generators.

After instantiation of a class, use SetOptions(), then CheckParmeters(), then Initialise().

Author: Stewart Boogert

Definition at line 46 of file BDSBunch.hh.

Constructor & Destructor Documentation

◆ BDSBunch() [1/2]

BDSBunch::BDSBunch ( )

Definition at line 50 of file BDSBunch.cc.

◆ BDSBunch() [2/2]

BDSBunch::BDSBunch ( const G4String & nameIn )

explicit

Definition at line 54 of file BDSBunch.cc.

◆ ~BDSBunch()

BDSBunch::~BDSBunch ( )

virtual

Definition at line 73 of file BDSBunch.cc.

Member Function Documentation

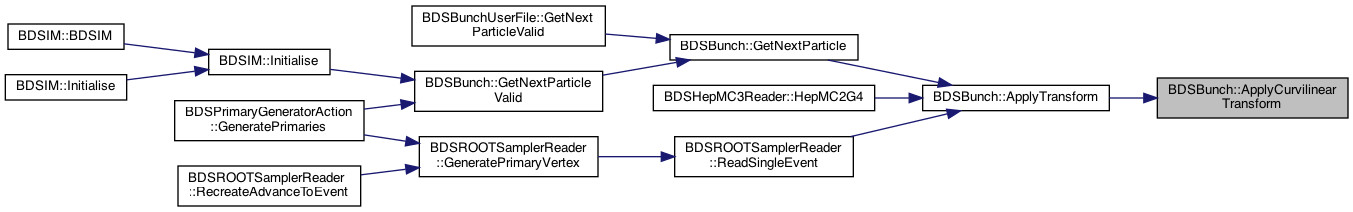

◆ ApplyCurvilinearTransform()

BDSParticleCoordsFullGlobal BDSBunch::ApplyCurvilinearTransform ( const BDSParticleCoordsFull & localIn ) const

protected

Calculate the global coordinates from curvilinear coordinates of a beam line.

Definition at line 278 of file BDSBunch.cc.

References beamline, BDSParticleCoordsFullGlobal::beamlineIndex, BDSAcceleratorModel::BeamlineMain(), generatePrimariesOnly, BDSBeamline::GetGlobalEuclideanTransform(), and S0.

Referenced by ApplyTransform().

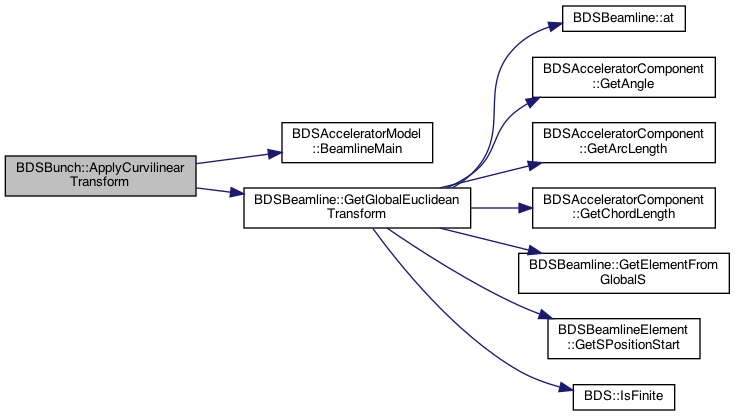

Here is the call graph for this function:

Here is the caller graph for this function:

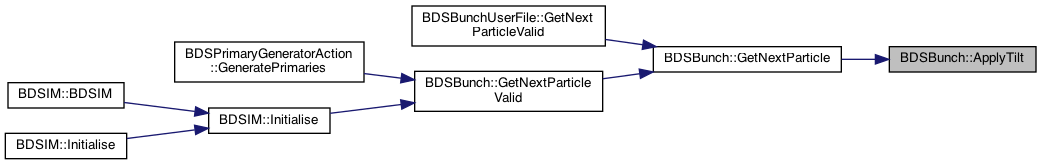

◆ ApplyTilt()

void BDSBunch::ApplyTilt ( BDSParticleCoordsFull & localIn ) const

protected

Apply a rotation about unitZ for the local coordinates according to member variable tilt.

Definition at line 266 of file BDSBunch.cc.

References tilt.

Referenced by GetNextParticle().

Here is the caller graph for this function:

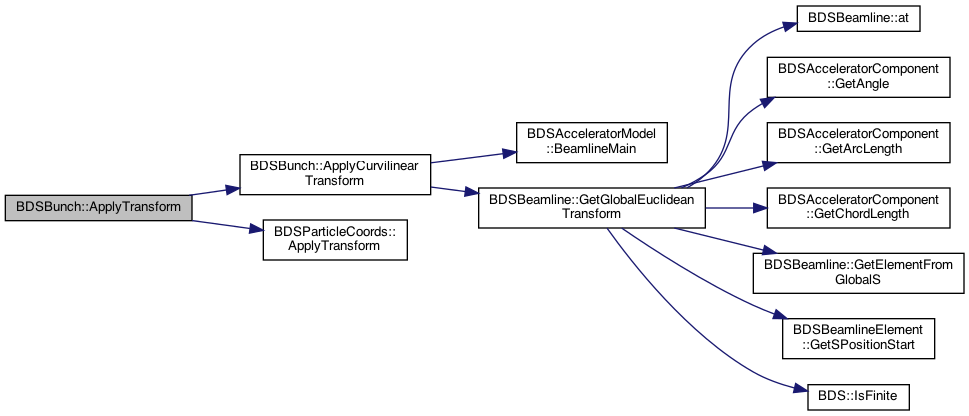

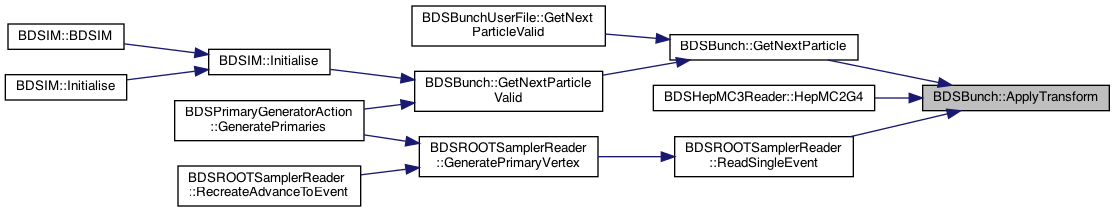

◆ ApplyTransform()

BDSParticleCoordsFullGlobal BDSBunch::ApplyTransform ( const BDSParticleCoordsFull & localIn ) const

protected

Apply either the curvilinear transform if we're using curvilinear coordinates or just apply the general beam line offset in global coordinates to the 'local' curvilinear coordinates.

Definition at line 258 of file BDSBunch.cc.

References ApplyCurvilinearTransform(), BDSParticleCoords::ApplyTransform(), beamlineTransform, and useCurvilinear.

Referenced by GetNextParticle(), BDSHepMC3Reader::HepMC2G4(), and BDSROOTSamplerReader::ReadSingleEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BeamParticleIsAnIon()

G4bool BDSBunch::BeamParticleIsAnIon ( ) const

inline

Access whether the beam particle is an ion or not.

Definition at line 118 of file BDSBunch.hh.

References BDSParticleDefinition::IsAnIon(), and particleDefinition.

Here is the call graph for this function:

◆ BeginOfRunAction()

void BDSBunch::BeginOfRunAction ( G4int numberOfEvents )

virtual

An action that is called at the beginning of a run when we know the number of events that'll be generated. By default this is nothing, but can be used to calculate sample mean offsets in some derived classes.

Reimplemented in BDSBunchGaussian.

Definition at line 252 of file BDSBunch.cc.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

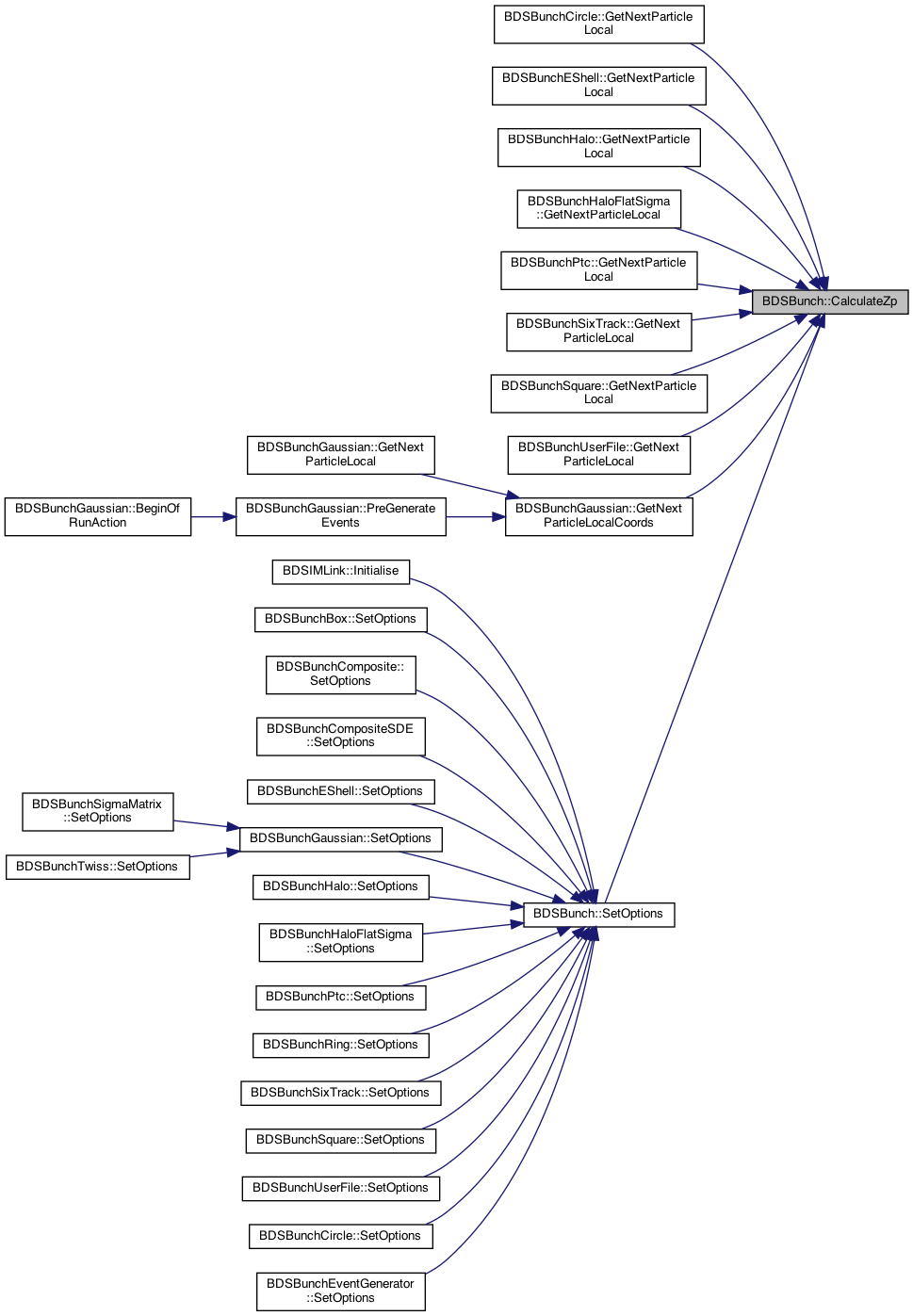

◆ CalculateZp()

G4double BDSBunch::CalculateZp	(	G4double	xp,
		G4double	yp,
		G4double	Zp0
	)

static

Calculate zp safely based on other components.

Definition at line 317 of file BDSBunch.cc.

Referenced by BDSBunchCircle::GetNextParticleLocal(), BDSBunchEShell::GetNextParticleLocal(), BDSBunchHalo::GetNextParticleLocal(), BDSBunchHaloFlatSigma::GetNextParticleLocal(), BDSBunchPtc::GetNextParticleLocal(), BDSBunchSixTrack::GetNextParticleLocal(), BDSBunchSquare::GetNextParticleLocal(), BDSBunchUserFile< T >::GetNextParticleLocal(), BDSBunchGaussian::GetNextParticleLocalCoords(), and SetOptions().

Here is the caller graph for this function:

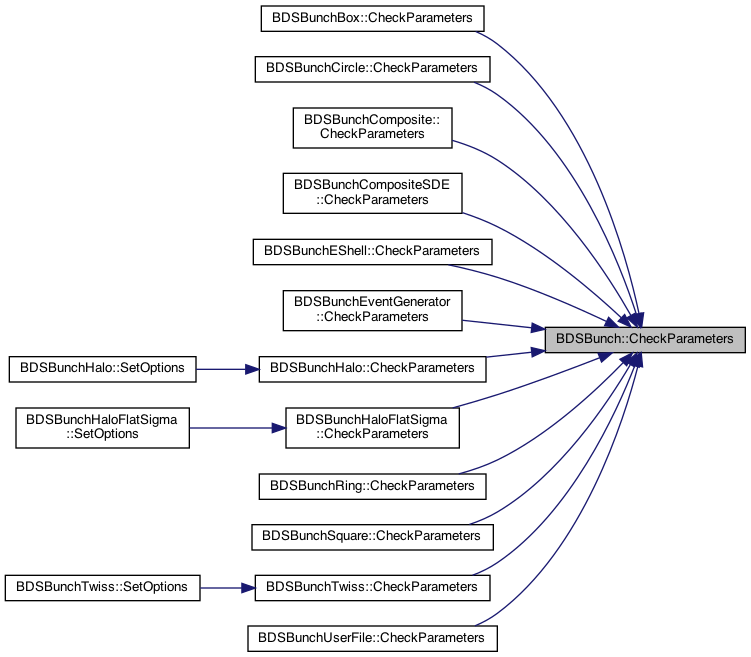

◆ CheckParameters()

void BDSBunch::CheckParameters ( )

virtual

Check the parameters for the given bunch distribution and exit if they're problematic or unphysical.

Reimplemented in BDSBunchBox, BDSBunchCircle, BDSBunchComposite, BDSBunchCompositeSDE, BDSBunchEShell, BDSBunchEventGenerator, BDSBunchHalo, BDSBunchHaloFlatSigma, BDSBunchRing, BDSBunchSquare, BDSBunchTwiss, and BDSBunchUserFile< T >.

Definition at line 195 of file BDSBunch.cc.

References sigmaE, and sigmaT.

Referenced by BDSBunchBox::CheckParameters(), BDSBunchCircle::CheckParameters(), BDSBunchComposite::CheckParameters(), BDSBunchCompositeSDE::CheckParameters(), BDSBunchEShell::CheckParameters(), BDSBunchEventGenerator::CheckParameters(), BDSBunchHalo::CheckParameters(), BDSBunchHaloFlatSigma::CheckParameters(), BDSBunchRing::CheckParameters(), BDSBunchSquare::CheckParameters(), BDSBunchTwiss::CheckParameters(), and BDSBunchUserFile< T >::CheckParameters().

Here is the caller graph for this function:

◆ ExpectChangingParticleType()

virtual G4bool BDSBunch::ExpectChangingParticleType ( ) const

inlinevirtual

A hint of whether we expect to require and extended particle set (ie pions, kaons, muons).

Reimplemented in BDSBunchUserFile< T >.

Definition at line 80 of file BDSBunch.hh.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

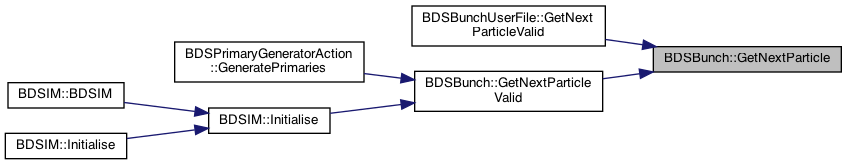

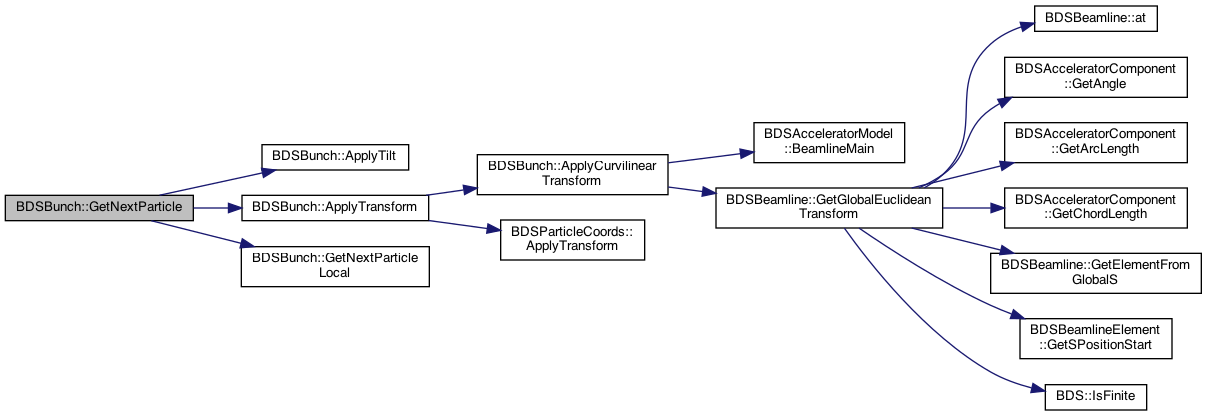

◆ GetNextParticle()

BDSParticleCoordsFullGlobal BDSBunch::GetNextParticle ( )

Main interface. Calls GetNextParticleLocal() and then applies the curvilinear transform if required.

Definition at line 234 of file BDSBunch.cc.

References ApplyTilt(), ApplyTransform(), finiteTilt, GetNextParticleLocal(), and particleDefinitionHasBeenUpdated.

Referenced by BDSBunchUserFile< T >::GetNextParticleValid(), and GetNextParticleValid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNextParticleLocal()

BDSParticleCoordsFull BDSBunch::GetNextParticleLocal ( )

virtual

Each derived class can override this default method of reference position. If S0 > 0 or derived class changes member bool 'curvilinear' z0 will be treated as S and the global z0 be calculated.

Reimplemented in BDSBunchBox, BDSBunchCircle, BDSBunchComposite, BDSBunchCompositeSDE, BDSBunchEShell, BDSBunchGaussian, BDSBunchHalo, BDSBunchHaloFlatSigma, BDSBunchPtc, BDSBunchRing, BDSBunchSixTrack, BDSBunchSixTrackLink, BDSBunchSphere, BDSBunchSquare, and BDSBunchUserFile< T >.

Definition at line 244 of file BDSBunch.cc.

References E0, S0, T0, X0, Xp0, Y0, Yp0, Z0, and Zp0.

Referenced by BDSLinkPrimaryGeneratorAction::GeneratePrimaries(), GetNextParticle(), BDSBunchComposite::GetNextParticleLocal(), BDSBunchCompositeSDE::GetNextParticleLocal(), BDSHepMC3Reader::HepMC2G4(), and BDSROOTSamplerReader::ReadSingleEvent().

Here is the caller graph for this function:

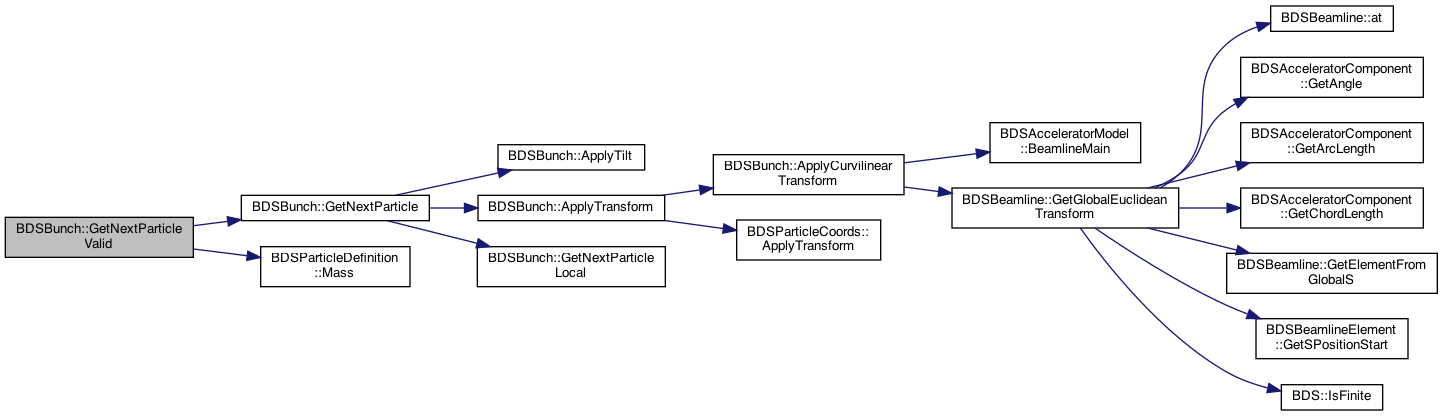

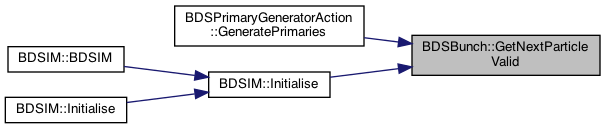

◆ GetNextParticleValid()

BDSParticleCoordsFullGlobal BDSBunch::GetNextParticleValid ( G4int maxTries = 100 )

virtual

Interface to allow multiple calls until a safe particle is generated. This will repeatedly call GetNextParticle() until a particle is generated where the total energy is greater than the rest mass. This can be overridden by derived classes if they do not wish this behaviour. This may throw an exception if the maximum number of attempts (maxTries) is exceeded.

Reimplemented in BDSBunchUserFile< T >.

Definition at line 206 of file BDSBunch.cc.

References GetNextParticle(), BDSParticleDefinition::Mass(), particleDefinition, and particleDefinitionHasBeenUpdated.

Referenced by BDSPrimaryGeneratorAction::GeneratePrimaries(), and BDSIM::Initialise().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialise()

void BDSBunch::Initialise ( )

virtual

Any initialisation - to be used after SetOptions, then CheckParameters.

Reimplemented in BDSBunchUserFile< T >.

Definition at line 203 of file BDSBunch.cc.

◆ Name()

G4String BDSBunch::Name ( ) const

inline

Definition at line 143 of file BDSBunch.hh.

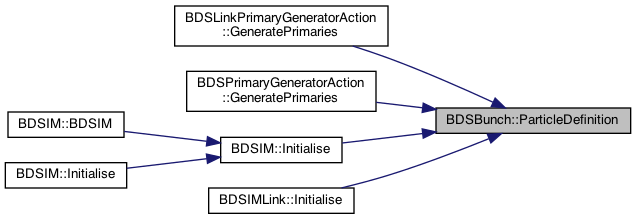

◆ ParticleDefinition()

virtual const BDSParticleDefinition * BDSBunch::ParticleDefinition ( ) const

inlinevirtual

Access the beam particle definition.

Reimplemented in BDSBunchSixTrackLink.

Definition at line 95 of file BDSBunch.hh.

References particleDefinition.

Referenced by BDSLinkPrimaryGeneratorAction::GeneratePrimaries(), BDSPrimaryGeneratorAction::GeneratePrimaries(), BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the caller graph for this function:

◆ ParticleDefinitionHasBeenUpdated()

G4bool BDSBunch::ParticleDefinitionHasBeenUpdated ( ) const

inline

Whether the particle definition has been updated since the last call to GetNextParticle() or GetNextParticleValid().

Definition at line 128 of file BDSBunch.hh.

References particleDefinitionHasBeenUpdated.

Referenced by BDSBunchComposite::GetNextParticleLocal(), and BDSBunchCompositeSDE::GetNextParticleLocal().

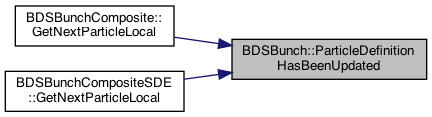

Here is the caller graph for this function:

◆ RecreateAdvanceToEvent()

virtual void BDSBunch::RecreateAdvanceToEvent ( G4int )

inlinevirtual

When recreating events, it's possible that setting the seed state may not be sufficient for the bunch to get the right distribution. This is true when the bunch coordinates are based on an external source of data i.e. user bunch file. This default method allows such a distribution to advance to the correct event number.

Reimplemented in BDSBunchUserFile< T >.

Definition at line 115 of file BDSBunch.hh.

Referenced by BDSPrimaryGeneratorAction::BDSPrimaryGeneratorAction().

Here is the caller graph for this function:

◆ SetEmittances()

void BDSBunch::SetEmittances	(	const BDSParticleDefinition *	beamParticle,
		const GMAD::Beam &	beam,
		G4double &	emittGeometricX,
		G4double &	emittGeometricY,
		G4double &	emittNormalisedX,
		G4double &	emittNormalisedY
	)

static

Work out whether either the geometric or normalised emittances are set and update the variables by reference with the values. Can throw exception if more than one set in either x and y.

Definition at line 155 of file BDSBunch.cc.

References BDS::ConflictingParametersSet(), GMAD::BeamBase::emitNX, GMAD::BeamBase::emitNY, GMAD::BeamBase::emitx, GMAD::BeamBase::emity, BDSParticleDefinition::Gamma(), BDS::IsFinite(), and BDS::NBeamParametersSet().

Referenced by BDSBunchHalo::SetOptions(), BDSBunchHaloFlatSigma::SetOptions(), and BDSBunchTwiss::SetOptions().

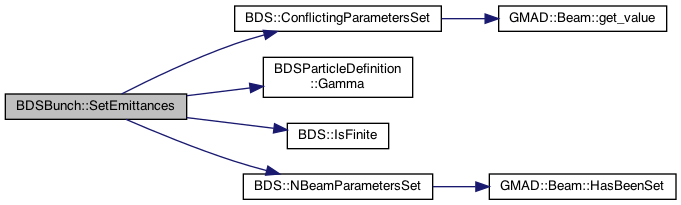

Here is the call graph for this function:

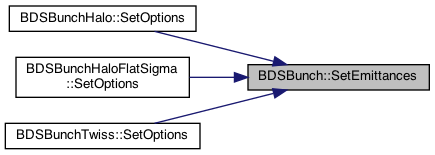

Here is the caller graph for this function:

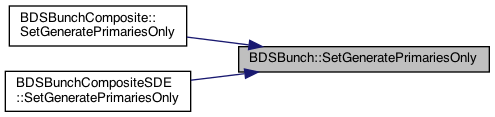

◆ SetGeneratePrimariesOnly()

void BDSBunch::SetGeneratePrimariesOnly ( G4bool generatePrimariesOnlyIn )

virtual

Set the flag to whether we're only generating primaries only. This sets the member variable generatePrimariesOnly which skips trying to perform a curvilinear transform if true. i.e. if we're generating primaries only, there's no beam line.

Reimplemented in BDSBunchComposite, and BDSBunchCompositeSDE.

Definition at line 255 of file BDSBunch.cc.

References generatePrimariesOnly.

Referenced by BDSBunchComposite::SetGeneratePrimariesOnly(), and BDSBunchCompositeSDE::SetGeneratePrimariesOnly().

Here is the caller graph for this function:

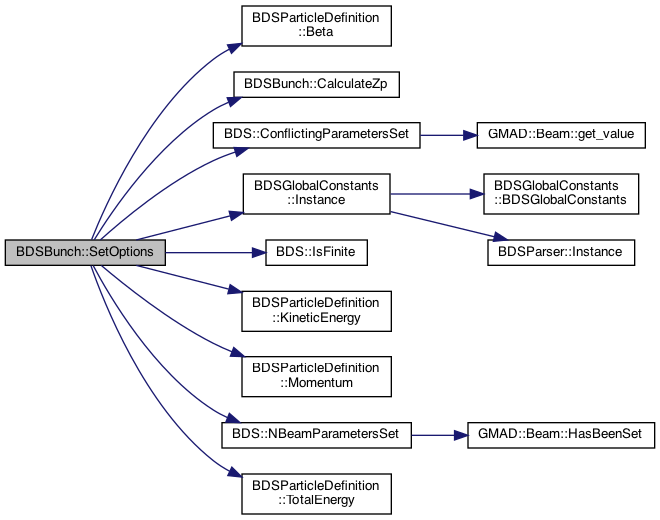

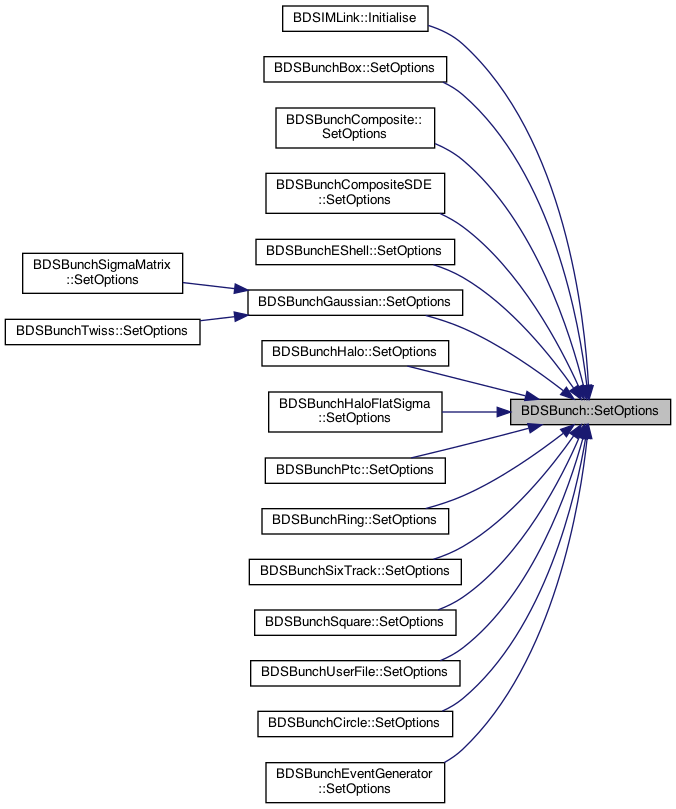

◆ SetOptions()

void BDSBunch::SetOptions	(	const BDSParticleDefinition *	beamParticle,
		const GMAD::Beam &	beam,
		const BDSBunchType &	distrType,
		G4Transform3D	beamlineTransformIn = `G4Transform3D::Identity`,
		const G4double	beamlineS = `0`
	)

virtual

Extract and set the relevant options from the beam definition. The distribution type is explicitly required as this function may be used inside a nested bunch distribution. This argument is for the most part ignored, but there's no way to have a default for it. Also, some classes can cover multiple input distributions so need to know which one they're meant to be.

Reimplemented in BDSBunchBox, BDSBunchComposite, BDSBunchCompositeSDE, BDSBunchEShell, BDSBunchGaussian, BDSBunchHalo, BDSBunchHaloFlatSigma, BDSBunchPtc, BDSBunchRing, BDSBunchSigmaMatrix, BDSBunchSixTrack, BDSBunchSquare, BDSBunchTwiss, BDSBunchUserFile< T >, BDSBunchCircle, and BDSBunchEventGenerator.

Definition at line 78 of file BDSBunch.cc.

References beamlineS, beamlineTransform, BDSParticleDefinition::Beta(), CalculateZp(), BDS::ConflictingParametersSet(), E0, finiteSigmaE, finiteSigmaT, finiteTilt, BDSGlobalConstants::Instance(), BDS::IsFinite(), BDSParticleDefinition::KineticEnergy(), BDSParticleDefinition::Momentum(), BDS::NBeamParametersSet(), P0, particleDefinition, S0, GMAD::BeamBase::S0, sigmaE, GMAD::BeamBase::sigmaE, sigmaEk, sigmaP, sigmaT, GMAD::BeamBase::sigmaT, T0, GMAD::BeamBase::T0, tilt, GMAD::BeamBase::tilt, BDSParticleDefinition::TotalEnergy(), useCurvilinear, X0, GMAD::BeamBase::X0, Xp0, GMAD::BeamBase::Xp0, Y0, GMAD::BeamBase::Y0, Yp0, GMAD::BeamBase::Yp0, Z0, GMAD::BeamBase::Z0, Zp0, and GMAD::BeamBase::Zp0.

Referenced by BDSIMLink::Initialise(), BDSBunchBox::SetOptions(), BDSBunchComposite::SetOptions(), BDSBunchCompositeSDE::SetOptions(), BDSBunchEShell::SetOptions(), BDSBunchGaussian::SetOptions(), BDSBunchHalo::SetOptions(), BDSBunchHaloFlatSigma::SetOptions(), BDSBunchPtc::SetOptions(), BDSBunchRing::SetOptions(), BDSBunchSixTrack::SetOptions(), BDSBunchSquare::SetOptions(), BDSBunchUserFile< T >::SetOptions(), BDSBunchCircle::SetOptions(), and BDSBunchEventGenerator::SetOptions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateIonDefinition()

void BDSBunch::UpdateIonDefinition ( )

virtual

Update the Geant4 Particle Definition inside particleDefinition member in the case it's an ion. This can only be done later one once the run has started. Since the particle definition is kept here in the bunch this interface allows control over it being updated.

Reimplemented in BDSBunchSixTrackLink.

Definition at line 332 of file BDSBunch.cc.

References BDSIonDefinition::A(), BDSIonDefinition::ExcitationEnergy(), BDS::FixGeant105ThreshholdsForParticle(), BDSParticleDefinition::IonDefinition(), BDSParticleDefinition::IsAnIon(), particleDefinition, BDSParticleDefinition::UpdateG4ParticleDefinition(), and BDSIonDefinition::Z().

Referenced by BDSPrimaryGeneratorAction::GeneratePrimaries().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UseCurvilinearTransform()

G4bool BDSBunch::UseCurvilinearTransform ( ) const

inline

Access whether there's a finite S offset and therefore we're using a CL transform.

Definition at line 108 of file BDSBunch.hh.

References useCurvilinear.

Referenced by BDSPrimaryGeneratorAction::GeneratePrimaries().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ BDSHepMC3Reader

friend class BDSHepMC3Reader

friend

Make BDSHepMC3Reader a friend so it can use the protected ApplyTransform function.

Definition at line 54 of file BDSBunch.hh.

◆ BDSROOTSamplerReader

friend class BDSROOTSamplerReader

friend

Definition at line 55 of file BDSBunch.hh.

Field Documentation

◆ beamline

const BDSBeamline* BDSBunch::beamline

mutableprivate

A reference to the fully constructed beamline that's lazily instantiated.

Definition at line 205 of file BDSBunch.hh.

Referenced by ApplyCurvilinearTransform().

◆ beamlineS

G4double BDSBunch::beamlineS

private

Beamline initial S position.

Definition at line 201 of file BDSBunch.hh.

Referenced by SetOptions().

◆ beamlineTransform

G4Transform3D BDSBunch::beamlineTransform

private

Transform that beam line starts with that will also be applied to coordinates.

Definition at line 199 of file BDSBunch.hh.

Referenced by ApplyTransform(), and SetOptions().

◆ E0

G4double BDSBunch::E0

protected

Centre of distributions.

Definition at line 168 of file BDSBunch.hh.

◆ finiteSigmaE

G4bool BDSBunch::finiteSigmaE

protected

Flags to ignore random number generator in case of no finite E or T.

Definition at line 189 of file BDSBunch.hh.

Referenced by BDSBunchGaussian::GetNextParticleLocalCoords(), SetOptions(), BDSBunchGaussian::SetOptions(), and BDSBunchSigmaMatrix::SetOptions().

◆ finiteSigmaT

G4bool BDSBunch::finiteSigmaT

protected

Flags to ignore random number generator in case of no finite E or T.

Definition at line 190 of file BDSBunch.hh.

Referenced by BDSBunchGaussian::GetNextParticleLocalCoords(), SetOptions(), BDSBunchGaussian::SetOptions(), and BDSBunchSigmaMatrix::SetOptions().

◆ finiteTilt

G4bool BDSBunch::finiteTilt

protected

Flag of whether to apply beam rotation.

Definition at line 187 of file BDSBunch.hh.

Referenced by GetNextParticle(), and SetOptions().

◆ generatePrimariesOnly

G4bool BDSBunch::generatePrimariesOnly

protected

Whether we're only generating the primaries only and therefore there's no beamline to get a transform from and we shouldn't try.

Definition at line 195 of file BDSBunch.hh.

Referenced by ApplyCurvilinearTransform(), and SetGeneratePrimariesOnly().

◆ mass2

G4double BDSBunch::mass2

private

Cache of mass squared as required to convert from p to E.

Definition at line 202 of file BDSBunch.hh.

◆ name

G4String BDSBunch::name

protected

Name of distribution.

Definition at line 157 of file BDSBunch.hh.

Referenced by BDSBunchComposite::SetOptions(), and BDSBunchCompositeSDE::SetOptions().

◆ P0

G4double BDSBunch::P0

protected

central momentum

Definition at line 169 of file BDSBunch.hh.

Referenced by SetOptions().

◆ particleDefinition

BDSParticleDefinition* BDSBunch::particleDefinition

protected

Particle definition for bunch - this class owns it.

Definition at line 181 of file BDSBunch.hh.

Referenced by BeamParticleIsAnIon(), BDSBunchUserFile< T >::GetNextParticleLocal(), GetNextParticleValid(), ParticleDefinition(), SetOptions(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), and UpdateIonDefinition().

◆ particleDefinitionHasBeenUpdated

G4bool BDSBunch::particleDefinitionHasBeenUpdated

protected

Whether the particle definition has been updated since last call to GetNextParticle() or GetNextParticleValid().

Definition at line 185 of file BDSBunch.hh.

Referenced by GetNextParticle(), BDSBunchComposite::GetNextParticleLocal(), BDSBunchCompositeSDE::GetNextParticleLocal(), BDSBunchSixTrackLink::GetNextParticleLocal(), BDSBunchUserFile< T >::GetNextParticleLocal(), GetNextParticleValid(), and ParticleDefinitionHasBeenUpdated().

G4double BDSBunch::T0

protected

Centre of distributions.

Definition at line 164 of file BDSBunch.hh.

◆ tilt

G4double BDSBunch::tilt

protected

Centre of distributions.

Definition at line 170 of file BDSBunch.hh.

Referenced by ApplyTilt(), and SetOptions().

◆ useCurvilinear

G4bool BDSBunch::useCurvilinear

◆ Zp0

G4double BDSBunch::Zp0

protected

Centre of distributions.

Definition at line 167 of file BDSBunch.hh.

Referenced by GetNextParticleLocal(), BDSBunchCircle::GetNextParticleLocal(), BDSBunchEShell::GetNextParticleLocal(), BDSBunchHalo::GetNextParticleLocal(), BDSBunchHaloFlatSigma::GetNextParticleLocal(), BDSBunchPtc::GetNextParticleLocal(), BDSBunchRing::GetNextParticleLocal(), BDSBunchSixTrack::GetNextParticleLocal(), BDSBunchSquare::GetNextParticleLocal(), BDSBunchGaussian::GetNextParticleLocalCoords(), BDSBunchGaussian::PreGenerateEvents(), and SetOptions().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSBunch.hh
/Users/nevay/physics/reps/bdsim/src/BDSBunch.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BDSBunch() [1/2]

◆ BDSBunch() [2/2]

◆ ~BDSBunch()

Member Function Documentation

◆ ApplyCurvilinearTransform()

◆ ApplyTilt()

◆ ApplyTransform()

◆ BeamParticleIsAnIon()

◆ BeginOfRunAction()

◆ CalculateZp()

◆ CheckParameters()

◆ ExpectChangingParticleType()

◆ GetNextParticle()

◆ GetNextParticleLocal()

◆ GetNextParticleValid()

◆ Initialise()

◆ Name()

◆ ParticleDefinition()

◆ ParticleDefinitionHasBeenUpdated()

◆ RecreateAdvanceToEvent()

◆ SetEmittances()

◆ SetGeneratePrimariesOnly()

◆ SetOptions()

◆ UpdateIonDefinition()

◆ UseCurvilinearTransform()

Friends And Related Function Documentation

◆ BDSHepMC3Reader

◆ BDSROOTSamplerReader

Field Documentation

◆ beamline

◆ beamlineS

◆ beamlineTransform

◆ E0

◆ finiteSigmaE

◆ finiteSigmaT

◆ finiteTilt

◆ generatePrimariesOnly

◆ mass2

◆ name

◆ P0

◆ particleDefinition

◆ particleDefinitionHasBeenUpdated

◆ S0

◆ sigmaE

◆ sigmaEk

◆ sigmaP

◆ sigmaT

◆ T0

◆ tilt

◆ useCurvilinear

◆ X0

◆ Xp0

◆ Y0

◆ Yp0

◆ Z0

◆ Zp0
