A set of particle coordinates including energy and weight. More...

#include <BDSParticleCoordsFull.hh>

Inheritance diagram for BDSParticleCoordsFull:

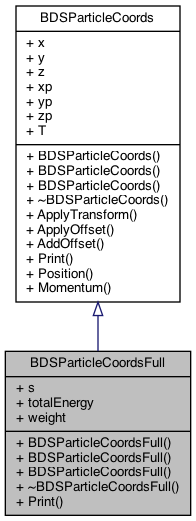

Collaboration diagram for BDSParticleCoordsFull:

Public Member Functions
	BDSParticleCoordsFull (G4double xIn, G4double yIn, G4double zIn, G4double xpIn, G4double ypIn, G4double zpIn, G4double tIn, G4double sIn, G4double totalEnergyIn, G4double weightIn)

	BDSParticleCoordsFull (const BDSParticleCoords &localIn, G4double sIn, G4double totalEnergyIn, G4double weightIn)

virtual void	Print (std::ostream &out) const
	Actual print out method so it can be called from a derived class. More...

Public Member Functions inherited from BDSParticleCoords
	BDSParticleCoords (G4double xIn, G4double yIn, G4double zIn, G4double xpIn, G4double ypIn, G4double zpIn, G4double tIn)

	BDSParticleCoords (G4ThreeVector pos, G4ThreeVector mom, G4double tIn)

BDSParticleCoords	ApplyTransform (const G4Transform3D &transform) const
	Apply a transform to the coordinates and return a copy of them transformed. More...

BDSParticleCoords	ApplyOffset (const G4ThreeVector &offset) const
	Apply an offset to the spatial coordinates only and return a copy. More...

void	AddOffset (const G4ThreeVector &offset)
	Apply an offset to the spatial coordinates only - assignment. More...

virtual void	Print (std::ostream &out) const
	Actual print out method so it can be called from a derived class. More...

G4ThreeVector	Position () const

G4ThreeVector	Momentum () const

Data Fields
G4double	s
	TODO - remove this. Unused. S (global) is calculated from S0 + z. More...

G4double	totalEnergy

G4double	weight

Data Fields inherited from BDSParticleCoords
G4double	x

G4double	y

G4double	z

G4double	xp

G4double	yp

G4double	zp

G4double	T

Friends
std::ostream &	operator<< (std::ostream &out, BDSParticleCoordsFull const &p)
	Output stream. More...

Detailed Description

A set of particle coordinates including energy and weight.

Author: Laurie Nevay

Definition at line 34 of file BDSParticleCoordsFull.hh.

Constructor & Destructor Documentation

◆ BDSParticleCoordsFull() [1/3]

BDSParticleCoordsFull::BDSParticleCoordsFull ( )

Definition at line 24 of file BDSParticleCoordsFull.cc.

◆ BDSParticleCoordsFull() [2/3]

BDSParticleCoordsFull::BDSParticleCoordsFull	(	G4double	xIn,
		G4double	yIn,
		G4double	zIn,
		G4double	xpIn,
		G4double	ypIn,
		G4double	zpIn,
		G4double	tIn,
		G4double	sIn,
		G4double	totalEnergyIn,
		G4double	weightIn
	)

Definition at line 30 of file BDSParticleCoordsFull.cc.

◆ BDSParticleCoordsFull() [3/3]

BDSParticleCoordsFull::BDSParticleCoordsFull	(	const BDSParticleCoords &	localIn,
		G4double	sIn,
		G4double	totalEnergyIn,
		G4double	weightIn
	)

Definition at line 46 of file BDSParticleCoordsFull.cc.

◆ ~BDSParticleCoordsFull()

virtual BDSParticleCoordsFull::~BDSParticleCoordsFull ( )

inlinevirtual

Definition at line 53 of file BDSParticleCoordsFull.hh.

Member Function Documentation

◆ Print()

void BDSParticleCoordsFull::Print ( std::ostream & out ) const

virtual

Actual print out method so it can be called from a derived class.

Reimplemented from BDSParticleCoords.

Definition at line 62 of file BDSParticleCoordsFull.cc.

References BDSParticleCoords::Print(), and s.

Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSParticleCoordsFull const &	p
	)

friend

Output stream.

Definition at line 56 of file BDSParticleCoordsFull.cc.

Field Documentation

◆ s

G4double BDSParticleCoordsFull::s

TODO - remove this. Unused. S (global) is calculated from S0 + z.

Definition at line 61 of file BDSParticleCoordsFull.hh.

Referenced by BDSHepMC3Reader::HepMC2G4(), Print(), and BDSROOTSamplerReader::ReadSingleEvent().

◆ totalEnergy

G4double BDSParticleCoordsFull::totalEnergy

Definition at line 62 of file BDSParticleCoordsFull.hh.

◆ weight

G4double BDSParticleCoordsFull::weight

Definition at line 63 of file BDSParticleCoordsFull.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSParticleCoordsFull.hh
/Users/nevay/physics/reps/bdsim/src/BDSParticleCoordsFull.cc
