BDSParticleCoords Class Reference

A set of particle coordinates. More...

#include <BDSParticleCoords.hh>

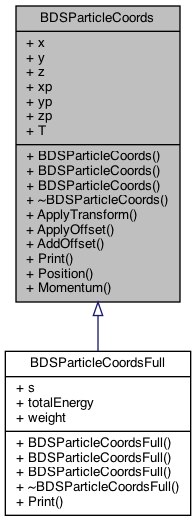

Inheritance diagram for BDSParticleCoords:

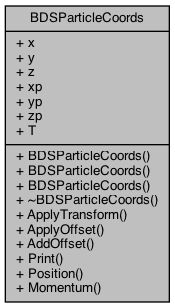

Collaboration diagram for BDSParticleCoords:

Public Member Functions
	BDSParticleCoords (G4double xIn, G4double yIn, G4double zIn, G4double xpIn, G4double ypIn, G4double zpIn, G4double tIn)
	BDSParticleCoords (G4ThreeVector pos, G4ThreeVector mom, G4double tIn)
BDSParticleCoords	ApplyTransform (const G4Transform3D &transform) const
	Apply a transform to the coordinates and return a copy of them transformed. More...
BDSParticleCoords	ApplyOffset (const G4ThreeVector &offset) const
	Apply an offset to the spatial coordinates only and return a copy. More...
void	AddOffset (const G4ThreeVector &offset)
	Apply an offset to the spatial coordinates only - assignment. More...
virtual void	Print (std::ostream &out) const
	Actual print out method so it can be called from a derived class. More...
G4ThreeVector	Position () const
G4ThreeVector	Momentum () const

Data Fields
G4double	x
G4double	y
G4double	z
G4double	xp
G4double	yp
G4double	zp
G4double	T

Friends
std::ostream &	operator<< (std::ostream &out, BDSParticleCoords const &p)
	Output stream. More...

Detailed Description

A set of particle coordinates.

Author

Laurie Nevay

Definition at line 34 of file BDSParticleCoords.hh.

Constructor & Destructor Documentation

BDSParticleCoords() [1/3]

BDSParticleCoords::BDSParticleCoords

(

)

Definition at line 28 of file BDSParticleCoords.cc.

BDSParticleCoords() [2/3]

BDSParticleCoords::BDSParticleCoords	(	G4double	xIn,
		G4double	yIn,
		G4double	zIn,
		G4double	xpIn,
		G4double	ypIn,
		G4double	zpIn,
		G4double	tIn
	)

Definition at line 38 of file BDSParticleCoords.cc.

BDSParticleCoords() [3/3]

BDSParticleCoords::BDSParticleCoords	(	G4ThreeVector	pos,
		G4ThreeVector	mom,
		G4double	tIn
	)

Definition at line 54 of file BDSParticleCoords.cc.

~BDSParticleCoords()

virtual BDSParticleCoords::~BDSParticleCoords ( )

inlinevirtual

Definition at line 49 of file BDSParticleCoords.hh.

Member Function Documentation

AddOffset()

void BDSParticleCoords::AddOffset

(

const G4ThreeVector &

offset

)

Apply an offset to the spatial coordinates only - assignment.

Definition at line 89 of file BDSParticleCoords.cc.

Referenced by BDSROOTSamplerReader::ReadSingleEvent().

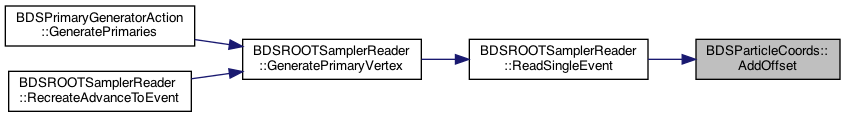

Here is the caller graph for this function:

ApplyOffset()

BDSParticleCoords BDSParticleCoords::ApplyOffset

(

const G4ThreeVector &

offset

)

const

Apply an offset to the spatial coordinates only and return a copy.

Definition at line 81 of file BDSParticleCoords.cc.

Referenced by BDSLinkPrimaryGeneratorAction::GeneratePrimaries().

Here is the caller graph for this function:

ApplyTransform()

BDSParticleCoords BDSParticleCoords::ApplyTransform

(

const G4Transform3D &

transform

)

const

Apply a transform to the coordinates and return a copy of them transformed.

Definition at line 66 of file BDSParticleCoords.cc.

Referenced by BDSBunch::ApplyTransform(), and BDSLinkPrimaryGeneratorAction::GeneratePrimaries().

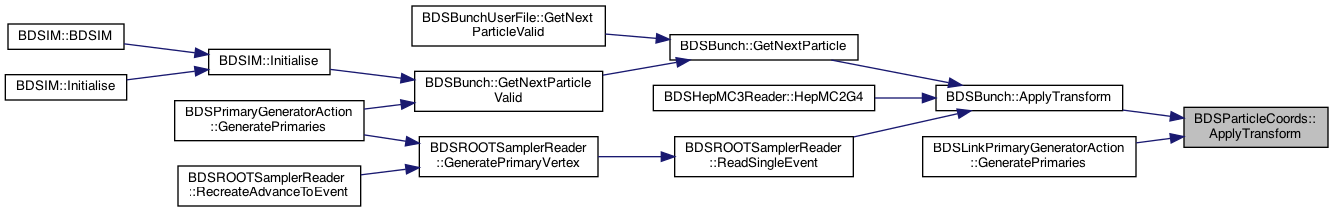

Here is the caller graph for this function:

Momentum()

G4ThreeVector BDSParticleCoords::Momentum ( ) const

inline

Definition at line 67 of file BDSParticleCoords.hh.

Position()

G4ThreeVector BDSParticleCoords::Position ( ) const

inline

Definition at line 66 of file BDSParticleCoords.hh.

Print()

void BDSParticleCoords::Print ( std::ostream &  out ) const

virtual

Actual print out method so it can be called from a derived class.

Reimplemented in BDSParticleCoordsFull.

Definition at line 102 of file BDSParticleCoords.cc.

Referenced by BDSParticleCoordsFull::Print().

Here is the caller graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream & operator<< ( std::ostream &  out, BDSParticleCoords const &  p  )

friend

Output stream.

Definition at line 96 of file BDSParticleCoords.cc.

Field Documentation

T

G4double BDSParticleCoords::T

Definition at line 75 of file BDSParticleCoords.hh.

x

G4double BDSParticleCoords::x

Definition at line 69 of file BDSParticleCoords.hh.

xp

G4double BDSParticleCoords::xp

Definition at line 72 of file BDSParticleCoords.hh.

y

G4double BDSParticleCoords::y

Definition at line 70 of file BDSParticleCoords.hh.

yp

G4double BDSParticleCoords::yp

Definition at line 73 of file BDSParticleCoords.hh.

z

G4double BDSParticleCoords::z

Definition at line 71 of file BDSParticleCoords.hh.

zp

G4double BDSParticleCoords::zp

Definition at line 74 of file BDSParticleCoords.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSParticleCoords.hh
• /Users/nevay/physics/reps/bdsim/src/BDSParticleCoords.cc
