Holder for +- extents in 3 dimensions with a rotation and translation. More...

#include <BDSExtentGlobal.hh>

Inheritance diagram for BDSExtentGlobal:

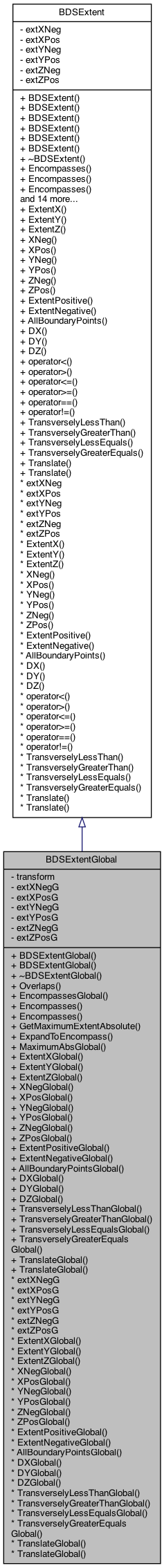

Collaboration diagram for BDSExtentGlobal:

Public Member Functions
	BDSExtentGlobal ()
	Default constructor gives 0 in all extents - typically unphysical. More...

	BDSExtentGlobal (const BDSExtent &extentIn, const G4Transform3D &transformIn=G4Transform3D::Identity)

virtual	~BDSExtentGlobal ()

G4bool	Overlaps (const BDSExtentGlobal &other) const

G4bool	EncompassesGlobal (G4double x, G4double y, G4double z) const
	Return whether the extent encompasses the point. Similar, but with separate x,y,z coordinates. More...

G4bool	Encompasses (const BDSExtentGlobal &otherExtent)
	Return whether the extent encompasses another extent. More...

G4bool	Encompasses (const std::vector< BDSExtentGlobal > &otherExtents)
	Return whether the extent encompasses multiple other extents. More...

G4ThreeVector	GetMaximumExtentAbsolute () const
	Get the maximum extent absolute in each dimension. More...

BDSExtentGlobal	ExpandToEncompass (const BDSExtentGlobal &other) const
	Return a copy of this extent but expanded to encompass another global extent. More...

G4double	MaximumAbsGlobal () const
	Return the maximum absolute value considering all dimensions. More...


std::pair< G4double, G4double >	ExtentXGlobal () const
	Accessor. More...

std::pair< G4double, G4double >	ExtentYGlobal () const
	Accessor. More...

std::pair< G4double, G4double >	ExtentZGlobal () const
	Accessor. More...

G4double	XNegGlobal () const
	Accessor. More...

G4double	XPosGlobal () const
	Accessor. More...

G4double	YNegGlobal () const
	Accessor. More...

G4double	YPosGlobal () const
	Accessor. More...

G4double	ZNegGlobal () const
	Accessor. More...

G4double	ZPosGlobal () const
	Accessor. More...

G4ThreeVector	ExtentPositiveGlobal () const
	Accessor. More...

G4ThreeVector	ExtentNegativeGlobal () const
	Accessor. More...

std::vector< G4ThreeVector >	AllBoundaryPointsGlobal () const
	All 8 boundary points of the bounding box. More...


G4double	DXGlobal () const
	The difference in a dimension. More...

G4double	DYGlobal () const
	The difference in a dimension. More...

G4double	DZGlobal () const
	The difference in a dimension. More...


G4bool	TransverselyLessThanGlobal (const BDSExtentGlobal &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyGreaterThanGlobal (const BDSExtentGlobal &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyLessEqualsGlobal (const BDSExtentGlobal &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyGreaterEqualsGlobal (const BDSExtentGlobal &r) const
	Comparison operator for x,y only. Ignores z (length). More...


BDSExtentGlobal	TranslateGlobal (G4ThreeVector offset) const
	Provide a new copy of this extent with an offset applied. More...

BDSExtentGlobal	TranslateGlobal (G4double dx, G4double dy, G4double dz) const
	Provide a new copy of this extent with an offset applied. More...

Public Member Functions inherited from BDSExtent
	BDSExtent ()
	Default constructor gives 0 in all extents - typically unphysical. More...

	BDSExtent (const std::pair< G4double, G4double > &extXIn, const std::pair< G4double, G4double > &extYIn, const std::pair< G4double, G4double > &extZIn)
	Construct with pairs of extents. More...

	BDSExtent (G4double extXNegIn, G4double extXPosIn, G4double extYNegIn, G4double extYPosIn, G4double extZNegIn, G4double extZPosIn)
	Construct with individual extents. More...

	BDSExtent (G4double extXIn, G4double extYIn, G4double extZIn)
	Symmetric variant - assumed to be +/- same amount. More...

	BDSExtent (G4ThreeVector extInNeg, G4ThreeVector extInPos)
	Threevectors of positive and negative extents. More...

	BDSExtent (G4ThreeVector extIn)
	Symmetric from three vector. More...

G4bool	Encompasses (const G4ThreeVector &point) const
	Return whether the extent encompasses the point. True if point lies inside the extent. More...

G4bool	Encompasses (const BDSExtent &other) const

G4bool	Encompasses (G4double x, G4double y, G4double z) const
	Return whether the extent encompasses the point. Similar, but with separate x,y,z coordinates. More...

G4bool	Encompasses (const BDSParticleCoords &coords) const

BDSExtent	Tilted (G4double angle) const
	Provide a new copy of this extent but rotated along Z by a given tilt angle. More...

BDSExtent	TiltOffset (const BDSTiltOffset *tiltOffset) const
	Provide a new copy of this extent with both a tilt and an offset applied. More...

G4double	MaximumAbs () const
	Return the maximum absolute value considering all dimensions. More...

G4double	MinimumAbs () const
	Return the minimum absolute value considering all dimensions. More...

G4double	MaximumX () const

G4double	MaximumY () const

G4double	MaximumZ () const

G4double	MaximumAbsTransverse () const
	Return the maximum absolute value considering only x,y. More...

G4double	MinimumAbsTransverse () const
	Return the minimum absolute value considering only x,y. More...

G4double	TransverseBoundingRadius () const
	Return a radius that would encompass the maximum x,y extent. More...

BDSExtent	ExpandBy (G4double margin) const
	Return a copy expanded in all dimensions by the given margin. More...

BDSExtent	ExpandTransverselyBy (G4double margin) const
	Return a copy expanded in x and y by the given margin. More...

void	ExpandToEncompass (const BDSExtent &other)

std::pair< G4double, G4double >	ExtentX () const
	Accessor. More...

std::pair< G4double, G4double >	ExtentY () const
	Accessor. More...

std::pair< G4double, G4double >	ExtentZ () const
	Accessor. More...

G4double	XNeg () const
	Accessor. More...

G4double	XPos () const
	Accessor. More...

G4double	YNeg () const
	Accessor. More...

G4double	YPos () const
	Accessor. More...

G4double	ZNeg () const
	Accessor. More...

G4double	ZPos () const
	Accessor. More...

G4ThreeVector	ExtentPositive () const
	Accessor. More...

G4ThreeVector	ExtentNegative () const
	Accessor. More...

std::vector< G4ThreeVector >	AllBoundaryPoints () const
	All 8 boundary points of the bounding box. More...

G4double	DX () const
	The difference in a dimension. More...

G4double	DY () const
	The difference in a dimension. More...

G4double	DZ () const
	The difference in a dimension. More...

G4bool	operator< (const BDSExtent &r) const
	Comparison operator. More...

G4bool	operator> (const BDSExtent &r) const
	Comparison operator. More...

G4bool	operator<= (const BDSExtent &r) const
	Comparison operator. More...

G4bool	operator>= (const BDSExtent &r) const
	Comparison operator. More...

G4bool	operator== (const BDSExtent &r) const
	Equality operator. More...

G4bool	operator!= (const BDSExtent &r) const
	Equality operator. More...

G4bool	TransverselyLessThan (const BDSExtent &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyGreaterThan (const BDSExtent &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyLessEquals (const BDSExtent &r) const
	Comparison operator for x,y only. Ignores z (length). More...

G4bool	TransverselyGreaterEquals (const BDSExtent &r) const
	Comparison operator for x,y only. Ignores z (length). More...

BDSExtent	Translate (const G4ThreeVector &offset) const
	Provide a new copy of this extent with an offset applied. More...

BDSExtent	Translate (G4double dx, G4double dy, G4double dz) const
	Provide a new copy of this extent with an offset applied. More...

Private Attributes
G4Transform3D	transform


G4double	extXNegG
	Extent. More...

G4double	extXPosG
	Extent. More...

G4double	extYNegG
	Extent. More...

G4double	extYPosG
	Extent. More...

G4double	extZNegG
	Extent. More...

G4double	extZPosG
	Extent. More...

Friends
std::ostream &	operator<< (std::ostream &out, BDSExtentGlobal const &ext)
	Output stream. More...

Detailed Description

Holder for +- extents in 3 dimensions with a rotation and translation.

Holds both a local extent as a 3D cuboid in local xyz as well as a rotation and translation to give an extent in a different frame.

Author: Laurie Nevay

Definition at line 43 of file BDSExtentGlobal.hh.

Constructor & Destructor Documentation

◆ BDSExtentGlobal() [1/2]

BDSExtentGlobal::BDSExtentGlobal ( )

Default constructor gives 0 in all extents - typically unphysical.

Definition at line 36 of file BDSExtentGlobal.cc.

Referenced by ExpandToEncompass(), and TranslateGlobal().

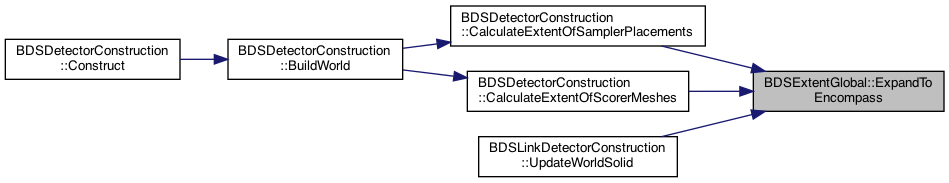

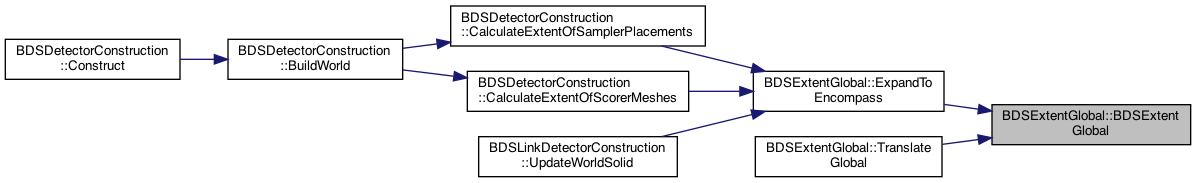

Here is the caller graph for this function:

◆ BDSExtentGlobal() [2/2]

BDSExtentGlobal::BDSExtentGlobal	(	const BDSExtent &	extentIn,
		const G4Transform3D &	transformIn = `G4Transform3D::Identity`
	)

explicit

Constructor with extent in only local frame + transform. We use only the G4Transform3D to avoid ambiguity about active or passive transforms.

Definition at line 46 of file BDSExtentGlobal.cc.

References BDSExtent::AllBoundaryPoints(), extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

Here is the call graph for this function:

◆ ~BDSExtentGlobal()

BDSExtentGlobal::~BDSExtentGlobal ( )

virtual

Constructor with extents already in global frame. The transform here is the transform that the points were created with respect to. It is not applied to the points.

Definition at line 86 of file BDSExtentGlobal.cc.

Member Function Documentation

◆ AllBoundaryPointsGlobal()

std::vector< G4ThreeVector > BDSExtentGlobal::AllBoundaryPointsGlobal ( ) const

All 8 boundary points of the bounding box.

Definition at line 89 of file BDSExtentGlobal.cc.

References extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

Referenced by EncompassesGlobal(), and BDSBeamline::UpdateExtents().

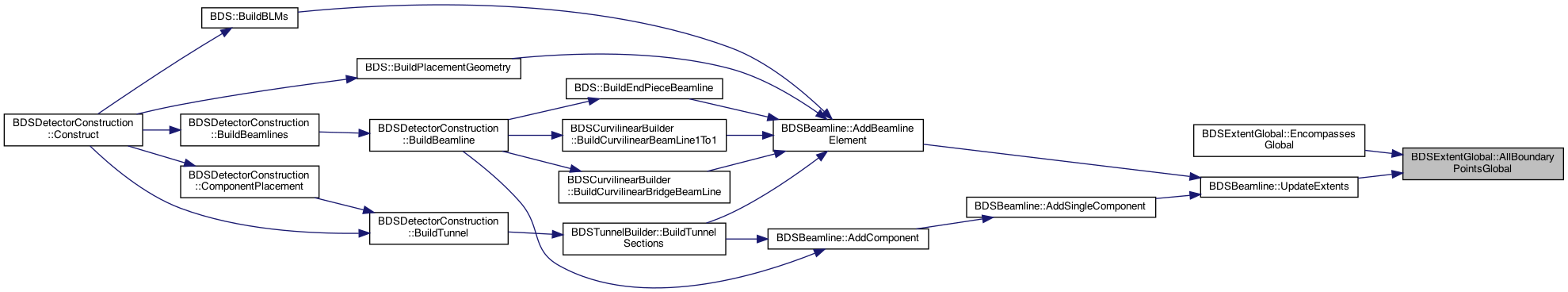

Here is the caller graph for this function:

◆ DXGlobal()

G4double BDSExtentGlobal::DXGlobal ( ) const

inline

The difference in a dimension.

Definition at line 90 of file BDSExtentGlobal.hh.

References extXNegG, and extXPosG.

◆ DYGlobal()

G4double BDSExtentGlobal::DYGlobal ( ) const

inline

The difference in a dimension.

Definition at line 91 of file BDSExtentGlobal.hh.

References extYNegG, and extYPosG.

◆ DZGlobal()

G4double BDSExtentGlobal::DZGlobal ( ) const

inline

The difference in a dimension.

Definition at line 92 of file BDSExtentGlobal.hh.

References extZNegG, and extZPosG.

◆ Encompasses() [1/2]

G4bool BDSExtentGlobal::Encompasses ( const BDSExtentGlobal & otherExtent )

Return whether the extent encompasses another extent.

Definition at line 186 of file BDSExtentGlobal.cc.

References ExtentXGlobal(), ExtentYGlobal(), ExtentZGlobal(), extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

Referenced by BDSDetectorConstruction::BuildWorld(), and Encompasses().

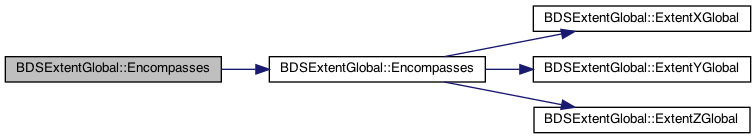

Here is the call graph for this function:

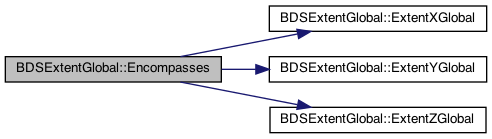

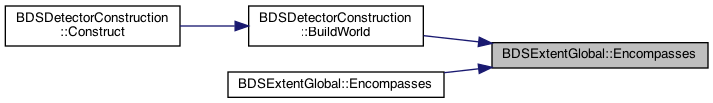

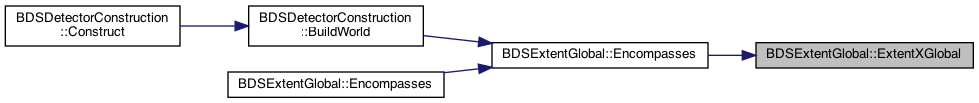

Here is the caller graph for this function:

◆ Encompasses() [2/2]

G4bool BDSExtentGlobal::Encompasses ( const std::vector< BDSExtentGlobal > & otherExtents )

Return whether the extent encompasses multiple other extents.

Definition at line 197 of file BDSExtentGlobal.cc.

References Encompasses().

Here is the call graph for this function:

◆ EncompassesGlobal()

G4bool BDSExtentGlobal::EncompassesGlobal	(	G4double	x,
		G4double	y,
		G4double	z
	)		const

Return whether the extent encompasses the point. Similar, but with separate x,y,z coordinates.

Definition at line 154 of file BDSExtentGlobal.cc.

References AllBoundaryPointsGlobal().

Here is the call graph for this function:

◆ ExpandToEncompass()

BDSExtentGlobal BDSExtentGlobal::ExpandToEncompass ( const BDSExtentGlobal & other ) const

Return a copy of this extent but expanded to encompass another global extent.

Definition at line 121 of file BDSExtentGlobal.cc.

References BDSExtentGlobal(), extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

Referenced by BDSDetectorConstruction::CalculateExtentOfSamplerPlacements(), BDSDetectorConstruction::CalculateExtentOfScorerMeshes(), and BDSLinkDetectorConstruction::UpdateWorldSolid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExtentNegativeGlobal()

G4ThreeVector BDSExtentGlobal::ExtentNegativeGlobal ( ) const

inline

Accessor.

Definition at line 80 of file BDSExtentGlobal.hh.

References extXNegG, extYNegG, and extZNegG.

Referenced by GetMaximumExtentAbsolute().

Here is the caller graph for this function:

◆ ExtentPositiveGlobal()

G4ThreeVector BDSExtentGlobal::ExtentPositiveGlobal ( ) const

inline

Accessor.

Definition at line 77 of file BDSExtentGlobal.hh.

References extXPosG, extYPosG, and extZPosG.

Referenced by GetMaximumExtentAbsolute().

Here is the caller graph for this function:

◆ ExtentXGlobal()

std::pair< G4double, G4double > BDSExtentGlobal::ExtentXGlobal ( ) const

inline

Accessor.

Definition at line 66 of file BDSExtentGlobal.hh.

References extXNegG, and extXPosG.

Referenced by Encompasses().

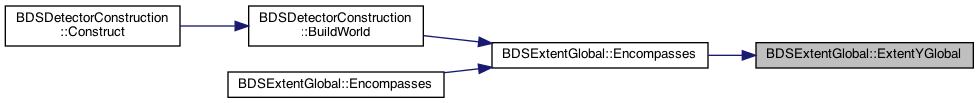

Here is the caller graph for this function:

◆ ExtentYGlobal()

std::pair< G4double, G4double > BDSExtentGlobal::ExtentYGlobal ( ) const

inline

Accessor.

Definition at line 67 of file BDSExtentGlobal.hh.

References extYNegG, and extYPosG.

Referenced by Encompasses().

Here is the caller graph for this function:

◆ ExtentZGlobal()

std::pair< G4double, G4double > BDSExtentGlobal::ExtentZGlobal ( ) const

inline

Accessor.

Definition at line 68 of file BDSExtentGlobal.hh.

References extZNegG, and extZPosG.

Referenced by Encompasses().

Here is the caller graph for this function:

◆ GetMaximumExtentAbsolute()

G4ThreeVector BDSExtentGlobal::GetMaximumExtentAbsolute ( ) const

Get the maximum extent absolute in each dimension.

Definition at line 210 of file BDSExtentGlobal.cc.

References ExtentNegativeGlobal(), and ExtentPositiveGlobal().

Referenced by BDSLinkDetectorConstruction::UpdateWorldSolid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MaximumAbsGlobal()

G4double BDSExtentGlobal::MaximumAbsGlobal ( ) const

Return the maximum absolute value considering all dimensions.

Definition at line 146 of file BDSExtentGlobal.cc.

References extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

◆ Overlaps()

G4bool BDSExtentGlobal::Overlaps ( const BDSExtentGlobal & other ) const

Definition at line 103 of file BDSExtentGlobal.cc.

◆ TranslateGlobal() [1/2]

BDSExtentGlobal BDSExtentGlobal::TranslateGlobal	(	G4double	dx,
		G4double	dy,
		G4double	dz
	)		const

Provide a new copy of this extent with an offset applied.

Definition at line 108 of file BDSExtentGlobal.cc.

References BDSExtentGlobal(), extXNegG, extXPosG, extYNegG, extYPosG, extZNegG, and extZPosG.

Here is the call graph for this function:

◆ TranslateGlobal() [2/2]

BDSExtentGlobal BDSExtentGlobal::TranslateGlobal ( G4ThreeVector offset ) const

inline

Provide a new copy of this extent with an offset applied.

Definition at line 117 of file BDSExtentGlobal.hh.

References TranslateGlobal().

Referenced by TranslateGlobal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TransverselyGreaterEqualsGlobal()

G4bool BDSExtentGlobal::TransverselyGreaterEqualsGlobal ( const BDSExtentGlobal & r ) const

inline

Comparison operator for x,y only. Ignores z (length).

Definition at line 99 of file BDSExtentGlobal.hh.

References TransverselyLessThanGlobal().

Here is the call graph for this function:

◆ TransverselyGreaterThanGlobal()

G4bool BDSExtentGlobal::TransverselyGreaterThanGlobal ( const BDSExtentGlobal & r ) const

inline

Comparison operator for x,y only. Ignores z (length).

Definition at line 97 of file BDSExtentGlobal.hh.

References TransverselyLessThanGlobal().

Referenced by TransverselyLessEqualsGlobal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TransverselyLessEqualsGlobal()

G4bool BDSExtentGlobal::TransverselyLessEqualsGlobal ( const BDSExtentGlobal & r ) const

inline

Comparison operator for x,y only. Ignores z (length).

Definition at line 98 of file BDSExtentGlobal.hh.

References TransverselyGreaterThanGlobal().

Here is the call graph for this function:

◆ TransverselyLessThanGlobal()

G4bool BDSExtentGlobal::TransverselyLessThanGlobal ( const BDSExtentGlobal & r ) const

inline

Comparison operator for x,y only. Ignores z (length).

Definition at line 144 of file BDSExtentGlobal.hh.

References extXNegG, extXPosG, extYNegG, and extYPosG.

Referenced by TransverselyGreaterEqualsGlobal(), and TransverselyGreaterThanGlobal().

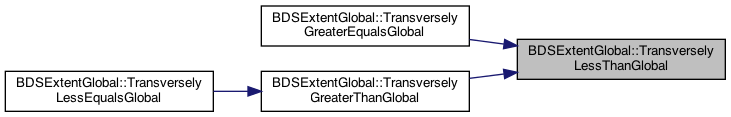

Here is the caller graph for this function:

◆ XNegGlobal()

G4double BDSExtentGlobal::XNegGlobal ( ) const

inline

Accessor.

Definition at line 70 of file BDSExtentGlobal.hh.

References extXNegG.

◆ XPosGlobal()

G4double BDSExtentGlobal::XPosGlobal ( ) const

inline

Accessor.

Definition at line 71 of file BDSExtentGlobal.hh.

References extXPosG.

◆ YNegGlobal()

G4double BDSExtentGlobal::YNegGlobal ( ) const

inline

Accessor.

Definition at line 72 of file BDSExtentGlobal.hh.

References extYNegG.

◆ YPosGlobal()

G4double BDSExtentGlobal::YPosGlobal ( ) const

inline

Accessor.

Definition at line 73 of file BDSExtentGlobal.hh.

References extYPosG.

◆ ZNegGlobal()

G4double BDSExtentGlobal::ZNegGlobal ( ) const

inline

Accessor.

Definition at line 74 of file BDSExtentGlobal.hh.

References extZNegG.

◆ ZPosGlobal()

G4double BDSExtentGlobal::ZPosGlobal ( ) const

inline

Accessor.

Definition at line 75 of file BDSExtentGlobal.hh.

References extZPosG.

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSExtentGlobal const &	ext
	)

friend

Output stream.

Definition at line 133 of file BDSExtentGlobal.cc.

Field Documentation

◆ extXNegG

G4double BDSExtentGlobal::extXNegG

private

Extent.

Definition at line 135 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DXGlobal(), Encompasses(), ExpandToEncompass(), ExtentNegativeGlobal(), ExtentXGlobal(), MaximumAbsGlobal(), TranslateGlobal(), TransverselyLessThanGlobal(), and XNegGlobal().

◆ extXPosG

G4double BDSExtentGlobal::extXPosG

private

Extent.

Definition at line 136 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DXGlobal(), Encompasses(), ExpandToEncompass(), ExtentPositiveGlobal(), ExtentXGlobal(), MaximumAbsGlobal(), TranslateGlobal(), TransverselyLessThanGlobal(), and XPosGlobal().

◆ extYNegG

G4double BDSExtentGlobal::extYNegG

private

Extent.

Definition at line 137 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DYGlobal(), Encompasses(), ExpandToEncompass(), ExtentNegativeGlobal(), ExtentYGlobal(), MaximumAbsGlobal(), TranslateGlobal(), TransverselyLessThanGlobal(), and YNegGlobal().

◆ extYPosG

G4double BDSExtentGlobal::extYPosG

private

Extent.

Definition at line 138 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DYGlobal(), Encompasses(), ExpandToEncompass(), ExtentPositiveGlobal(), ExtentYGlobal(), MaximumAbsGlobal(), TranslateGlobal(), TransverselyLessThanGlobal(), and YPosGlobal().

◆ extZNegG

G4double BDSExtentGlobal::extZNegG

private

Extent.

Definition at line 139 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DZGlobal(), Encompasses(), ExpandToEncompass(), ExtentNegativeGlobal(), ExtentZGlobal(), MaximumAbsGlobal(), TranslateGlobal(), and ZNegGlobal().

◆ extZPosG

G4double BDSExtentGlobal::extZPosG

private

Extent.

Definition at line 140 of file BDSExtentGlobal.hh.

Referenced by AllBoundaryPointsGlobal(), BDSExtentGlobal(), DZGlobal(), Encompasses(), ExpandToEncompass(), ExtentPositiveGlobal(), ExtentZGlobal(), MaximumAbsGlobal(), TranslateGlobal(), and ZPosGlobal().

◆ transform

G4Transform3D BDSExtentGlobal::transform

private

Definition at line 132 of file BDSExtentGlobal.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSExtentGlobal.hh
/Users/nevay/physics/reps/bdsim/src/BDSExtentGlobal.cc

Public Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BDSExtentGlobal() [1/2]

◆ BDSExtentGlobal() [2/2]

◆ ~BDSExtentGlobal()

Member Function Documentation

◆ AllBoundaryPointsGlobal()

◆ DXGlobal()

◆ DYGlobal()

◆ DZGlobal()

◆ Encompasses() [1/2]

◆ Encompasses() [2/2]

◆ EncompassesGlobal()

◆ ExpandToEncompass()

◆ ExtentNegativeGlobal()

◆ ExtentPositiveGlobal()

◆ ExtentXGlobal()

◆ ExtentYGlobal()

◆ ExtentZGlobal()

◆ GetMaximumExtentAbsolute()

◆ MaximumAbsGlobal()

◆ Overlaps()

◆ TranslateGlobal() [1/2]

◆ TranslateGlobal() [2/2]

◆ TransverselyGreaterEqualsGlobal()

◆ TransverselyGreaterThanGlobal()

◆ TransverselyLessEqualsGlobal()

◆ TransverselyLessThanGlobal()

◆ XNegGlobal()

◆ XPosGlobal()

◆ YNegGlobal()

◆ YPosGlobal()

◆ ZNegGlobal()

◆ ZPosGlobal()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ extXNegG

◆ extXPosG

◆ extYNegG

◆ extYPosG

◆ extZNegG

◆ extZPosG

◆ transform
