BDSFieldBuilder Class Reference

Register for all fields to be built and volumes to be attached to. More...

#include <BDSFieldBuilder.hh>

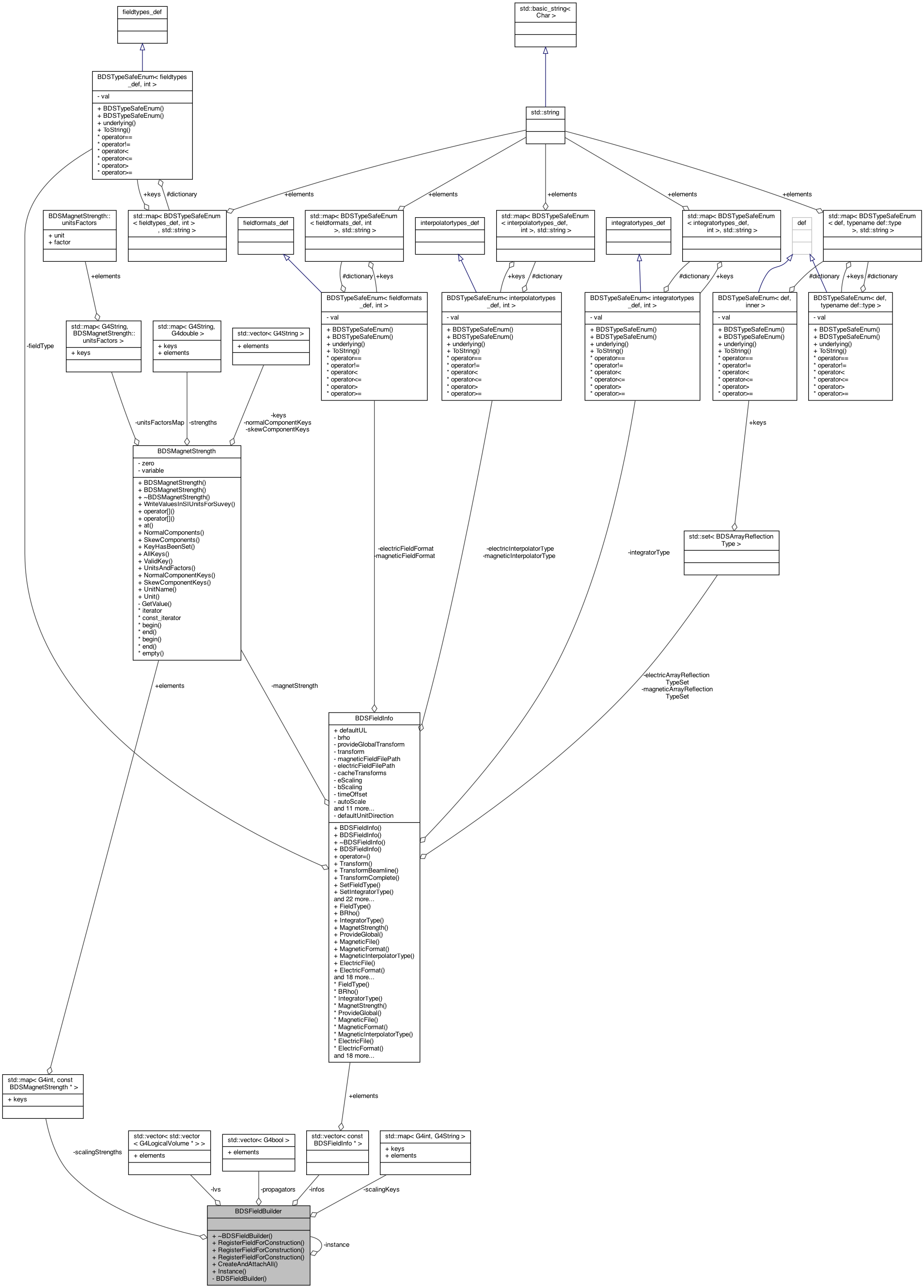

Collaboration diagram for BDSFieldBuilder:

Public Member Functions
void	RegisterFieldForConstruction (const BDSFieldInfo *info, G4LogicalVolume *logicalVolume, const G4bool propagateToDaughters=false, const BDSMagnetStrength *magnetStrengthForScaling=nullptr, const G4String &scalingKey="none")
void	RegisterFieldForConstruction (const BDSFieldInfo *info, const std::vector< G4LogicalVolume * > &logicalVolumes, const G4bool propagateToDaughters=false, const BDSMagnetStrength *magnetStrengthForScaling=nullptr, const G4String &scalingKey="none")
	Similar version but vectorised. More...
void	RegisterFieldForConstruction (const BDSFieldInfo *info, const std::set< G4LogicalVolume * > &logicalVolumes, const G4bool propagateToDaughters=false, const BDSMagnetStrength *magnetStrengthForScaling=nullptr, const G4String &scalingKey="none")
	Similar version but for a set. More...
std::vector< BDSFieldObjects * >	CreateAndAttachAll ()

Static Public Member Functions
static BDSFieldBuilder *	Instance ()
	Singleton pattern accessor. More...

Private Member Functions
	BDSFieldBuilder ()
	Private default constructor to enforce singleton pattern. More...

Private Attributes
std::vector< const BDSFieldInfo * >	infos
	Register of components to build. More...
std::vector< std::vector< G4LogicalVolume * > >	lvs
	Register of components to build. More...
std::vector< G4bool >	propagators
	Register of components to build. More...
std::map< G4int, const BDSMagnetStrength * >	scalingStrengths
	Optional register of scaling strengths and keys. More...
std::map< G4int, G4String >	scalingKeys
	Optional register of scaling strengths and keys. More...

Static Private Attributes
static BDSFieldBuilder *	instance = nullptr
	Singleton instance. More...

Detailed Description

Register for all fields to be built and volumes to be attached to.

This keeps a registry of the field info (the template for a field) and the volume to attach it to, so all fields can actually be constructed at one time irrespective of when they're apparently 'created' in the geometry / individual BDSAcceleratorComponents.

This register does not retain ownership of anything so multiple logical volumes may be safely registered along with a single BDSFieldInfo instance.

Author

Laurie Nevay

Definition at line 47 of file BDSFieldBuilder.hh.

Constructor & Destructor Documentation

~BDSFieldBuilder()

BDSFieldBuilder::~BDSFieldBuilder

(

)

Definition at line 39 of file BDSFieldBuilder.cc.

BDSFieldBuilder()

BDSFieldBuilder::BDSFieldBuilder ( )

private

Private default constructor to enforce singleton pattern.

Definition at line 44 of file BDSFieldBuilder.cc.

References infos, lvs, and propagators.

Referenced by Instance().

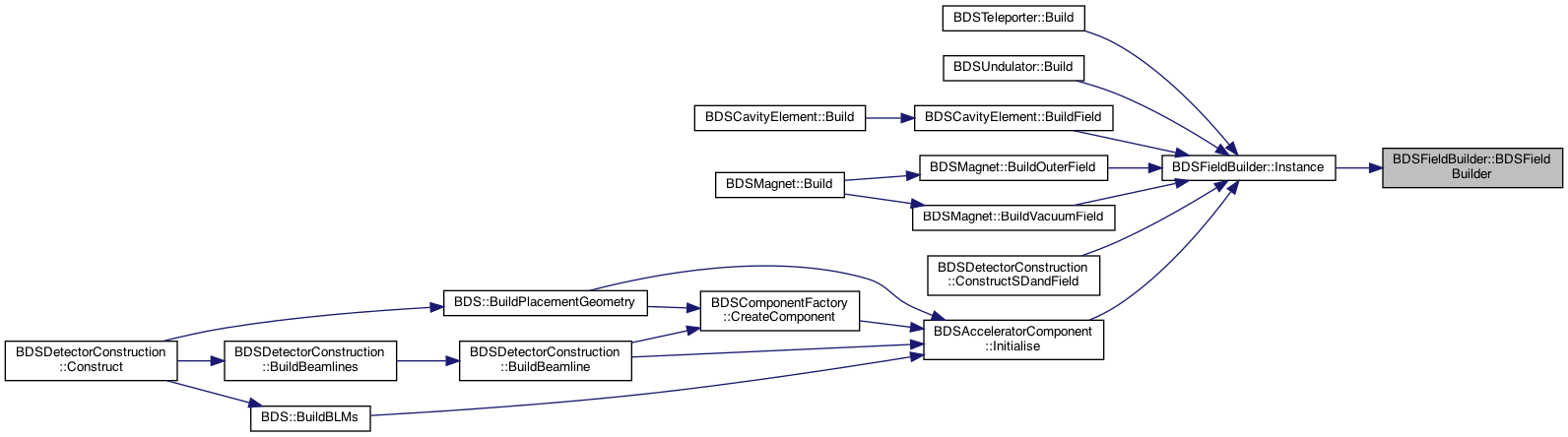

Here is the caller graph for this function:

Member Function Documentation

CreateAndAttachAll()

std::vector< BDSFieldObjects * > BDSFieldBuilder::CreateAndAttachAll

(

)

Definition at line 110 of file BDSFieldBuilder.cc.

Instance()

BDSFieldBuilder * BDSFieldBuilder::Instance ( )

static

Singleton pattern accessor.

Definition at line 32 of file BDSFieldBuilder.cc.

References BDSFieldBuilder(), and instance.

Referenced by BDSTeleporter::Build(), BDSUndulator::Build(), BDSCavityElement::BuildField(), BDSMagnet::BuildOuterField(), BDSMagnet::BuildVacuumField(), BDSDetectorConstruction::ConstructSDandField(), and BDSAcceleratorComponent::Initialise().

Here is the call graph for this function:

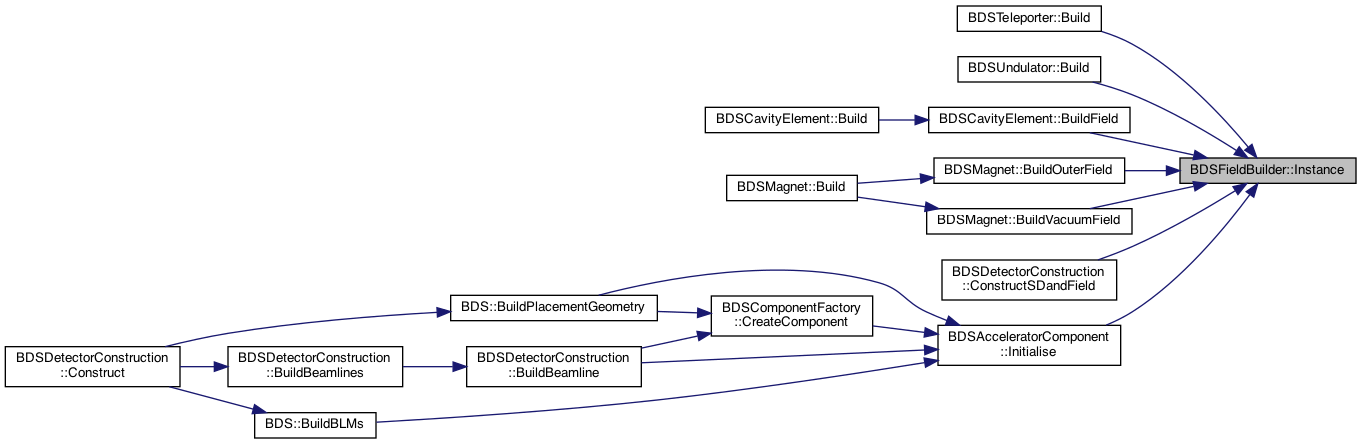

Here is the caller graph for this function:

RegisterFieldForConstruction() [1/3]

void BDSFieldBuilder::RegisterFieldForConstruction	(	const BDSFieldInfo *	info,
		const std::set< G4LogicalVolume * > &	logicalVolumes,
		const G4bool	propagateToDaughters = false,
		const BDSMagnetStrength *	magnetStrengthForScaling = nullptr,
		const G4String &	scalingKey = "none"
	)

Similar version but for a set.

Definition at line 93 of file BDSFieldBuilder.cc.

References RegisterFieldForConstruction().

Here is the call graph for this function:

RegisterFieldForConstruction() [2/3]

void BDSFieldBuilder::RegisterFieldForConstruction	(	const BDSFieldInfo *	info,
		const std::vector< G4LogicalVolume * > &	logicalVolumes,
		const G4bool	propagateToDaughters = false,
		const BDSMagnetStrength *	magnetStrengthForScaling = nullptr,
		const G4String &	scalingKey = "none"
	)

Similar version but vectorised.

Definition at line 52 of file BDSFieldBuilder.cc.

References infos, lvs, propagators, scalingKeys, and scalingStrengths.

RegisterFieldForConstruction() [3/3]

void BDSFieldBuilder::RegisterFieldForConstruction	(	const BDSFieldInfo *	info,
		G4LogicalVolume *	logicalVolume,
		const G4bool	propagateToDaughters = false,
		const BDSMagnetStrength *	magnetStrengthForScaling = nullptr,
		const G4String &	scalingKey = "none"
	)

Register a field for construction - ie the field specification along with which logical volume to attach it to. The same field specification (info) can be registered for multiple logical volumes as this builder does not retain ownership of anything.

Definition at line 79 of file BDSFieldBuilder.cc.

References RegisterFieldForConstruction().

Referenced by BDSTeleporter::Build(), BDSUndulator::Build(), BDSCavityElement::BuildField(), BDSMagnet::BuildOuterField(), BDSMagnet::BuildVacuumField(), BDSAcceleratorComponent::Initialise(), and RegisterFieldForConstruction().

Here is the call graph for this function:

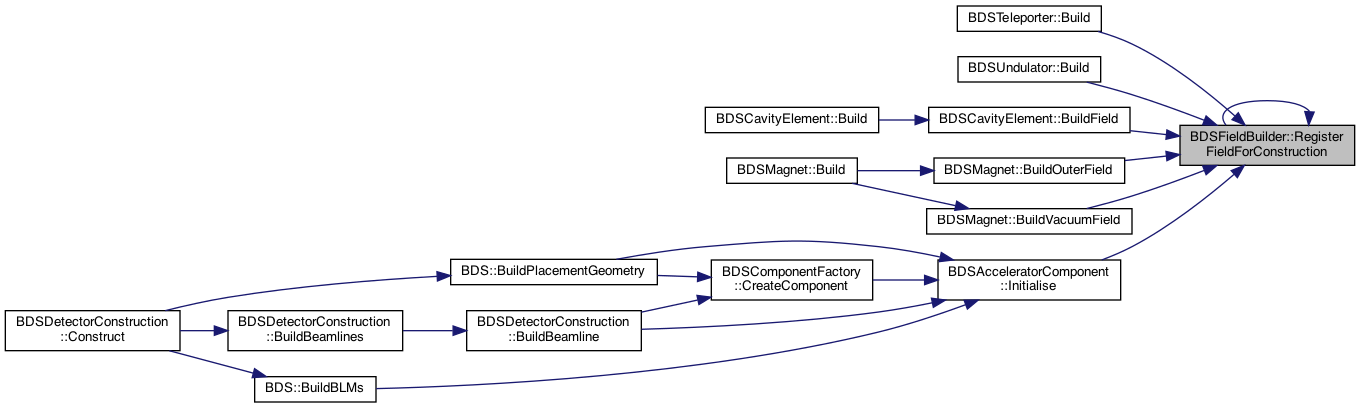

Here is the caller graph for this function:

Field Documentation

infos

std::vector<const BDSFieldInfo*> BDSFieldBuilder::infos

private

Register of components to build.

Definition at line 89 of file BDSFieldBuilder.hh.

Referenced by BDSFieldBuilder(), and RegisterFieldForConstruction().

instance

BDSFieldBuilder * BDSFieldBuilder::instance = nullptr

staticprivate

Singleton instance.

Definition at line 86 of file BDSFieldBuilder.hh.

Referenced by Instance().

lvs

std::vector<std::vector<G4LogicalVolume*> > BDSFieldBuilder::lvs

private

Register of components to build.

Definition at line 90 of file BDSFieldBuilder.hh.

Referenced by BDSFieldBuilder(), and RegisterFieldForConstruction().

propagators

std::vector<G4bool> BDSFieldBuilder::propagators

private

Register of components to build.

Definition at line 91 of file BDSFieldBuilder.hh.

Referenced by BDSFieldBuilder(), and RegisterFieldForConstruction().

scalingKeys

std::map<G4int, G4String> BDSFieldBuilder::scalingKeys

private

Optional register of scaling strengths and keys.

Definition at line 96 of file BDSFieldBuilder.hh.

Referenced by RegisterFieldForConstruction().

scalingStrengths

std::map<G4int, const BDSMagnetStrength*> BDSFieldBuilder::scalingStrengths

private

Optional register of scaling strengths and keys.

Definition at line 95 of file BDSFieldBuilder.hh.

Referenced by RegisterFieldForConstruction().

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSFieldBuilder.hh
• /Users/nevay/physics/reps/bdsim/src/BDSFieldBuilder.cc
