BDSFieldEInterpolated Class Reference

Class to provide scaling and a base class pointer for interpolator fields. More...

#include <BDSFieldEInterpolated.hh>

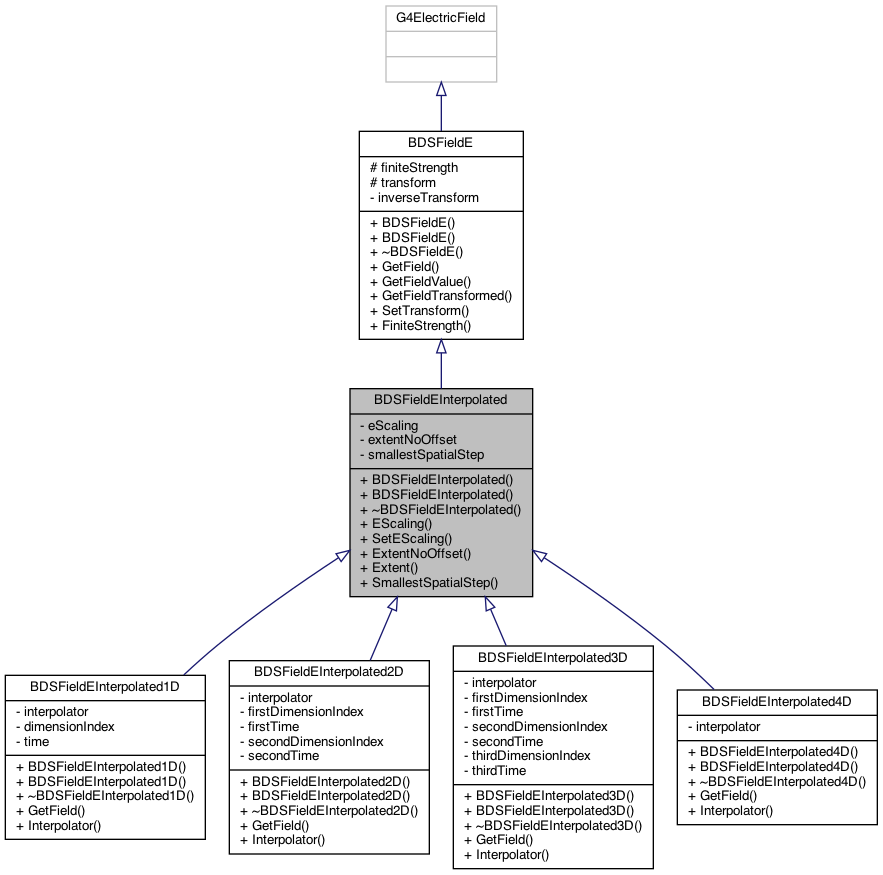

Inheritance diagram for BDSFieldEInterpolated:

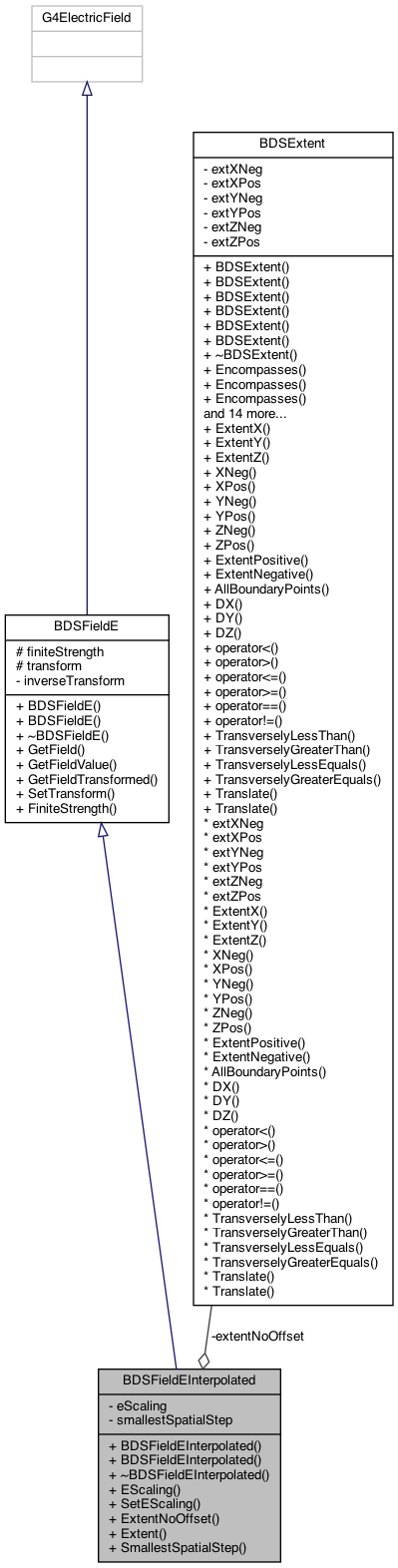

Collaboration diagram for BDSFieldEInterpolated:

Public Member Functions
	BDSFieldEInterpolated (const BDSInterpolator *interpolator, const G4Transform3D &offset, G4double eScalingIn=1.0)
G4double	EScaling () const
void	SetEScaling (G4double eScalingIn)
BDSExtent	ExtentNoOffset () const
	Extent of field without any offset (ie in its own coordinate frame). More...
BDSExtent	Extent () const
	For now, we will ignore any rotation of the transform. TODO. More...
G4double	SmallestSpatialStep () const
Public Member Functions inherited from BDSFieldE
	BDSFieldE ()
	BDSFieldE (G4Transform3D transformIn)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset. More...
virtual void	SetTransform (const G4Transform3D &transformIn)
G4bool	FiniteStrength () const
	Accessor. More...

Private Attributes
G4double	eScaling
	E field scaling value. More...
BDSExtent	extentNoOffset
	Extent without offset. More...
G4double	smallestSpatialStep

Additional Inherited Members
Protected Attributes inherited from BDSFieldE
G4bool	finiteStrength
	Flag to cache whether finite nor not. More...
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry. More...

Detailed Description

Class to provide scaling and a base class pointer for interpolator fields.

Author

Laurie Nevay

Definition at line 35 of file BDSFieldEInterpolated.hh.

Constructor & Destructor Documentation

BDSFieldEInterpolated()

BDSFieldEInterpolated::BDSFieldEInterpolated	(	const BDSInterpolator *	interpolator,
		const G4Transform3D &	offset,
		G4double	eScalingIn = 1.0
	)

Definition at line 25 of file BDSFieldEInterpolated.cc.

~BDSFieldEInterpolated()

virtual BDSFieldEInterpolated::~BDSFieldEInterpolated ( )

inlinevirtual

Definition at line 43 of file BDSFieldEInterpolated.hh.

Member Function Documentation

EScaling()

G4double BDSFieldEInterpolated::EScaling ( ) const

inline

Definition at line 45 of file BDSFieldEInterpolated.hh.

Extent()

BDSExtent BDSFieldEInterpolated::Extent ( ) const

inline

For now, we will ignore any rotation of the transform. TODO.

With offset.

Definition at line 52 of file BDSFieldEInterpolated.hh.

References extentNoOffset, BDSFieldE::transform, and BDSExtent::Translate().

Here is the call graph for this function:

ExtentNoOffset()

BDSExtent BDSFieldEInterpolated::ExtentNoOffset ( ) const

inline

Extent of field without any offset (ie in its own coordinate frame).

Definition at line 49 of file BDSFieldEInterpolated.hh.

References extentNoOffset.

SetEScaling()

void BDSFieldEInterpolated::SetEScaling ( G4double  eScalingIn )

inline

Definition at line 46 of file BDSFieldEInterpolated.hh.

SmallestSpatialStep()

G4double BDSFieldEInterpolated::SmallestSpatialStep ( ) const

inline

Definition at line 54 of file BDSFieldEInterpolated.hh.

Field Documentation

eScaling

G4double BDSFieldEInterpolated::eScaling

private

E field scaling value.

Definition at line 57 of file BDSFieldEInterpolated.hh.

extentNoOffset

BDSExtent BDSFieldEInterpolated::extentNoOffset

private

Extent without offset.

Definition at line 58 of file BDSFieldEInterpolated.hh.

Referenced by Extent(), and ExtentNoOffset().

smallestSpatialStep

G4double BDSFieldEInterpolated::smallestSpatialStep

private

Definition at line 59 of file BDSFieldEInterpolated.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSFieldEInterpolated.hh
• /Users/nevay/physics/reps/bdsim/src/BDSFieldEInterpolated.cc
