BDSFieldE Class Reference

Interface for BDSIM electric fields that may or may not be local. More...

#include <BDSFieldE.hh>

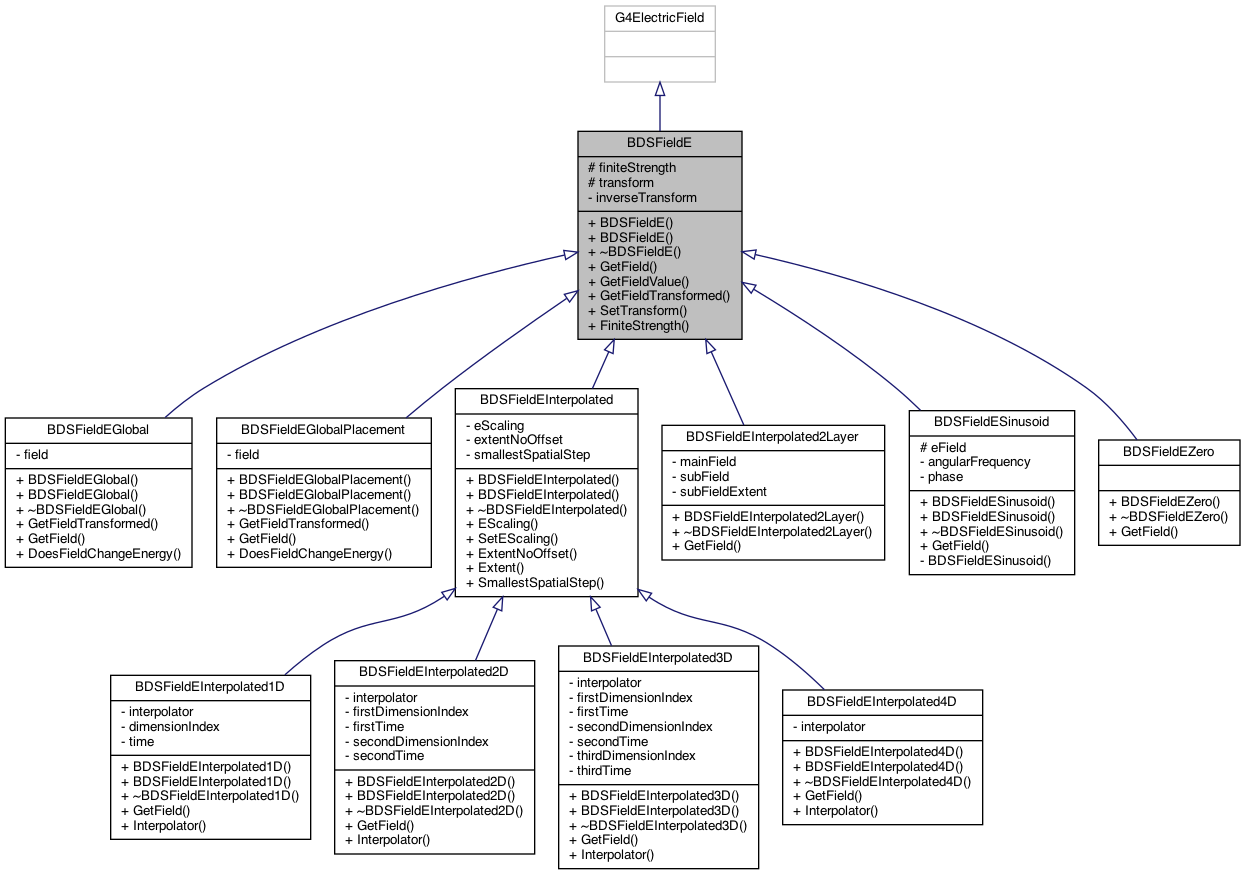

Inheritance diagram for BDSFieldE:

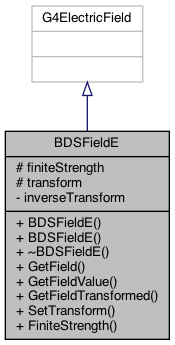

Collaboration diagram for BDSFieldE:

Public Member Functions
	BDSFieldE ()
	BDSFieldE (G4Transform3D transformIn)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset. More...
virtual void	SetTransform (const G4Transform3D &transformIn)
G4bool	FiniteStrength () const
	Accessor. More...

Protected Attributes
G4bool	finiteStrength
	Flag to cache whether finite nor not. More...
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry. More...

Private Attributes
G4Transform3D	inverseTransform
	The complimentary transform used to initially rotate the point of query. More...

Detailed Description

Interface for BDSIM electric fields that may or may not be local.

Defines abstract interface for all derived electric fields. More common to use G4ThreeVectors than arrays so provides common functionality.

Author

Laurie Nevay

Definition at line 36 of file BDSFieldE.hh.

Constructor & Destructor Documentation

BDSFieldE() [1/2]

BDSFieldE::BDSFieldE

(

)

Constructor takes transform in, which is inverted and applied to positions before querying the 'pure' derived field object. This allows local offset, translations, reflections and scalings to be applied if required - ie for misalignment from the local coordinates.

Definition at line 25 of file BDSFieldE.cc.

BDSFieldE() [2/2]

BDSFieldE::BDSFieldE ( G4Transform3D  transformIn )

explicit

Definition at line 31 of file BDSFieldE.cc.

~BDSFieldE()

virtual BDSFieldE::~BDSFieldE ( )

inlinevirtual

Definition at line 45 of file BDSFieldE.hh.

Member Function Documentation

FiniteStrength()

G4bool BDSFieldE::FiniteStrength ( ) const

inline

Accessor.

Definition at line 71 of file BDSFieldE.hh.

References finiteStrength.

GetField()

virtual G4ThreeVector BDSFieldE::GetField ( const G4ThreeVector &  position, const G4double  t = 0  ) const

pure virtual

Get the electric field vector in local coordinates. The derived class does not need to apply the transform.

Implemented in BDSFieldEZero, BDSFieldEGlobal, BDSFieldEGlobalPlacement, BDSFieldEInterpolated4D, BDSFieldESinusoid, BDSFieldEInterpolated1D, BDSFieldEInterpolated2D, BDSFieldEInterpolated2Layer, and BDSFieldEInterpolated3D.

Referenced by GetFieldTransformed().

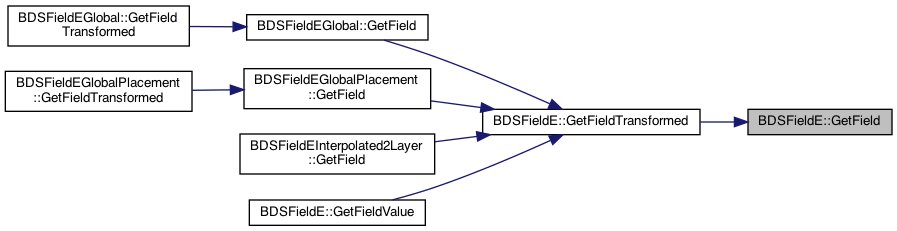

Here is the caller graph for this function:

GetFieldTransformed()

G4ThreeVector BDSFieldE::GetFieldTransformed ( const G4ThreeVector &  position, const G4double  t  ) const

virtual

Get the field value after applying transform for local offset.

Reimplemented in BDSFieldEGlobal, and BDSFieldEGlobalPlacement.

Definition at line 37 of file BDSFieldE.cc.

References finiteStrength, GetField(), inverseTransform, and transform.

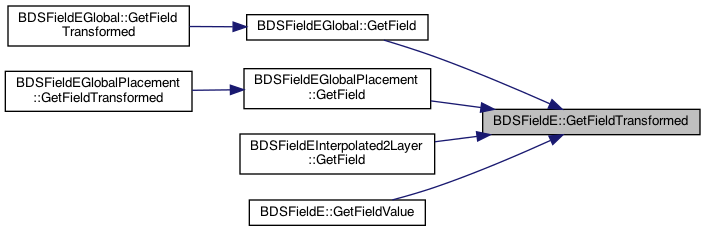

Referenced by BDSFieldEGlobal::GetField(), BDSFieldEGlobalPlacement::GetField(), BDSFieldEInterpolated2Layer::GetField(), and GetFieldValue().

Here is the call graph for this function:

Here is the caller graph for this function:

GetFieldValue()

void BDSFieldE::GetFieldValue ( const G4double  point[4], G4double *  field  ) const

virtual

Implement interface to this class's GetField to fulfill G4ElectricField inheritance and allow a BDSFieldE instance to be passed around in the field factory even if it's not wrapped in a BDSFieldGlobal instance and is in fact in local coordinates. This uses GetFieldTransformed.

Definition at line 53 of file BDSFieldE.cc.

References GetFieldTransformed().

Here is the call graph for this function:

SetTransform()

void BDSFieldE::SetTransform ( const G4Transform3D &  transformIn )

virtual

Set the transform applied before evaluating the field. This can be used to account for any difference between the field coordinate system and the coordinate system of the geometry. Ie an offset aperture. This is a public interface to allow the transform to be set after construction so that derived classes don't need modified constructors.

Definition at line 66 of file BDSFieldE.cc.

References inverseTransform, and transform.

Referenced by BDSFieldFactory::CreateFieldERaw().

Here is the caller graph for this function:

Field Documentation

finiteStrength

G4bool BDSFieldE::finiteStrength

protected

Flag to cache whether finite nor not.

Definition at line 74 of file BDSFieldE.hh.

Referenced by BDSFieldESinusoid::BDSFieldESinusoid(), FiniteStrength(), GetFieldTransformed(), BDSFieldEGlobal::GetFieldTransformed(), and BDSFieldEGlobalPlacement::GetFieldTransformed().

inverseTransform

G4Transform3D BDSFieldE::inverseTransform

private

The complimentary transform used to initially rotate the point of query.

Definition at line 82 of file BDSFieldE.hh.

Referenced by GetFieldTransformed(), and SetTransform().

transform

G4Transform3D BDSFieldE::transform

protected

Transform to apply for the field relative to the local coordinates of the geometry.

Definition at line 77 of file BDSFieldE.hh.

Referenced by BDSFieldEInterpolated::Extent(), GetFieldTransformed(), and SetTransform().

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSFieldE.hh
• /Users/nevay/physics/reps/bdsim/src/BDSFieldE.cc
