A 4D field from an interpolated array with any interpolation. More...

#include <BDSFieldEInterpolated4D.hh>

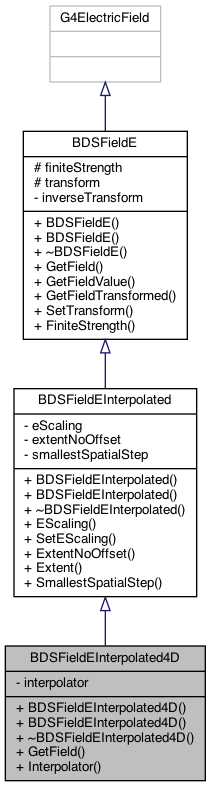

Inheritance diagram for BDSFieldEInterpolated4D:

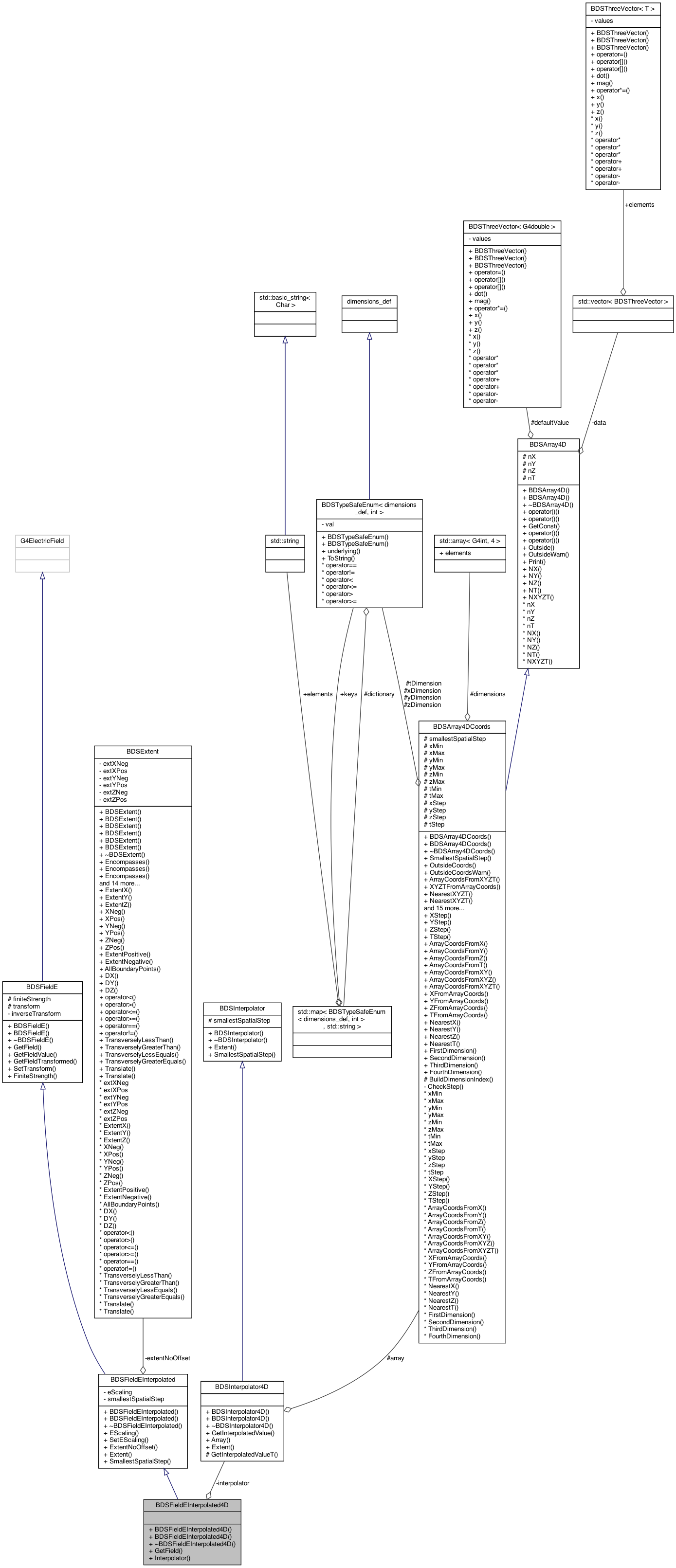

Collaboration diagram for BDSFieldEInterpolated4D:

Public Member Functions
	BDSFieldEInterpolated4D (BDSInterpolator4D *interpolatorIn, const G4Transform3D &offset=G4Transform3D::Identity, G4double eScalingIn=1.0)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t) const
	Return the interpolated field value at a given point. More...

const BDSInterpolator4D *	Interpolator () const

Public Member Functions inherited from BDSFieldEInterpolated
	BDSFieldEInterpolated (const BDSInterpolator *interpolator, const G4Transform3D &offset, G4double eScalingIn=1.0)

G4double	EScaling () const

void	SetEScaling (G4double eScalingIn)

BDSExtent	ExtentNoOffset () const
	Extent of field without any offset (ie in its own coordinate frame). More...

BDSExtent	Extent () const
	For now, we will ignore any rotation of the transform. TODO. More...

G4double	SmallestSpatialStep () const

Public Member Functions inherited from BDSFieldE
	BDSFieldE ()

	BDSFieldE (G4Transform3D transformIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset. More...

virtual void	SetTransform (const G4Transform3D &transformIn)

G4bool	FiniteStrength () const
	Accessor. More...

Private Attributes
BDSInterpolator4D *	interpolator
	Interpolator the field is based on. More...

Additional Inherited Members
Protected Attributes inherited from BDSFieldE
G4bool	finiteStrength
	Flag to cache whether finite nor not. More...

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry. More...

Detailed Description

A 4D field from an interpolated array with any interpolation.

Owns interpolator.

This provides a simple interface for electric fields to use a 4D interpolator irrespective of which type of interpolator it is.

Author: Laurie Nevay

Definition at line 40 of file BDSFieldEInterpolated4D.hh.

Constructor & Destructor Documentation

◆ BDSFieldEInterpolated4D()

BDSFieldEInterpolated4D::BDSFieldEInterpolated4D	(	BDSInterpolator4D *	interpolatorIn,
		const G4Transform3D &	offset = `G4Transform3D::Identity`,
		G4double	eScalingIn = `1.0`
	)

explicit

Definition at line 25 of file BDSFieldEInterpolated4D.cc.

◆ ~BDSFieldEInterpolated4D()

BDSFieldEInterpolated4D::~BDSFieldEInterpolated4D ( )

virtual

Definition at line 32 of file BDSFieldEInterpolated4D.cc.

Member Function Documentation

◆ GetField()

G4ThreeVector BDSFieldEInterpolated4D::GetField	(	const G4ThreeVector &	position,
		const G4double	t
	)		const

virtual

Return the interpolated field value at a given point.

Implements BDSFieldE.

Definition at line 37 of file BDSFieldEInterpolated4D.cc.

References BDSInterpolator4D::GetInterpolatedValue(), and interpolator.

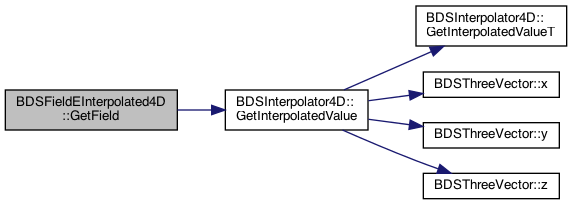

Here is the call graph for this function:

◆ Interpolator()

const BDSInterpolator4D * BDSFieldEInterpolated4D::Interpolator ( ) const

inline

Definition at line 54 of file BDSFieldEInterpolated4D.hh.

Field Documentation

◆ interpolator

BDSInterpolator4D* BDSFieldEInterpolated4D::interpolator

private

Interpolator the field is based on.

Definition at line 57 of file BDSFieldEInterpolated4D.hh.

Referenced by GetField().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSFieldEInterpolated4D.hh
/Users/nevay/physics/reps/bdsim/src/BDSFieldEInterpolated4D.cc
