The information recorded from a particle impacting a link sampler. More...

#include <BDSHitSamplerLink.hh>

Inheritance diagram for BDSHitSamplerLink:

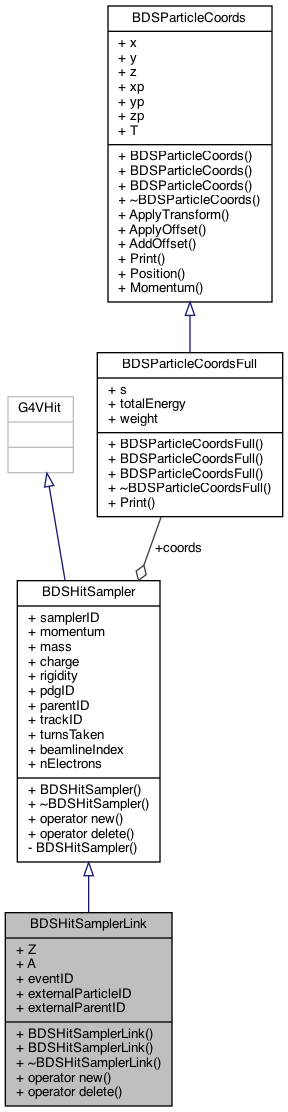

Collaboration diagram for BDSHitSamplerLink:

Public Member Functions
	BDSHitSamplerLink ()=delete
	No default constructor.

	BDSHitSamplerLink (G4int samplerIDIn, const BDSParticleCoordsFull &coordsIn, G4double momentumIn, G4double massIn, G4int ZIn, G4int AIn, G4double chargeIn, G4int pdgIDIn, G4int parentIDIn, G4int trackIDIn, G4int nElectronsIn=0)

virtual	~BDSHitSamplerLink ()
	Note this should not be inline when we use a G4Allocator. More...

void *	operator new (size_t)

void	operator delete (void *aHit)

Public Member Functions inherited from BDSHitSampler
	BDSHitSampler (G4int samplerIDIn, const BDSParticleCoordsFull &coordsIn, G4double momentumIn, G4double massIn, G4double chargeIn, G4double rigidityIn, G4int pdgIDIn, G4int parentIDIn, G4int trackIDIn, G4int turnsTakenIn, G4int beamlineIndexIn, G4int nElectronsIn=0)

virtual	~BDSHitSampler ()
	Note this should not be inline when we use a G4Allocator. More...

void *	operator new (size_t)

void	operator delete (void *aHit)

Data Fields
G4int	Z

G4int	A

G4int	eventID

G4int	externalParticleID

G4int	externalParentID

Data Fields inherited from BDSHitSampler
G4int	samplerID

BDSParticleCoordsFull	coords

G4double	momentum

G4double	mass

G4double	charge
	Double as g4 uses charge as a double. More...

G4double	rigidity

G4int	pdgID

G4int	parentID

G4int	trackID

G4int	turnsTaken

G4int	beamlineIndex

G4int	nElectrons
	Can only get this at inspection time so include here. More...

Detailed Description

The information recorded from a particle impacting a link sampler.

Everything public for simplicity of the class.

Author: Laurie Nevay

Definition at line 38 of file BDSHitSamplerLink.hh.

Constructor & Destructor Documentation

◆ BDSHitSamplerLink()

BDSHitSamplerLink::BDSHitSamplerLink	(	G4int	samplerIDIn,
		const BDSParticleCoordsFull &	coordsIn,
		G4double	momentumIn,
		G4double	massIn,
		G4int	ZIn,
		G4int	AIn,
		G4double	chargeIn,
		G4int	pdgIDIn,
		G4int	parentIDIn,
		G4int	trackIDIn,
		G4int	nElectronsIn = `0`
	)

Definition at line 26 of file BDSHitSamplerLink.cc.

◆ ~BDSHitSamplerLink()

BDSHitSamplerLink::~BDSHitSamplerLink ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 46 of file BDSHitSamplerLink.cc.

Member Function Documentation

◆ operator delete()

void BDSHitSamplerLink::operator delete ( void * aHit )

inline

Definition at line 77 of file BDSHitSamplerLink.hh.

◆ operator new()

void * BDSHitSamplerLink::operator new ( size_t )

inline

Definition at line 70 of file BDSHitSamplerLink.hh.

Field Documentation

◆ A

G4int BDSHitSamplerLink::A

Definition at line 61 of file BDSHitSamplerLink.hh.

◆ eventID

G4int BDSHitSamplerLink::eventID

Definition at line 62 of file BDSHitSamplerLink.hh.

◆ externalParentID

G4int BDSHitSamplerLink::externalParentID

Definition at line 64 of file BDSHitSamplerLink.hh.

◆ externalParticleID

G4int BDSHitSamplerLink::externalParticleID

Definition at line 63 of file BDSHitSamplerLink.hh.

◆ Z

G4int BDSHitSamplerLink::Z

Definition at line 60 of file BDSHitSamplerLink.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSHitSamplerLink.hh
/Users/nevay/physics/reps/bdsim/src/BDSHitSamplerLink.cc
