Integrator that ignores the field and uses the analytical solution for a dipole kick. More...

#include <BDSIntegratorDipoleFringe.hh>

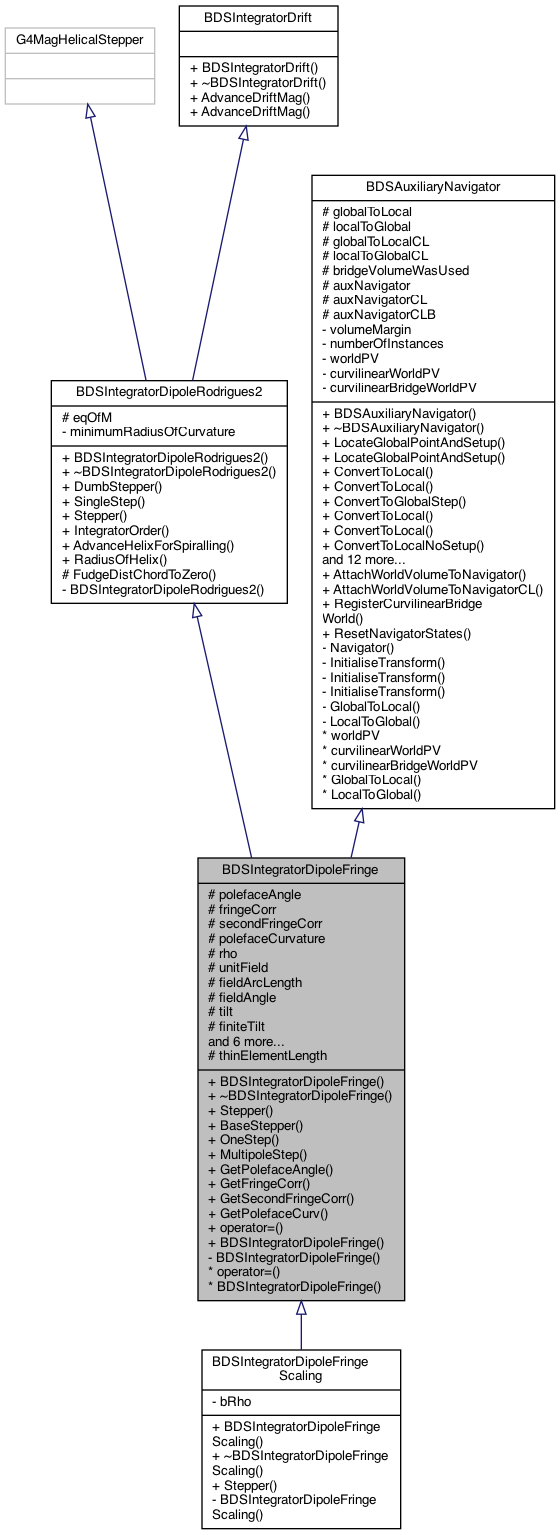

Inheritance diagram for BDSIntegratorDipoleFringe:

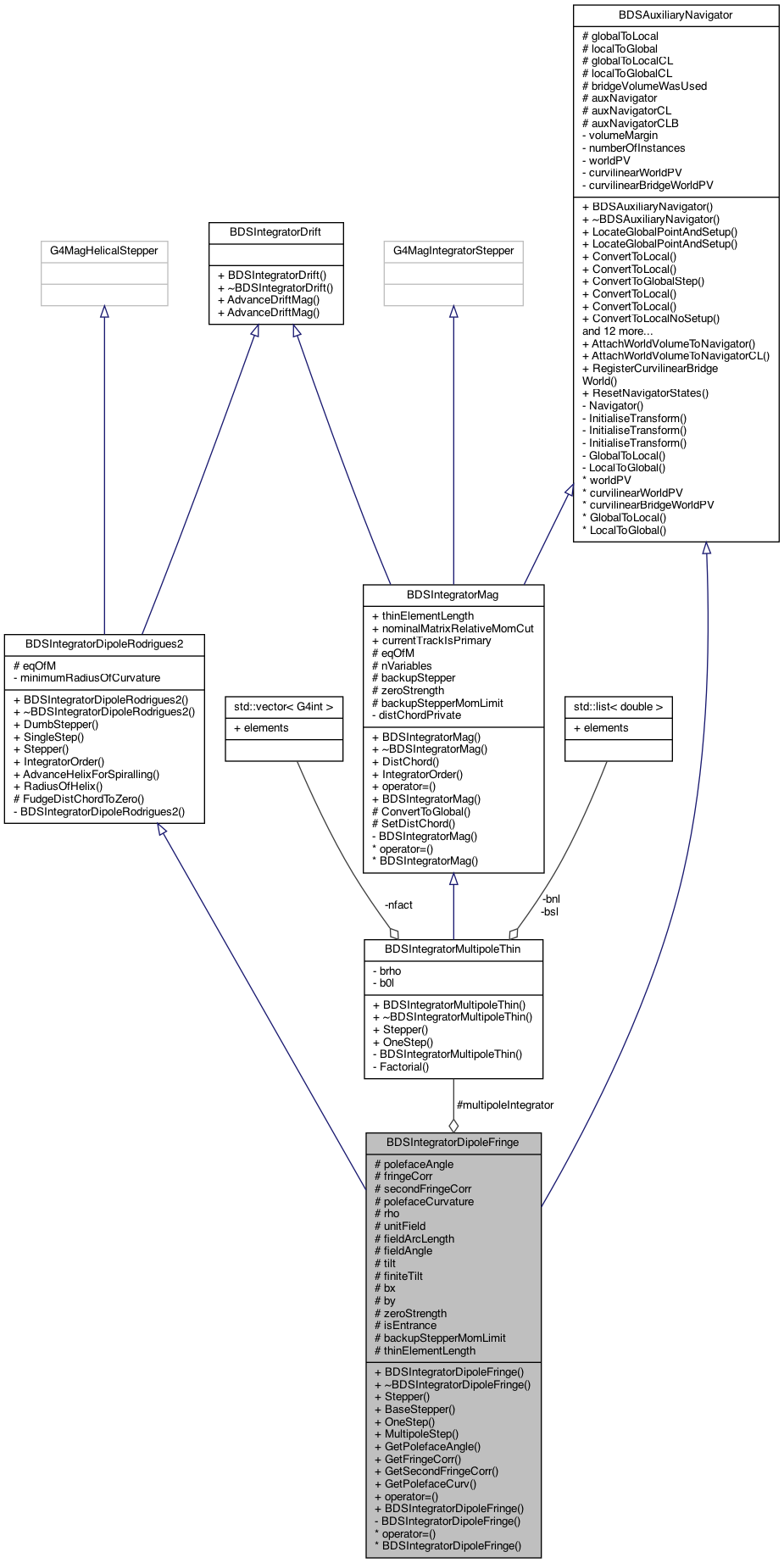

Collaboration diagram for BDSIntegratorDipoleFringe:

Public Member Functions
	BDSIntegratorDipoleFringe (BDSMagnetStrength const strength, G4double brhoIn, G4Mag_EqRhs eqOfMIn, G4double minimumRadiusOfCurvature, const G4double &tiltIn=0)

virtual void	Stepper (const G4double yIn[6], const G4double dydx[6], const G4double h, G4double yOut[6], G4double yErr[6])
	The stepper for integration. Calls base class stepper. More...

void	BaseStepper (const G4double yIn[6], const G4double dydx[6], const G4double &h, G4double yOut[6], G4double yErr[6], const G4double &fcof, const G4double &momScaling)

void	OneStep (const G4ThreeVector &posIn, const G4ThreeVector &momUIn, G4ThreeVector &posOut, G4ThreeVector &momOut, const G4double &bendingRadius) const

void	MultipoleStep (const G4double yIn[6], G4double yMultipoleOut[6], const G4double &h)

G4double	GetPolefaceAngle ()

G4double	GetFringeCorr ()

G4double	GetSecondFringeCorr ()

G4double	GetPolefaceCurv ()


BDSIntegratorDipoleFringe &	operator= (const BDSIntegratorDipoleFringe &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorDipoleFringe (BDSIntegratorDipoleFringe &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDipoleRodrigues2
	BDSIntegratorDipoleRodrigues2 (G4Mag_EqRhs *eqOfMIn, G4double minimumRadiusOfCurvature)

virtual void	DumbStepper (const G4double yIn[6], G4ThreeVector field, G4double stepLength, G4double yOut[6])

void	SingleStep (const G4double yIn[6], const G4double &h, G4double yOut[6])

virtual void	Stepper (const G4double yIn[6], const G4double dydx[], G4double h, G4double yOut[6], G4double yErr[6])
	Output error array. More...

virtual G4int	IntegratorOrder () const

void	AdvanceHelixForSpiralling (const G4double yIn[6], const G4ThreeVector &field, const G4double &h, G4double yOut[6], G4double yErr[6])

G4double	RadiusOfHelix () const
	Public accessor for protected variable in base class. More...

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0. More...

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class. More...

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above. More...

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms. More...

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version. More...

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Protected Attributes
G4double	polefaceAngle
	Poleface rotation angle. More...

G4double	fringeCorr
	Fringe field correction term. More...

G4double	secondFringeCorr
	Second fringe field correction term. More...

G4double	polefaceCurvature
	Poleface curvature. More...

G4double	rho
	Nominal magnet bending radius. More...

G4ThreeVector	unitField
	Cache of the unit field direction. More...

const G4double	fieldArcLength
	Cache of the field arc length. More...

const G4double	fieldAngle
	Cache of the field angle. More...

const G4double	tilt

const G4bool	finiteTilt

G4double	bx

G4double	by

G4bool	zeroStrength

BDSIntegratorMultipoleThin *	multipoleIntegrator

G4bool	isEntrance
	store if fringe is entrance or exit More...

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSIntegratorDipoleRodrigues2
G4Mag_EqRhs *	eqOfM
	Cache of equation of motion. This class does not own it. More...

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Static Protected Attributes
static G4double	thinElementLength = -1

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Private Member Functions
	BDSIntegratorDipoleFringe ()=delete
	Private default constructor to enforce use of supplied constructor.

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world. More...

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Protected Member Functions inherited from BDSIntegratorDipoleRodrigues2
void	FudgeDistChordToZero ()

Detailed Description

Integrator that ignores the field and uses the analytical solution for a dipole kick.

Author: Will Shields

Definition at line 47 of file BDSIntegratorDipoleFringe.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorDipoleFringe()

BDSIntegratorDipoleFringe::BDSIntegratorDipoleFringe	(	BDSMagnetStrength const *	strength,
		G4double	brhoIn,
		G4Mag_EqRhs *	eqOfMIn,
		G4double	minimumRadiusOfCurvature,
		const G4double &	tiltIn = `0`
	)

Definition at line 34 of file BDSIntegratorDipoleFringe.cc.

◆ ~BDSIntegratorDipoleFringe()

BDSIntegratorDipoleFringe::~BDSIntegratorDipoleFringe ( )

virtual

Definition at line 102 of file BDSIntegratorDipoleFringe.cc.

Member Function Documentation

◆ BaseStepper()

void BDSIntegratorDipoleFringe::BaseStepper	(	const G4double	yIn[6],
		const G4double	dydx[6],
		const G4double &	h,
		G4double	yOut[6],
		G4double	yErr[6],
		const G4double &	fcof,
		const G4double &	momScaling
	)

The stepper for integration. Particle charge and momentum scaling are provided as arguments as they are calculated in the derived classes. Uses BDSIntegratorDipole2::Stepper and then adds a kick in yp in curvilinear coordinates.

Definition at line 119 of file BDSIntegratorDipoleFringe.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), backupStepperMomLimit, BDSAuxiliaryNavigator::ConvertAxisToGlobal(), BDSIntegratorDipoleRodrigues2::FudgeDistChordToZero(), BDSAuxiliaryNavigator::GlobalToCurvilinear(), isEntrance, BDS::IsFinite(), BDS::IsFiniteStrength(), MultipoleStep(), OneStep(), BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), rho, BDSStep::rotateZ(), BDSIntegratorDipoleRodrigues2::Stepper(), thinElementLength, and zeroStrength.

Referenced by Stepper(), and BDSIntegratorDipoleFringeScaling::Stepper().

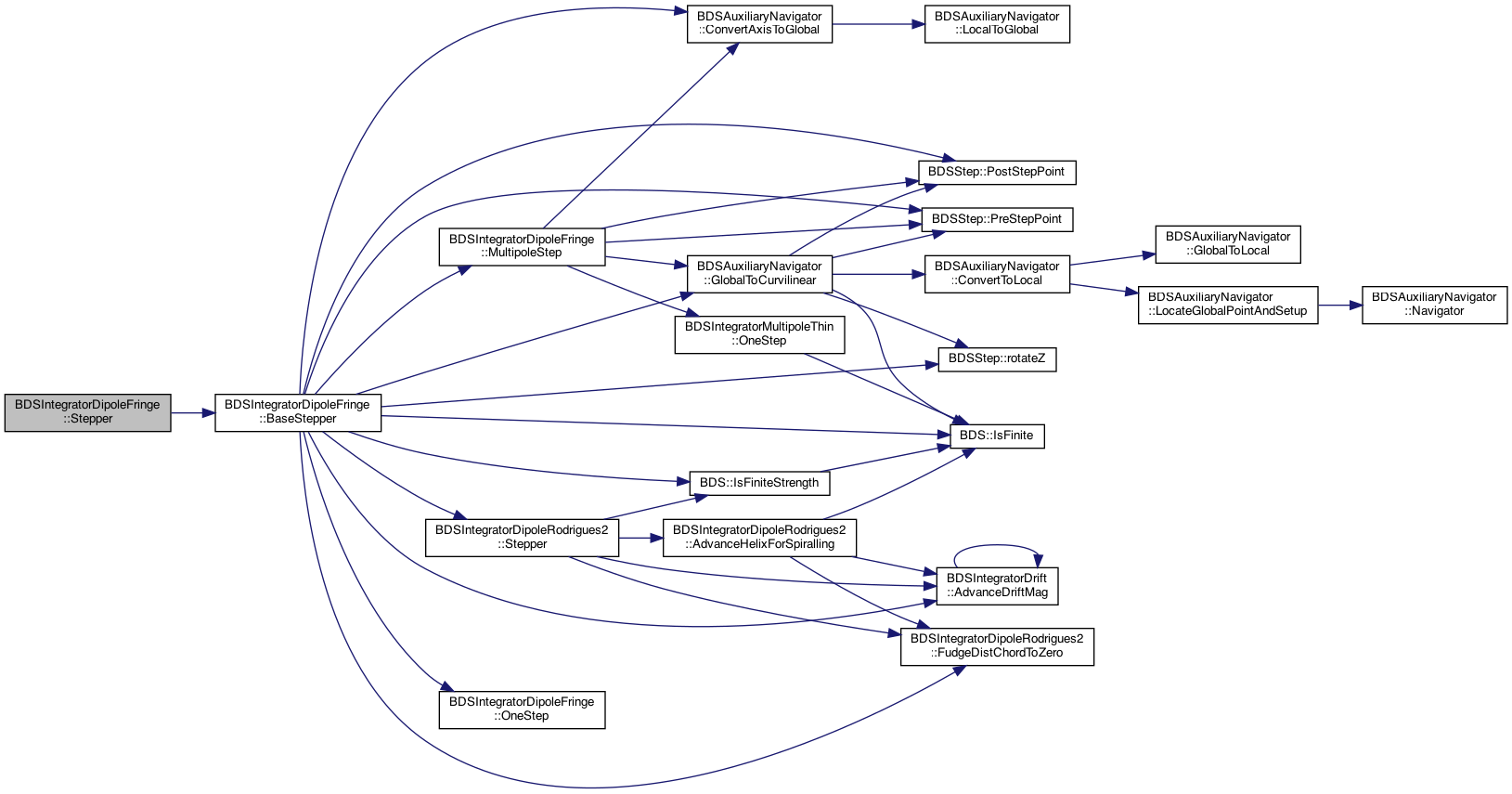

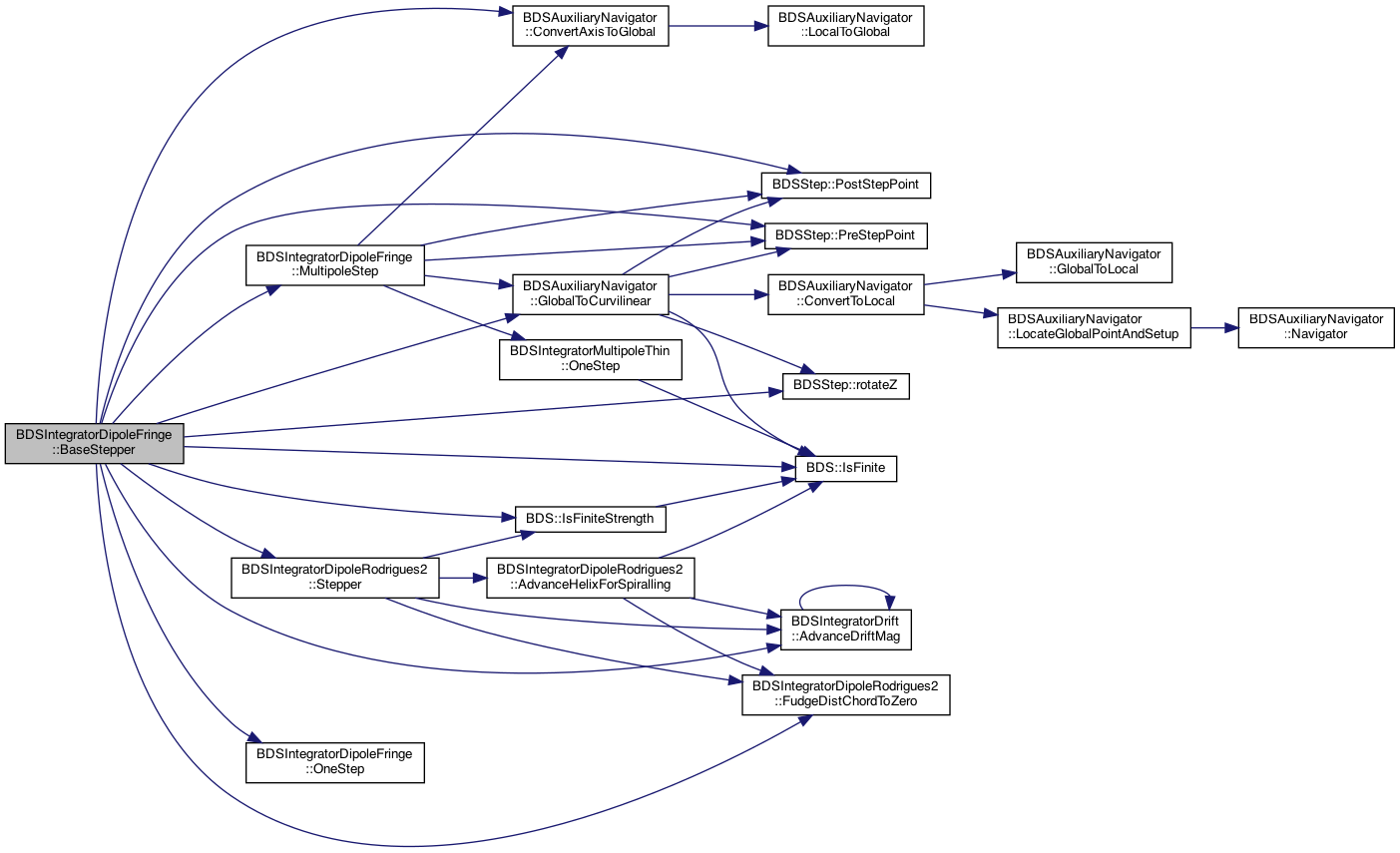

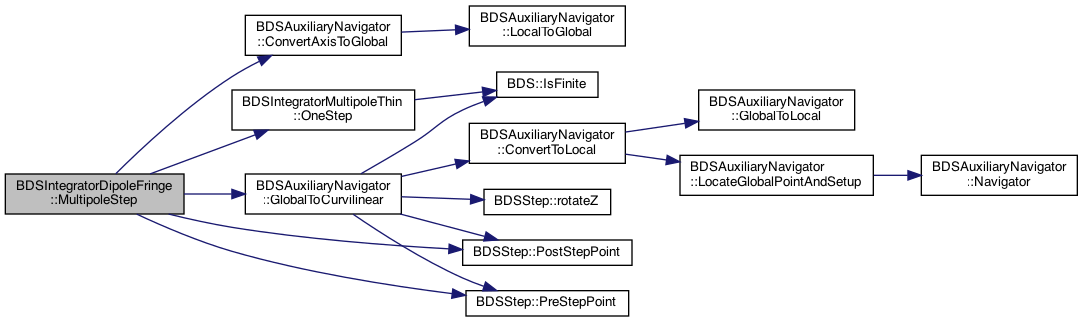

Here is the call graph for this function:

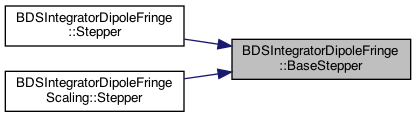

Here is the caller graph for this function:

◆ GetFringeCorr()

G4double BDSIntegratorDipoleFringe::GetFringeCorr ( )

inline

Definition at line 100 of file BDSIntegratorDipoleFringe.hh.

◆ GetPolefaceAngle()

G4double BDSIntegratorDipoleFringe::GetPolefaceAngle ( )

inline

Getter functions for poleface and fringe variables. Values need to be read in at least the thin kicker integrator, but should not be overwritten.

Definition at line 99 of file BDSIntegratorDipoleFringe.hh.

References polefaceAngle.

◆ GetPolefaceCurv()

G4double BDSIntegratorDipoleFringe::GetPolefaceCurv ( )

inline

Definition at line 102 of file BDSIntegratorDipoleFringe.hh.

◆ GetSecondFringeCorr()

G4double BDSIntegratorDipoleFringe::GetSecondFringeCorr ( )

inline

Definition at line 101 of file BDSIntegratorDipoleFringe.hh.

◆ MultipoleStep()

void BDSIntegratorDipoleFringe::MultipoleStep	(	const G4double	yIn[6],
		G4double	yMultipoleOut[6],
		const G4double &	h
	)

Calculate the thin multipole kick to represent the dipole poleface curvature effect. Step length is passed in as it is needed by the transforms.

Definition at line 334 of file BDSIntegratorDipoleFringe.cc.

References BDSAuxiliaryNavigator::ConvertAxisToGlobal(), BDSAuxiliaryNavigator::GlobalToCurvilinear(), BDSIntegratorMultipoleThin::OneStep(), BDSStep::PostStepPoint(), and BDSStep::PreStepPoint().

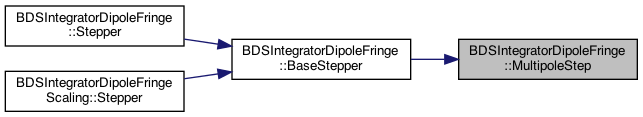

Referenced by BaseStepper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OneStep()

void BDSIntegratorDipoleFringe::OneStep	(	const G4ThreeVector &	posIn,
		const G4ThreeVector &	momUIn,
		G4ThreeVector &	posOut,
		G4ThreeVector &	momOut,
		const G4double &	bendingRadius
	)		const

Calculate a single step using dipole fringe field matrix. Unit momentum, momentum magnitude, and normalised bending radius are provided as arguments because they already calculated in the BaseStepper method.

Definition at line 285 of file BDSIntegratorDipoleFringe.cc.

References fringeCorr, polefaceAngle, and secondFringeCorr.

Referenced by BaseStepper(), and BDSIntegratorKickerThin::Stepper().

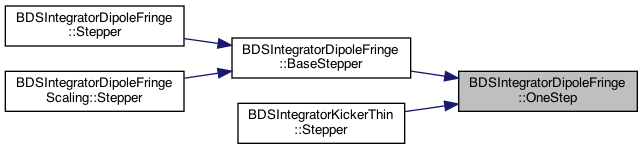

Here is the caller graph for this function:

◆ Stepper()

void BDSIntegratorDipoleFringe::Stepper	(	const G4double	yIn[6],
		const G4double	dydx[6],
		const G4double	h,
		G4double	yOut[6],
		G4double	yErr[6]
	)

virtual

The stepper for integration. Calls base class stepper.

Definition at line 107 of file BDSIntegratorDipoleFringe.cc.

References BaseStepper(), and BDSIntegratorDipoleRodrigues2::eqOfM.

Here is the call graph for this function:

Field Documentation

◆ backupStepperMomLimit

G4double BDSIntegratorDipoleFringe::backupStepperMomLimit

protected

Fractional momentum limit above which the thin matrix fringe kick accuracy becomes questionable, so advance with the dipolerodrigues2 stepper to ensure correct dipole tracking length is applied

Definition at line 138 of file BDSIntegratorDipoleFringe.hh.

Referenced by BaseStepper().

◆ bx

G4double BDSIntegratorDipoleFringe::bx

protected

Definition at line 122 of file BDSIntegratorDipoleFringe.hh.

◆ by

G4double BDSIntegratorDipoleFringe::by

protected

Definition at line 123 of file BDSIntegratorDipoleFringe.hh.

◆ fieldAngle

const G4double BDSIntegratorDipoleFringe::fieldAngle

protected

Cache of the field angle.

Definition at line 118 of file BDSIntegratorDipoleFringe.hh.

◆ fieldArcLength

const G4double BDSIntegratorDipoleFringe::fieldArcLength

protected

Cache of the field arc length.

Definition at line 117 of file BDSIntegratorDipoleFringe.hh.

◆ finiteTilt

const G4bool BDSIntegratorDipoleFringe::finiteTilt

protected

Definition at line 121 of file BDSIntegratorDipoleFringe.hh.

◆ fringeCorr

G4double BDSIntegratorDipoleFringe::fringeCorr

protected

Fringe field correction term.

Definition at line 108 of file BDSIntegratorDipoleFringe.hh.

Referenced by OneStep().

◆ isEntrance

G4bool BDSIntegratorDipoleFringe::isEntrance

protected

store if fringe is entrance or exit

Definition at line 134 of file BDSIntegratorDipoleFringe.hh.

Referenced by BaseStepper().

◆ multipoleIntegrator

BDSIntegratorMultipoleThin* BDSIntegratorDipoleFringe::multipoleIntegrator

protected

Definition at line 132 of file BDSIntegratorDipoleFringe.hh.

◆ polefaceAngle

G4double BDSIntegratorDipoleFringe::polefaceAngle

protected

Poleface rotation angle.

Definition at line 106 of file BDSIntegratorDipoleFringe.hh.

Referenced by GetPolefaceAngle(), and OneStep().

◆ polefaceCurvature

G4double BDSIntegratorDipoleFringe::polefaceCurvature

protected

Poleface curvature.

Definition at line 112 of file BDSIntegratorDipoleFringe.hh.

◆ rho

G4double BDSIntegratorDipoleFringe::rho

protected

Nominal magnet bending radius.

Definition at line 114 of file BDSIntegratorDipoleFringe.hh.

Referenced by BaseStepper().

◆ secondFringeCorr

G4double BDSIntegratorDipoleFringe::secondFringeCorr

protected

Second fringe field correction term.

Definition at line 110 of file BDSIntegratorDipoleFringe.hh.

Referenced by OneStep().

◆ thinElementLength

G4double BDSIntegratorDipoleFringe::thinElementLength = -1

staticprotected

Cache of thin element length from global constants. Initialised via check on unphysical -1 value as global constants doesn't exist at compile time.

Definition at line 130 of file BDSIntegratorDipoleFringe.hh.

Referenced by BaseStepper().

◆ tilt

const G4double BDSIntegratorDipoleFringe::tilt

protected

Definition at line 120 of file BDSIntegratorDipoleFringe.hh.

◆ unitField

G4ThreeVector BDSIntegratorDipoleFringe::unitField

protected

Cache of the unit field direction.

Definition at line 116 of file BDSIntegratorDipoleFringe.hh.

◆ zeroStrength

G4bool BDSIntegratorDipoleFringe::zeroStrength

protected

Whether a magnet has a finite strength or not. Can be set in the constructor for zero strength elements and then a drift routine is used before anything else.

Definition at line 126 of file BDSIntegratorDipoleFringe.hh.

Referenced by BaseStepper().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSIntegratorDipoleFringe.hh
/Users/nevay/physics/reps/bdsim/src/BDSIntegratorDipoleFringe.cc

Public Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSIntegratorDipoleFringe()

◆ ~BDSIntegratorDipoleFringe()

Member Function Documentation

◆ BaseStepper()

◆ GetFringeCorr()

◆ GetPolefaceAngle()

◆ GetPolefaceCurv()

◆ GetSecondFringeCorr()

◆ MultipoleStep()

◆ OneStep()

◆ Stepper()

Field Documentation

◆ backupStepperMomLimit

◆ bx

◆ by

◆ fieldAngle

◆ fieldArcLength

◆ finiteTilt

◆ fringeCorr

◆ isEntrance

◆ multipoleIntegrator

◆ polefaceAngle

◆ polefaceCurvature

◆ rho

◆ secondFringeCorr

◆ thinElementLength

◆ tilt

◆ unitField

◆ zeroStrength
