BDSIntegratorMultipoleThin Class Reference

Integrator that ignores the field and uses the analytical solution to a multipole. More...

#include <BDSIntegratorMultipoleThin.hh>

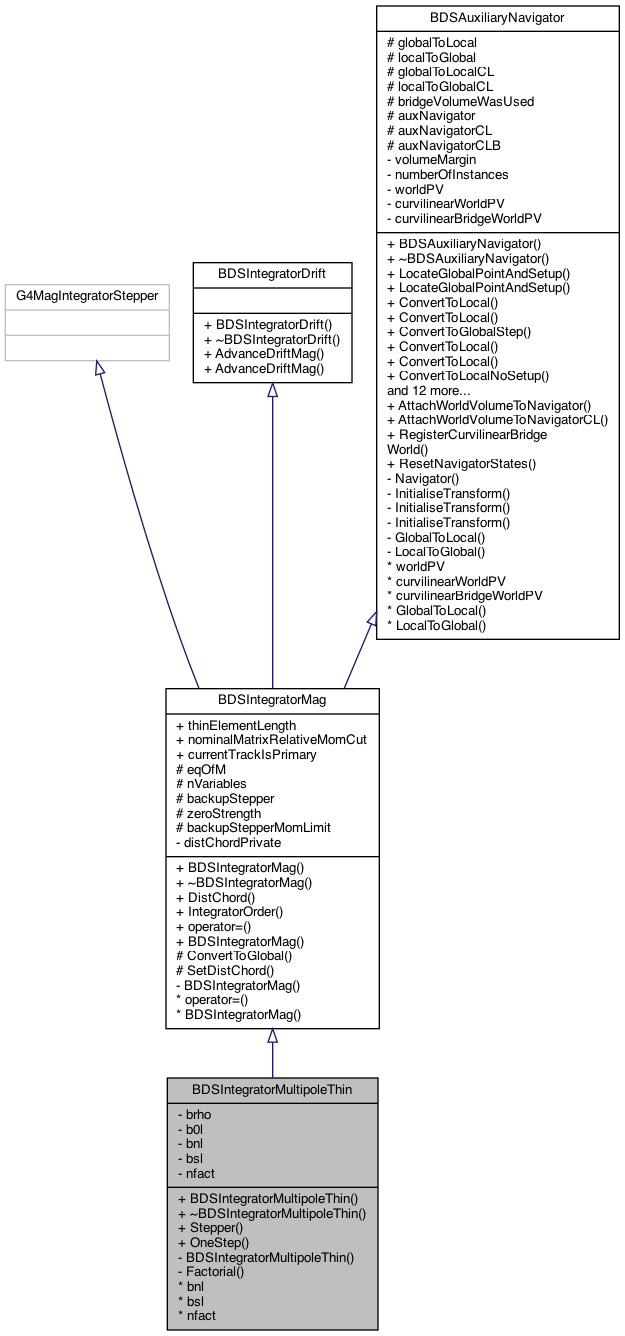

Inheritance diagram for BDSIntegratorMultipoleThin:

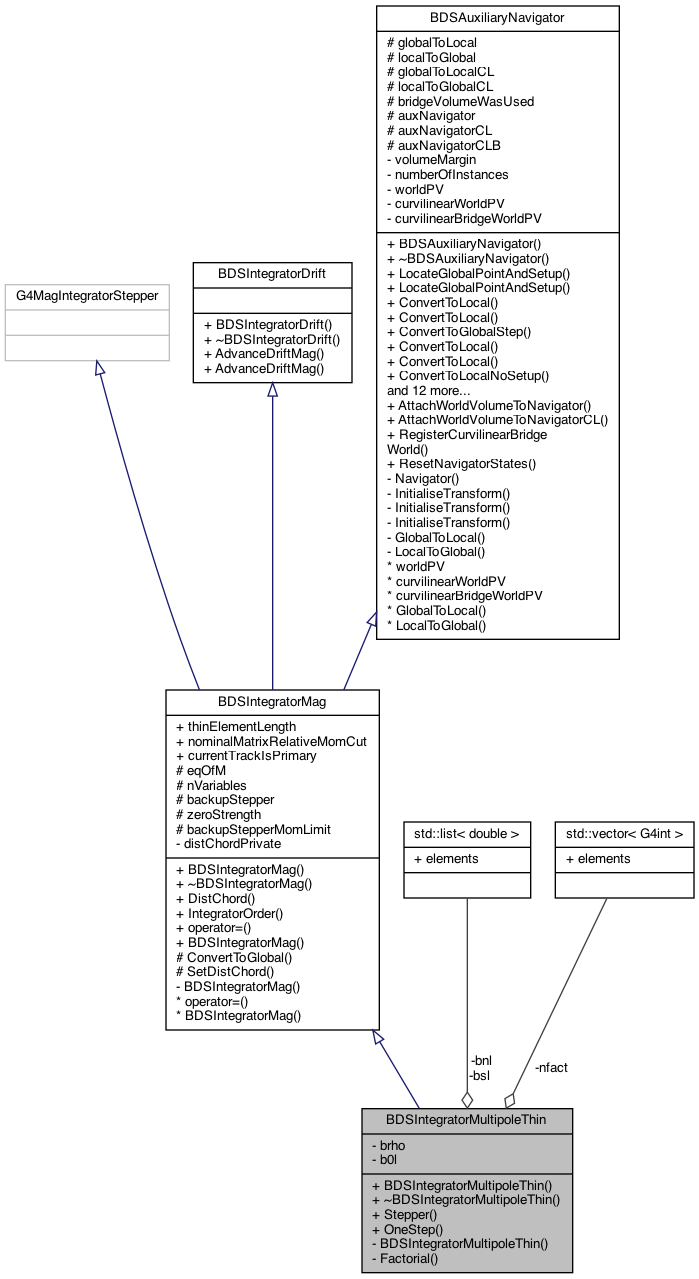

Collaboration diagram for BDSIntegratorMultipoleThin:

Public Member Functions
	BDSIntegratorMultipoleThin (BDSMagnetStrength const *strength, G4double brhoIn, G4Mag_EqRhs *eqOfMIn)
virtual void	Stepper (const G4double yIn[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])
void	OneStep (const G4ThreeVector &posIn, const G4ThreeVector &momUIn, const G4double momIn, G4ThreeVector &posOut, G4ThreeVector &momOut, G4double h) const
Public Member Functions inherited from BDSIntegratorMag
	BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)
virtual G4double	DistChord () const
	Estimate maximum distance of curved solution and chord. More...
virtual G4int	IntegratorOrder () const
	Geant4 requires that the integrator order must be supplied by the derived class. More...
BDSIntegratorMag &	operator= (const BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.
	BDSIntegratorMag (BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.
Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0. More...
void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const
Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class. More...
G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const
BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const
BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const
BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above. More...
G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms. More...
G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version. More...
G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const
std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const
G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const
BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)
BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)
BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)
BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Private Member Functions
	BDSIntegratorMultipoleThin ()=delete
	Private default constructor to enforce use of supplied constructor.
G4int	Factorial (G4int n)
	Calculate the factorial of n. More...

Private Attributes
G4double	brho
	Magnetic rigidity for momentum scaling. More...
G4double	b0l
	Dipole component. More...
std::list< double >	bnl
	Higher order components. More...
std::list< double >	bsl
	Higher order components. More...
std::vector< G4int >	nfact
	Higher order components. More...

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world. More...
static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)
static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)
static void	ResetNavigatorStates ()
Static Public Attributes inherited from BDSIntegratorMag
static G4double	thinElementLength = -1
static G4double	nominalMatrixRelativeMomCut = -1
static G4bool	currentTrackIsPrimary = false
Protected Member Functions inherited from BDSIntegratorMag
void	ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
	scaling of momentum in case localMom is a unit vector More...
void	SetDistChord (G4double distChordIn)
	Setter for distChord to private member. More...
Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs *	eqOfM
const G4int	nVariables
	Cache of the number of variables. More...
G4MagIntegratorStepper *	backupStepper
G4bool	zeroStrength
G4double	backupStepperMomLimit
Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal
G4AffineTransform	localToGlobal
G4AffineTransform	globalToLocalCL
G4AffineTransform	localToGlobalCL
G4bool	bridgeVolumeWasUsed
Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()
static G4Navigator *	auxNavigatorCL = new G4Navigator()
static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Integrator that ignores the field and uses the analytical solution to a multipole.

Author

Will Shields

Definition at line 37 of file BDSIntegratorMultipoleThin.hh.

Constructor & Destructor Documentation

BDSIntegratorMultipoleThin()

BDSIntegratorMultipoleThin::BDSIntegratorMultipoleThin	(	BDSMagnetStrength const *	strength,
		G4double	brhoIn,
		G4Mag_EqRhs *	eqOfMIn
	)

Definition at line 33 of file BDSIntegratorMultipoleThin.cc.

~BDSIntegratorMultipoleThin()

virtual BDSIntegratorMultipoleThin::~BDSIntegratorMultipoleThin ( )

inlinevirtual

Definition at line 44 of file BDSIntegratorMultipoleThin.hh.

Member Function Documentation

Factorial()

G4int BDSIntegratorMultipoleThin::Factorial ( G4int  n )

private

Calculate the factorial of n.

Definition at line 216 of file BDSIntegratorMultipoleThin.cc.

OneStep()

void BDSIntegratorMultipoleThin::OneStep	(	const G4ThreeVector &	posIn,
		const G4ThreeVector &	momUIn,
		const G4double	momIn,
		G4ThreeVector &	posOut,
		G4ThreeVector &	momOut,
		G4double	h
	)		const

Calculate a single step using thin multipole matrix. Unit momentum, momentum magnitude, and normalised bending radius are provided as arguments because they already calculated in the Stepper method.

Definition at line 122 of file BDSIntegratorMultipoleThin.cc.

References bnl, brho, bsl, BDSIntegratorMag::eqOfM, BDS::IsFinite(), and nfact.

Referenced by BDSIntegratorDipoleFringe::MultipoleStep(), and Stepper().

Here is the call graph for this function:

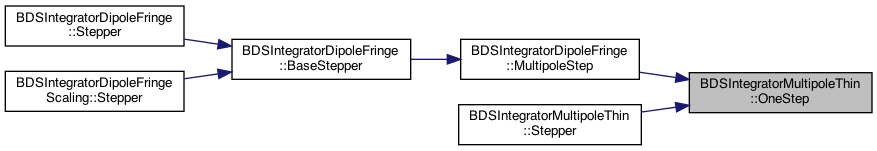

Here is the caller graph for this function:

Stepper()

void BDSIntegratorMultipoleThin::Stepper ( const G4double  yIn[], const G4double  dydx[], const G4double  h, G4double  yOut[], G4double  yErr[]  )

virtual

The stepper for integration. The stepsize is fixed, equal to h. The reason for this is so that intermediate steps can be calculated and therefore the error ascertained or distance from the chord. Error calculation is not currently implemented.

Definition at line 63 of file BDSIntegratorMultipoleThin.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), BDSIntegratorMag::backupStepperMomLimit, BDSIntegratorMag::ConvertToGlobal(), BDSAuxiliaryNavigator::ConvertToLocal(), BDSIntegratorMag::eqOfM, BDS::IsFiniteStrength(), OneStep(), BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), BDSIntegratorMag::SetDistChord(), BDSIntegratorMag::thinElementLength, and BDSIntegratorMag::zeroStrength.

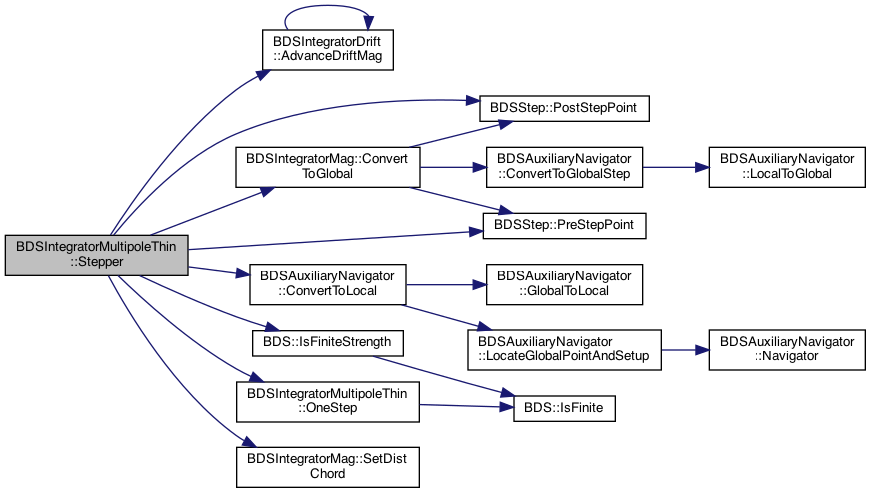

Here is the call graph for this function:

Field Documentation

b0l

G4double BDSIntegratorMultipoleThin::b0l

private

Dipole component.

Definition at line 76 of file BDSIntegratorMultipoleThin.hh.

bnl

std::list<double> BDSIntegratorMultipoleThin::bnl

private

Higher order components.

Definition at line 78 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

brho

G4double BDSIntegratorMultipoleThin::brho

private

Magnetic rigidity for momentum scaling.

Definition at line 73 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

bsl

std::list<double> BDSIntegratorMultipoleThin::bsl

private

Higher order components.

Definition at line 79 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

nfact

std::vector<G4int> BDSIntegratorMultipoleThin::nfact

private

Higher order components.

Definition at line 80 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSIntegratorMultipoleThin.hh
• /Users/nevay/physics/reps/bdsim/src/BDSIntegratorMultipoleThin.cc
