Stepper that calculates trajectory through uniform magnetic field. More...

#include <BDSIntegratorDipoleRodrigues.hh>

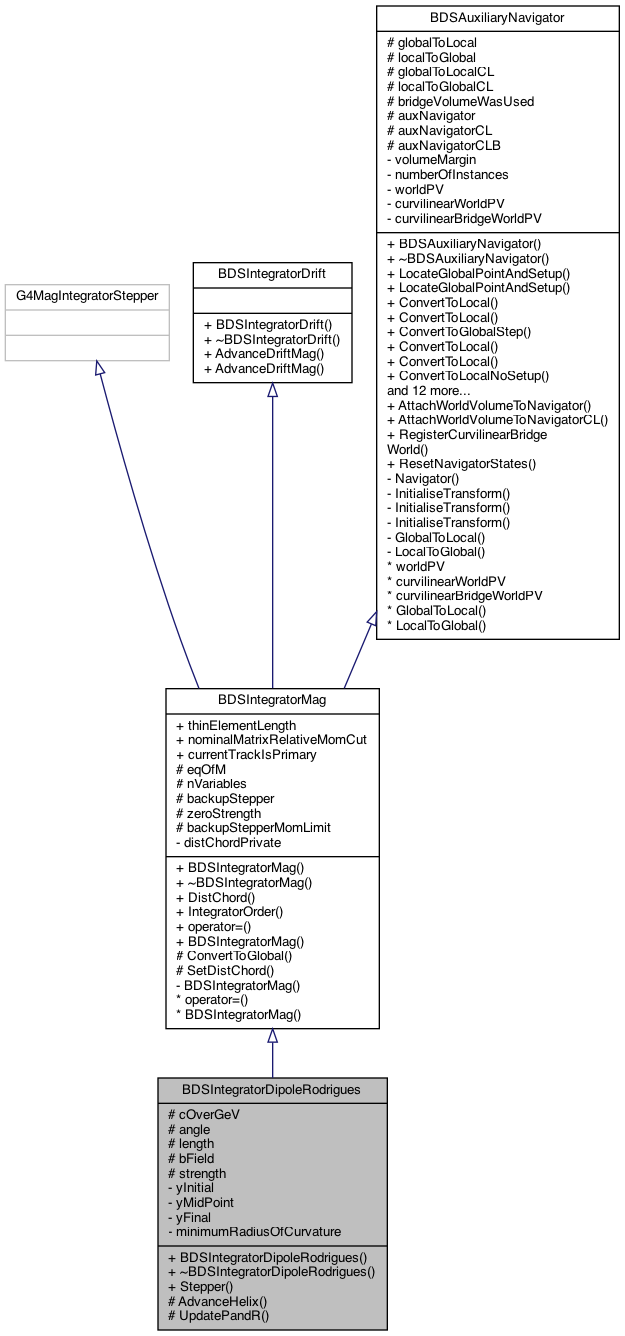

Inheritance diagram for BDSIntegratorDipoleRodrigues:

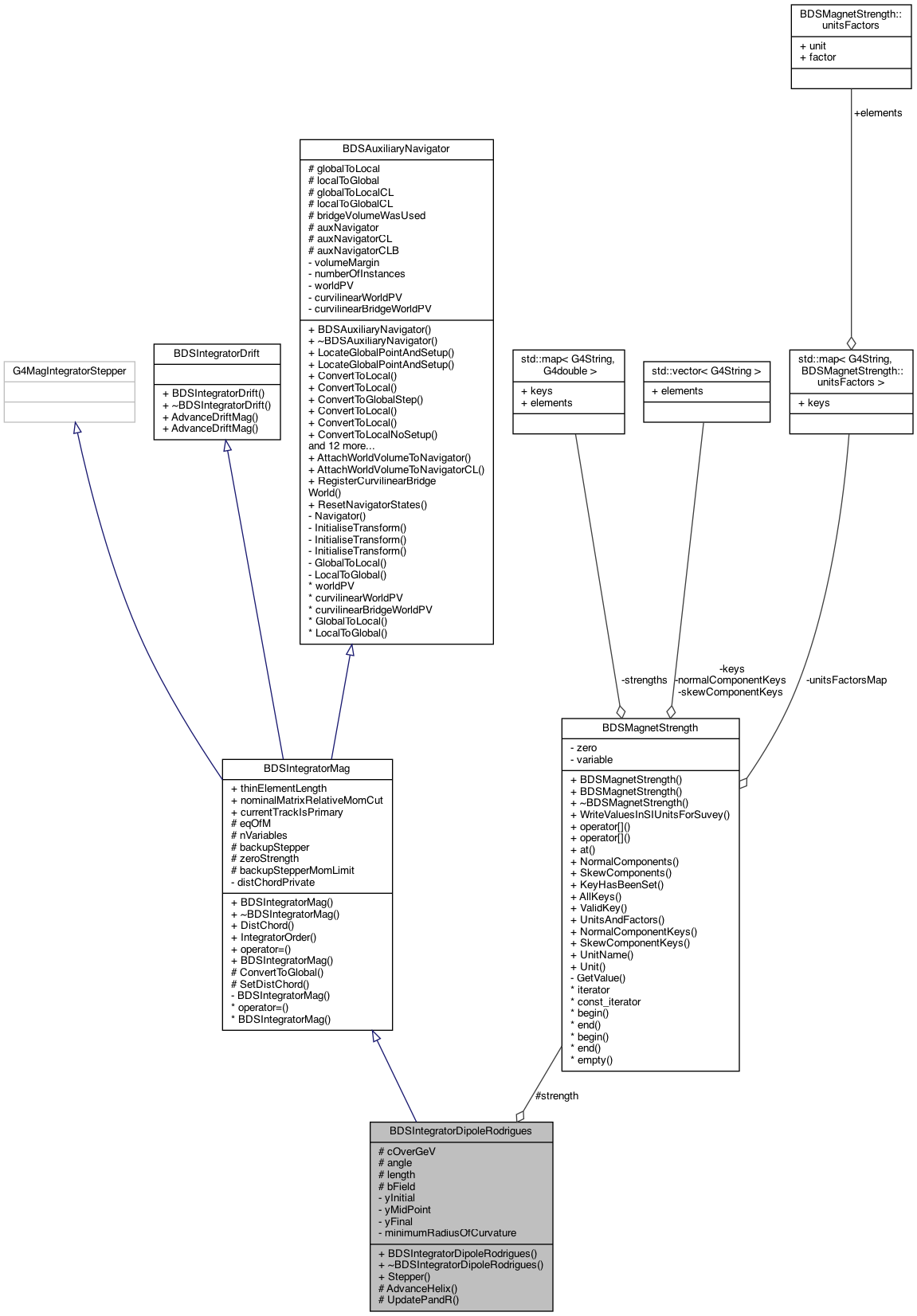

Collaboration diagram for BDSIntegratorDipoleRodrigues:

Public Member Functions
	BDSIntegratorDipoleRodrigues (BDSMagnetStrength const strength, G4double brho, G4Mag_EqRhs eqOfMIn)

virtual void	Stepper (const G4double yIn[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])

Public Member Functions inherited from BDSIntegratorMag
	BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double	DistChord () const
	Estimate maximum distance of curved solution and chord. More...

virtual G4int	IntegratorOrder () const
	Geant4 requires that the integrator order must be supplied by the derived class. More...

BDSIntegratorMag &	operator= (const BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorMag (BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0. More...

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class. More...

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above. More...

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms. More...

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version. More...

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Protected Member Functions
void	AdvanceHelix (const G4double yIn[], const G4double dydx[], G4double h, G4double yOut[], G4double yErr[])
	Calculate the new particle coordinates. More...

std::pair< G4ThreeVector, G4ThreeVector >	UpdatePandR (G4double rho, G4double h, G4ThreeVector localPos, G4ThreeVector localMomUnit)

Protected Member Functions inherited from BDSIntegratorMag
void	ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
	scaling of momentum in case localMom is a unit vector More...

void	SetDistChord (G4double distChordIn)
	Setter for distChord to private member. More...

Protected Attributes
G4double	cOverGeV
	Scaling factor in brho calculation. More...

const G4double	angle
	Angle that the dipole induces in the reference trajectory. More...

const G4double	length
	Arc length of the magnetic field. More...

G4double	bField
	Uniform magnetic field in global Y direction. More...

BDSMagnetStrength const *	strength
	Magnet strength object needed by curvilinear transforms. More...

Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs *	eqOfM

const G4int	nVariables
	Cache of the number of variables. More...

G4MagIntegratorStepper *	backupStepper

G4bool	zeroStrength

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Private Attributes
G4ThreeVector	yInitial
	Data stored in order to find the chord. More...

G4ThreeVector	yMidPoint

G4ThreeVector	yFinal

const G4double	minimumRadiusOfCurvature
	Minimum tolerable radius of curvature - used to prevent spiraling particles. More...

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world. More...

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Static Public Attributes inherited from BDSIntegratorMag
static G4double	thinElementLength = -1

static G4double	nominalMatrixRelativeMomCut = -1

static G4bool	currentTrackIsPrimary = false

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Stepper that calculates trajectory through uniform magnetic field.

This calculates the coordinates of a particle moving through a dipole field. This ignores the field value supplied from Geant4 and uses its own field and quadrupole gradient from the BDSMagnetStrength instance supplied w.r.t. the rigidity also supplied.

Originally part of BDSIM by many authors.

Definition at line 43 of file BDSIntegratorDipoleRodrigues.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorDipoleRodrigues()

BDSIntegratorDipoleRodrigues::BDSIntegratorDipoleRodrigues	(	BDSMagnetStrength const *	strength,
		G4double	brho,
		G4Mag_EqRhs *	eqOfMIn
	)

Definition at line 35 of file BDSIntegratorDipoleRodrigues.cc.

◆ ~BDSIntegratorDipoleRodrigues()

virtual BDSIntegratorDipoleRodrigues::~BDSIntegratorDipoleRodrigues ( )

inlinevirtual

Definition at line 50 of file BDSIntegratorDipoleRodrigues.hh.

Member Function Documentation

◆ AdvanceHelix()

void BDSIntegratorDipoleRodrigues::AdvanceHelix	(	const G4double	yIn[],
		const G4double	dydx[],
		G4double	h,
		G4double	yOut[],
		G4double	yErr[]
	)

protected

Calculate the new particle coordinates.

Definition at line 52 of file BDSIntegratorDipoleRodrigues.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), BDSIntegratorMag::backupStepper, BDSIntegratorMag::backupStepperMomLimit, bField, BDSIntegratorMag::ConvertToGlobal(), BDSAuxiliaryNavigator::ConvertToLocal(), cOverGeV, BDSIntegratorMag::eqOfM, BDS::IsFiniteStrength(), minimumRadiusOfCurvature, BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), BDSIntegratorMag::SetDistChord(), and BDSIntegratorMag::zeroStrength.

Referenced by Stepper().

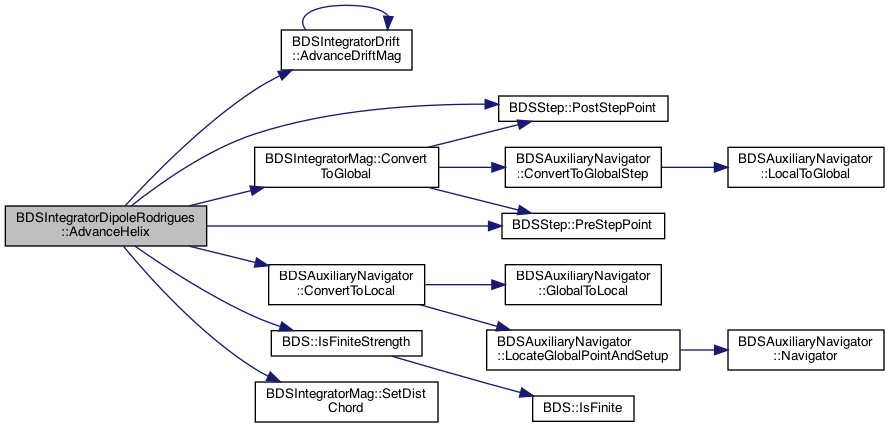

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Stepper()

void BDSIntegratorDipoleRodrigues::Stepper	(	const G4double	yIn[],
		const G4double	dydx[],
		const G4double	h,
		G4double	yOut[],
		G4double	yErr[]
	)

virtual

Stepper for this integrator. Calculates the new coordinates of a particle through a uniform magnetic field.

Definition at line 135 of file BDSIntegratorDipoleRodrigues.cc.

References AdvanceHelix(), and BDSIntegratorMag::nVariables.

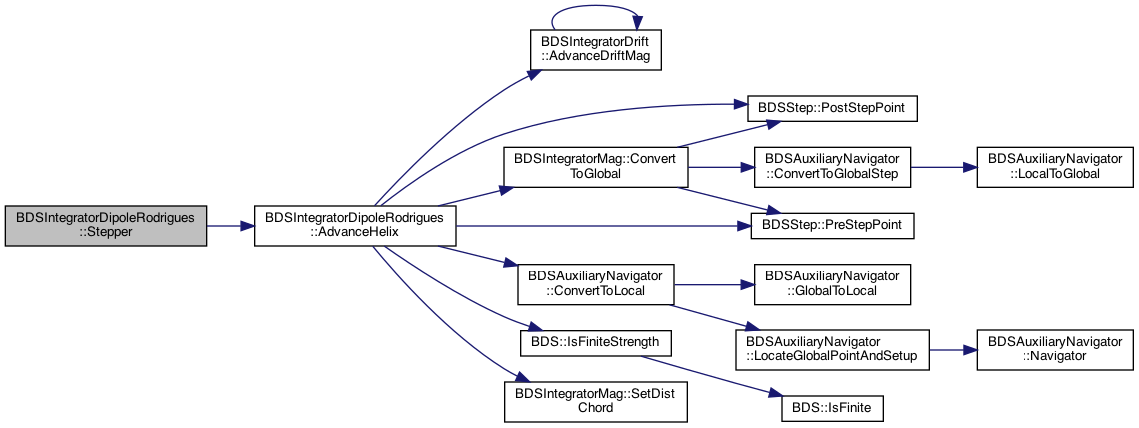

Here is the call graph for this function:

◆ UpdatePandR()

std::pair< G4ThreeVector, G4ThreeVector > BDSIntegratorDipoleRodrigues::UpdatePandR	(	G4double	rho,
		G4double	h,
		G4ThreeVector	localPos,
		G4ThreeVector	localMomUnit
	)

protected

Definition at line 148 of file BDSIntegratorDipoleRodrigues.cc.

Field Documentation

◆ angle

const G4double BDSIntegratorDipoleRodrigues::angle

protected

Angle that the dipole induces in the reference trajectory.

Definition at line 72 of file BDSIntegratorDipoleRodrigues.hh.

◆ bField

G4double BDSIntegratorDipoleRodrigues::bField

protected

Uniform magnetic field in global Y direction.

Definition at line 78 of file BDSIntegratorDipoleRodrigues.hh.

Referenced by AdvanceHelix().

◆ cOverGeV

G4double BDSIntegratorDipoleRodrigues::cOverGeV

protected

Scaling factor in brho calculation.

Definition at line 69 of file BDSIntegratorDipoleRodrigues.hh.

Referenced by AdvanceHelix().

◆ length

const G4double BDSIntegratorDipoleRodrigues::length

protected

Arc length of the magnetic field.

Definition at line 75 of file BDSIntegratorDipoleRodrigues.hh.

◆ minimumRadiusOfCurvature

const G4double BDSIntegratorDipoleRodrigues::minimumRadiusOfCurvature

private

Minimum tolerable radius of curvature - used to prevent spiraling particles.

Definition at line 93 of file BDSIntegratorDipoleRodrigues.hh.

Referenced by AdvanceHelix().

◆ strength

BDSMagnetStrength const* BDSIntegratorDipoleRodrigues::strength

protected

Magnet strength object needed by curvilinear transforms.

Definition at line 81 of file BDSIntegratorDipoleRodrigues.hh.

◆ yFinal

G4ThreeVector BDSIntegratorDipoleRodrigues::yFinal

private

Definition at line 90 of file BDSIntegratorDipoleRodrigues.hh.

◆ yInitial

G4ThreeVector BDSIntegratorDipoleRodrigues::yInitial

private

Data stored in order to find the chord.

Definition at line 90 of file BDSIntegratorDipoleRodrigues.hh.

◆ yMidPoint

G4ThreeVector BDSIntegratorDipoleRodrigues::yMidPoint

private

Definition at line 90 of file BDSIntegratorDipoleRodrigues.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSIntegratorDipoleRodrigues.hh
/Users/nevay/physics/reps/bdsim/src/BDSIntegratorDipoleRodrigues.cc
