Information stored per sampler per event. More...

#include <BDSOutputROOTEventSampler.hh>

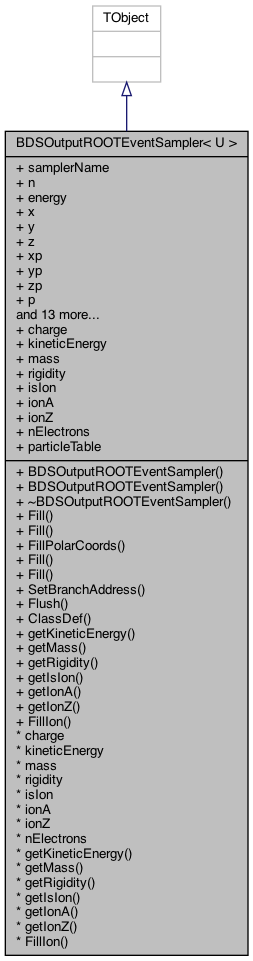

Inheritance diagram for BDSOutputROOTEventSampler:

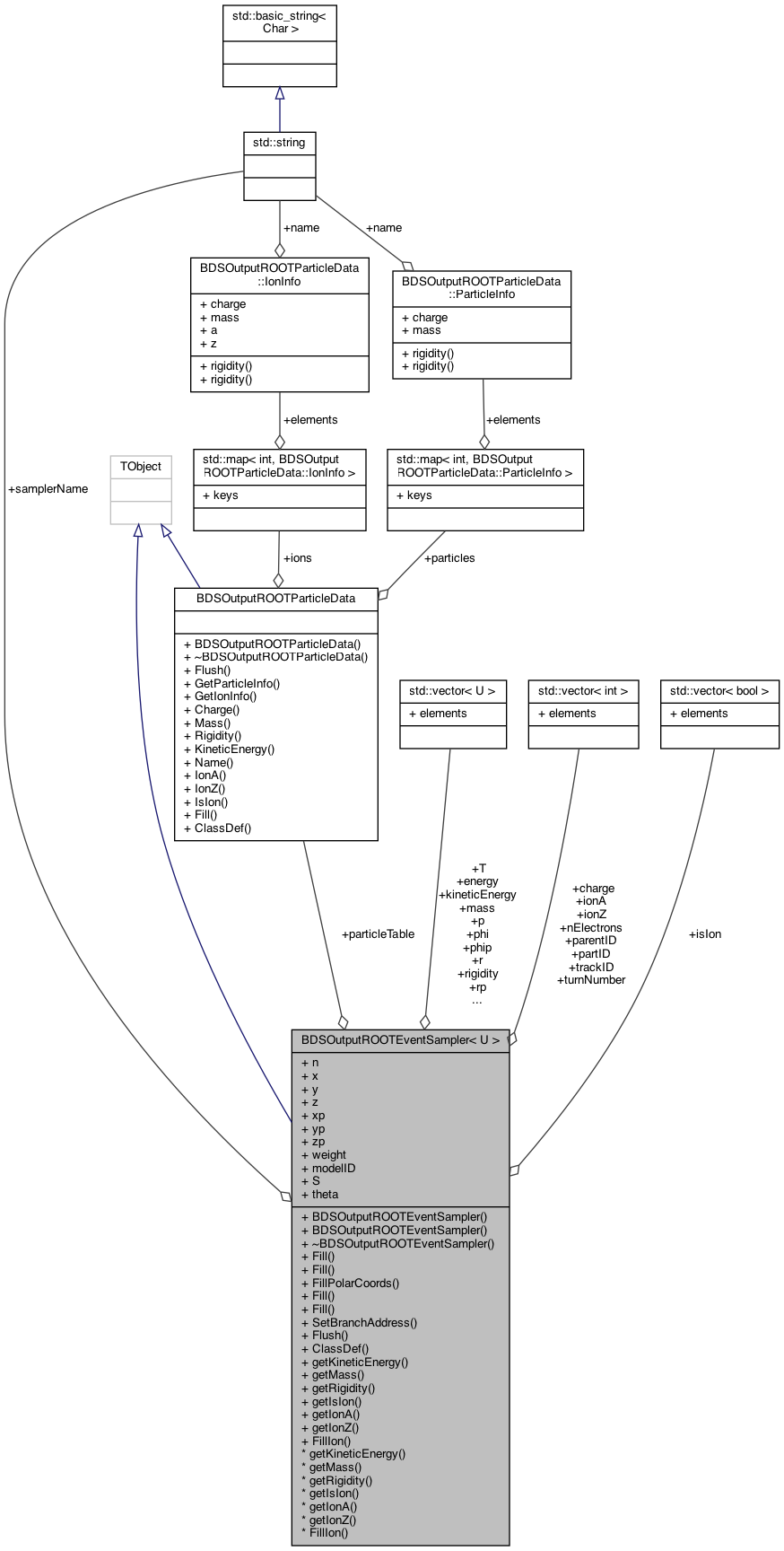

Collaboration diagram for BDSOutputROOTEventSampler:

Public Member Functions
	BDSOutputROOTEventSampler (std::string samplerNameIn)

void	Fill (const BDSHitSampler *hit, G4bool storeMass=false, G4bool storeCharge=false, G4bool storePolarCoords=false, G4bool storeElectrons=false, G4bool storeRigidity=false, G4bool storeKineticEnergy=false)

void	Fill (const BDSParticleCoordsFull &coords, G4double momentumIn, G4double charge, G4int pdgID, G4int turnsTaken, G4int beamlineIndex, G4int nElectronsIn, G4double massIn, G4double rigidityIn, G4bool fillIon=true, G4bool isIon=nullptr, G4int ionA=nullptr, G4int *ionZ=nullptr)

void	FillPolarCoords (const BDSParticleCoordsFull &coords)
	Calculate polar coords and fill. More...

void	Fill (const BDSPrimaryVertexInformationV *vertexInfos, const G4int turnsTaken)
	Fill a vertex directly. More...

void	Fill (const BDSOutputROOTEventSampler< U > *other)

void	SetBranchAddress (TTree *)

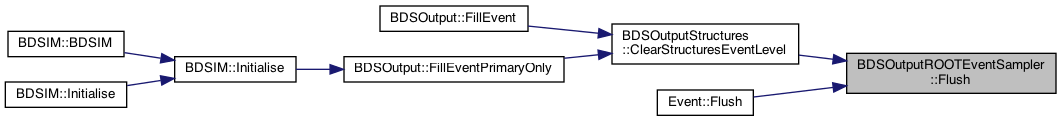

virtual void	Flush ()
	Clean Sampler. More...

	ClassDef (BDSOutputROOTEventSampler, 5)


std::vector< U >	getKineticEnergy ()
	Function to calculate on the fly the parameters. More...

std::vector< U >	getMass ()
	Function to calculate on the fly the parameters. More...

std::vector< U >	getRigidity ()
	Function to calculate on the fly the parameters. More...

std::vector< bool >	getIsIon ()
	Function to calculate on the fly the parameters. More...

std::vector< int >	getIonA ()
	Function to calculate on the fly the parameters. More...

std::vector< int >	getIonZ ()
	Function to calculate on the fly the parameters. More...

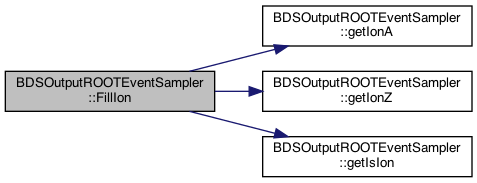

void	FillIon ()
	Calculate and fill calculated variables. More...

Data Fields
std::string	samplerName

int	n

std::vector< U >	energy

std::vector< U >	x

std::vector< U >	y

U	z

std::vector< U >	xp

std::vector< U >	yp

std::vector< U >	zp

std::vector< U >	p

std::vector< U >	T

std::vector< U >	weight

std::vector< int >	partID

std::vector< int >	parentID

std::vector< int >	trackID

int	modelID

std::vector< int >	turnNumber

U	S

std::vector< U >	r

std::vector< U >	rp

std::vector< U >	phi

std::vector< U >	phip

std::vector< U >	theta


std::vector< int >	charge
	These are not filled by default. More...

std::vector< U >	kineticEnergy
	These are not filled by default. More...

std::vector< U >	mass
	These are not filled by default. More...

std::vector< U >	rigidity
	These are not filled by default. More...

std::vector< bool >	isIon
	These are not filled by default. More...

std::vector< int >	ionA
	These are not filled by default. More...

std::vector< int >	ionZ
	These are not filled by default. More...

std::vector< int >	nElectrons
	These are not filled by default. More...

Static Public Attributes
static BDSOutputROOTParticleData *	particleTable = nullptr

Detailed Description

template<class U>
class BDSOutputROOTEventSampler

Information stored per sampler per event.

Author: Stewart Boogert

Definition at line 44 of file BDSOutputROOTEventSampler.hh.

Constructor & Destructor Documentation

◆ BDSOutputROOTEventSampler()

template<class U >

BDSOutputROOTEventSampler::BDSOutputROOTEventSampler ( std::string samplerNameIn )

explicit

Definition at line 47 of file BDSOutputROOTEventSampler.cc.

◆ ~BDSOutputROOTEventSampler()

template<class U >

BDSOutputROOTEventSampler::~BDSOutputROOTEventSampler

virtual

Definition at line 54 of file BDSOutputROOTEventSampler.cc.

Member Function Documentation

◆ Fill() [1/4]

template<class U >

void BDSOutputROOTEventSampler< U >::Fill	(	const BDSHitSampler *	hit,
		G4bool	storeMass = `false`,
		G4bool	storeCharge = `false`,
		G4bool	storePolarCoords = `false`,
		G4bool	storeElectrons = `false`,
		G4bool	storeRigidity = `false`,
		G4bool	storeKineticEnergy = `false`
	)

Definition at line 59 of file BDSOutputROOTEventSampler.cc.

◆ Fill() [2/4]

template<class U >

void BDSOutputROOTEventSampler::Fill ( const BDSOutputROOTEventSampler * other )

Definition at line 219 of file BDSOutputROOTEventSampler.cc.

◆ Fill() [3/4]

template<class U >

void BDSOutputROOTEventSampler< U >::Fill	(	const BDSParticleCoordsFull &	coords,
		G4double	momentumIn,
		G4double	charge,
		G4int	pdgID,
		G4int	turnsTaken,
		G4int	beamlineIndex,
		G4int	nElectronsIn,
		G4double	massIn,
		G4double	rigidityIn,
		G4bool	fillIon = `true`,
		G4bool *	isIon = `nullptr`,
		G4int *	ionA = `nullptr`,
		G4int *	ionZ = `nullptr`
	)

Used for filling primary coordinates only. Optional arguments allow us to fill ion information when a particle table is not available. All must be defined to use them.

Definition at line 110 of file BDSOutputROOTEventSampler.cc.
