A wrapper to achieve 2D reflection of a minimal dipole field solve. More...

#include <BDSArray2DCoordsRDipole.hh>

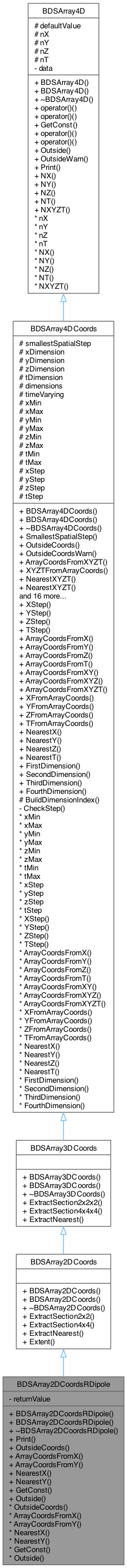

Inheritance diagram for BDSArray2DCoordsRDipole:

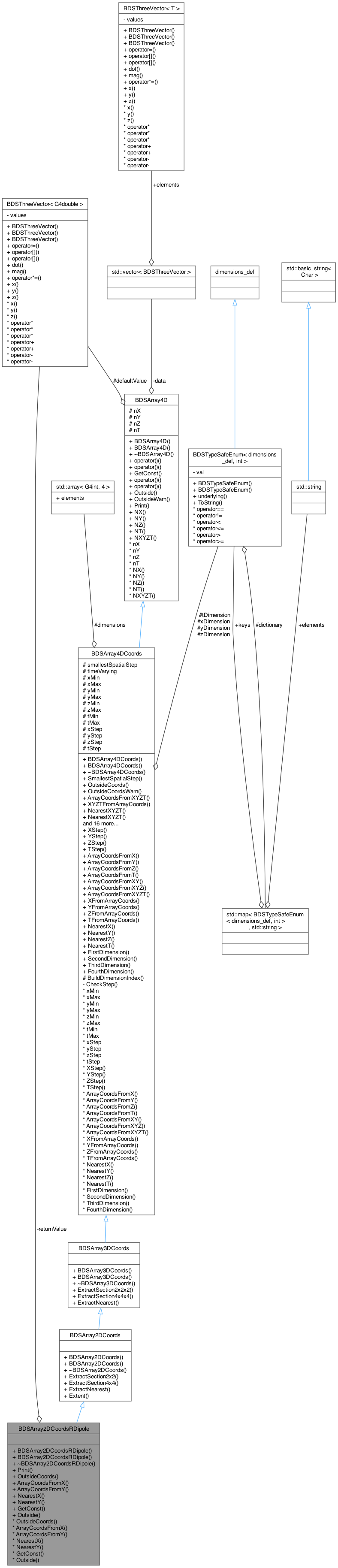

Collaboration diagram for BDSArray2DCoordsRDipole:

Public Member Functions
	BDSArray2DCoordsRDipole (BDSArray2DCoords *arrayIn)
	Wrap an existing BDSArray2DCoords instance.

virtual std::ostream &	Print (std::ostream &out) const


virtual G4bool	OutsideCoords (G4double x, G4double y, G4double z, G4double t) const
	Overridden from BDSArray4DCoords.

virtual G4double	ArrayCoordsFromX (G4double x) const
	Overridden from BDSArray4DCoords.

virtual G4double	ArrayCoordsFromY (G4double y) const
	Overridden from BDSArray4DCoords.

virtual G4int	NearestX (G4double x) const
	Overridden from BDSArray4DCoords.

virtual G4int	NearestY (G4double y) const
	Overridden from BDSArray4DCoords.


virtual const BDSFieldValue &	GetConst (G4int x, G4int y, G4int z=0, G4int t=0) const
	Overridden from BDSArray4D.

virtual G4bool	Outside (G4int x, G4int y, G4int z, G4int t) const
	Overridden from BDSArray4D.

Public Member Functions inherited from BDSArray2DCoords
	BDSArray2DCoords ()=delete

	BDSArray2DCoords (G4int nX, G4int nY, G4double xMinIn, G4double xMaxIn, G4double yMinIn, G4double yMaxIn, BDSDimensionType xDimensionIn=BDSDimensionType::x, BDSDimensionType yDimensionIn=BDSDimensionType::y)

virtual void	ExtractSection2x2 (G4double x, G4double y, BDSFieldValue(&localData)[2][2], G4double &xFrac, G4double &yFrac) const
	Extract 2x2 points lying around coordinate x.

virtual void	ExtractSection4x4 (G4double x, G4double y, BDSFieldValue(&localData)[4][4], G4double &xFrac, G4double &yFrac) const
	Extract 4x4 points lying around coordinate x.

virtual BDSFieldValue	ExtractNearest (G4double x, G4double y=0, G4double z=0, G4double t=0) const
	Extract nearest field value from array. z,t ignored but required for overload.

virtual BDSExtent	Extent () const

Public Member Functions inherited from BDSArray3DCoords
	BDSArray3DCoords ()=delete

	BDSArray3DCoords (G4int nX, G4int nY, G4int nZ, G4double xMinIn, G4double xMaxIn, G4double yMinIn, G4double yMaxIn, G4double zMinIn, G4double zMaxIn, BDSDimensionType xDimensionIn=BDSDimensionType::x, BDSDimensionType yDimensionIn=BDSDimensionType::y, BDSDimensionType zDimensionIn=BDSDimensionType::z)

virtual void	ExtractSection2x2x2 (G4double x, G4double y, G4double z, BDSFieldValue(&localData)[2][2][2], G4double &xFrac, G4double &yFrac, G4double &zFrac) const
	Extract 2x2x2 points lying around coordinate x.

virtual void	ExtractSection4x4x4 (G4double x, G4double y, G4double z, BDSFieldValue(&localData)[4][4][4], G4double &xFrac, G4double &yFrac, G4double &zFrac) const
	Extract 4x4x4 points lying around coordinate x.

virtual BDSFieldValue	ExtractNearest (G4double x, G4double y=0, G4double z=0, G4double t=0) const
	Extract nearest field value from array. t ignored but required for overload.

Public Member Functions inherited from BDSArray4DCoords
	BDSArray4DCoords ()=delete

	BDSArray4DCoords (G4int nXIn, G4int nYIn, G4int nZIn, G4int nTIn, G4double xMinIn, G4double xMaxIn, G4double yMinIn, G4double yMaxIn, G4double zMinIn, G4double zMaxIn, G4double tMinIn, G4double tMaxIn, BDSDimensionType xDimensionIn=BDSDimensionType::x, BDSDimensionType yDimensionIn=BDSDimensionType::y, BDSDimensionType zDimensionIn=BDSDimensionType::z, BDSDimensionType tDimensionIn=BDSDimensionType::t)

G4double	SmallestSpatialStep () const

virtual G4bool	OutsideCoords (G4double x, G4double y, G4double z, G4double t) const
	Whether the spatial coordinates lie outside the range of the array or not.

virtual void	OutsideCoordsWarn (G4double x, G4double y, G4double z, G4double t) const

BDSFourVector< G4double >	ArrayCoordsFromXYZT (G4double x, G4double y, G4double z, G4double t) const
	Convenience function to easily get array coords in all dimensions at once.

BDSFourVector< G4double >	XYZTFromArrayCoords (G4double x, G4double y, G4double z, G4double t) const

BDSFourVector< G4int >	NearestXYZT (G4double x, G4double y, G4double z, G4double t) const
	Return the index of the nearest field value in space.

BDSFourVector< G4int >	NearestXYZT (const BDSFourVector< G4double > &pos) const
	Return the index of the nearest field value in space via four-vector.

virtual void	ExtractSection2x2x2x2 (G4double x, G4double y, G4double z, G4double t, BDSFieldValue(&localData)[2][2][2][2], G4double &xFrac, G4double &yFrac, G4double &zFrac, G4double &tFrac) const
	Extract 2x2x2x2 points lying around coordinate x.

virtual void	ExtractSection4x4x4x4 (G4double x, G4double y, G4double z, G4double t, BDSFieldValue(&localData)[4][4][4][4], G4double &xFrac, G4double &yFrac, G4double &zFrac, G4double &tFrac) const
	Extract 4x4x4x4 points lying around coordinate x.

virtual BDSFieldValue	ExtractNearest (G4double x, G4double y=0, G4double z=0, G4double t=0) const
	Extract nearest field value from array.

virtual std::ostream &	Print (std::ostream &out) const

virtual BDSExtent	Extent () const
	Return the SPATIAL (only) extent of this field without any offset. Ignores time.

G4double	XMin () const

G4double	YMin () const

G4double	ZMin () const

G4double	TMin () const

G4double	XMax () const

G4double	YMax () const

G4double	ZMax () const

G4double	TMax () const

virtual G4bool	TimeVarying () const

G4int	DimensionIndex (BDSDimensionType spatialDimension) const

std::array< G4int, 4 >	ArrayToSpatialDimensionIndices () const
	Access all indices at once.

G4double	XStep () const
	The distance in spatial coordinates between any two points in the array.

G4double	YStep () const
	The distance in spatial coordinates between any two points in the array.

G4double	ZStep () const
	The distance in spatial coordinates between any two points in the array.

G4double	TStep () const
	The distance in spatial coordinates between any two points in the array.

virtual G4double	ArrayCoordsFromZ (G4double z) const
	Not much point in being both virtual and inline (in our use case) but has to be virtual.

virtual G4double	ArrayCoordsFromT (G4double t) const
	Not much point in being both virtual and inline (in our use case) but has to be virtual.

void	ArrayCoordsFromXY (G4double &x, G4double &xArr, G4double &y, G4double &yArr) const
	Utility version to forward to individual function.

void	ArrayCoordsFromXYZ (G4double &x, G4double &xArr, G4double &y, G4double &yArr, G4double &z, G4double &zArr) const
	Utility version to forward to individual function.

void	ArrayCoordsFromXYZT (G4double &x, G4double &xArr, G4double &y, G4double &yArr, G4double &z, G4double &zArr, G4double &t, G4double &tArr) const
	Utility version to forward to individual function.

G4double	XFromArrayCoords (G4double xCoord) const
	Return spatial value from a continuous array coordinate in one dimension.

G4double	YFromArrayCoords (G4double yCoord) const
	Return spatial value from a continuous array coordinate in one dimension.

G4double	ZFromArrayCoords (G4double zCoord) const
	Return spatial value from a continuous array coordinate in one dimension.

G4double	TFromArrayCoords (G4double tCoord) const
	Return spatial value from a continuous array coordinate in one dimension.

virtual G4int	NearestZ (G4double z) const
	Not much point in being both virtual and inline (in our use case) but has to be virtual.

virtual G4int	NearestT (G4double t) const
	Not much point in being both virtual and inline (in our use case) but has to be virtual.

BDSDimensionType	FirstDimension () const
	Accessor for each dimension label. e.g. array 'x' = spatial z.

BDSDimensionType	SecondDimension () const
	Accessor for each dimension label. e.g. array 'x' = spatial z.

BDSDimensionType	ThirdDimension () const
	Accessor for each dimension label. e.g. array 'x' = spatial z.

BDSDimensionType	FourthDimension () const
	Accessor for each dimension label. e.g. array 'x' = spatial z.

Public Member Functions inherited from BDSArray4D
	BDSArray4D ()=delete

	BDSArray4D (G4int nXIn, G4int nYIn, G4int nZIn, G4int nTIn)

virtual BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0)
	Setter & (technically, a non-const) accessor.

const BDSFieldValue &	operator() (BDSFourVector< G4int > &pos)
	Convenience accessor to operator().

virtual const BDSFieldValue &	GetConst (G4int x, G4int y=0, G4int z=0, G4int t=0) const

virtual const BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0) const
	Convenience shortcut to GetConst().

const BDSFieldValue &	operator() (const BDSFourVector< G4int > &pos) const
	Convenience accessor to operator().

virtual G4bool	Outside (G4int x, G4int y, G4int z, G4int t) const
	Return whether the indices are valid and lie within the array boundaries or not.

virtual void	OutsideWarn (G4int x, G4int y, G4int z, G4int t) const
	Use Outside() but warn and exit if the coordinates requested are outside the array.

virtual std::ostream &	Print (std::ostream &out) const

G4int	NX () const
	Access the number of elements in a given dimension.

G4int	NY () const
	Access the number of elements in a given dimension.

G4int	NZ () const
	Access the number of elements in a given dimension.

G4int	NT () const
	Access the number of elements in a given dimension.

BDSFourVector< G4int >	NXYZT () const
	Access the number of elements in a given dimension.

Private Attributes
BDSFieldValue	returnValue

Friends
std::ostream &	operator<< (std::ostream &out, BDSArray2DCoordsRDipole const &a)
	Delegate function to call polymorphic Print().

Additional Inherited Members
Protected Member Functions inherited from BDSArray4DCoords
void	BuildDimensionIndex ()
	Build up an array of ints based on the order of dimensions stored in the array.

Protected Attributes inherited from BDSArray4DCoords
G4double	smallestSpatialStep

BDSDimensionType	xDimension

BDSDimensionType	yDimension

BDSDimensionType	zDimension

BDSDimensionType	tDimension

std::array< G4int, 4 >	dimensions

G4bool	timeVarying

G4double	xMin
	Dimension parameter - protected for derived class access.

G4double	xMax
	Dimension parameter - protected for derived class access.

G4double	yMin
	Dimension parameter - protected for derived class access.

G4double	yMax
	Dimension parameter - protected for derived class access.

G4double	zMin
	Dimension parameter - protected for derived class access.

G4double	zMax
	Dimension parameter - protected for derived class access.

G4double	tMin
	Dimension parameter - protected for derived class access.

G4double	tMax
	Dimension parameter - protected for derived class access.

G4double	xStep
	Dimension parameter - protected for derived class access.

G4double	yStep
	Dimension parameter - protected for derived class access.

G4double	zStep
	Dimension parameter - protected for derived class access.

G4double	tStep
	Dimension parameter - protected for derived class access.

Protected Attributes inherited from BDSArray4D
BDSFieldValue	defaultValue
	Need to store a default value so it can be return by reference.

const G4int	nX
	Dimension.

const G4int	nY
	Dimension.

const G4int	nZ
	Dimension.

const G4int	nT
	Dimension.

Detailed Description

A wrapper to achieve 2D reflection of a minimal dipole field solve.

This allows a smaller array representing the positive quadrant in x,y to be reflected to represent a quadrupole.

*       y
*       ∧
*       |
*    ∧  |  ∧
*    |  |  | original
* <---  |  --->
*       |
* -------------------> x
* ∧     |     ∧
* |     |     |
* --->  |  <---
*       |
*       |
*

This owns the array it wraps.

This makes an array look 4 times bigger than it is - ie 2x as big in x and y. The array coordinates are correspondingly shifted. What would've been (0,0) in a 100x100 array will now be at index (101,101).

This is reflected about 0,0 and can only be so given the implementation.

Some interfaces are overloaded and some aren't as are required to be (NX for example). The ostream << writes both the raw array and the reflected version too.

Note, by return a reference to a non-const member returnValue that may be updated by another query, thread safety could be an issue.

Author: Laurie Nevay

Definition at line 68 of file BDSArray2DCoordsRDipole.hh.

Constructor & Destructor Documentation

◆ BDSArray2DCoordsRDipole()

BDSArray2DCoordsRDipole::BDSArray2DCoordsRDipole ( BDSArray2DCoords * arrayIn )

explicit

Wrap an existing BDSArray2DCoords instance.

Definition at line 29 of file BDSArray2DCoordsRDipole.cc.

◆ ~BDSArray2DCoordsRDipole()

virtual BDSArray2DCoordsRDipole::~BDSArray2DCoordsRDipole ( )

inlinevirtual

Definition at line 74 of file BDSArray2DCoordsRDipole.hh.

Member Function Documentation

◆ ArrayCoordsFromX()

G4double BDSArray2DCoordsRDipole::ArrayCoordsFromX ( G4double x ) const

virtual

Overridden from BDSArray4DCoords.

Reimplemented from BDSArray4DCoords.

Definition at line 46 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4DCoords::xMax, and BDSArray4DCoords::xStep.

◆ ArrayCoordsFromY()

G4double BDSArray2DCoordsRDipole::ArrayCoordsFromY ( G4double y ) const

virtual

Overridden from BDSArray4DCoords.

Reimplemented from BDSArray4DCoords.

Definition at line 52 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4DCoords::yMax, and BDSArray4DCoords::yStep.

◆ GetConst()

const BDSFieldValue & BDSArray2DCoordsRDipole::GetConst	(	G4int	x,
		G4int	y,
		G4int	z = `0`,
		G4int	t = `0`
	)		const

virtual

Overridden from BDSArray4D.

Reimplemented from BDSArray4D.

Definition at line 67 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4D::defaultValue, BDSArray4D::GetConst(), BDSArray4D::nX, BDSArray4D::nY, Outside(), returnValue, BDSThreeVector< T >::x(), and BDSThreeVector< T >::y().

Referenced by Print().

Here is the call graph for this function:

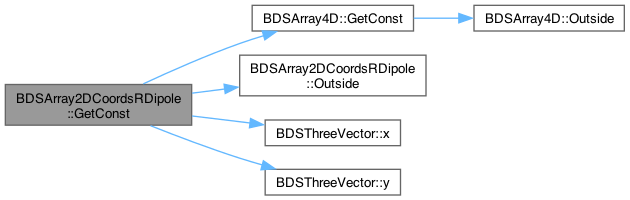

Here is the caller graph for this function:

◆ NearestX()

G4int BDSArray2DCoordsRDipole::NearestX ( G4double x ) const

virtual

Overridden from BDSArray4DCoords.

Reimplemented from BDSArray4DCoords.

Definition at line 57 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4DCoords::xMax, and BDSArray4DCoords::xStep.

◆ NearestY()

G4int BDSArray2DCoordsRDipole::NearestY ( G4double y ) const

virtual

Overridden from BDSArray4DCoords.

Reimplemented from BDSArray4DCoords.

Definition at line 62 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4DCoords::yMax, and BDSArray4DCoords::yStep.

◆ Outside()

G4bool BDSArray2DCoordsRDipole::Outside	(	G4int	x,
		G4int	y,
		G4int	z,
		G4int	t
	)		const

virtual

Overridden from BDSArray4D.

Reimplemented from BDSArray4D.

Definition at line 125 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4D::nT, BDSArray4D::nX, BDSArray4D::nY, and BDSArray4D::nZ.

Referenced by GetConst().

Here is the caller graph for this function:

◆ OutsideCoords()

G4bool BDSArray2DCoordsRDipole::OutsideCoords	(	G4double	x,
		G4double	y,
		G4double	z,
		G4double	t
	)		const

virtual

Overridden from BDSArray4DCoords.

Reimplemented from BDSArray4DCoords.

Definition at line 34 of file BDSArray2DCoordsRDipole.cc.

References BDSArray4DCoords::tMax, BDSArray4DCoords::xMax, BDSArray4DCoords::yMax, and BDSArray4DCoords::zMax.

◆ Print()

std::ostream & BDSArray2DCoordsRDipole::Print ( std::ostream & out ) const

virtual

This prints out the raw underlying data, then the reflected version as would normally be queried.

Reimplemented from BDSArray4DCoords.

Definition at line 137 of file BDSArray2DCoordsRDipole.cc.

References GetConst(), BDSArray4D::nT, BDSArray4D::nX, BDSArray4D::nY, BDSArray4D::nZ, and BDSArray4D::Print().

Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSArray2DCoordsRDipole const &	a
	)

friend

Delegate function to call polymorphic Print().

Definition at line 157 of file BDSArray2DCoordsRDipole.cc.

Field Documentation

◆ returnValue

BDSFieldValue BDSArray2DCoordsRDipole::returnValue

mutableprivate

Must return by reference and the true data value may have to be reflected in one or more dimensions. Copy to this and return reference to it.

Definition at line 111 of file BDSArray2DCoordsRDipole.hh.

Referenced by GetConst().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSArray2DCoordsRDipole.hh
/Users/lnevay/physics/reps/bdsim/src/BDSArray2DCoordsRDipole.cc

Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSArray2DCoordsRDipole()

◆ ~BDSArray2DCoordsRDipole()

Member Function Documentation

◆ ArrayCoordsFromX()

◆ ArrayCoordsFromY()

◆ GetConst()

◆ NearestX()

◆ NearestY()

◆ Outside()

◆ OutsideCoords()

◆ Print()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ returnValue
