BDSArray4D Class Reference

4D array and base class for 3,2 & 1D arrays. More...

#include <BDSArray4D.hh>

Inheritance diagram for BDSArray4D:

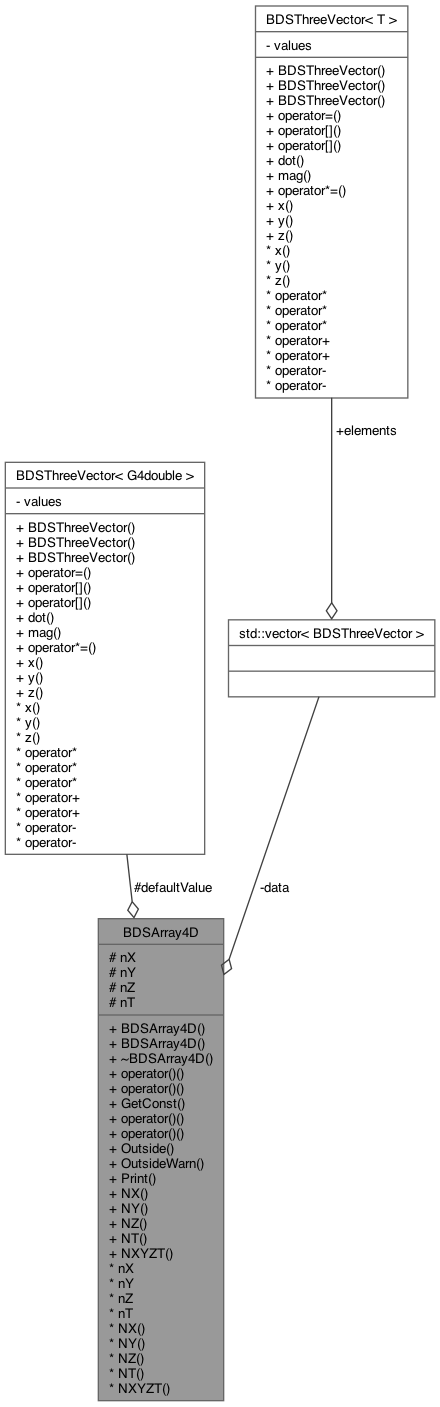

Collaboration diagram for BDSArray4D:

Public Member Functions
	BDSArray4D ()=delete
	BDSArray4D (G4int nXIn, G4int nYIn, G4int nZIn, G4int nTIn)
virtual BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0)
	Setter & (technically, a non-const) accessor.
const BDSFieldValue &	operator() (BDSFourVector< G4int > &pos)
	Convenience accessor to operator().
virtual const BDSFieldValue &	GetConst (G4int x, G4int y=0, G4int z=0, G4int t=0) const
virtual const BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0) const
	Convenience shortcut to GetConst().
const BDSFieldValue &	operator() (const BDSFourVector< G4int > &pos) const
	Convenience accessor to operator().
virtual G4bool	Outside (G4int x, G4int y, G4int z, G4int t) const
	Return whether the indices are valid and lie within the array boundaries or not.
virtual void	OutsideWarn (G4int x, G4int y, G4int z, G4int t) const
	Use Outside() but warn and exit if the coordinates requested are outside the array.
virtual std::ostream &	Print (std::ostream &out) const
G4int	NX () const
	Access the number of elements in a given dimension.
G4int	NY () const
	Access the number of elements in a given dimension.
G4int	NZ () const
	Access the number of elements in a given dimension.
G4int	NT () const
	Access the number of elements in a given dimension.
BDSFourVector< G4int >	NXYZT () const
	Access the number of elements in a given dimension.

Protected Attributes
BDSFieldValue	defaultValue
	Need to store a default value so it can be return by reference.
const G4int	nX
	Dimension.
const G4int	nY
	Dimension.
const G4int	nZ
	Dimension.
const G4int	nT
	Dimension.

Private Attributes
std::vector< BDSFieldValue >	data
	A 1D array representing all the data.

Friends
std::ostream &	operator<< (std::ostream &out, BDSArray4D const &a)
	Output stream.

Detailed Description

4D array and base class for 3,2 & 1D arrays.

Data represents T,Z,Y,X dimensions. The data is stored as a (1D) vector and stored in that order. This means that adjacent X values are stored next to each other. Storing the data as a 1D vector improves performance for random access (through behind the scenes caching) and significantly improves performance for copying.

Data can be accessed by index only in the array. Testing of indices is provided.

The () operator is used for accessing and setting as the [] operator can only ever accept one parameter by design. https://isocpp.org/wiki/faq/operator-overloading#matrix-subscript-op

The size cannot be changed after construction.

Author

Laurie Nevay

Definition at line 50 of file BDSArray4D.hh.

Constructor & Destructor Documentation

BDSArray4D() [1/2]

BDSArray4D::BDSArray4D ( )

delete

No default constructor as the array is not adjustable after construction and therefore the size must be known at construction time.

BDSArray4D() [2/2]

BDSArray4D::BDSArray4D	(	G4int	nXIn,
		G4int	nYIn,
		G4int	nZIn,
		G4int	nTIn
	)

At construction the size of the array must be known as this implementation does not allow the size to be changed afterwards.

Definition at line 31 of file BDSArray4D.cc.

~BDSArray4D()

virtual BDSArray4D::~BDSArray4D ( )

inlinevirtual

Definition at line 59 of file BDSArray4D.hh.

Member Function Documentation

GetConst()

const BDSFieldValue & BDSArray4D::GetConst ( G4int  x, G4int  y = 0, G4int  z = 0, G4int  t = 0  ) const

virtual

Accessor only as returns const reference to data. By being named this can be used explicitly to ensure const access - recommended main main interface.

Reimplemented in BDSArray2DCoordsRDipole, and BDSArray2DCoordsRQuad.

Definition at line 46 of file BDSArray4D.cc.

References data, defaultValue, nX, nY, nZ, and Outside().

Referenced by BDSArray1DCoords::ExtractNearest(), BDSArray1DCoordsTransformed::ExtractNearest(), BDSArray2DCoords::ExtractNearest(), BDSArray2DCoordsTransformed::ExtractNearest(), BDSArray3DCoords::ExtractNearest(), BDSArray3DCoordsTransformed::ExtractNearest(), BDSArray4DCoords::ExtractNearest(), BDSArray4DCoordsTransformed::ExtractNearest(), BDSArray1DCoords::ExtractSection2(), BDSArray1DCoordsTransformed::ExtractSection2(), BDSArray2DCoords::ExtractSection2x2(), BDSArray2DCoordsTransformed::ExtractSection2x2(), BDSArray3DCoords::ExtractSection2x2x2(), BDSArray3DCoordsTransformed::ExtractSection2x2x2(), BDSArray4DCoords::ExtractSection2x2x2x2(), BDSArray4DCoordsTransformed::ExtractSection2x2x2x2(), BDSArray1DCoords::ExtractSection4(), BDSArray1DCoordsTransformed::ExtractSection4(), BDSArray2DCoords::ExtractSection4x4(), BDSArray2DCoordsTransformed::ExtractSection4x4(), BDSArray3DCoords::ExtractSection4x4x4(), BDSArray3DCoordsTransformed::ExtractSection4x4x4(), BDSArray4DCoords::ExtractSection4x4x4x4(), BDSArray4DCoordsTransformed::ExtractSection4x4x4x4(), BDSArray2DCoordsRDipole::GetConst(), BDSArray2DCoordsRQuad::GetConst(), operator()(), and Print().

Here is the call graph for this function:

Here is the caller graph for this function:

NT()

G4int BDSArray4D::NT ( ) const

inline

Access the number of elements in a given dimension.

Definition at line 65 of file BDSArray4D.hh.

References nT.

Referenced by NXYZT().

Here is the caller graph for this function:

NX()

G4int BDSArray4D::NX ( ) const

inline

Access the number of elements in a given dimension.

Definition at line 62 of file BDSArray4D.hh.

References nX.

Referenced by NXYZT().

Here is the caller graph for this function:

NXYZT()

BDSFourVector< G4int > BDSArray4D::NXYZT ( ) const

inline

Access the number of elements in a given dimension.

Definition at line 66 of file BDSArray4D.hh.

References NT(), NX(), NY(), and NZ().

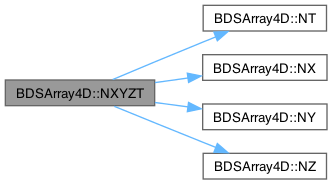

Here is the call graph for this function:

NY()

G4int BDSArray4D::NY ( ) const

inline

Access the number of elements in a given dimension.

Definition at line 63 of file BDSArray4D.hh.

References nY.

Referenced by NXYZT().

Here is the caller graph for this function:

NZ()

G4int BDSArray4D::NZ ( ) const

inline

Access the number of elements in a given dimension.

Definition at line 64 of file BDSArray4D.hh.

References nZ.

Referenced by NXYZT().

Here is the caller graph for this function:

operator()() [1/4]

const BDSFieldValue & BDSArray4D::operator() ( BDSFourVector< G4int > &  pos )

inline

Convenience accessor to operator().

Definition at line 76 of file BDSArray4D.hh.

References operator()(), BDSFourVector< Type >::t(), BDSFourVector< Type >::x(), BDSFourVector< Type >::y(), and BDSFourVector< Type >::z().

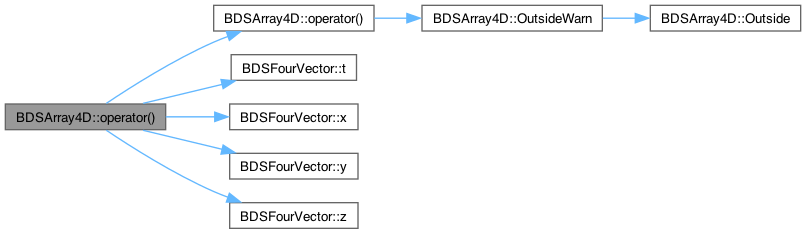

Here is the call graph for this function:

operator()() [2/4]

const BDSFieldValue & BDSArray4D::operator() ( const BDSFourVector< G4int > &  pos ) const

inline

Convenience accessor to operator().

Definition at line 94 of file BDSArray4D.hh.

References operator()(), BDSFourVector< Type >::t(), BDSFourVector< Type >::x(), BDSFourVector< Type >::y(), and BDSFourVector< Type >::z().

Here is the call graph for this function:

operator()() [3/4]

BDSFieldValue & BDSArray4D::operator() ( G4int  x, G4int  y = 0, G4int  z = 0, G4int  t = 0  )

virtual

Setter & (technically, a non-const) accessor.

Definition at line 37 of file BDSArray4D.cc.

References data, nX, nY, nZ, and OutsideWarn().

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

operator()() [4/4]

const BDSFieldValue & BDSArray4D::operator() ( G4int  x, G4int  y = 0, G4int  z = 0, G4int  t = 0  ) const

virtual

Convenience shortcut to GetConst().

Definition at line 56 of file BDSArray4D.cc.

References GetConst().

Here is the call graph for this function:

Outside()

G4bool BDSArray4D::Outside ( G4int  x, G4int  y, G4int  z, G4int  t  ) const

virtual

Return whether the indices are valid and lie within the array boundaries or not.

Reimplemented in BDSArray2DCoordsRDipole, and BDSArray2DCoordsRQuad.

Definition at line 64 of file BDSArray4D.cc.

References nT, nX, nY, and nZ.

Referenced by GetConst(), and OutsideWarn().

Here is the caller graph for this function:

OutsideWarn()

void BDSArray4D::OutsideWarn ( G4int  x, G4int  y, G4int  z, G4int  t  ) const

virtual

Use Outside() but warn and exit if the coordinates requested are outside the array.

Definition at line 76 of file BDSArray4D.cc.

References Outside().

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

Print()

std::ostream & BDSArray4D::Print ( std::ostream &  out ) const

virtual

Virtual function is more flexible than plain operator<< for ostreaming as the derived function may use the base class part of the print out first or in a different way. The operator<< for ostream uses this function.

Reimplemented in BDSArray1DCoordsTransformed, BDSArray2DCoordsRDipole, BDSArray2DCoordsRQuad, BDSArray2DCoordsTransformed, BDSArray3DCoordsTransformed, BDSArray4DCoords, and BDSArray4DCoordsTransformed.

Definition at line 91 of file BDSArray4D.cc.

References GetConst(), nT, nX, nY, and nZ.

Referenced by BDSArray1DCoordsTransformed::Print(), BDSArray2DCoordsRDipole::Print(), BDSArray2DCoordsRQuad::Print(), BDSArray2DCoordsTransformed::Print(), BDSArray3DCoordsTransformed::Print(), and BDSArray4DCoords::Print().

Here is the call graph for this function:

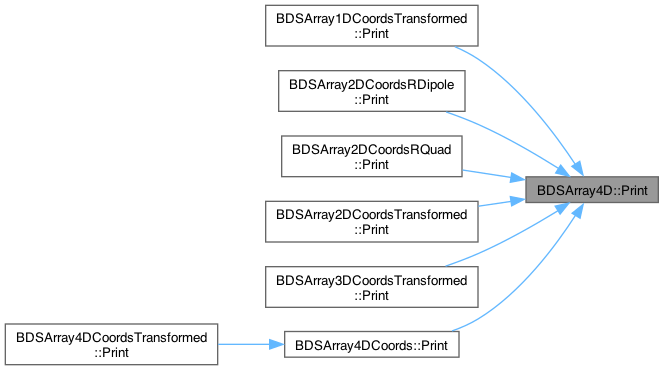

Here is the caller graph for this function:

Friends And Related Function Documentation

operator<<

std::ostream & operator<< ( std::ostream &  out, BDSArray4D const &  a  )

friend

Output stream.

Definition at line 112 of file BDSArray4D.cc.

Field Documentation

data

std::vector<BDSFieldValue> BDSArray4D::data

private

A 1D array representing all the data.

Definition at line 131 of file BDSArray4D.hh.

Referenced by GetConst(), and operator()().

defaultValue

BDSFieldValue BDSArray4D::defaultValue

protected

Need to store a default value so it can be return by reference.

Definition at line 127 of file BDSArray4D.hh.

Referenced by BDSArray2DCoordsRDipole::GetConst(), BDSArray2DCoordsRQuad::GetConst(), and GetConst().

nT

const G4int BDSArray4D::nT

protected

Dimension.

Definition at line 123 of file BDSArray4D.hh.

Referenced by BDSArray4DCoords::BDSArray4DCoords(), NT(), BDSArray2DCoordsRDipole::Outside(), BDSArray2DCoordsRQuad::Outside(), Outside(), BDSArray2DCoordsRDipole::Print(), BDSArray2DCoordsRQuad::Print(), and Print().

nX

const G4int BDSArray4D::nX

protected

Dimension.

Definition at line 120 of file BDSArray4D.hh.

Referenced by BDSArray4DCoords::BDSArray4DCoords(), BDSArray2DCoordsRDipole::GetConst(), BDSArray2DCoordsRQuad::GetConst(), GetConst(), NX(), operator()(), BDSArray2DCoordsRDipole::Outside(), BDSArray2DCoordsRQuad::Outside(), Outside(), BDSArray2DCoordsRDipole::Print(), BDSArray2DCoordsRQuad::Print(), and Print().

nY

const G4int BDSArray4D::nY

protected

Dimension.

Definition at line 121 of file BDSArray4D.hh.

Referenced by BDSArray4DCoords::BDSArray4DCoords(), BDSArray2DCoordsRDipole::GetConst(), BDSArray2DCoordsRQuad::GetConst(), GetConst(), NY(), operator()(), BDSArray2DCoordsRDipole::Outside(), BDSArray2DCoordsRQuad::Outside(), Outside(), BDSArray2DCoordsRDipole::Print(), BDSArray2DCoordsRQuad::Print(), and Print().

nZ

const G4int BDSArray4D::nZ

protected

Dimension.

Definition at line 122 of file BDSArray4D.hh.

Referenced by BDSArray4DCoords::BDSArray4DCoords(), GetConst(), NZ(), operator()(), BDSArray2DCoordsRDipole::Outside(), BDSArray2DCoordsRQuad::Outside(), Outside(), BDSArray2DCoordsRDipole::Print(), BDSArray2DCoordsRQuad::Print(), and Print().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSArray4D.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSArray4D.cc
