BDSArrayOperatorValue Class Reference

Interface for modifying field values. More...

#include <BDSArrayOperatorValue.hh>

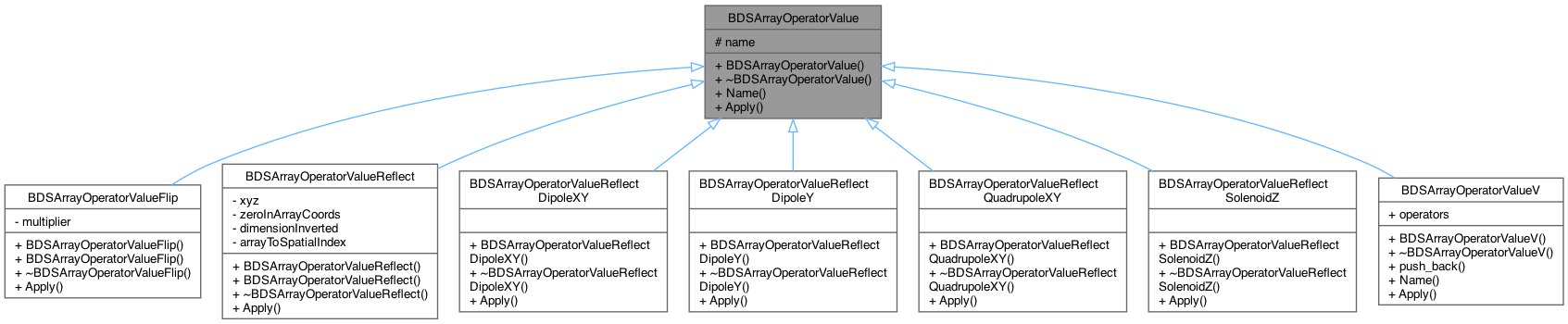

Inheritance diagram for BDSArrayOperatorValue:

Collaboration diagram for BDSArrayOperatorValue:

Public Member Functions
	BDSArrayOperatorValue (const G4String &nameIn="None")
virtual G4String	Name () const
	Return a name of the operator for feedback to the user in print out.
virtual BDSFieldValue	Apply (BDSFieldValue v, G4int, G4int=0, G4int=0, G4int=0) const

Protected Attributes
G4String	name

Detailed Description

Interface for modifying field values.

Apply() method is pure virtual

Author

Laurie Nevay

Definition at line 32 of file BDSArrayOperatorValue.hh.

Constructor & Destructor Documentation

BDSArrayOperatorValue()

BDSArrayOperatorValue::BDSArrayOperatorValue ( const G4String &  nameIn = "None" )

inlineexplicit

Definition at line 35 of file BDSArrayOperatorValue.hh.

~BDSArrayOperatorValue()

virtual BDSArrayOperatorValue::~BDSArrayOperatorValue ( )

inlinevirtual

Definition at line 38 of file BDSArrayOperatorValue.hh.

Member Function Documentation

Apply()

virtual BDSFieldValue BDSArrayOperatorValue::Apply ( BDSFieldValue  v, G4int  , G4int  = 0, G4int  = 0, G4int  = 0  ) const

inlinevirtual

Index arguments are original coordinate space indices, i.e. allowed to be negative. No action by default.

Reimplemented in BDSArrayOperatorValueReflect, BDSArrayOperatorValueV, BDSArrayOperatorValueReflectDipoleXY, BDSArrayOperatorValueReflectDipoleY, BDSArrayOperatorValueReflectQuadrupoleXY, BDSArrayOperatorValueReflectSolenoidZ, and BDSArrayOperatorValueFlip.

Definition at line 45 of file BDSArrayOperatorValue.hh.

Referenced by BDSArray1DCoordsTransformed::ExtractNearest(), BDSArray2DCoordsTransformed::ExtractNearest(), BDSArray3DCoordsTransformed::ExtractNearest(), BDSArray4DCoordsTransformed::ExtractNearest(), BDSArray1DCoordsTransformed::ExtractSection2(), BDSArray2DCoordsTransformed::ExtractSection2x2(), BDSArray3DCoordsTransformed::ExtractSection2x2x2(), BDSArray4DCoordsTransformed::ExtractSection2x2x2x2(), BDSArray1DCoordsTransformed::ExtractSection4(), BDSArray2DCoordsTransformed::ExtractSection4x4(), BDSArray3DCoordsTransformed::ExtractSection4x4x4(), and BDSArray4DCoordsTransformed::ExtractSection4x4x4x4().

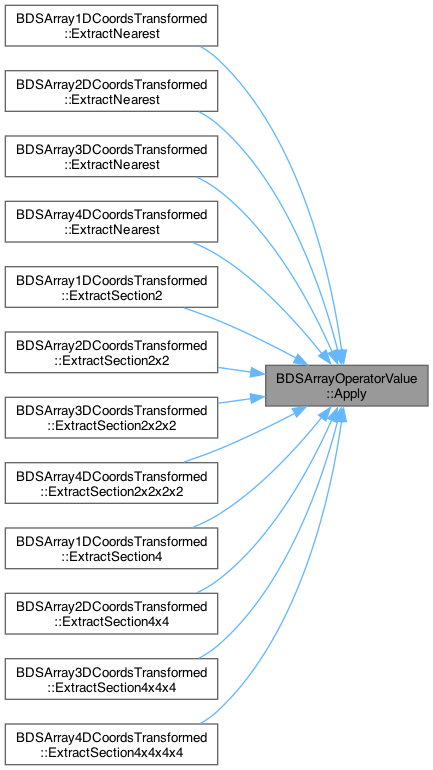

Here is the caller graph for this function:

Name()

virtual G4String BDSArrayOperatorValue::Name ( ) const

inlinevirtual

Return a name of the operator for feedback to the user in print out.

Reimplemented in BDSArrayOperatorValueV.

Definition at line 41 of file BDSArrayOperatorValue.hh.

Referenced by BDSFieldLoader::CreateOperators(), BDSArray1DCoordsTransformed::Print(), BDSArray2DCoordsTransformed::Print(), BDSArray3DCoordsTransformed::Print(), and BDSArray4DCoordsTransformed::Print().

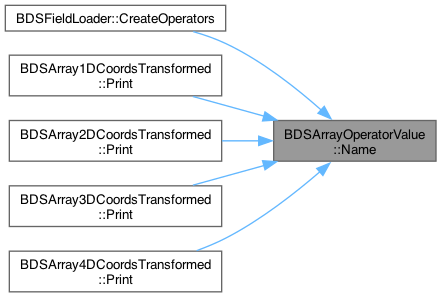

Here is the caller graph for this function:

Field Documentation

name

G4String BDSArrayOperatorValue::name

protected

Definition at line 53 of file BDSArrayOperatorValue.hh.

---

The documentation for this class was generated from the following file:

• /Users/lnevay/physics/reps/bdsim/include/BDSArrayOperatorValue.hh
