BDSBeamPipeFactoryRhombus Class Reference

Factory for rhombus aperture model beampipes. More...

#include <BDSBeamPipeFactoryRhombus.hh>

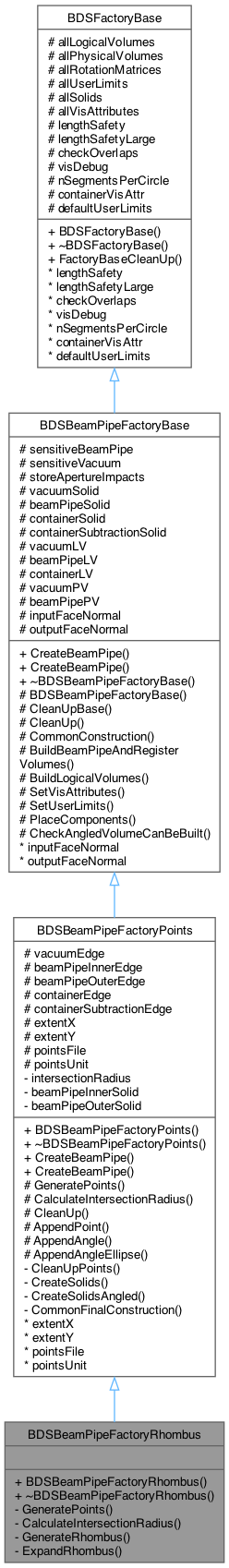

Inheritance diagram for BDSBeamPipeFactoryRhombus:
Inheritance graph
Collaboration diagram for BDSBeamPipeFactoryRhombus:
Collaboration graph

Private Member Functions

virtual void GeneratePoints (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness, G4int pointsPerTwoPi=40)
 Generate all the sets of required points for each surface.

virtual G4double CalculateIntersectionRadius (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness)
 Calculate the radius of the solid used for intersection for angled faces.

void GenerateRhombus (std::vector< G4TwoVector > &vec, G4double x1, G4double y1, G4double cornerRadius, G4int pointsPerTwoPi)
 Generate either 4 points or set of points with curved edges.

BDS::ThreePoints ExpandRhombus (G4double aper1, G4double aper2, G4double aper3, G4double distance)
 Expand the rhombus as needed.


Additional Inherited Members

- Public Member Functions inherited from BDSBeamPipeFactoryPoints
virtual BDSBeamPipeCreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material *vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material *beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
 Required overloaded method from BDSBeamPipeFactoryBase to build straight piece of beam pipe.

virtual BDSBeamPipeCreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double aper4In, G4Material *vacuumMaterialIn, G4double beamPipeThicknessIn, G4Material *beamPipeMaterialIn, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")
 Required overloaded method from BDSBeamPipeFactoryBase to build angled piece of beam pipe.

- Public Member Functions inherited from BDSBeamPipeFactoryBase
virtual BDSBeamPipeCreateBeamPipe (const G4String &nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0
 create a flat ended beampipe

virtual BDSBeamPipeCreateBeamPipe (const G4String &nameIn, G4double lengthIn, const G4ThreeVector &inputFaceNormalIn, const G4ThreeVector &outputFaceNormalIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=nullptr, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=nullptr, const G4String &pointsFileIn="", const G4String &pointsUnitIn="")=0

virtual ~BDSBeamPipeFactoryBase ()
 Virtual base destructor.

- Public Member Functions inherited from BDSFactoryBase
virtual void FactoryBaseCleanUp ()
 Empty containers for next use - factories are never deleted so can't rely on scope.

- Protected Member Functions inherited from BDSBeamPipeFactoryPoints
virtual void GeneratePoints (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness, G4int pointsPerTwoPi=40)=0

virtual G4double CalculateIntersectionRadius (G4double aper1, G4double aper2, G4double aper3, G4double aper4, G4double beamPipeThickness)=0

virtual void CleanUp ()
 Clear member vectors and run base class clean up to clear pointers between runs.

void AppendPoint (std::vector< G4TwoVector > &vec, G4double x, G4double y)

void AppendAngle (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radius, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)

void AppendAngleEllipse (std::vector< G4TwoVector > &vec, G4double startAngle, G4double finishAngle, G4double radiusA, G4double radiusB, G4int nPoints=10, G4double xOffset=0, G4double yOffset=0)
 Generate 2-vector points (and append them) about an ellipse.

- Protected Member Functions inherited from BDSBeamPipeFactoryBase
 BDSBeamPipeFactoryBase ()
 base constructor

void CleanUpBase ()

virtual void CleanUp ()

void CommonConstruction (const G4String &nameIn, G4Material *vacuumMaterialIn, G4Material *beamPipeMaterialIn, G4double length)
 finalise beampipe construction

BDSBeamPipeBuildBeamPipeAndRegisterVolumes (BDSExtent extent, G4double containerRadius, G4bool containerIsCircular=false)
 build beampipe and register logical volumes

virtual void BuildLogicalVolumes (const G4String &nameIn, G4Material *vacuumMaterialIn, G4Material *beamPipeMaterialIn)
 build logical volumes

virtual void SetVisAttributes (G4Material *beamPipeMaterialIn, G4Material *vacuumMaterialIn)
 Set visual attributes.

virtual void SetUserLimits (G4double length)
 Set user limits.

virtual void PlaceComponents (const G4String &nameIn)
 Place volumes.

- Static Protected Member Functions inherited from BDSBeamPipeFactoryBase
static void CheckAngledVolumeCanBeBuilt (G4double length, const G4ThreeVector &inputfaceAngle, const G4ThreeVector &outputfaceAngle, G4double horizontalWidth, const G4String &name)
 check if a beam pipe volume with angled faces can be constructed

- Protected Attributes inherited from BDSBeamPipeFactoryPoints
std::vector< G4TwoVector > vacuumEdge
 Vector of x,y coordinates for vacuum extruded solid edge.

std::vector< G4TwoVector > beamPipeInnerEdge
 Vector of x,y coordinates for beam pipe inner edge.

std::vector< G4TwoVector > beamPipeOuterEdge
 Vector of x,y coordinates for beam pipe outer edge.

std::vector< G4TwoVector > containerEdge
 Vector of x,y coordinates for the container volume.

std::vector< G4TwoVector > containerSubtractionEdge
 Vector of x,y coordinates for the container subtraction volume.

G4double extentX
 Extents prepared by GeneratePoints function as only it knows the extents.

G4double extentY
 Extents prepared by GeneratePoints function as only it knows the extents.

G4String pointsFile
 Temporary copy of input variables.

G4String pointsUnit
 Temporary copy of input variables.

- Protected Attributes inherited from BDSBeamPipeFactoryBase
G4bool sensitiveBeamPipe
 Whether the beam pipe will record energy deposition.

G4bool sensitiveVacuum
 Whether the vacuum will record any energy deposition.

G4bool storeApertureImpacts
 Whether to store aperture impacts.

G4VSolid * vacuumSolid

G4VSolid * beamPipeSolid

G4VSolid * containerSolid

G4VSolid * containerSubtractionSolid
 Longer (in length) version of container solid for unambiguous subtraction.

G4LogicalVolume * vacuumLV

G4LogicalVolume * beamPipeLV

G4LogicalVolume * containerLV

G4PVPlacement * vacuumPV

G4PVPlacement * beamPipePV

G4ThreeVector inputFaceNormal
 For recording the face normals in the finished pipe component.

G4ThreeVector outputFaceNormal
 For recording the face normals in the finished pipe component.

- Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * > allLogicalVolumes

std::set< G4VPhysicalVolume * > allPhysicalVolumes

std::set< G4RotationMatrix * > allRotationMatrices

std::set< G4UserLimits * > allUserLimits

std::set< G4VSolid * > allSolids

std::set< G4VisAttributes * > allVisAttributes

G4double lengthSafety
 Cache of global constants variable.

G4double lengthSafetyLarge
 Cache of global constants variable.

G4bool checkOverlaps
 Cache of global constants variable.

G4bool visDebug
 Cache of global constants variable.

G4int nSegmentsPerCircle
 Cache of global constants variable.

G4VisAttributes * containerVisAttr
 Cache of global constants variable.

G4UserLimits * defaultUserLimits
 Cache of global constants variable.


Detailed Description

Factory for rhombus aperture model beampipes.

This is a diamond shaped aperture. It optionally has a corner radius for rounded edges. aper1 is the full extent of what would be the unrounded corner in x; aper2 is the full extent of what would be the the unrounded corner in y. aper3 is the radius of curvature for the corners and is optional, with the default value of 0.

Constructed using an extruded solid with a series of points.

Author
Laurie Nevay

Definition at line 48 of file BDSBeamPipeFactoryRhombus.hh.

Constructor & Destructor Documentation

◆ BDSBeamPipeFactoryRhombus()

BDSBeamPipeFactoryRhombus::BDSBeamPipeFactoryRhombus ( )

Definition at line 29 of file BDSBeamPipeFactoryRhombus.cc.

◆ ~BDSBeamPipeFactoryRhombus()

virtual BDSBeamPipeFactoryRhombus::~BDSBeamPipeFactoryRhombus ( )
inlinevirtual

Definition at line 52 of file BDSBeamPipeFactoryRhombus.hh.

Member Function Documentation

◆ CalculateIntersectionRadius()

G4double BDSBeamPipeFactoryRhombus::CalculateIntersectionRadius ( G4double  aper1,
G4double  aper2,
G4double  aper3,
G4double  aper4,
G4double  beamPipeThickness
)
privatevirtual

Calculate the radius of the solid used for intersection for angled faces.

Implements BDSBeamPipeFactoryPoints.

Definition at line 128 of file BDSBeamPipeFactoryRhombus.cc.

References BDSFactoryBase::lengthSafetyLarge.

◆ ExpandRhombus()

BDS::ThreePoints BDSBeamPipeFactoryRhombus::ExpandRhombus ( G4double  aper1,
G4double  aper2,
G4double  aper3,
G4double  distance
)
private

Expand the rhombus as needed.

Definition at line 94 of file BDSBeamPipeFactoryRhombus.cc.

Referenced by GeneratePoints().

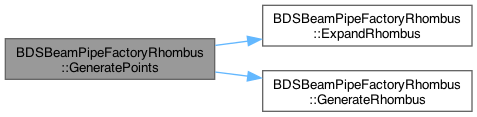

Here is the caller graph for this function:

◆ GeneratePoints()

void BDSBeamPipeFactoryRhombus::GeneratePoints ( G4double  aper1,
G4double  aper2,
G4double  aper3,
G4double  aper4,
G4double  beamPipeThickness,
G4int  pointsPerTwoPi = 40
)
privatevirtual

◆ GenerateRhombus()

void BDSBeamPipeFactoryRhombus::GenerateRhombus ( std::vector< G4TwoVector > &  vec,
G4double  x1,
G4double  y1,
G4double  cornerRadius,
G4int  pointsPerTwoPi
)
private

Generate either 4 points or set of points with curved edges.

Definition at line 32 of file BDSBeamPipeFactoryRhombus.cc.

Referenced by GeneratePoints().

Here is the caller graph for this function:
