A vector of BDSBeamlineElement instances - a beamline. More...

#include <BDSBeamline.hh>

Collaboration diagram for BDSBeamline:

Public Member Functions
BDSBeamline &	operator= (const BDSBeamline &)=delete
	assignment and copy constructor not implemented nor used.

	BDSBeamline (BDSBeamline &)=delete

	BDSBeamline (const G4ThreeVector &initialGlobalPosition=G4ThreeVector(0, 0, 0), G4RotationMatrix *initialGlobalRotation=nullptr, G4double initialSIn=0.0)

	BDSBeamline (G4Transform3D initialTransform, G4double initialSIn=0.0)
	Constructor with transform instance that uses other constructor.

void	AddComponent (BDSAcceleratorComponent component, BDSTiltOffset tiltOffset=nullptr, BDSSamplerInfo *samplerInfo=nullptr)

void	ApplyTransform3D (BDSTransform3D *component)

void	AddBeamlineElement (BDSBeamlineElement *element)

void	PrintAllComponents (std::ostream &out) const

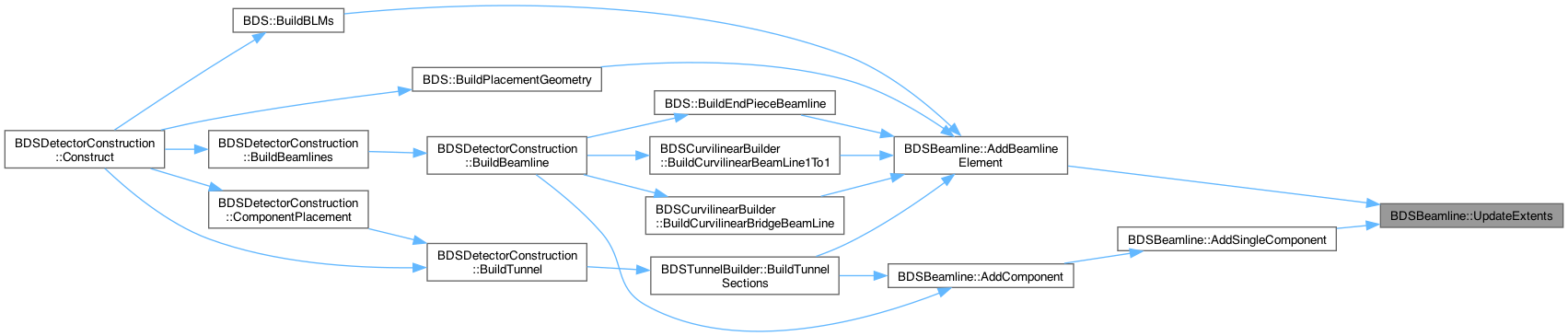

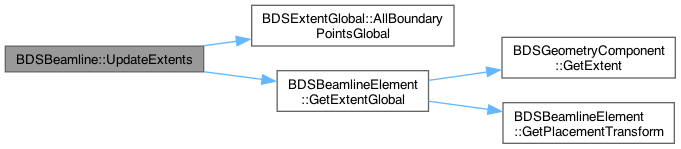

void	UpdateExtents (BDSBeamlineElement *element)

const BDSBeamlineElement *	at (int iElement) const
	Return a reference to the element at i.

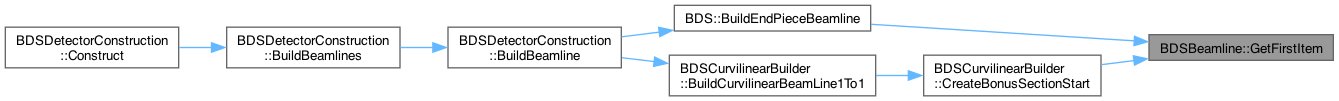

const BDSBeamlineElement *	GetFirstItem () const
	Return a reference to the first element.

const BDSBeamlineElement *	GetLastItem () const
	Return a reference to the last element.

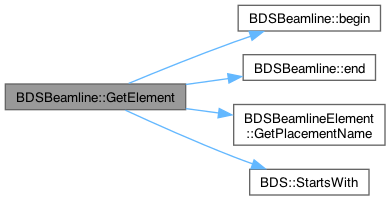

const BDSBeamlineElement *	GetElement (G4String acceleratorComponentName, G4int i=0) const
	Get the ith placement of an element in the beam line. Returns null pointer if not found.

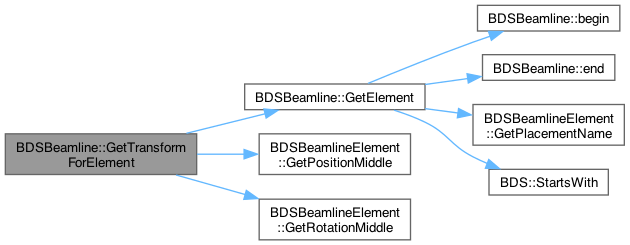

G4Transform3D	GetTransformForElement (const G4String &acceleratorComponentName, G4int i=0) const

G4double	GetTotalChordLength () const
	Get the total length of the beamline - the sum of the chord length of each element.

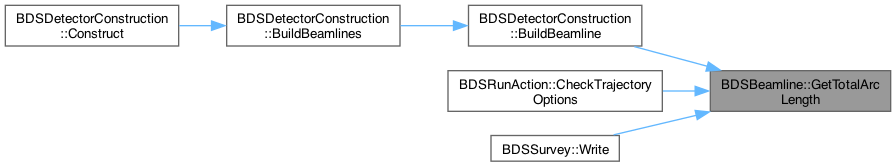

G4double	GetTotalArcLength () const
	Get the total ARC length for the beamline - ie the maximum s position.

G4double	GetTotalAngle () const
	Get the total angle of the beamline.

G4bool	ElementAnglesSumToCircle () const
	Check if the sum of the angle of all elements is two pi.

BeamlineVector::size_type	size () const
	Get the number of elements.

G4ThreeVector	GetMaximumExtentPositive () const
	Get the maximum positive extent in all dimensions

G4ThreeVector	GetMaximumExtentNegative () const
	Get the maximum negative extent in all dimensions.

G4ThreeVector	GetMaximumExtentAbsolute () const
	Get the maximum extent absolute in each dimension.

BDSExtentGlobal	GetExtentGlobal () const
	Get the global extents for this beamline.

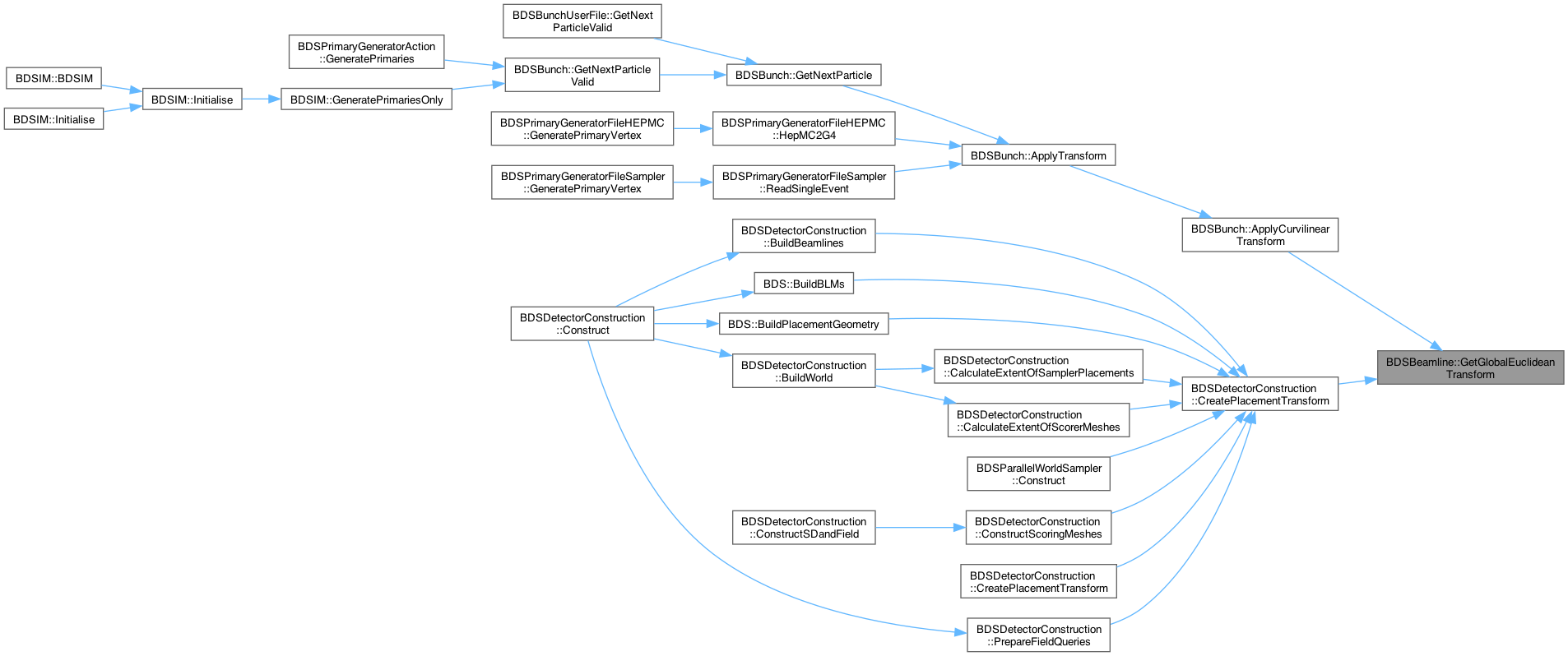

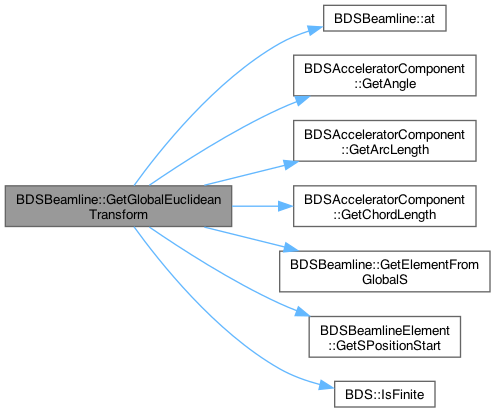

G4Transform3D	GetGlobalEuclideanTransform (G4double s, G4double x=0, G4double y=0, G4int *indexOfFoundElement=nullptr) const

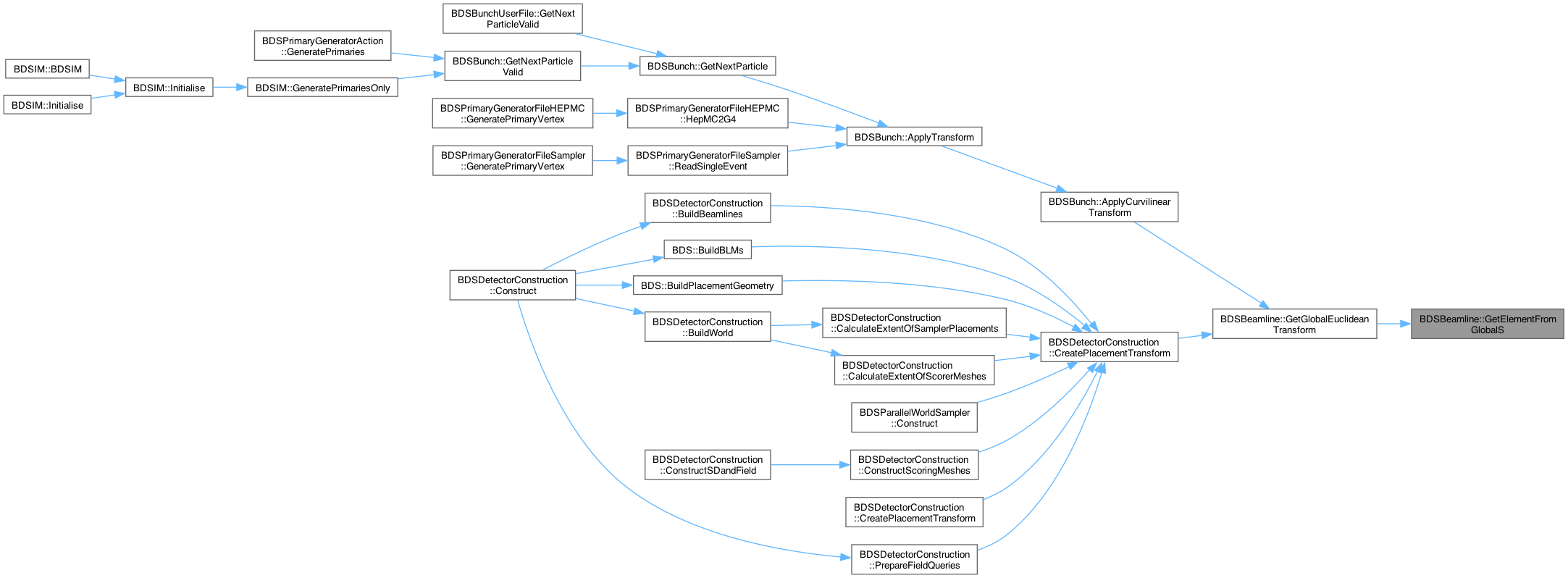

const BDSBeamlineElement *	GetElementFromGlobalS (G4double S, G4int *indexOfFoundElement=nullptr) const
	Return the element in this beam line according to a given s coordinate.

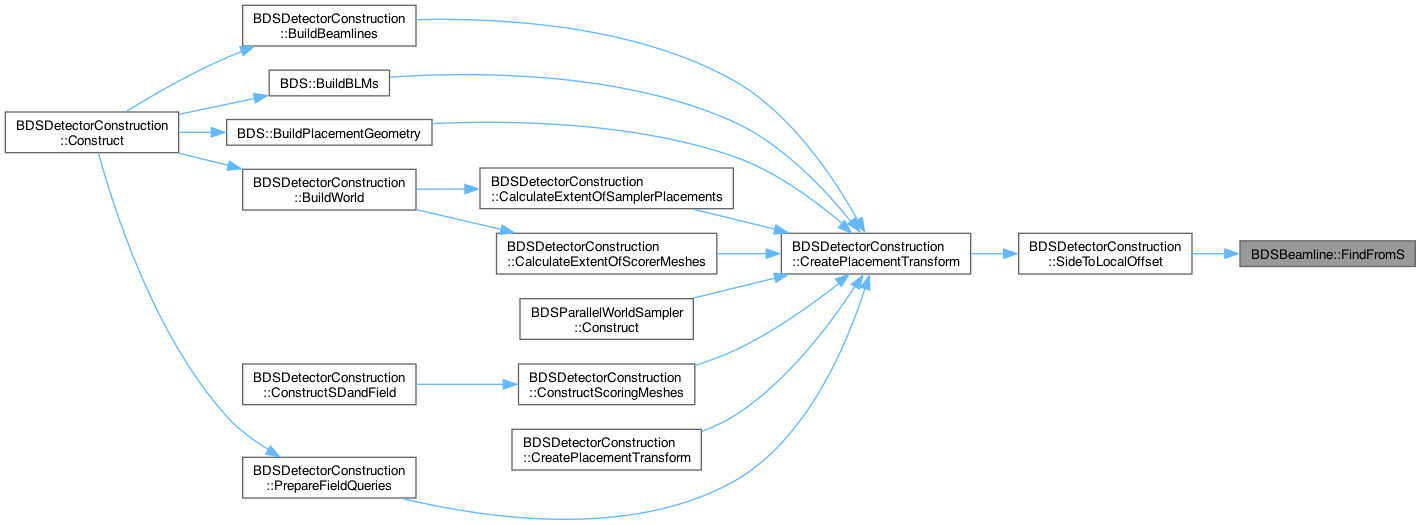

const_iterator	FindFromS (G4double S) const
	Returns an iterator to the beamline element at s.

std::vector< G4double >	GetEdgeSPositions () const

G4double	GetSMinimum () const

G4double	GetSMaximum () const

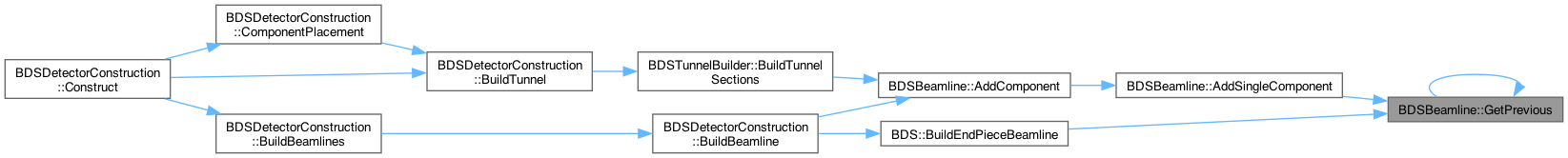

const BDSBeamlineElement *	GetPrevious (const BDSBeamlineElement *element) const

const BDSBeamlineElement *	GetNext (const BDSBeamlineElement *element) const

const BDSBeamlineElement *	GetPrevious (G4int index) const

const BDSBeamlineElement *	GetNext (G4int index) const

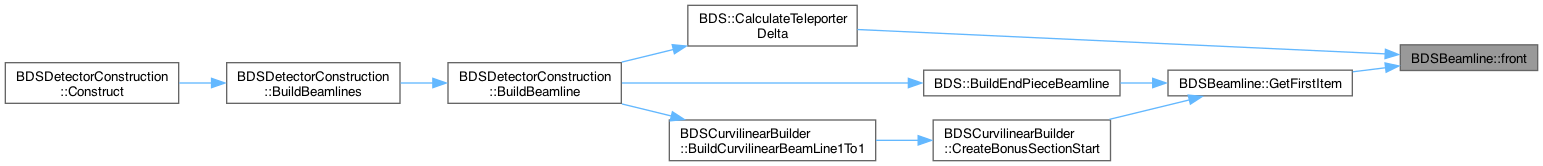

BDSBeamlineElement *	front () const
	Return a reference to the first element.

BDSBeamlineElement *	back () const
	Return a reference to the last element.

void	PrintMemoryConsumption () const

BDSBeamlineElement *	ProvideEndPieceElementBefore (BDSSimpleComponent *endPiece, G4int index) const

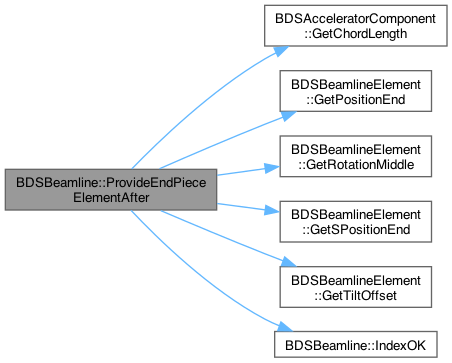

BDSBeamlineElement *	ProvideEndPieceElementAfter (BDSSimpleComponent *endPiece, G4int index, G4bool flip=false) const

G4bool	IndexOK (G4int index) const
	Whether the supplied index will lie within the beam line vector.

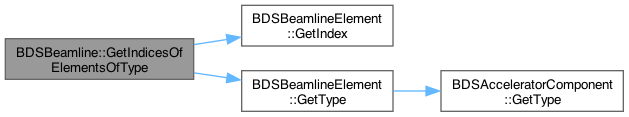

std::vector< G4int >	GetIndicesOfElementsOfType (const G4String &type) const
	Return vector of indices for this beam line where element of type name 'type' is found.

std::vector< G4int >	GetIndicesOfElementsOfType (const std::set< G4String > &types) const

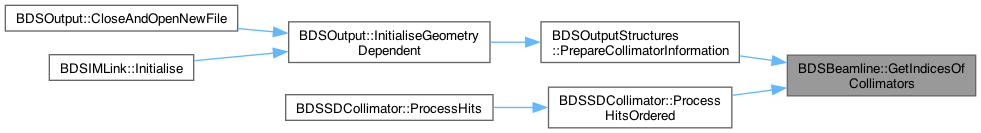

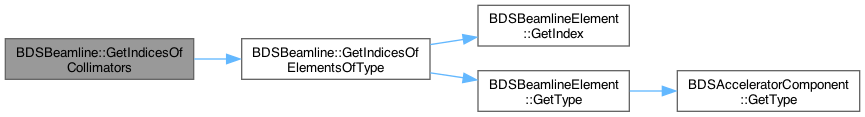

std::vector< G4int >	GetIndicesOfCollimators () const
	Return indices in order of ecol, rcol, jcol and crystalcol elements.

Static Public Member Functions
static G4double	PaddingLength ()
	Access the padding length between each element added to the beamline.

Private Types
typedef std::vector< BDSBeamlineElement * >	BeamlineVector
	Typedefs up first so we can declare public iterators.

Private Member Functions
void	AddSingleComponent (BDSAcceleratorComponent component, BDSTiltOffset tiltOffset=nullptr, BDSSamplerInfo *samplerInfo=nullptr)

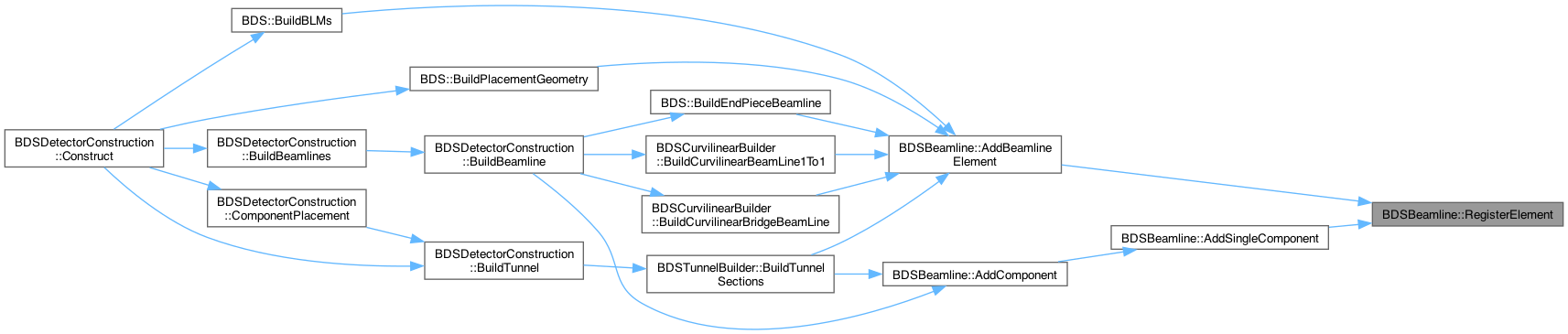

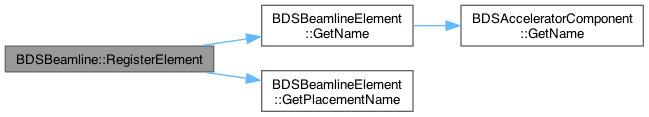

void	RegisterElement (BDSBeamlineElement *element)

Private Attributes
BeamlineVector	beamline
	Vector of beam line elements - the data.

G4double	sInitial
	Cache the initial S so we can tell if a requested S is too low.

G4double	sMaximum

G4double	totalChordLength
	Sum of all chord lengths.

G4double	totalArcLength
	Sum of all arc lengths.

G4double	totalAngle
	Sum of all angles.

G4ThreeVector	maximumExtentPositive
	maximum extent in the positive coordinates in each dimension

G4ThreeVector	maximumExtentNegative
	maximum extent in the negative coordinates in each dimension

G4RotationMatrix *	previousReferenceRotationEnd
	Current reference rotation at the end of the previous element.

G4ThreeVector	previousReferencePositionEnd
	Current reference position at the end of the previous element.

G4double	previousSPositionEnd
	Current s coordinate at the end of the previous element.

G4bool	transformHasJustBeenApplied

std::map< G4String, BDSBeamlineElement * >	components
	Map of objects by placement name stored in this beam line.

std::vector< G4double >	sEnd

Static Private Attributes
static G4double	paddingLength = -1
	The gap added for padding between each component.

Friends
std::ostream &	operator<< (std::ostream &out, BDSBeamline const &bl)
	output stream

typedef BeamlineVector::iterator	iterator
	Iterator mechanics.

typedef BeamlineVector::const_iterator	const_iterator
	Iterator mechanics.

typedef BeamlineVector::reverse_iterator	reverse_iterator
	Iterator mechanics.

typedef BeamlineVector::const_reverse_iterator	const_reverse_iterator
	Iterator mechanics.

iterator	begin ()
	Iterator mechanics.

iterator	end ()
	Iterator mechanics.

const_iterator	begin () const
	Iterator mechanics.

const_iterator	end () const
	Iterator mechanics.

reverse_iterator	rbegin ()
	Iterator mechanics.

reverse_iterator	rend ()
	Iterator mechanics.

const_reverse_iterator	rbegin () const
	Iterator mechanics.

const_reverse_iterator	rend () const
	Iterator mechanics.

G4bool	empty () const
	Iterator mechanics.

Detailed Description

A vector of BDSBeamlineElement instances - a beamline.

This will calculate and construct a beamline as BDSAcceleratorComponents are added in sequence - ie it calculates their placement positions and rotations with respect to the start of the beamline as well as their s position in curvilinear coordinates.

Note, this is not a singleton as geometry hierarchy can be introduced by placing beamline components inside parent volumes and therefore creating a new beamline of parents. It can also be used to create multiple beam lines.

Author: Laurie Nevay

Definition at line 60 of file BDSBeamline.hh.

Member Typedef Documentation

◆ BeamlineVector

typedef std::vector<BDSBeamlineElement*> BDSBeamline::BeamlineVector

private

Typedefs up first so we can declare public iterators.

Definition at line 64 of file BDSBeamline.hh.

◆ const_iterator

typedef BeamlineVector::const_iterator BDSBeamline::const_iterator

Iterator mechanics.

Definition at line 164 of file BDSBeamline.hh.

◆ const_reverse_iterator

typedef BeamlineVector::const_reverse_iterator BDSBeamline::const_reverse_iterator

Iterator mechanics.

Definition at line 166 of file BDSBeamline.hh.

◆ iterator

typedef BeamlineVector::iterator BDSBeamline::iterator

Iterator mechanics.

Definition at line 163 of file BDSBeamline.hh.

◆ reverse_iterator

typedef BeamlineVector::reverse_iterator BDSBeamline::reverse_iterator

Iterator mechanics.

Definition at line 165 of file BDSBeamline.hh.

Constructor & Destructor Documentation

◆ BDSBeamline() [1/2]

BDSBeamline::BDSBeamline	(	const G4ThreeVector &	initialGlobalPosition = `G4ThreeVector(0,0,0)`,
		G4RotationMatrix *	initialGlobalRotation = `nullptr`,
		G4double	initialSIn = `0.0`
	)

Versatile basic constructor that allows a finite position and rotation to be applied at the beginning of the beamline in global coordinates. Remember the maximum extents of the beamline will also be displaced. The default constructor is in effect achieved via defaults.

Definition at line 50 of file BDSBeamline.cc.

References BDSGlobalConstants::Instance(), maximumExtentNegative, maximumExtentPositive, paddingLength, and previousReferenceRotationEnd.

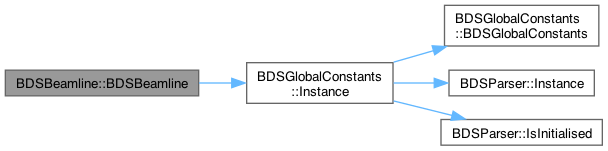

Here is the call graph for this function:

◆ BDSBeamline() [2/2]

BDSBeamline::BDSBeamline	(	G4Transform3D	initialTransform,
		G4double	initialSIn = `0.0`
	)

explicit

Constructor with transform instance that uses other constructor.

Definition at line 84 of file BDSBeamline.cc.

◆ ~BDSBeamline()

BDSBeamline::~BDSBeamline ( )

Definition at line 91 of file BDSBeamline.cc.

Member Function Documentation

◆ AddBeamlineElement()

void BDSBeamline::AddBeamlineElement ( BDSBeamlineElement * element )

Add a pre-assembled beam line element. In this case, the coordinates will have been calculated external to this class and as such, it's the responsibility of the developer to make sure the coordinates are correct and do not cause overlaps. This will be useful for tunnel construction for example or for a non-contiguous beamline. Subsequent components added via the AddComponent() method will be appended in the usual way to the end coordinates of this element.

Definition at line 574 of file BDSBeamline.cc.

References beamline, BDSBeamlineElement::GetAcceleratorComponent(), RegisterElement(), and UpdateExtents().

Referenced by BDS::BuildBLMs(), BDSCurvilinearBuilder::BuildCurvilinearBeamLine1To1(), BDSCurvilinearBuilder::BuildCurvilinearBridgeBeamLine(), BDS::BuildEndPieceBeamline(), BDS::BuildPlacementGeometry(), and BDSTunnelBuilder::BuildTunnelSections().

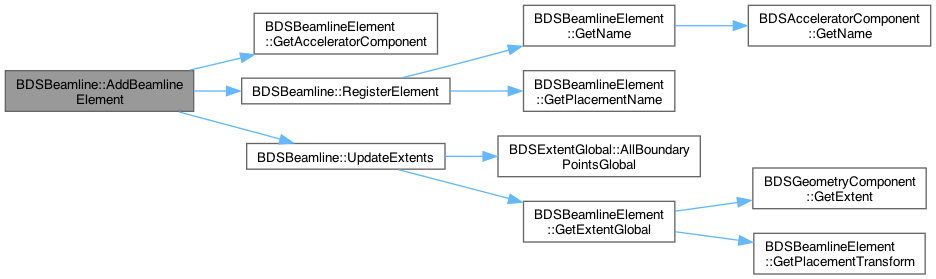

Here is the call graph for this function:

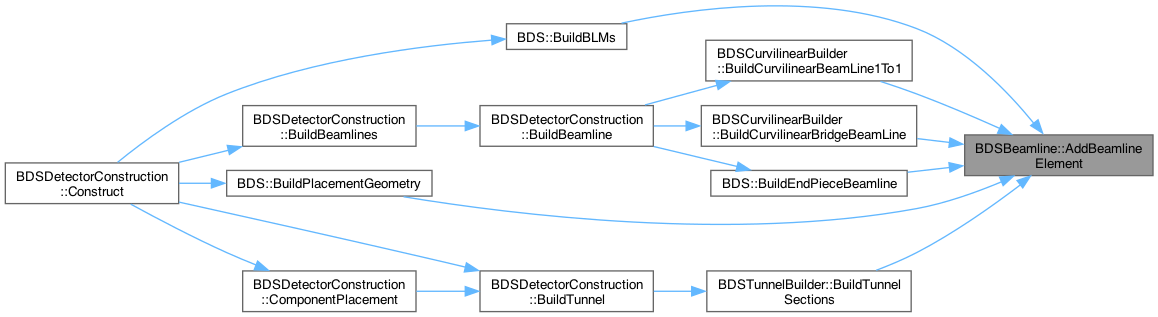

Here is the caller graph for this function:

◆ AddComponent()

void BDSBeamline::AddComponent	(	BDSAcceleratorComponent *	component,
		BDSTiltOffset *	tiltOffset = `nullptr`,
		BDSSamplerInfo *	samplerInfo = `nullptr`
	)

Add a component, but check to see if it can be dynamically upcast to a line in which case, loop over it and apply AddSingleComponent(BDSAcceleratorComponent* component) to each component Returns vector of components added

Definition at line 124 of file BDSBeamline.cc.

References AddSingleComponent(), back(), BDSBeamlineElement::GetReferencePositionEnd(), BDSBeamlineElement::GetReferencePositionStart(), BDSBeamlineElement::GetReferenceRotationEnd(), BDSBeamlineElement::GetReferenceRotationStart(), BDSBeamlineElement::GetSamplerInfo(), BDSOutput::InvalidSamplerName(), BDSOutput::PrintProtectedNames(), and BDSBeamlineElement::UpdateSamplerPlacementTransform().

Referenced by BDSDetectorConstruction::BuildBeamline(), and BDSTunnelBuilder::BuildTunnelSections().

Here is the call graph for this function:

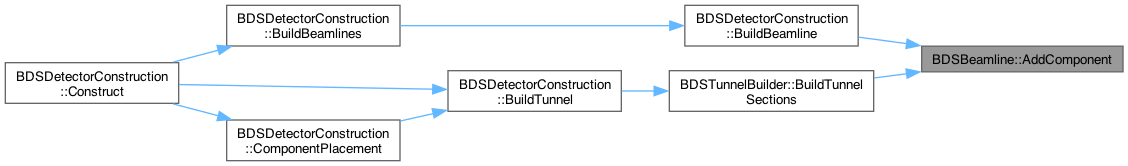

Here is the caller graph for this function:

◆ AddSingleComponent()

void BDSBeamline::AddSingleComponent	(	BDSAcceleratorComponent *	component,
		BDSTiltOffset *	tiltOffset = `nullptr`,
		BDSSamplerInfo *	samplerInfo = `nullptr`
	)

private

Add a single component and calculate its position and rotation with respect to the beginning of the beamline. Returns pointer to the component added.

Definition at line 209 of file BDSBeamline.cc.

References ApplyTransform3D(), back(), beamline, BDSSamplerPlane::ChordLength(), empty(), BDSBeamlineElement::GetAcceleratorComponent(), BDSAcceleratorComponent::GetAngle(), BDSAcceleratorComponent::GetArcLength(), BDSAcceleratorComponent::GetChordLength(), BDSBeamlineElement::GetChordLength(), BDSGeometryComponent::GetExtent(), BDSGeometryComponent::GetExtentNegative(), BDSGeometryComponent::GetExtentPositive(), BDSAcceleratorComponent::GetName(), BDSTiltOffset::GetOffset(), BDSGeometryComponent::GetPlacementOffset(), GetPrevious(), BDSBeamlineElement::GetReferencePositionEnd(), BDSBeamlineElement::GetReferenceRotationEnd(), BDSBeamlineElement::GetSPositionEnd(), BDSTiltOffset::GetTilt(), BDSAcceleratorComponent::GetType(), BDSBeamlineElement::GetType(), BDSTiltOffset::HasFiniteOffset(), BDSTiltOffset::HasFiniteTilt(), BDSAcceleratorComponent::InputFaceNormal(), BDS::IsFinite(), BDSAcceleratorComponent::OutputFaceNormal(), paddingLength, previousReferencePositionEnd, previousReferenceRotationEnd, previousSPositionEnd, RegisterElement(), sEnd, totalAngle, totalArcLength, totalChordLength, transformHasJustBeenApplied, UpdateExtents(), and BDS::WillIntersect().

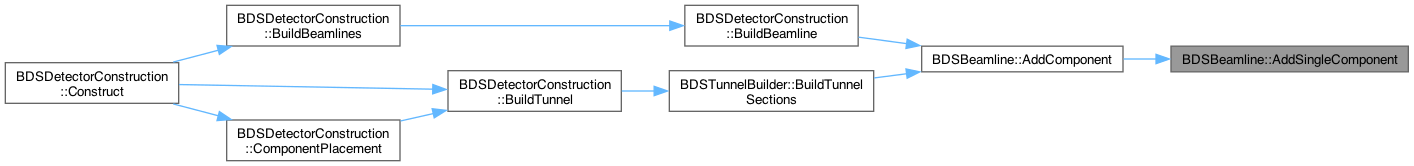

Referenced by AddComponent().

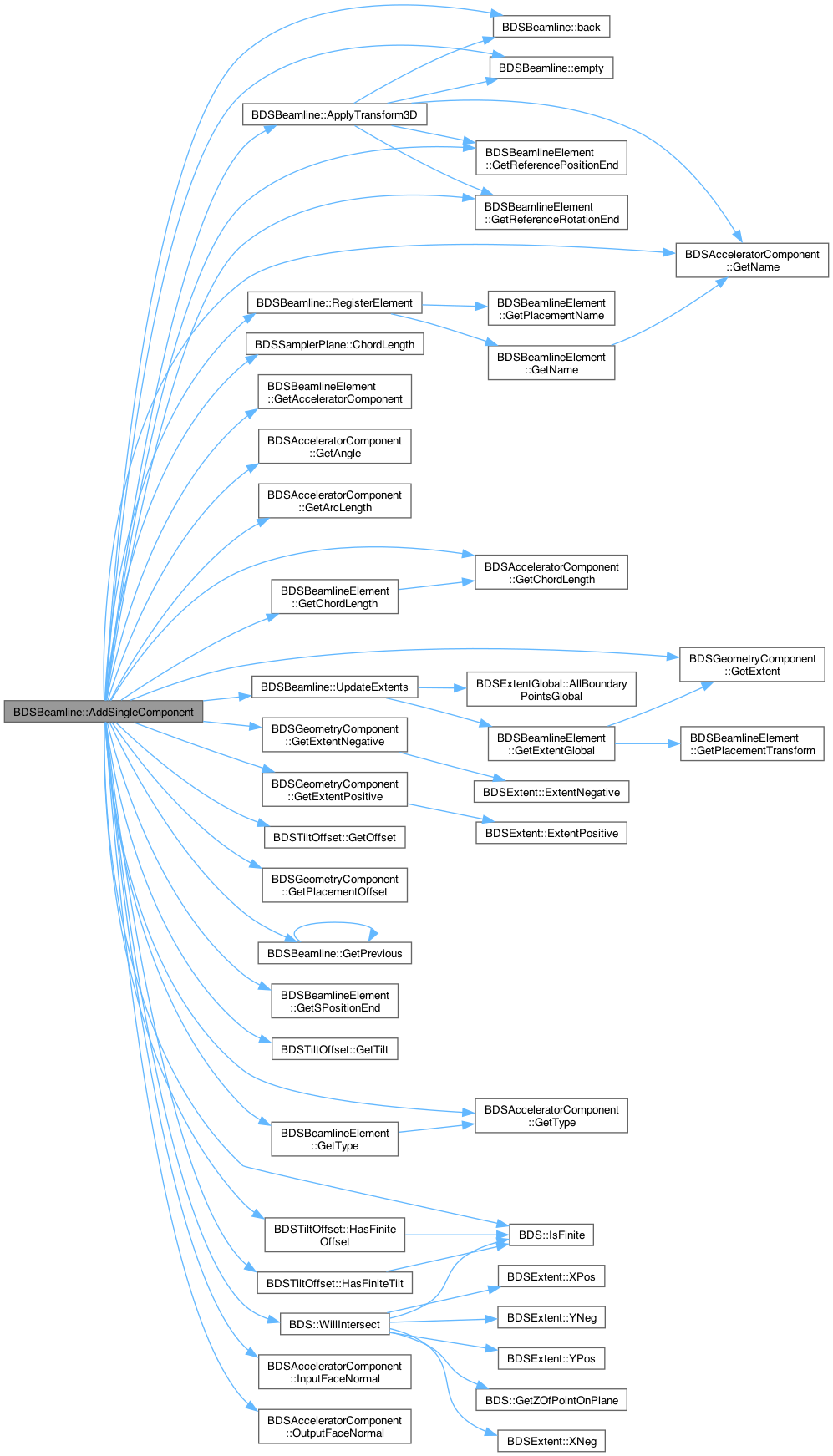

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ApplyTransform3D()

void BDSBeamline::ApplyTransform3D ( BDSTransform3D * component )

Apply a Transform3D rotation and translation to the reference coordinates. Special method for the special case of unique component Transform3D. Modifies the end rotation and position of the last element in the beamline. Note this applies the offset dx,dy,dz first, then the rotation of coordinates

Definition at line 542 of file BDSBeamline.cc.

References back(), empty(), BDSAcceleratorComponent::GetName(), BDSBeamlineElement::GetReferencePositionEnd(), BDSBeamlineElement::GetReferenceRotationEnd(), previousReferencePositionEnd, and previousReferenceRotationEnd.

Referenced by AddSingleComponent().

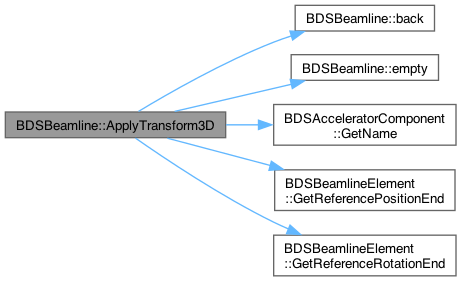

Here is the call graph for this function:

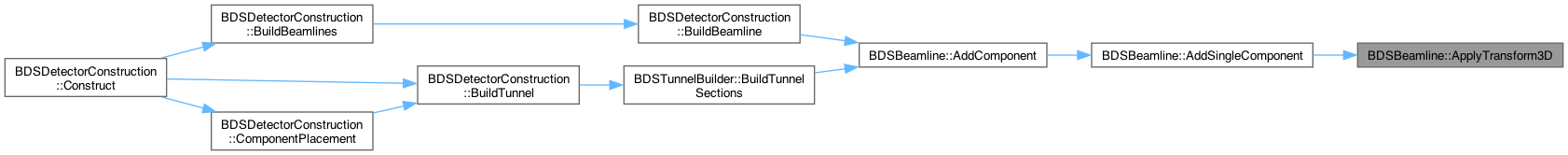

Here is the caller graph for this function:

◆ at()

const BDSBeamlineElement * BDSBeamline::at ( int iElement ) const

inline

Return a reference to the element at i.

Definition at line 120 of file BDSBeamline.hh.

References beamline.

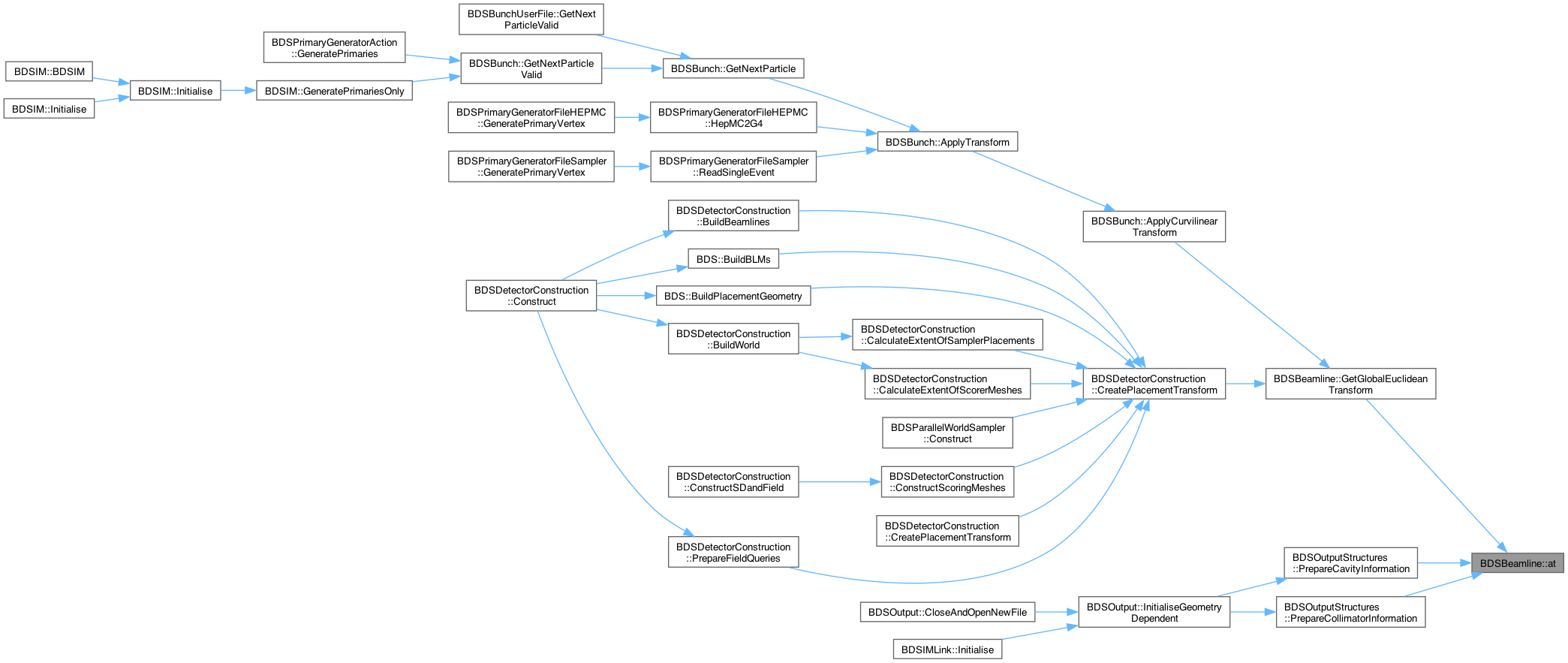

Referenced by GetGlobalEuclideanTransform(), BDSOutputStructures::PrepareCavityInformation(), and BDSOutputStructures::PrepareCollimatorInformation().

Here is the caller graph for this function:

◆ back()

BDSBeamlineElement * BDSBeamline::back ( ) const

inline

Return a reference to the last element.

Definition at line 214 of file BDSBeamline.hh.

References beamline.

Referenced by AddComponent(), AddSingleComponent(), ApplyTransform3D(), BDSDetectorConstruction::BuildBeamlines(), BDS::BuildEndPieceBeamline(), BDSTunnelBuilder::BuildTunnelSections(), BDS::CalculateTeleporterDelta(), and GetLastItem().

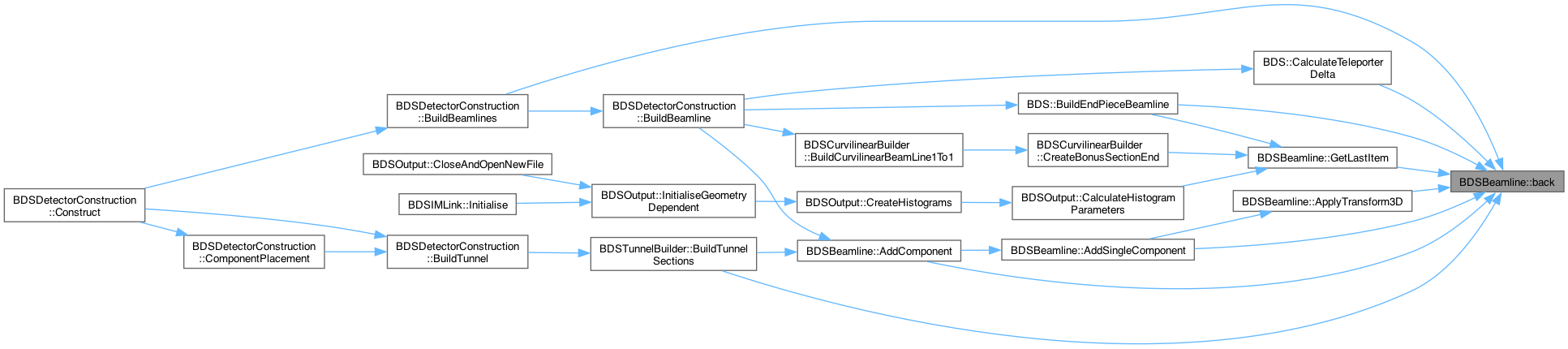

Here is the caller graph for this function:

◆ begin() [1/2]

iterator BDSBeamline::begin ( )

inline

Iterator mechanics.

Definition at line 167 of file BDSBeamline.hh.

References beamline.

Referenced by BDSDetectorConstruction::BuildBeamline(), BDSCurvilinearBuilder::BuildCurvilinearBeamLine1To1(), BDSCurvilinearBuilder::BuildCurvilinearBridgeBeamLine(), BDSTunnelBuilder::BuildTunnelSections(), BDSOutputROOTEventModel::Fill(), FindFromS(), and GetElement().

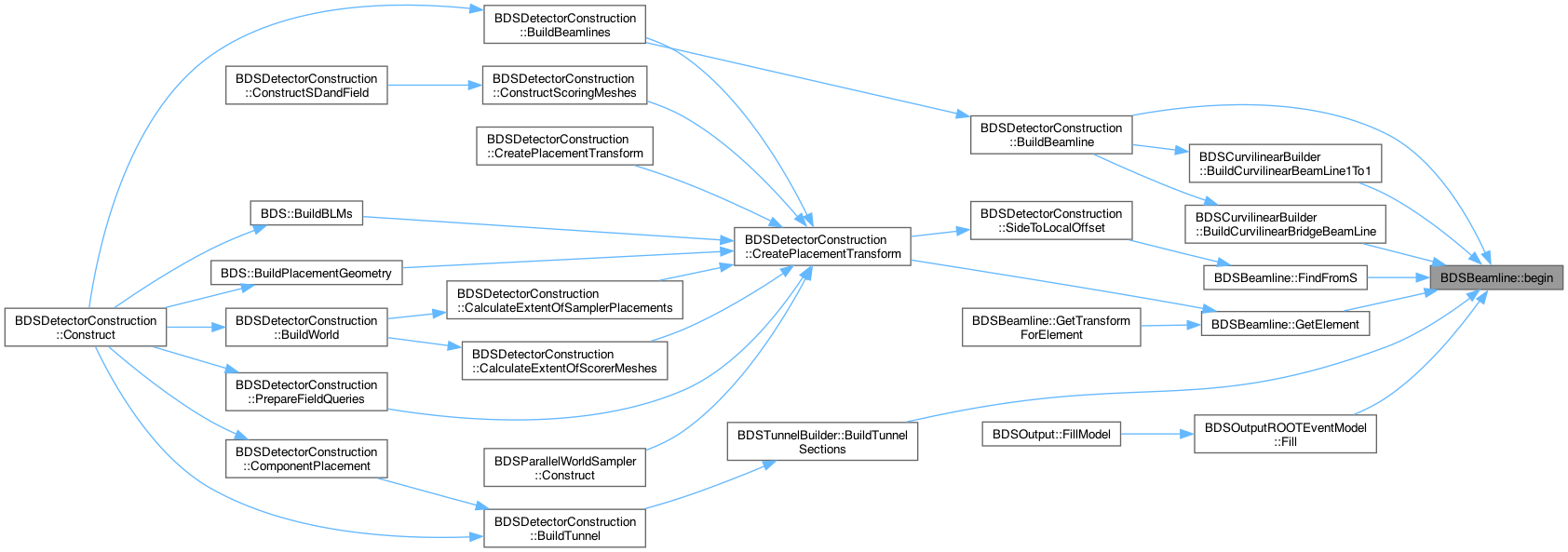

Here is the caller graph for this function:

◆ begin() [2/2]

const_iterator BDSBeamline::begin ( ) const

inline

Iterator mechanics.

Definition at line 169 of file BDSBeamline.hh.

References beamline.

◆ ElementAnglesSumToCircle()

G4bool BDSBeamline::ElementAnglesSumToCircle ( ) const

Check if the sum of the angle of all elements is two pi.

Definition at line 922 of file BDSBeamline.cc.

References totalAngle.

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the caller graph for this function:

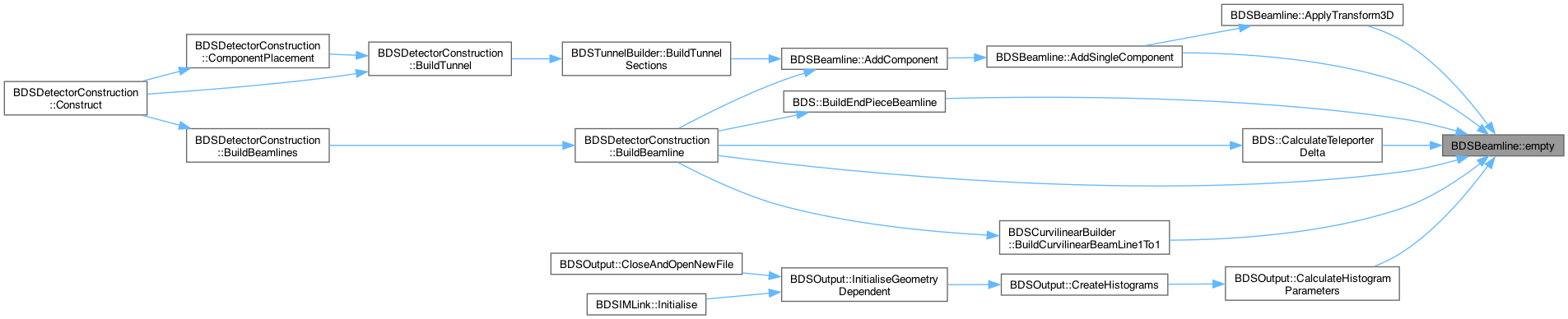

◆ empty()

G4bool BDSBeamline::empty ( ) const

inline

Iterator mechanics.

Definition at line 175 of file BDSBeamline.hh.

References beamline.

Referenced by AddSingleComponent(), ApplyTransform3D(), BDSDetectorConstruction::BuildBeamline(), BDSCurvilinearBuilder::BuildCurvilinearBeamLine1To1(), BDS::BuildEndPieceBeamline(), BDSOutput::CalculateHistogramParameters(), and BDS::CalculateTeleporterDelta().

Here is the caller graph for this function:

◆ end() [1/2]

iterator BDSBeamline::end ( )

inline

Iterator mechanics.

Definition at line 168 of file BDSBeamline.hh.

References beamline.

Referenced by BDSDetectorConstruction::BuildBeamline(), BDSCurvilinearBuilder::BuildCurvilinearBeamLine1To1(), BDSCurvilinearBuilder::BuildCurvilinearBridgeBeamLine(), BDSTunnelBuilder::BuildTunnelSections(), BDSOutputROOTEventModel::Fill(), GetElement(), and BDSDetectorConstruction::SideToLocalOffset().

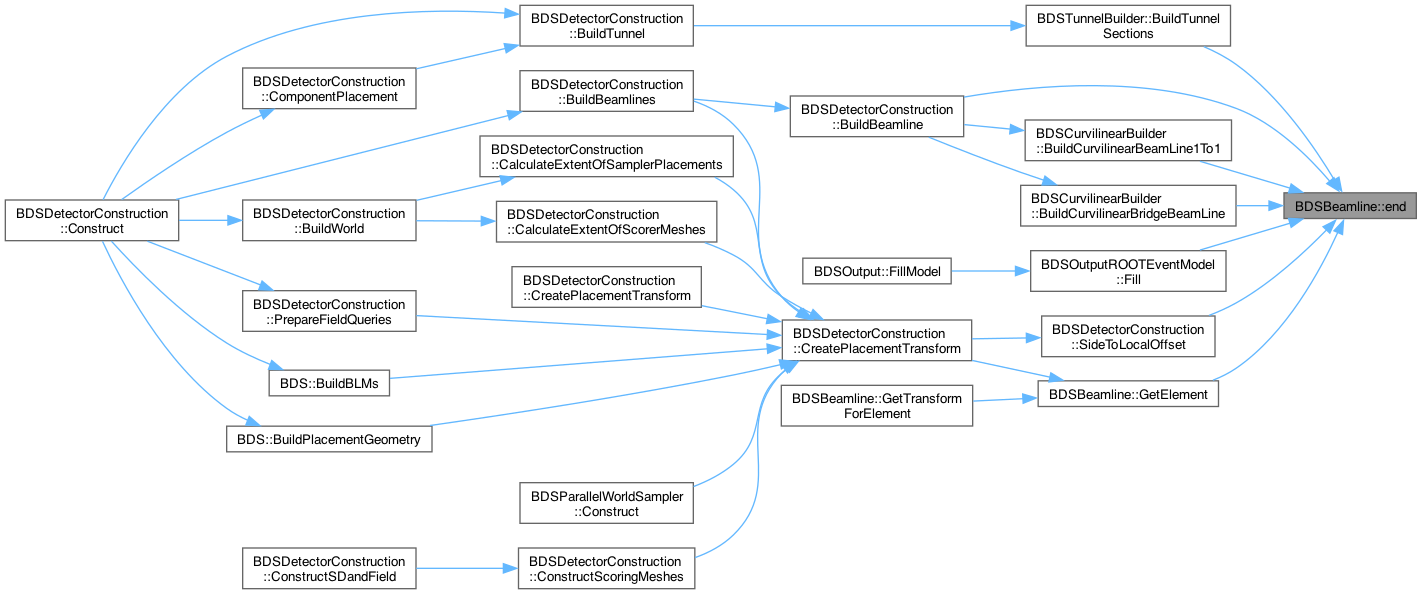

Here is the caller graph for this function:

◆ end() [2/2]

const_iterator BDSBeamline::end ( ) const

inline

Iterator mechanics.

Definition at line 170 of file BDSBeamline.hh.

References beamline.

◆ FindFromS()

BDSBeamline::const_iterator BDSBeamline::FindFromS ( G4double S ) const

Returns an iterator to the beamline element at s.

Definition at line 681 of file BDSBeamline.cc.

References begin(), and sEnd.

Referenced by BDSDetectorConstruction::SideToLocalOffset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ front()

BDSBeamlineElement * BDSBeamline::front ( ) const

inline

Return a reference to the first element.

Definition at line 212 of file BDSBeamline.hh.

References beamline.

Referenced by BDS::CalculateTeleporterDelta(), and GetFirstItem().

Here is the caller graph for this function:

◆ GetEdgeSPositions()

std::vector< G4double > BDSBeamline::GetEdgeSPositions ( ) const

Get the global s position of each element all in one - used for histograms. For convenience, s positions are converted to metres in this function.

Definition at line 909 of file BDSBeamline.cc.

References beamline, and BDSBeamlineElement::GetSPositionEnd().

Referenced by BDSOutput::CreateHistograms().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetElement()

const BDSBeamlineElement * BDSBeamline::GetElement	(	G4String	acceleratorComponentName,
		G4int	i = `0`
	)		const

Get the ith placement of an element in the beam line. Returns null pointer if not found.

Definition at line 739 of file BDSBeamline.cc.

References begin(), components, end(), BDSBeamlineElement::GetPlacementName(), and BDS::StartsWith().

Referenced by BDSDetectorConstruction::CreatePlacementTransform(), and GetTransformForElement().

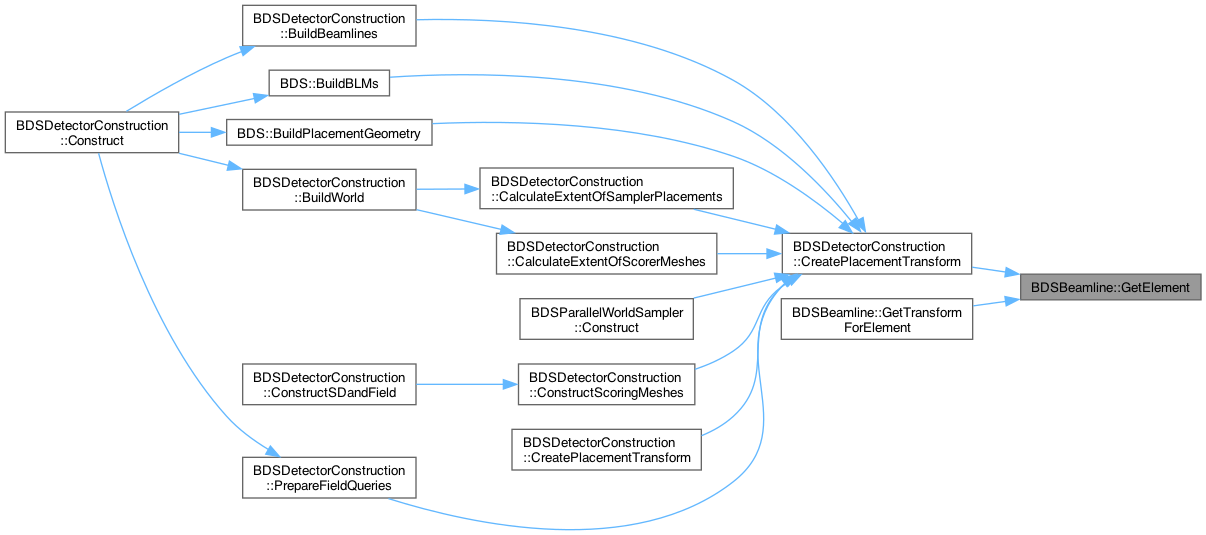

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetElementFromGlobalS()

const BDSBeamlineElement * BDSBeamline::GetElementFromGlobalS	(	G4double	S,
		G4int *	indexOfFoundElement = `nullptr`
	)		const

Return the element in this beam line according to a given s coordinate.

Definition at line 670 of file BDSBeamline.cc.

References beamline, and sEnd.

Referenced by GetGlobalEuclideanTransform().

Here is the caller graph for this function:

◆ GetExtentGlobal()

BDSExtentGlobal BDSBeamline::GetExtentGlobal ( ) const

Get the global extents for this beamline.

Definition at line 927 of file BDSBeamline.cc.

References maximumExtentNegative, and maximumExtentPositive.

Referenced by BDSDetectorConstruction::BuildWorld(), and BDSBeamlineSet::GetExtentGlobals().

Here is the caller graph for this function:

◆ GetFirstItem()

const BDSBeamlineElement * BDSBeamline::GetFirstItem ( ) const

inline

Return a reference to the first element.

Definition at line 123 of file BDSBeamline.hh.

References front().

Referenced by BDS::BuildEndPieceBeamline(), and BDSCurvilinearBuilder::CreateBonusSectionStart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetGlobalEuclideanTransform()

G4Transform3D BDSBeamline::GetGlobalEuclideanTransform	(	G4double	s,
		G4double	x = `0`,
		G4double	y = `0`,
		G4int *	indexOfFoundElement = `nullptr`
	)		const

Get the local to global transform for curvilinear coordinates to global coordinates. 0,0 transverse position by default. Optionally returns the index of the found element in the beam line (by reference variable).

Definition at line 601 of file BDSBeamline.cc.

References at(), BDSAcceleratorComponent::GetAngle(), BDSAcceleratorComponent::GetArcLength(), BDSAcceleratorComponent::GetChordLength(), GetElementFromGlobalS(), BDSBeamlineElement::GetSPositionStart(), BDS::IsFinite(), and totalArcLength.

Referenced by BDSBunch::ApplyCurvilinearTransform(), and BDSDetectorConstruction::CreatePlacementTransform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIndicesOfCollimators()

std::vector< G4int > BDSBeamline::GetIndicesOfCollimators ( ) const

Return indices in order of ecol, rcol, jcol and crystalcol elements.

Definition at line 957 of file BDSBeamline.cc.

References GetIndicesOfElementsOfType().

Referenced by BDSOutputStructures::PrepareCollimatorInformation(), and BDSSDCollimator::ProcessHitsOrdered().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIndicesOfElementsOfType() [1/2]

std::vector< G4int > BDSBeamline::GetIndicesOfElementsOfType ( const G4String & type ) const

Return vector of indices for this beam line where element of type name 'type' is found.

Definition at line 934 of file BDSBeamline.cc.

References beamline, BDSBeamlineElement::GetIndex(), and BDSBeamlineElement::GetType().

Referenced by GetIndicesOfCollimators(), and BDSOutputStructures::PrepareCavityInformation().

Here is the call graph for this function:

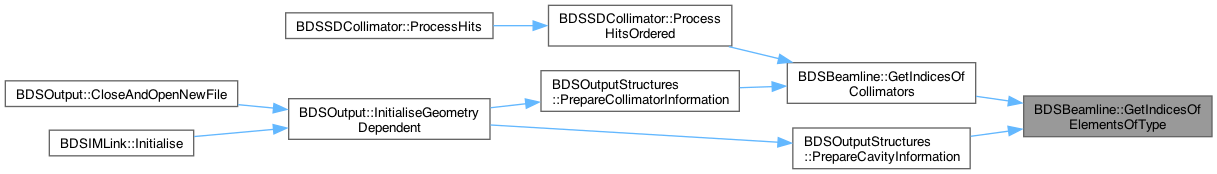

Here is the caller graph for this function:

◆ GetIndicesOfElementsOfType() [2/2]

std::vector< G4int > BDSBeamline::GetIndicesOfElementsOfType ( const std::set< G4String > & types ) const

Apply above function to get a set of types. These are in order as they appear in the beam line.

Definition at line 945 of file BDSBeamline.cc.

References beamline, BDSBeamlineElement::GetIndex(), and BDSBeamlineElement::GetType().

Here is the call graph for this function:

◆ GetLastItem()

const BDSBeamlineElement * BDSBeamline::GetLastItem ( ) const

inline

Return a reference to the last element.

Definition at line 126 of file BDSBeamline.hh.

References back().

Referenced by BDS::BuildEndPieceBeamline(), BDSOutput::CalculateHistogramParameters(), and BDSCurvilinearBuilder::CreateBonusSectionEnd().

Here is the call graph for this function:

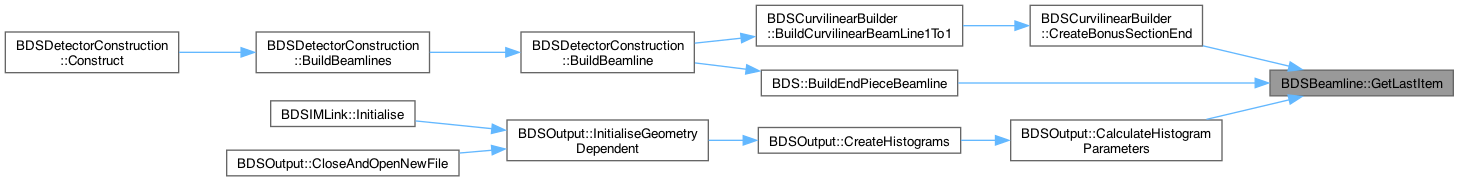

Here is the caller graph for this function:

◆ GetMaximumExtentAbsolute()

G4ThreeVector BDSBeamline::GetMaximumExtentAbsolute ( ) const

Get the maximum extent absolute in each dimension.

Definition at line 593 of file BDSBeamline.cc.

References maximumExtentNegative, and maximumExtentPositive.

Referenced by BDSBeamlineSet::GetMaximumExtentAbsolute().

Here is the caller graph for this function:

◆ GetMaximumExtentNegative()

G4ThreeVector BDSBeamline::GetMaximumExtentNegative ( ) const

inline

Get the maximum negative extent in all dimensions.

Definition at line 154 of file BDSBeamline.hh.

References maximumExtentNegative.

◆ GetMaximumExtentPositive()

G4ThreeVector BDSBeamline::GetMaximumExtentPositive ( ) const

inline

Get the maximum positive extent in all dimensions

Definition at line 151 of file BDSBeamline.hh.

References maximumExtentPositive.

◆ GetNext() [1/2]

const BDSBeamlineElement * BDSBeamline::GetNext ( const BDSBeamlineElement * element ) const

Definition at line 709 of file BDSBeamline.cc.

◆ GetNext() [2/2]

const BDSBeamlineElement * BDSBeamline::GetNext ( G4int index ) const

Definition at line 721 of file BDSBeamline.cc.

◆ GetPrevious() [1/2]

const BDSBeamlineElement * BDSBeamline::GetPrevious ( const BDSBeamlineElement * element ) const

Return a pointer to the previous element. First this beamline is searched for the vector. If there is no such element or no previous element because it's the beginning, then a nullptr is returned. The caller should test on this.

Definition at line 689 of file BDSBeamline.cc.

References beamline, and GetPrevious().

Referenced by AddSingleComponent(), BDS::BuildEndPieceBeamline(), and GetPrevious().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPrevious() [2/2]

const BDSBeamlineElement * BDSBeamline::GetPrevious ( G4int index ) const

Definition at line 701 of file BDSBeamline.cc.

◆ GetSMaximum()

G4double BDSBeamline::GetSMaximum ( ) const

inline

Definition at line 198 of file BDSBeamline.hh.

◆ GetSMinimum()

G4double BDSBeamline::GetSMinimum ( ) const

inline

Definition at line 197 of file BDSBeamline.hh.

◆ GetTotalAngle()

G4double BDSBeamline::GetTotalAngle ( ) const

inline

Get the total angle of the beamline.

Definition at line 142 of file BDSBeamline.hh.

References totalAngle.

◆ GetTotalArcLength()

G4double BDSBeamline::GetTotalArcLength ( ) const

inline

Get the total ARC length for the beamline - ie the maximum s position.

Definition at line 139 of file BDSBeamline.hh.

References totalArcLength.

Referenced by BDSDetectorConstruction::BuildBeamline(), BDSRunAction::CheckTrajectoryOptions(), and BDSSurvey::Write().

Here is the caller graph for this function:

◆ GetTotalChordLength()

G4double BDSBeamline::GetTotalChordLength ( ) const

inline

Get the total length of the beamline - the sum of the chord length of each element.

Definition at line 136 of file BDSBeamline.hh.

References totalChordLength.

Referenced by BDSSurvey::Write().

Here is the caller graph for this function:

◆ GetTransformForElement()

G4Transform3D BDSBeamline::GetTransformForElement	(	const G4String &	acceleratorComponentName,
		G4int	i = `0`
	)		const

Get the transform to the centre of the ith placement of element by name. Uses GetElement(). Exits if no such element found.

Definition at line 777 of file BDSBeamline.cc.

References GetElement(), BDSBeamlineElement::GetPositionMiddle(), and BDSBeamlineElement::GetRotationMiddle().

Here is the call graph for this function:

◆ IndexOK()

G4bool BDSBeamline::IndexOK ( G4int index ) const

Whether the supplied index will lie within the beam line vector.

Definition at line 901 of file BDSBeamline.cc.

References beamline.

Referenced by ProvideEndPieceElementAfter().

Here is the caller graph for this function:

◆ PaddingLength()

static G4double BDSBeamline::PaddingLength ( )

inlinestatic

Access the padding length between each element added to the beamline.

Definition at line 236 of file BDSBeamline.hh.

References paddingLength.

Referenced by BDSBeamlineElement::BDSBeamlineElement(), and BDS::CalculateTeleporterDelta().

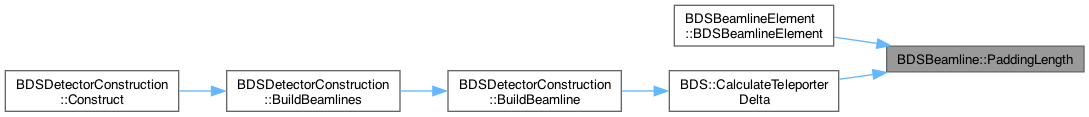

Here is the caller graph for this function:

◆ PrintAllComponents()

void BDSBeamline::PrintAllComponents ( std::ostream & out ) const

Iterate over the beamline and print out the name, position, rotation and s position of each beamline element

Definition at line 102 of file BDSBeamline.cc.

◆ PrintMemoryConsumption()

void BDSBeamline::PrintMemoryConsumption ( ) const

Feedback about memory consumption for this beamline instance - container size, size of all BDSBeamlineElement() and size of all BDSAcceleratorComponent() stored.

Definition at line 108 of file BDSBeamline.cc.

References beamline.

◆ ProvideEndPieceElementAfter()

BDSBeamlineElement * BDSBeamline::ProvideEndPieceElementAfter	(	BDSSimpleComponent *	endPiece,
		G4int	index,
		G4bool	flip = `false`
	)		const

Calculate the placements for an end piece w.r.t. a particlar beam line element The optional flip flag is used for when the 'before' piece is used again and must be rotated.

Definition at line 856 of file BDSBeamline.cc.

References beamline, BDSAcceleratorComponent::GetChordLength(), BDSBeamlineElement::GetPositionEnd(), BDSBeamlineElement::GetRotationMiddle(), BDSBeamlineElement::GetSPositionEnd(), BDSBeamlineElement::GetTiltOffset(), IndexOK(), and paddingLength.

Referenced by BDS::BuildEndPieceBeamline().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProvideEndPieceElementBefore()

BDSBeamlineElement * BDSBeamline::ProvideEndPieceElementBefore	(	BDSSimpleComponent *	endPiece,
		G4int	index
	)		const

Definition at line 818 of file BDSBeamline.cc.

◆ rbegin() [1/2]

reverse_iterator BDSBeamline::rbegin ( )

inline

Iterator mechanics.

Definition at line 171 of file BDSBeamline.hh.

References beamline.

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the caller graph for this function:

◆ rbegin() [2/2]

const_reverse_iterator BDSBeamline::rbegin ( ) const

inline

Iterator mechanics.

Definition at line 173 of file BDSBeamline.hh.

References beamline.

◆ RegisterElement()

void BDSBeamline::RegisterElement ( BDSBeamlineElement * element )

private

Register the fully created element to a map of names vs element pointers. Used to look up transforms by name.

Definition at line 729 of file BDSBeamline.cc.

References components, BDSBeamlineElement::GetName(), and BDSBeamlineElement::GetPlacementName().

Referenced by AddBeamlineElement(), and AddSingleComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rend() [1/2]

reverse_iterator BDSBeamline::rend ( )

inline

Iterator mechanics.

Definition at line 172 of file BDSBeamline.hh.

References beamline.

Referenced by BDSDetectorConstruction::BuildBeamline().

Here is the caller graph for this function:

◆ rend() [2/2]

const_reverse_iterator BDSBeamline::rend ( ) const

inline

Iterator mechanics.

Definition at line 174 of file BDSBeamline.hh.

References beamline.

◆ size()

BeamlineVector::size_type BDSBeamline::size ( ) const

inline

Get the number of elements.

Definition at line 148 of file BDSBeamline.hh.

References beamline.

Referenced by BDSOutputROOTEventModel::Fill().

Here is the caller graph for this function:

◆ UpdateExtents()

void BDSBeamline::UpdateExtents ( BDSBeamlineElement * element )

Once the beamline element has been constructed and all positions and rotations use these to update the world extent of this beam line.

Definition at line 794 of file BDSBeamline.cc.

References BDSExtentGlobal::AllBoundaryPointsGlobal(), BDSBeamlineElement::GetExtentGlobal(), maximumExtentNegative, and maximumExtentPositive.

Referenced by AddBeamlineElement(), and AddSingleComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSBeamline const &	bl
	)

friend

output stream

Definition at line 115 of file BDSBeamline.cc.

Field Documentation

◆ beamline

BeamlineVector BDSBeamline::beamline

private

Vector of beam line elements - the data.

Definition at line 67 of file BDSBeamline.hh.

Referenced by AddBeamlineElement(), AddSingleComponent(), at(), back(), begin(), empty(), end(), front(), GetEdgeSPositions(), GetElementFromGlobalS(), GetIndicesOfElementsOfType(), GetPrevious(), IndexOK(), PrintMemoryConsumption(), ProvideEndPieceElementAfter(), rbegin(), rend(), and size().

◆ components

std::map<G4String, BDSBeamlineElement*> BDSBeamline::components

private

Map of objects by placement name stored in this beam line.

Definition at line 289 of file BDSBeamline.hh.

Referenced by GetElement(), and RegisterElement().

◆ maximumExtentNegative

G4ThreeVector BDSBeamline::maximumExtentNegative

private

maximum extent in the negative coordinates in each dimension

Definition at line 270 of file BDSBeamline.hh.

Referenced by BDSBeamline(), GetExtentGlobal(), GetMaximumExtentAbsolute(), GetMaximumExtentNegative(), and UpdateExtents().

◆ maximumExtentPositive

G4ThreeVector BDSBeamline::maximumExtentPositive

private

maximum extent in the positive coordinates in each dimension

Definition at line 269 of file BDSBeamline.hh.

Referenced by BDSBeamline(), GetExtentGlobal(), GetMaximumExtentAbsolute(), GetMaximumExtentPositive(), and UpdateExtents().

◆ paddingLength

G4double BDSBeamline::paddingLength = -1

staticprivate

The gap added for padding between each component.

Definition at line 286 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), BDSBeamline(), PaddingLength(), and ProvideEndPieceElementAfter().

◆ previousReferencePositionEnd

G4ThreeVector BDSBeamline::previousReferencePositionEnd

private

Current reference position at the end of the previous element.

Definition at line 276 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), and ApplyTransform3D().

◆ previousReferenceRotationEnd

G4RotationMatrix* BDSBeamline::previousReferenceRotationEnd

private

Current reference rotation at the end of the previous element.

Definition at line 273 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), ApplyTransform3D(), and BDSBeamline().

◆ previousSPositionEnd

G4double BDSBeamline::previousSPositionEnd

private

Current s coordinate at the end of the previous element.

Definition at line 279 of file BDSBeamline.hh.

Referenced by AddSingleComponent().

◆ sEnd

std::vector<G4double> BDSBeamline::sEnd

private

Vector of s coordinates at the end of each element. This is intended so that an iterator pointing to the s position will be the correct index for the beamline element in the main BDSBeamlineVector element. This is filled in order so it's sorted by design.

Definition at line 295 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), FindFromS(), and GetElementFromGlobalS().

◆ sInitial

G4double BDSBeamline::sInitial

private

Cache the initial S so we can tell if a requested S is too low.

Definition at line 259 of file BDSBeamline.hh.

◆ sMaximum

G4double BDSBeamline::sMaximum

private

Definition at line 260 of file BDSBeamline.hh.

◆ totalAngle

G4double BDSBeamline::totalAngle

private

Sum of all angles.

Definition at line 267 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), ElementAnglesSumToCircle(), and GetTotalAngle().

◆ totalArcLength

G4double BDSBeamline::totalArcLength

private

Sum of all arc lengths.

Definition at line 265 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), GetGlobalEuclideanTransform(), and GetTotalArcLength().

◆ totalChordLength

G4double BDSBeamline::totalChordLength

private

Sum of all chord lengths.

Definition at line 263 of file BDSBeamline.hh.

Referenced by AddSingleComponent(), and GetTotalChordLength().

◆ transformHasJustBeenApplied

G4bool BDSBeamline::transformHasJustBeenApplied

private

Flag to remember whether a BDSTransform3D which is not a real volume has been applied to make a discrete change in the beam line or not.

Definition at line 283 of file BDSBeamline.hh.

Referenced by AddSingleComponent().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSBeamline.hh
/Users/lnevay/physics/reps/bdsim/src/BDSBeamline.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ BeamlineVector

◆ const_iterator

◆ const_reverse_iterator

◆ iterator

◆ reverse_iterator

Constructor & Destructor Documentation

◆ BDSBeamline() [1/2]

◆ BDSBeamline() [2/2]

◆ ~BDSBeamline()

Member Function Documentation

◆ AddBeamlineElement()

◆ AddComponent()

◆ AddSingleComponent()

◆ ApplyTransform3D()

◆ at()

◆ back()

◆ begin() [1/2]

◆ begin() [2/2]

◆ ElementAnglesSumToCircle()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ FindFromS()

◆ front()

◆ GetEdgeSPositions()

◆ GetElement()

◆ GetElementFromGlobalS()

◆ GetExtentGlobal()

◆ GetFirstItem()

◆ GetGlobalEuclideanTransform()

◆ GetIndicesOfCollimators()

◆ GetIndicesOfElementsOfType() [1/2]

◆ GetIndicesOfElementsOfType() [2/2]

◆ GetLastItem()

◆ GetMaximumExtentAbsolute()

◆ GetMaximumExtentNegative()

◆ GetMaximumExtentPositive()

◆ GetNext() [1/2]

◆ GetNext() [2/2]

◆ GetPrevious() [1/2]

◆ GetPrevious() [2/2]

◆ GetSMaximum()

◆ GetSMinimum()

◆ GetTotalAngle()

◆ GetTotalArcLength()

◆ GetTotalChordLength()

◆ GetTransformForElement()

◆ IndexOK()

◆ PaddingLength()

◆ PrintAllComponents()

◆ PrintMemoryConsumption()

◆ ProvideEndPieceElementAfter()

◆ ProvideEndPieceElementBefore()

◆ rbegin() [1/2]

◆ rbegin() [2/2]

◆ RegisterElement()

◆ rend() [1/2]

◆ rend() [2/2]

◆ size()

◆ UpdateExtents()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ beamline

◆ components

◆ maximumExtentNegative

◆ maximumExtentPositive

◆ paddingLength

◆ previousReferencePositionEnd

◆ previousReferenceRotationEnd

◆ previousSPositionEnd
