BDSSimpleComponent Class Reference

A BDSAcceleratorComponent wrapper for BDSGeometryComponent. More...

#include <BDSSimpleComponent.hh>

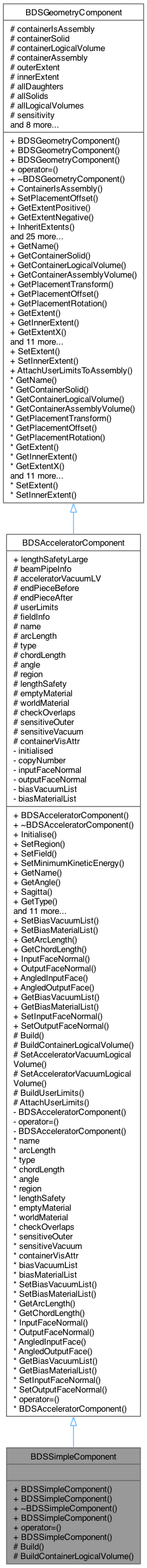

Inheritance diagram for BDSSimpleComponent:
Inheritance graph
Collaboration diagram for BDSSimpleComponent:
Collaboration graph

Public Member Functions

 BDSSimpleComponent (const G4String &name, BDSGeometryComponent *componentIn, G4double arcLength, G4double angle=0, const G4ThreeVector &inputFaceNormal=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormal=G4ThreeVector(0, 0, 1), BDSBeamPipeInfo *beamPipeInfo=nullptr)

 BDSSimpleComponent (const G4String &name, G4double arcLength, G4double angle, G4VSolid *containerSolidIn, G4LogicalVolume *containerLogicalVolumeIn, const BDSExtent &extentIn, const G4ThreeVector &inputFaceNormal=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormal=G4ThreeVector(0, 0, 1), BDSBeamPipeInfo *beamPipeInfo=nullptr)

virtual ~BDSSimpleComponent ()

BDSSimpleComponentoperator= (const BDSSimpleComponent &)=delete

 BDSSimpleComponent (BDSSimpleComponent &)=delete

- Public Member Functions inherited from BDSAcceleratorComponent
 BDSAcceleratorComponent (const G4String &name, G4double arcLength, G4double angle, const G4String &type, BDSBeamPipeInfo *beamPipeInfo=nullptr, const G4ThreeVector &inputFaceNormalIn=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormalIn=G4ThreeVector(0, 0, 1), BDSFieldInfo *fieldInfoIn=nullptr)

virtual void Initialise ()

virtual void SetRegion (const G4String &regionIn)
 Set the region name for this component.

void SetField (BDSFieldInfo *fieldInfoIn)
 Set the field definition for the whole component.

virtual void SetMinimumKineticEnergy (G4double)

virtual G4String GetName () const
 The name of the component without modification.

G4double GetAngle () const

G4double Sagitta () const
 Calculate the sagitta - ie the distance between the chord and the arc at the centre.

G4String GetType () const
 Get a string describing the type of the component.

G4String GetRegion () const
 Get the region name for this component.

virtual G4bool HasAField () const
 Whether this component has a field or not (ie is active). Implicit cast of pointer to bool.

virtual void SetFieldUsePlacementWorldTransform ()

BDSBeamPipeInfoGetBeamPipeInfo () const

virtual G4String Material () const
 Return the name of a material associated with the component - ie the primary material.

virtual std::set< G4LogicalVolume * > GetAcceleratorVacuumLogicalVolumes () const
 Access the 'vacuum' volume(s) in this component if any. Default is empty set.

virtual std::set< G4LogicalVolume * > GetAcceleratorMaterialLogicalVolumes () const
 Return a set of logical volumes excluding the ones in the 'vacuum' set.

void IncrementCopyNumber ()
 Increment (+1) the number of times this component has been copied.

G4int GetCopyNumber () const
 Get the number of times this component has been copied.

BDSSimpleComponentEndPieceBefore () const

BDSSimpleComponentEndPieceAfter () const

virtual void SetBiasVacuumList (const std::list< std::string > &biasVacuumListIn)
 Copy the bias list to this element.

virtual void SetBiasMaterialList (const std::list< std::string > &biasMaterialListIn)
 Copy the bias list to this element.

virtual G4double GetArcLength () const

virtual G4double GetChordLength () const

G4ThreeVector InputFaceNormal () const

G4ThreeVector OutputFaceNormal () const

G4bool AngledInputFace () const
 Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

G4bool AngledOutputFace () const
 Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

std::list< std::string > GetBiasVacuumList () const
 Access the bias list copied from parser.

std::list< std::string > GetBiasMaterialList () const
 Access the bias list copied from parser.

virtual void SetInputFaceNormal (const G4ThreeVector &input)
 Allow updating of face normals. Virtual so derived class may apply it to daughters.

virtual void SetOutputFaceNormal (const G4ThreeVector &output)
 Allow updating of face normals. Virtual so derived class may apply it to daughters.

- Public Member Functions inherited from BDSGeometryComponent
 BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)

 BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)

 BDSGeometryComponent (const BDSGeometryComponent &component)
 Copy constructor (no copying of registered objects)

BDSGeometryComponentoperator= (const BDSGeometryComponent &)=delete
 Assignment operator not used.

G4bool ContainerIsAssembly () const
 Whether the container is an assembly. If not, it's a logical volume.

void SetPlacementOffset (const G4ThreeVector &offsetIn)
 Set the offset from 0,0,0 that the object should ideally be placed in its parent.

G4ThreeVector GetExtentPositive () const
 Get the extent of the object in the positive direction in all dimensions.

G4ThreeVector GetExtentNegative () const
 Get the extent of the object in the negative direction in all dimensions.

void InheritExtents (BDSGeometryComponent const *const anotherComponent)
 Update the extents of this object with those of another object.

void InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset)

void RegisterDaughter (BDSGeometryComponent *anotherComponent)

void RegisterSolid (G4VSolid *solid)

void RegisterSolid (const std::set< G4VSolid * > &solids)
 Similarly for a set of unique solids.

void RegisterLogicalVolume (G4LogicalVolume *logicalVolume)

void RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes)
 Apply RegisterLogicalVolume() to a set of logical volumes.

void RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType)

void RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType)

void RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes)
 Copy in a mapping of sensitive volumes to sensitive detectors.

void RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume)

void RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes)
 Apply RegisterPhysicalVolume() to a set of physical volumes.

void RegisterRotationMatrix (G4RotationMatrix *rotationMatrix)

void RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices)
 Apply Register RotationMatrix() to a set of rotation matrices.

void RegisterVisAttributes (G4VisAttributes *visAttribute)

void RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes)
 Apply RegisterVisAttribute() to a set of visualisation attributes.

void RegisterUserLimits (G4UserLimits *userLimit)

void RegisterUserLimits (const std::set< G4UserLimits * > &userLimits)
 Apply RegisterUserLimit to a set of user limits.

void InheritObjects (BDSGeometryComponent *component)

virtual std::set< G4LogicalVolume * > GetAllLogicalVolumes () const
 Access all logical volumes belonging to this component.

virtual std::set< G4LogicalVolume * > GetAllBiasingVolumes () const
 Return all logical volumes that should be used for biasing minus any that are in the excluded set.

virtual std::map< G4LogicalVolume *, BDSSDTypeGetAllSensitiveVolumes () const
 Access all sensitive volumes belonging to this component.

void MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep)

virtual void AttachSensitiveDetectors ()
 Attach a sensitive detector class to all registered sensitive volumes in this component.

virtual void ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv)

void StripOuterAndMakeAssemblyVolume ()
 Change from a container logical volume to an assembly volume.

G4VSolid * GetContainerSolid () const
 Accessor - see member for more info.

G4LogicalVolume * GetContainerLogicalVolume () const
 Accessor - see member for more info.

G4AssemblyVolume * GetContainerAssemblyVolume () const
 Accessor - see member for more info.

G4Transform3D GetPlacementTransform () const
 Accessor - see member for more info.

G4ThreeVector GetPlacementOffset () const
 Accessor - see member for more info.

G4RotationMatrix * GetPlacementRotation () const
 Accessor - see member for more info.

BDSExtent GetExtent () const
 Accessor - see member for more info.

BDSExtent GetInnerExtent () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetExtentX () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetExtentY () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetExtentZ () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetInnerExtentX () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetInnerExtentY () const
 Accessor - see member for more info.

std::pair< G4double, G4double > GetInnerExtentZ () const
 Accessor - see member for more info.

virtual std::set< G4VPhysicalVolume * > GetAllPhysicalVolumes () const
 Accessor - see member for more info.

virtual std::set< G4RotationMatrix * > GetAllRotationMatrices () const
 Accessor - see member for more info.

virtual std::set< G4VisAttributes * > GetAllVisAttributes () const
 Accessor - see member for more info.

virtual std::set< G4UserLimits * > GetAllUserLimits () const
 Accessor - see member for more info.

virtual std::set< BDSGeometryComponent * > GetAllDaughters () const
 Accessor - see member for more info.

virtual std::set< G4VSolid * > GetAllSolids () const
 Accessor - see member for more info.

void SetExtent (const BDSExtent &extIn)
 Set extent.

void SetInnerExtent (const BDSExtent &extIn)
 Set extent.


Protected Member Functions

virtual void Build ()

virtual void BuildContainerLogicalVolume ()
 Required implementation from base class.

- Protected Member Functions inherited from BDSAcceleratorComponent
virtual void Build ()

virtual void BuildContainerLogicalVolume ()=0

void SetAcceleratorVacuumLogicalVolume (G4LogicalVolume *accVacLVIn)

void SetAcceleratorVacuumLogicalVolume (const std::set< G4LogicalVolume * > &accVacLVIn)

virtual void BuildUserLimits ()

virtual void AttachUserLimits () const
 Doesn't change member variables, but may change their contents.


Additional Inherited Members

- Static Public Member Functions inherited from BDSGeometryComponent
static void AttachUserLimitsToAssembly (G4AssemblyVolume *av, G4UserLimits *ul)
 Utility function to apply user limits to an assembly volume as there's not interface.

- Static Public Attributes inherited from BDSAcceleratorComponent
static G4double lengthSafetyLarge = 0

- Protected Attributes inherited from BDSAcceleratorComponent
BDSBeamPipeInfobeamPipeInfo
 Optional beam pipe recipe that is written out to the survey if it exists.

std::set< G4LogicalVolume * > acceleratorVacuumLV
 A set of logical volumes we classify as 'vacuum' for biasing purposes.

BDSSimpleComponentendPieceBefore

BDSSimpleComponentendPieceAfter

G4UserLimits * userLimits
 Cache of user limits.

BDSFieldInfofieldInfo
 Recipe for field that could overlay this whole component.

const G4String name
 Const protected member variable that may not be changed by derived classes.

const G4double arcLength
 Const protected member variable that may not be changed by derived classes.

const G4String type
 Const protected member variable that may not be changed by derived classes.

G4double chordLength
 Protected member variable that can be modified by derived classes.

G4double angle
 Protected member variable that can be modified by derived classes.

G4String region
 Protected member variable that can be modified by derived classes.

- Protected Attributes inherited from BDSGeometryComponent
G4bool containerIsAssembly
 True if the 'container' is really an assembly; false if an LV.

G4VSolid * containerSolid

G4LogicalVolume * containerLogicalVolume

G4AssemblyVolume * containerAssembly

BDSExtent outerExtent

BDSExtent innerExtent

std::set< BDSGeometryComponent * > allDaughters
 registry of all daughter geometry components

std::set< G4VSolid * > allSolids
 registry of all solids belonging to this component

std::set< G4LogicalVolume * > allLogicalVolumes

std::map< G4LogicalVolume *, BDSSDTypesensitivity

G4bool overrideSensitivity

std::set< G4VPhysicalVolume * > allPhysicalVolumes
 registry of all physical volumes belonging to this component

std::set< G4RotationMatrix * > allRotationMatrices
 registry of all rotation matrices belonging to this component

std::set< G4VisAttributes * > allVisAttributes
 registry of all visualisation attributes belonging to this component

std::set< G4UserLimits * > allUserLimits
 registry of all user limits belonging to this component

G4ThreeVector placementOffset

G4RotationMatrix * placementRotation

std::set< G4LogicalVolume * > * lvsExcludedFromBiasing
 Volumes that should not be included when return GetAllBiasingVolumes().

- Static Protected Attributes inherited from BDSAcceleratorComponent
static G4double lengthSafety = -1
 Useful variable often used in construction.

static G4Material * emptyMaterial = nullptr
 Useful variable often used in construction.

static G4Material * worldMaterial = nullptr
 Useful variable often used in construction.

static G4bool checkOverlaps = false
 Useful variable often used in construction.

static G4bool sensitiveOuter = true
 Useful variable often used in construction.

static G4bool sensitiveVacuum = false
 Useful variable often used in construction.

static G4VisAttributes * containerVisAttr = nullptr
 Useful variable often used in construction.


Detailed Description

A BDSAcceleratorComponent wrapper for BDSGeometryComponent.

This allows a BDSGeometryComponent to be placed in a beam line by being a necessary BDSAcceleratorComponent, which gives the minimal information to BDSBeamline - name, length & angle.

This inherits the objects from the BDSGeometryComponent and therefore effectively owns it without deleting it explicitly as a whole object.

Face normal (unit) vectors are w.r.t. the incoming / outgoing reference trajectory and NOT the local geometry of the component.

Author
Laurie Nevay

Definition at line 45 of file BDSSimpleComponent.hh.

Constructor & Destructor Documentation

◆ BDSSimpleComponent() [1/2]

BDSSimpleComponent::BDSSimpleComponent ( const G4String &  name,
BDSGeometryComponent componentIn,
G4double  arcLength,
G4double  angle = 0,
const G4ThreeVector &  inputFaceNormal = G4ThreeVector(0,0,-1),
const G4ThreeVector &  outputFaceNormal = G4ThreeVector(0,0, 1),
BDSBeamPipeInfo beamPipeInfo = nullptr
)

Constructor that keeps the component as a daughter geometry component. Face normal (unit) vectors are w.r.t. the incoming / outgoing reference trajectory and NOT the local geometry of the component.

Definition at line 24 of file BDSSimpleComponent.cc.

References BDSSimpleComponent(), BDSGeometryComponent::ContainerIsAssembly(), BDSGeometryComponent::containerIsAssembly, BDSGeometryComponent::GetContainerAssemblyVolume(), BDSGeometryComponent::GetContainerLogicalVolume(), BDSGeometryComponent::GetContainerSolid(), BDSGeometryComponent::InheritExtents(), and BDSGeometryComponent::RegisterDaughter().

Referenced by BDSSimpleComponent().

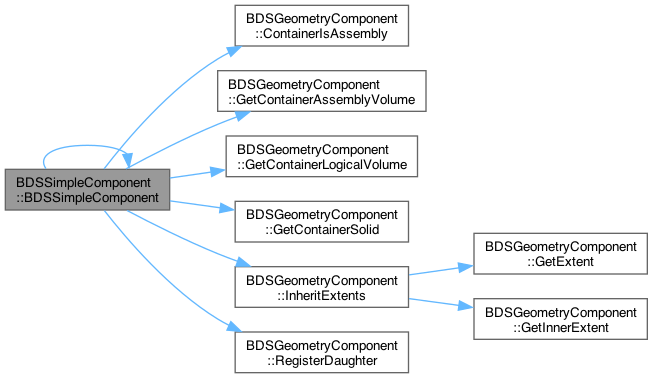

Here is the call graph for this function:
Here is the caller graph for this function:

◆ BDSSimpleComponent() [2/2]

BDSSimpleComponent::BDSSimpleComponent ( const G4String &  name,
G4double  arcLength,
G4double  angle,
G4VSolid *  containerSolidIn,
G4LogicalVolume *  containerLogicalVolumeIn,
const BDSExtent extentIn,
const G4ThreeVector &  inputFaceNormal = G4ThreeVector(0,0,-1),
const G4ThreeVector &  outputFaceNormal = G4ThreeVector(0,0, 1),
BDSBeamPipeInfo beamPipeInfo = nullptr
)

Alternate constructor that doesn't use a daughter geometry component. Face normal (unit) vectors are w.r.t. the incoming / outgoing reference trajectory and NOT the local geometry of the component.

Definition at line 42 of file BDSSimpleComponent.cc.

References BDSSimpleComponent(), and BDSGeometryComponent::SetExtent().

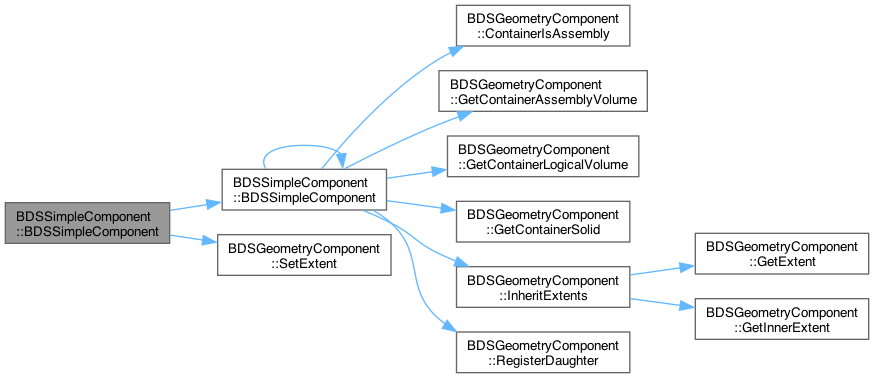

Here is the call graph for this function:

◆ ~BDSSimpleComponent()

virtual BDSSimpleComponent::~BDSSimpleComponent ( )
inlinevirtual

Default destructor suffices as this calls base class which clears everything up.

Definition at line 74 of file BDSSimpleComponent.hh.

Member Function Documentation

◆ Build()

void BDSSimpleComponent::Build ( )
protectedvirtual

Replace the one in the base class to ensure we don't fiddle the container visualisation attributes and keep it visible.

Reimplemented from BDSAcceleratorComponent.

Definition at line 59 of file BDSSimpleComponent.cc.

References BuildContainerLogicalVolume().

Here is the call graph for this function:

◆ BuildContainerLogicalVolume()

virtual void BDSSimpleComponent::BuildContainerLogicalVolume ( )
inlineprotectedvirtual

Required implementation from base class.

Implements BDSAcceleratorComponent.

Definition at line 86 of file BDSSimpleComponent.hh.

Referenced by Build().

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
