Class for querying the Geant4 model for field at any point. More...

#include <BDSFieldQuery.hh>

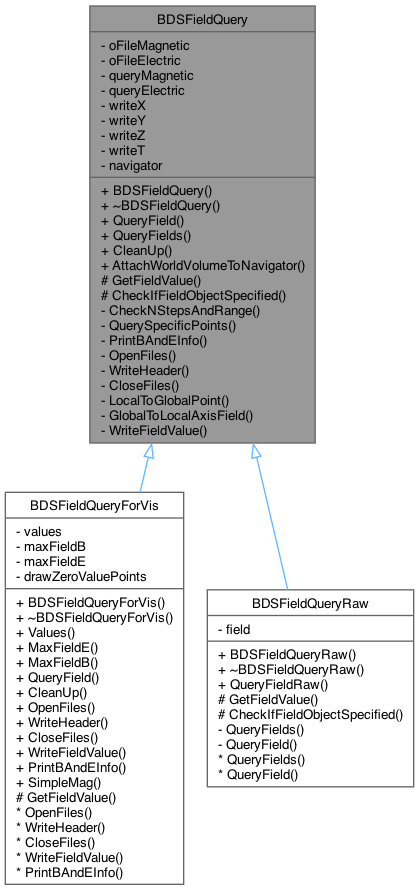

Inheritance diagram for BDSFieldQuery:

Collaboration diagram for BDSFieldQuery:

Public Member Functions
virtual void	QueryField (const BDSFieldQueryInfo *query)
	Query the field in the Geant4 model according to information in query.

void	QueryFields (const std::vector< BDSFieldQueryInfo * > &fieldQueries)
	Vector version of above function. Unique output files for each query.

virtual void	CleanUp ()
	Reset any member variables used during a query. Closes any files if open.

Static Public Member Functions
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume.

Protected Member Functions
virtual void	GetFieldValue (const G4ThreeVector &globalXYZ, const G4ThreeVector &globalDirection, G4double tGlobal, G4double fieldValue[6])

virtual void	CheckIfFieldObjectSpecified (const BDSFieldQueryInfo *query) const
	Warn the user if the fieldObject variable is use when it shouldn't be.

Private Member Functions
void	CheckNStepsAndRange (const BDSFieldQueryInfo::QueryDimensionInfo &dimensionInfo, const G4String &dimensionName, const G4String &queryName) const
	Throw an exception if the number of steps is >1 and the difference between max and min is 0.

void	QuerySpecificPoints (const BDSFieldQueryInfo *query)
	Different algorithm where we query a specific list of points defined in the query info object.

virtual void	PrintBAndEInfo (const BDSFieldQueryInfo *query) const
	Print out whether B and E files are being generated and which ones.

virtual void	OpenFiles (const BDSFieldQueryInfo *query)
	Open potentially both electric and magnetic field map files.

virtual void	WriteHeader (std::ofstream &out, const BDSFieldQueryInfo *query) const
	Utility to write required header information.

virtual void	CloseFiles ()
	Close any files if open.

G4ThreeVector	LocalToGlobalPoint (const G4AffineTransform &localToGlobalTransform, G4double xLocal, G4double yLocal, G4double zLocal) const
	Apply a transform to the coordinates. Does not apply to time.

void	GlobalToLocalAxisField (const G4AffineTransform &globalToLocalTransform, const G4double globalBEField[6], G4double localBEField[6])
	Convert a global field axis to a local one.

virtual void	WriteFieldValue (const G4ThreeVector &xyzGlobal, G4double tGlobal, const G4double fieldValue[6])
	Write an entry ta line of the output file(s). The array is assumed to be Bx,By,Bz,Ex,Ey,Ez as in Geant4.

Private Attributes
std::ofstream	oFileMagnetic

std::ofstream	oFileElectric

G4bool	queryMagnetic

G4bool	queryElectric

G4bool	writeX

G4bool	writeY

G4bool	writeZ

G4bool	writeT

Static Private Attributes
static G4Navigator *	navigator = new G4Navigator()
	One navigator used - static so we can externally link it up to the world PV.

Detailed Description

Class for querying the Geant4 model for field at any point.

Output is a BDSIM-format field map. Unique files for electric and magnetic field maps as would be required to read the field maps back into BDSIM.

Author: Laurie Nevay

Definition at line 42 of file BDSFieldQuery.hh.

Constructor & Destructor Documentation

◆ BDSFieldQuery()

BDSFieldQuery::BDSFieldQuery ( )

Definition at line 46 of file BDSFieldQuery.cc.

◆ ~BDSFieldQuery()

BDSFieldQuery::~BDSFieldQuery ( )

virtual

Definition at line 57 of file BDSFieldQuery.cc.

Member Function Documentation

◆ AttachWorldVolumeToNavigator()

void BDSFieldQuery::AttachWorldVolumeToNavigator ( G4VPhysicalVolume * worldPVIn )

static

Setup the navigator w.r.t. to a world volume.

Definition at line 60 of file BDSFieldQuery.cc.

References navigator.

Referenced by BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

◆ CheckIfFieldObjectSpecified()

void BDSFieldQuery::CheckIfFieldObjectSpecified ( const BDSFieldQueryInfo * query ) const

protectedvirtual

Warn the user if the fieldObject variable is use when it shouldn't be.

Reimplemented in BDSFieldQueryRaw.

Definition at line 200 of file BDSFieldQuery.cc.

References BDSFieldQueryInfo::fieldObject.

Referenced by QueryField().

Here is the caller graph for this function:

◆ CheckNStepsAndRange()

void BDSFieldQuery::CheckNStepsAndRange	(	const BDSFieldQueryInfo::QueryDimensionInfo &	dimensionInfo,
		const G4String &	dimensionName,
		const G4String &	queryName
	)		const

private

Throw an exception if the number of steps is >1 and the difference between max and min is 0.

Definition at line 184 of file BDSFieldQuery.cc.

References BDS::IsFinite().

Referenced by QueryField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUp()

void BDSFieldQuery::CleanUp ( )

virtual

Reset any member variables used during a query. Closes any files if open.

Reimplemented in BDSFieldQueryForVis.

Definition at line 65 of file BDSFieldQuery.cc.

References CloseFiles(), and navigator.

Referenced by BDSFieldQueryForVis::CleanUp(), and QueryField().

Here is the call graph for this function:

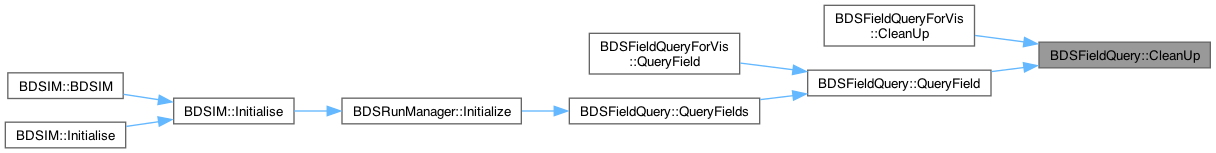

Here is the caller graph for this function:

◆ CloseFiles()

void BDSFieldQuery::CloseFiles ( )

privatevirtual

Close any files if open.

Reimplemented in BDSFieldQueryForVis.

Definition at line 328 of file BDSFieldQuery.cc.

Referenced by CleanUp(), QueryField(), and QuerySpecificPoints().

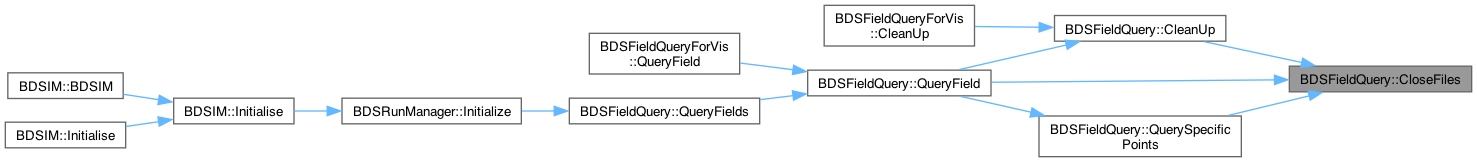

Here is the caller graph for this function:

◆ GetFieldValue()

void BDSFieldQuery::GetFieldValue	(	const G4ThreeVector &	globalXYZ,
		const G4ThreeVector &	globalDirection,
		G4double	tGlobal,
		G4double	fieldValue[6]
	)

protectedvirtual

Get the electric and magnetic field at the specified coordinates. The navigator requires a direction for safe hierarchy searching. The output is written to array argument, where the values are Bx,By,Bz,Ex,Ey,Ez as in Geant4.

Reimplemented in BDSFieldQueryForVis, and BDSFieldQueryRaw.

Definition at line 361 of file BDSFieldQuery.cc.

References navigator.

Referenced by BDSFieldQueryForVis::GetFieldValue(), QueryField(), and QuerySpecificPoints().

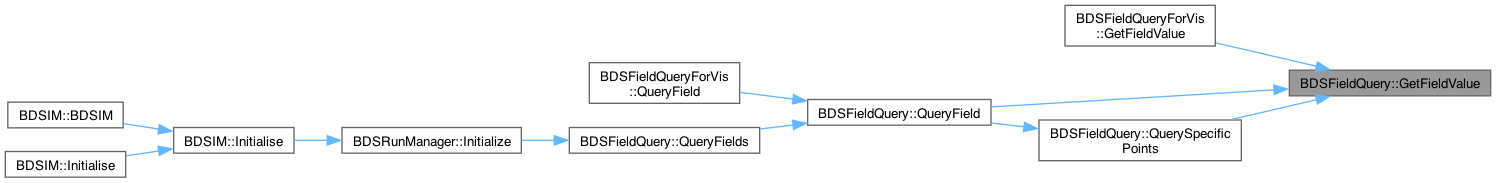

Here is the caller graph for this function:

◆ GlobalToLocalAxisField()

void BDSFieldQuery::GlobalToLocalAxisField	(	const G4AffineTransform &	globalToLocalTransform,
		const G4double	globalBEField[6],
		G4double	localBEField[6]
	)

private

Convert a global field axis to a local one.

Definition at line 346 of file BDSFieldQuery.cc.

Referenced by QueryField().

Here is the caller graph for this function:

◆ LocalToGlobalPoint()

G4ThreeVector BDSFieldQuery::LocalToGlobalPoint	(	const G4AffineTransform &	localToGlobalTransform,
		G4double	xLocal,
		G4double	yLocal,
		G4double	zLocal
	)		const

private

Apply a transform to the coordinates. Does not apply to time.

Definition at line 336 of file BDSFieldQuery.cc.

Referenced by QueryField().

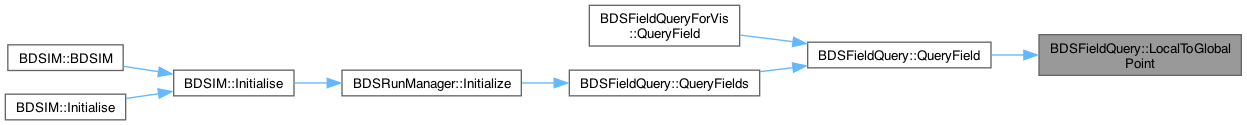

Here is the caller graph for this function:

◆ OpenFiles()

void BDSFieldQuery::OpenFiles ( const BDSFieldQueryInfo * query )

privatevirtual

Open potentially both electric and magnetic field map files.

Reimplemented in BDSFieldQueryForVis.

Definition at line 245 of file BDSFieldQuery.cc.

References BDS::FileExists(), and WriteHeader().

Referenced by QueryField(), and QuerySpecificPoints().

Here is the call graph for this function:

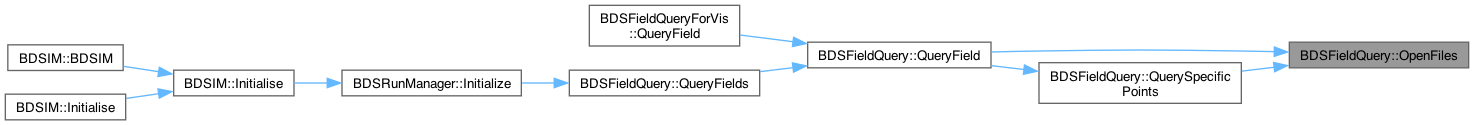

Here is the caller graph for this function:

◆ PrintBAndEInfo()

void BDSFieldQuery::PrintBAndEInfo ( const BDSFieldQueryInfo * query ) const

privatevirtual

Print out whether B and E files are being generated and which ones.

Reimplemented in BDSFieldQueryForVis.

Definition at line 234 of file BDSFieldQuery.cc.

Referenced by QueryField(), and QuerySpecificPoints().

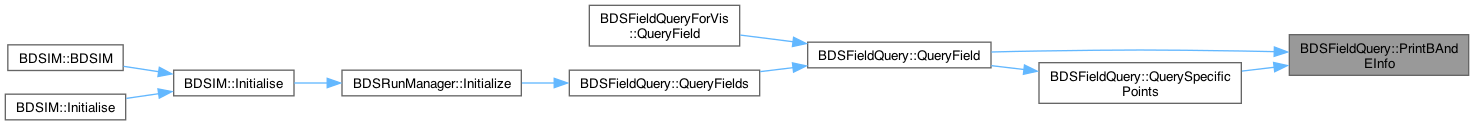

Here is the caller graph for this function:

◆ QueryField()

void BDSFieldQuery::QueryField ( const BDSFieldQueryInfo * query )

virtual

Query the field in the Geant4 model according to information in query.

Ensure field transform navigator is in a completely clean state.

Reimplemented in BDSFieldQueryForVis, and BDSFieldQueryRaw.

Definition at line 83 of file BDSFieldQuery.cc.

References CheckIfFieldObjectSpecified(), CheckNStepsAndRange(), BDSFieldQueryInfo::checkParameters, CleanUp(), CloseFiles(), GetFieldValue(), GlobalToLocalAxisField(), LocalToGlobalPoint(), OpenFiles(), PrintBAndEInfo(), QuerySpecificPoints(), BDSFieldQueryInfo::SpecificPoints(), and WriteFieldValue().

Referenced by BDSFieldQueryForVis::QueryField(), and QueryFields().

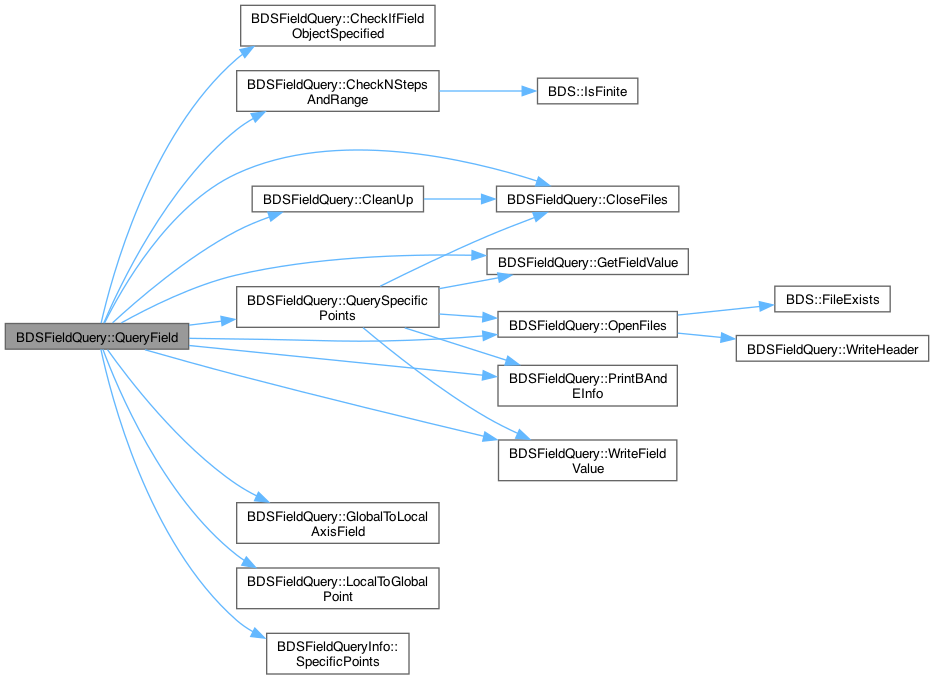

Here is the call graph for this function:

Here is the caller graph for this function:

◆ QueryFields()

void BDSFieldQuery::QueryFields ( const std::vector< BDSFieldQueryInfo * > & fieldQueries )

Vector version of above function. Unique output files for each query.

Definition at line 77 of file BDSFieldQuery.cc.

References QueryField().

Referenced by BDSRunManager::Initialize().

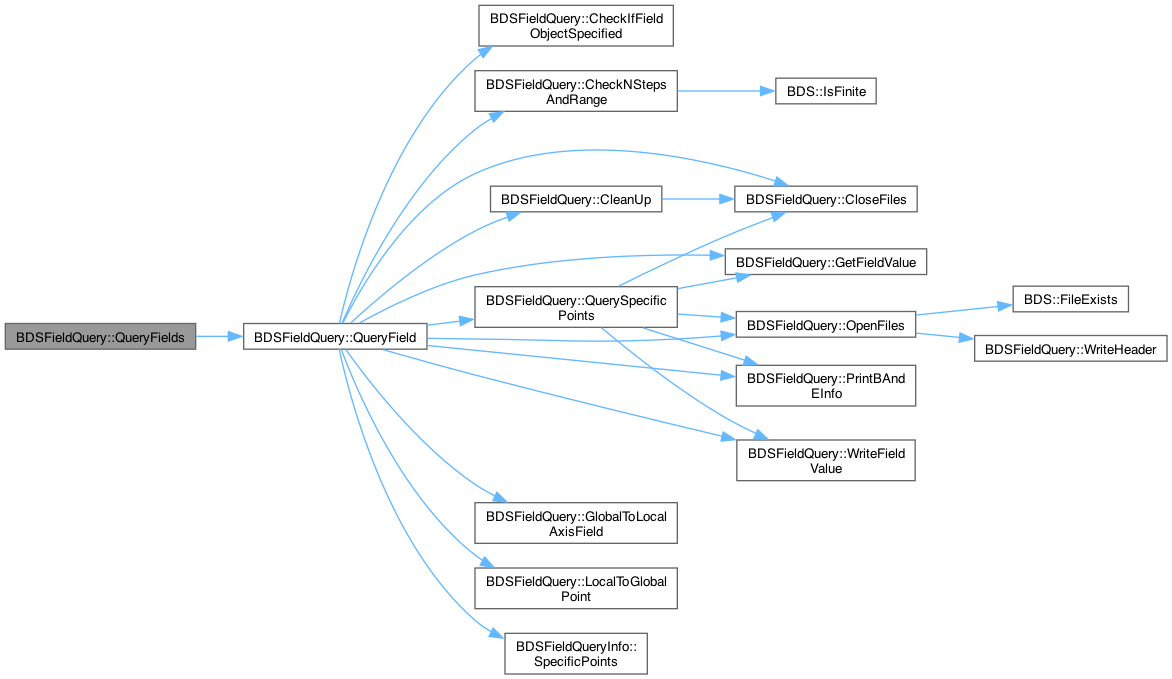

Here is the call graph for this function:

Here is the caller graph for this function:

◆ QuerySpecificPoints()

void BDSFieldQuery::QuerySpecificPoints ( const BDSFieldQueryInfo * query )

private

Different algorithm where we query a specific list of points defined in the query info object.

Definition at line 210 of file BDSFieldQuery.cc.

References CloseFiles(), GetFieldValue(), OpenFiles(), PrintBAndEInfo(), and WriteFieldValue().

Referenced by QueryField().

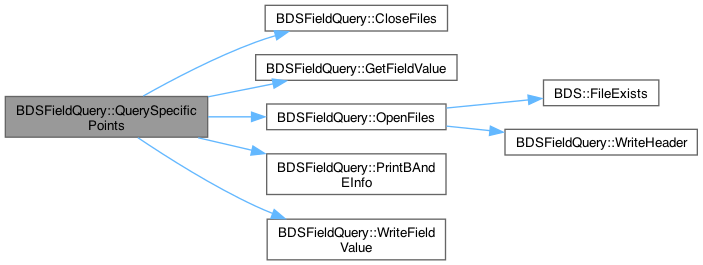

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WriteFieldValue()

void BDSFieldQuery::WriteFieldValue	(	const G4ThreeVector &	xyzGlobal,
		G4double	tGlobal,
		const G4double	fieldValue[6]
	)

privatevirtual

Write an entry ta line of the output file(s). The array is assumed to be Bx,By,Bz,Ex,Ey,Ez as in Geant4.

Reimplemented in BDSFieldQueryForVis.

Definition at line 383 of file BDSFieldQuery.cc.

Referenced by QueryField(), and QuerySpecificPoints().

Here is the caller graph for this function:

◆ WriteHeader()

void BDSFieldQuery::WriteHeader	(	std::ofstream &	out,
		const BDSFieldQueryInfo *	query
	)		const

privatevirtual

Utility to write required header information.

Reimplemented in BDSFieldQueryForVis.

Definition at line 292 of file BDSFieldQuery.cc.

Referenced by OpenFiles().

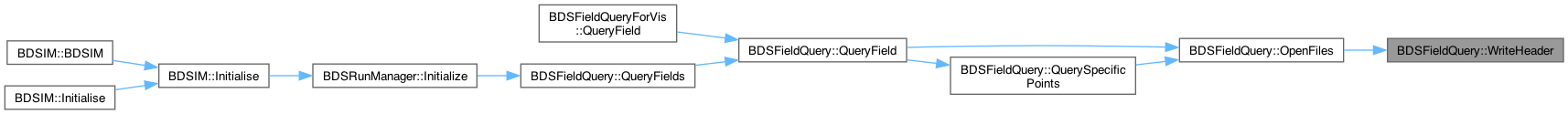

Here is the caller graph for this function:

Field Documentation

◆ navigator

G4Navigator * BDSFieldQuery::navigator = new G4Navigator()

staticprivate

One navigator used - static so we can externally link it up to the world PV.

Definition at line 118 of file BDSFieldQuery.hh.

Referenced by AttachWorldVolumeToNavigator(), CleanUp(), and GetFieldValue().

◆ oFileElectric

std::ofstream BDSFieldQuery::oFileElectric

private

Definition at line 109 of file BDSFieldQuery.hh.

◆ oFileMagnetic

std::ofstream BDSFieldQuery::oFileMagnetic

private

Definition at line 108 of file BDSFieldQuery.hh.

◆ queryElectric

G4bool BDSFieldQuery::queryElectric

private

Definition at line 111 of file BDSFieldQuery.hh.

◆ queryMagnetic

G4bool BDSFieldQuery::queryMagnetic

private

Definition at line 110 of file BDSFieldQuery.hh.

◆ writeT

G4bool BDSFieldQuery::writeT

private

Definition at line 115 of file BDSFieldQuery.hh.

◆ writeX

G4bool BDSFieldQuery::writeX

private

Definition at line 112 of file BDSFieldQuery.hh.

◆ writeY

G4bool BDSFieldQuery::writeY

private

Definition at line 113 of file BDSFieldQuery.hh.

◆ writeZ

G4bool BDSFieldQuery::writeZ

private

Definition at line 114 of file BDSFieldQuery.hh.

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSFieldQuery.hh
/Users/lnevay/physics/reps/bdsim/src/BDSFieldQuery.cc
