BDSFieldQueryRaw Class Reference

Class for querying the a raw field object. More...

#include <BDSFieldQueryRaw.hh>

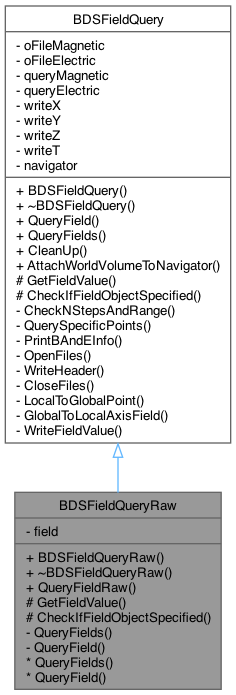

Inheritance diagram for BDSFieldQueryRaw:

Collaboration diagram for BDSFieldQueryRaw:

Public Member Functions
void	QueryFieldRaw (G4Field *field, const BDSFieldQueryInfo *query)
	Query the field in the Geant4 model according to information in query.
Public Member Functions inherited from BDSFieldQuery
virtual void	QueryField (const BDSFieldQueryInfo *query)
	Query the field in the Geant4 model according to information in query.
void	QueryFields (const std::vector< BDSFieldQueryInfo * > &fieldQueries)
	Vector version of above function. Unique output files for each query.
virtual void	CleanUp ()
	Reset any member variables used during a query. Closes any files if open.

Protected Member Functions
virtual void	GetFieldValue (const G4ThreeVector &globalXYZ, const G4ThreeVector &globalDirection, G4double tGlobal, G4double fieldValue[6])
virtual void	CheckIfFieldObjectSpecified (const BDSFieldQueryInfo *query) const
virtual void	GetFieldValue (const G4ThreeVector &globalXYZ, const G4ThreeVector &globalDirection, G4double tGlobal, G4double fieldValue[6])
virtual void	CheckIfFieldObjectSpecified (const BDSFieldQueryInfo *query) const
	Warn the user if the fieldObject variable is use when it shouldn't be.

Private Member Functions
void	QueryFields (const std::vector< BDSFieldQueryInfo * > &fieldQueries)
	Make regular interface private and unusable for this version of the class.
virtual void	QueryField (const BDSFieldQueryInfo *query)
	Query the field in the Geant4 model according to information in query.

Private Attributes
G4Field *	field
	The field object to query.

Additional Inherited Members
Static Public Member Functions inherited from BDSFieldQuery
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume.

Detailed Description

Class for querying the a raw field object.

Output is a BDSIM-format field map. Unique files for electric and magnetic field maps as would be required to read the field maps back into BDSIM.

Author

Laurie Nevay

Definition at line 38 of file BDSFieldQueryRaw.hh.

Constructor & Destructor Documentation

BDSFieldQueryRaw()

BDSFieldQueryRaw::BDSFieldQueryRaw

(

)

Definition at line 28 of file BDSFieldQueryRaw.cc.

~BDSFieldQueryRaw()

BDSFieldQueryRaw::~BDSFieldQueryRaw ( )

virtual

Definition at line 32 of file BDSFieldQueryRaw.cc.

Member Function Documentation

CheckIfFieldObjectSpecified()

void BDSFieldQueryRaw::CheckIfFieldObjectSpecified ( const BDSFieldQueryInfo *  query ) const

protectedvirtual

Do the opposite for this class as it's only used for the interpolator and we want fieldObject to be specified.

Reimplemented from BDSFieldQuery.

Definition at line 55 of file BDSFieldQueryRaw.cc.

References BDSFieldQueryInfo::fieldObject.

GetFieldValue()

void BDSFieldQueryRaw::GetFieldValue ( const G4ThreeVector &  globalXYZ, const G4ThreeVector &  globalDirection, G4double  tGlobal, G4double  fieldValue[6]  )

protectedvirtual

Get the electric and magnetic field at the specified coordinates. The navigator requires a direction for safe hierarchy searching. The output is written to array argument, where the values are Bx,By,Bz,Ex,Ey,Ez as in Geant4.

Reimplemented from BDSFieldQuery.

Definition at line 42 of file BDSFieldQueryRaw.cc.

References field.

QueryField()

void BDSFieldQuery::QueryField ( const BDSFieldQueryInfo *  query )

privatevirtual

Query the field in the Geant4 model according to information in query.

Ensure field transform navigator is in a completely clean state.

Reimplemented from BDSFieldQuery.

Definition at line 49 of file BDSFieldQuery.cc.

Referenced by QueryFieldRaw().

Here is the caller graph for this function:

QueryFieldRaw()

void BDSFieldQueryRaw::QueryFieldRaw	(	G4Field *	field,
		const BDSFieldQueryInfo *	query
	)

Query the field in the Geant4 model according to information in query.

Definition at line 35 of file BDSFieldQueryRaw.cc.

References field, and QueryField().

Here is the call graph for this function:

QueryFields()

void BDSFieldQuery::QueryFields ( const std::vector< BDSFieldQueryInfo * > &  fieldQueries )

private

Make regular interface private and unusable for this version of the class.

Definition at line 51 of file BDSFieldQuery.cc.

Field Documentation

field

G4Field* BDSFieldQueryRaw::field

private

The field object to query.

Definition at line 67 of file BDSFieldQueryRaw.hh.

Referenced by GetFieldValue(), and QueryFieldRaw().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSFieldQueryRaw.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSFieldQueryRaw.cc
