BDSGeometryFactory Class Reference

Interface to external geometry construction. More...

#include <BDSGeometryFactory.hh>

Collaboration diagram for BDSGeometryFactory:

Public Member Functions
BDSGeometryExternal *	BuildGeometry (G4String componentName, const G4String &formatAndFilePath, std::map< G4String, G4Colour * > *colourMapping=nullptr, G4bool autoColour=true, G4double suggestedLength=0, G4double suggestedHorizontalWidth=0, std::vector< G4String > *namedVacuumVolumes=nullptr, G4bool makeSensitive=true, BDSSDType sensitivityType=BDSSDType::energydep, BDSSDType vacuumSensitivityType=BDSSDType::energydepvacuum, G4bool stripOuterVolumeAndMakeAssembly=false, G4UserLimits *userLimitsToAttachToAllLVs=nullptr, G4bool dontReloadGeometry=false)

Static Public Member Functions
static BDSGeometryFactory *	Instance ()
	Singleton accessor.

Private Member Functions
	BDSGeometryFactory ()
	Private accessor as singleton.
BDSGeometryFactoryBase *	GetAppropriateFactory (BDSGeometryType type)
	Get the appropriate geometry factory.

Private Attributes
std::map< std::pair< std::string, std::string >, BDSGeometryExternal * >	registry
std::set< BDSGeometryExternal * >	storage
BDSGeometryFactoryBase *	gdml
	Factory instance.
BDSGeometryFactoryBase *	sql
	Factory instance.

Static Private Attributes
static BDSGeometryFactory *	instance = nullptr
	Singleton instance.

Detailed Description

Interface to external geometry construction.

A factory that uses the correct derived singleton factory of BDSGeometryFactoryBase to construct the required geometry with extents.

Author

Lawrence Deacon, Laurie Nevay

Definition at line 48 of file BDSGeometryFactory.hh.

Constructor & Destructor Documentation

~BDSGeometryFactory()

BDSGeometryFactory::~BDSGeometryFactory

(

)

Definition at line 59 of file BDSGeometryFactory.cc.

BDSGeometryFactory()

BDSGeometryFactory::BDSGeometryFactory ( )

private

Private accessor as singleton.

Definition at line 49 of file BDSGeometryFactory.cc.

References gdml, and sql.

Referenced by Instance().

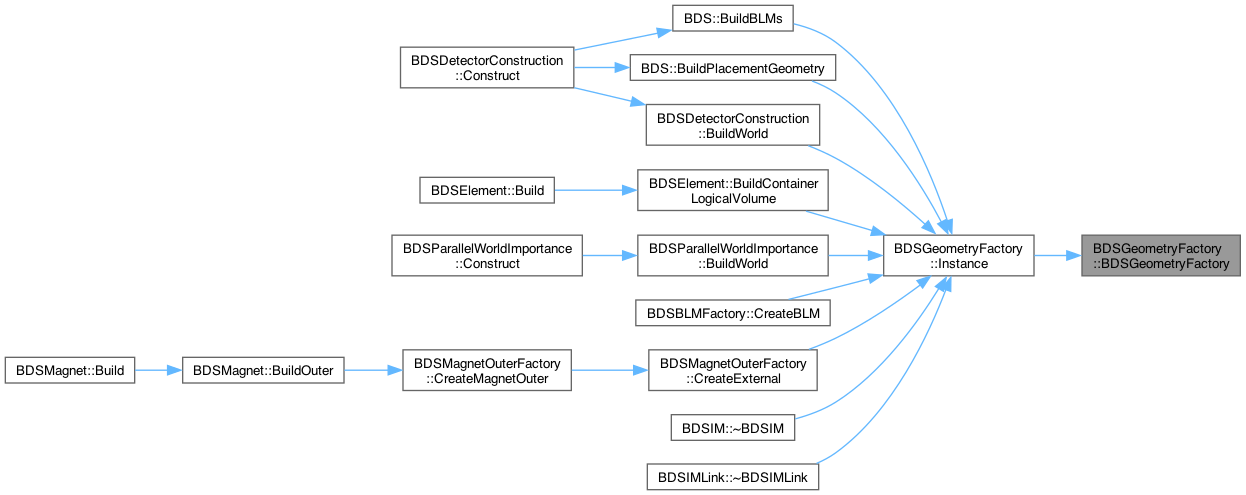

Here is the caller graph for this function:

Member Function Documentation

BuildGeometry()

BDSGeometryExternal * BDSGeometryFactory::BuildGeometry	(	G4String	componentName,
		const G4String &	formatAndFilePath,
		std::map< G4String, G4Colour * > *	colourMapping = nullptr,
		G4bool	autoColour = true,
		G4double	suggestedLength = 0,
		G4double	suggestedHorizontalWidth = 0,
		std::vector< G4String > *	namedVacuumVolumes = nullptr,
		G4bool	makeSensitive = true,
		BDSSDType	sensitivityType = BDSSDType::energydep,
		BDSSDType	vacuumSensitivityType = BDSSDType::energydepvacuum,
		G4bool	stripOuterVolumeAndMakeAssembly = false,
		G4UserLimits *	userLimitsToAttachToAllLVs = nullptr,
		G4bool	dontReloadGeometry = false
	)

Determine the geometry format, load it and build the geometry. Optional suggested length and horizontalWidth are in for some cases where it is not possible to query the geometry file for the extent information. Assign a default sensitivity to every volume recursively.

Definition at line 86 of file BDSGeometryFactory.cc.

References BDSGeometryFactoryBase::Build(), BDS::DetermineGeometryType(), BDS::FileExists(), GetAppropriateFactory(), BDS::GetFullPath(), registry, BDS::SplitOnColon(), storage, and BDSGeometryComponent::StripOuterAndMakeAssemblyVolume().

Referenced by BDS::BuildBLMs(), BDSElement::BuildContainerLogicalVolume(), BDS::BuildPlacementGeometry(), BDSDetectorConstruction::BuildWorld(), BDSParallelWorldImportance::BuildWorld(), BDSBLMFactory::CreateBLM(), and BDSMagnetOuterFactory::CreateExternal().

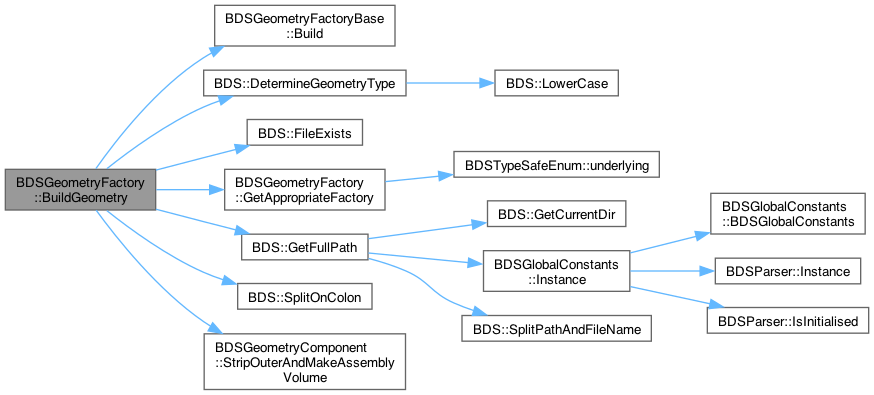

Here is the call graph for this function:

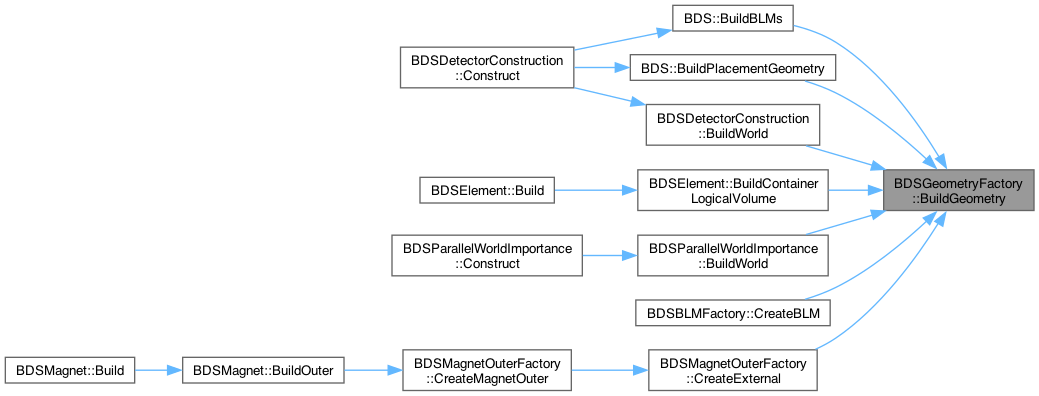

Here is the caller graph for this function:

GetAppropriateFactory()

BDSGeometryFactoryBase * BDSGeometryFactory::GetAppropriateFactory ( BDSGeometryType  type )

private

Get the appropriate geometry factory.

Definition at line 68 of file BDSGeometryFactory.cc.

References gdml, sql, and BDSTypeSafeEnum< def, inner >::underlying().

Referenced by BuildGeometry().

Here is the call graph for this function:

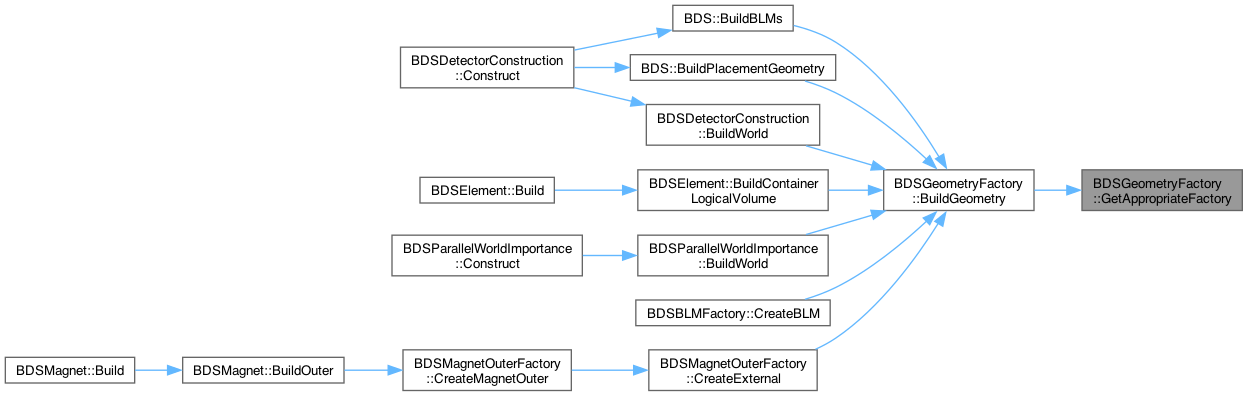

Here is the caller graph for this function:

Instance()

BDSGeometryFactory * BDSGeometryFactory::Instance ( )

static

Singleton accessor.

Definition at line 42 of file BDSGeometryFactory.cc.

References BDSGeometryFactory(), and instance.

Referenced by BDS::BuildBLMs(), BDSElement::BuildContainerLogicalVolume(), BDS::BuildPlacementGeometry(), BDSDetectorConstruction::BuildWorld(), BDSParallelWorldImportance::BuildWorld(), BDSBLMFactory::CreateBLM(), BDSMagnetOuterFactory::CreateExternal(), BDSIM::~BDSIM(), and BDSIMLink::~BDSIMLink().

Here is the call graph for this function:

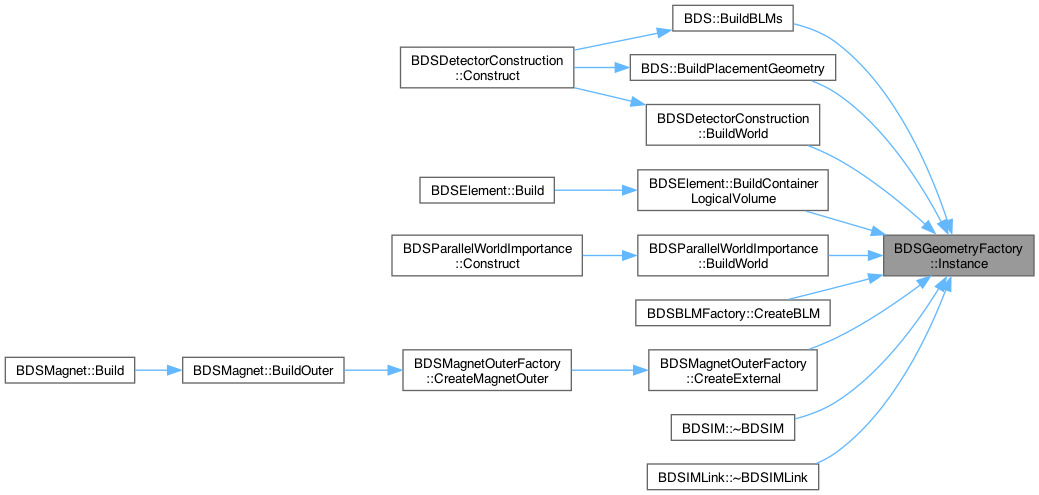

Here is the caller graph for this function:

Field Documentation

gdml

BDSGeometryFactoryBase* BDSGeometryFactory::gdml

private

Factory instance.

Definition at line 95 of file BDSGeometryFactory.hh.

Referenced by BDSGeometryFactory(), and GetAppropriateFactory().

instance

BDSGeometryFactory * BDSGeometryFactory::instance = nullptr

staticprivate

Singleton instance.

Definition at line 79 of file BDSGeometryFactory.hh.

Referenced by Instance().

registry

std::map<std::pair<std::string, std::string>, BDSGeometryExternal*> BDSGeometryFactory::registry

private

A registry of all previously constructed components. We use a map instead of an unordered map because map uses operator< whereas unordered_map uses std::hash(key). Hashing isn't provided for std::pair by default but operator< is, so we use map. Map is pair<file name, component name to be used in> : geometry.

Definition at line 85 of file BDSGeometryFactory.hh.

Referenced by BuildGeometry().

sql

BDSGeometryFactoryBase* BDSGeometryFactory::sql

private

Factory instance.

Definition at line 96 of file BDSGeometryFactory.hh.

Referenced by BDSGeometryFactory(), and GetAppropriateFactory().

storage

std::set<BDSGeometryExternal*> BDSGeometryFactory::storage

private

This is where the geometry components are stored and used to manage the associated memory of the pieces of geometry.

Definition at line 89 of file BDSGeometryFactory.hh.

Referenced by BuildGeometry().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSGeometryFactory.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSGeometryFactory.cc
