Interface to Geant4's GDML loader. More...

#include <BDSGeometryFactoryGDML.hh>

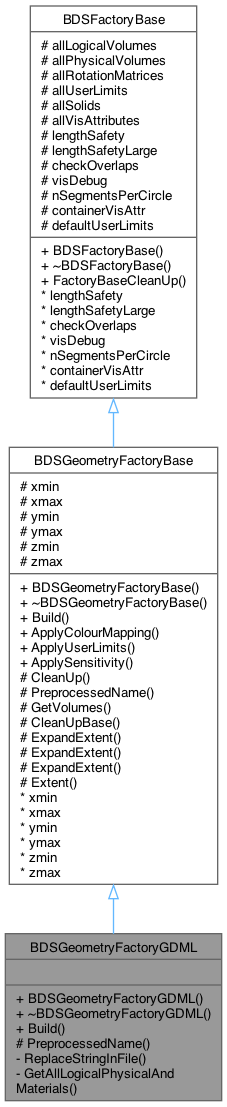

Inheritance diagram for BDSGeometryFactoryGDML:

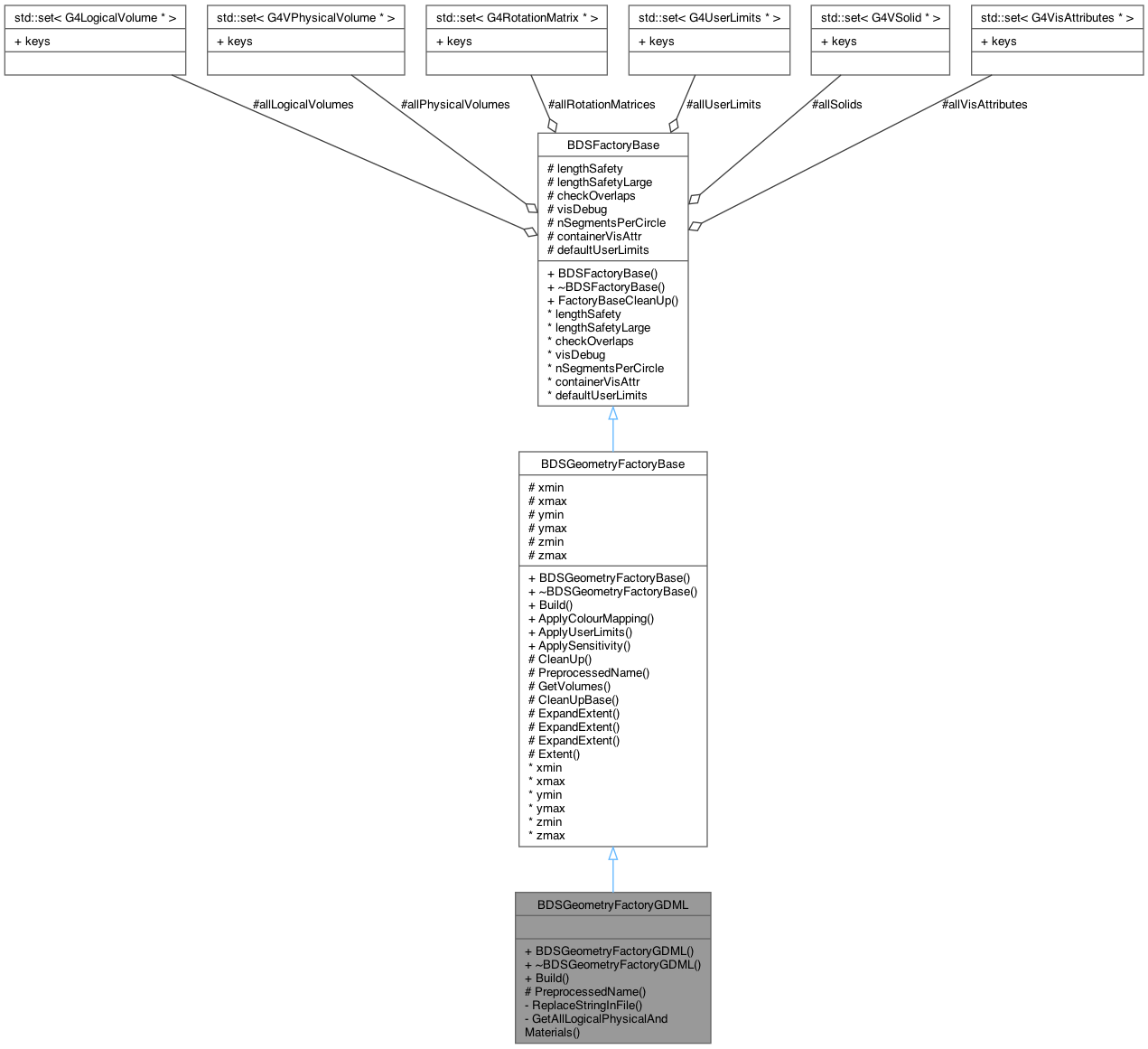

Collaboration diagram for BDSGeometryFactoryGDML:

Public Member Functions
virtual BDSGeometryExternal *	Build (G4String componentName, G4String fileName, std::map< G4String, G4Colour * > colourMapping=nullptr, G4bool autoColour=true, G4double suggestedLength=0, G4double suggestedHorizontalWidth=0, std::vector< G4String > namedVacuumVolumes=nullptr, G4bool makeSensitive=true, BDSSDType sensitivityType=BDSSDType::energydep, BDSSDType vacuumSensitivityType=BDSSDType::energydepvacuum, G4UserLimits *userLimitsToAttachToAllLVs=nullptr)

Public Member Functions inherited from BDSGeometryFactoryBase
virtual BDSGeometryExternal *	Build (G4String componentName, G4String fileName, std::map< G4String, G4Colour * > colourMapping=nullptr, G4bool autoColour=true, G4double suggestedLength=0, G4double suggestedHorizontalWidth=0, std::vector< G4String > vacuumBiasVolumeNames=nullptr, G4bool makeSensitive=true, BDSSDType sensitivityType=BDSSDType::energydep, BDSSDType vacuumSensitivityType=BDSSDType::energydepvacuum, G4UserLimits *userLimitsToAttachToAllLVs=nullptr)=0
	Main method to load and construct geometry.

virtual std::set< G4VisAttributes * >	ApplyColourMapping (std::set< G4LogicalVolume * > &lvs, std::map< G4String, G4Colour * > *mapping, G4bool autoColour, const G4String &preprocessPrefix="")

virtual void	ApplyUserLimits (const std::set< G4LogicalVolume * > &lvsIn, G4UserLimits *userLimits)
	Attach a set of user limits to every logical volume supplied.

virtual void	ApplySensitivity (BDSGeometryExternal result, const std::set< G4LogicalVolume > &allLogicalVolumesIn, BDSSDType generalSensitivity, const std::set< G4LogicalVolume * > &vacuumLogicalVolumes, BDSSDType vacuumSensitivity)
	Attach the relevant general and vacuum sensitivity to each volume.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Protected Member Functions
virtual G4String	PreprocessedName (const G4String &objectName, const G4String &acceleratorComponentName) const
	Use the GDML preprocessing scheme to prepare the preprocesseed volume names.

Protected Member Functions inherited from BDSGeometryFactoryBase
virtual void	CleanUp ()
	Virtual clean up that derived classes can override that calls CleanUpBase().

virtual G4String	PreprocessedName (const G4String &objectName, const G4String &acceleratorComponentName) const

std::set< G4LogicalVolume * >	GetVolumes (const std::set< G4LogicalVolume * > &allLVs, std::vector< G4String > *volumeNames, G4bool preprocessGDML, const G4String &componentName) const
	Get the volumes that match the name. Volume names are matched exactly and are case sensitive.

void	CleanUpBase ()

void	ExpandExtent (const BDSExtent &extent)
	Expand the acuumulated extents using a (possibly asymmetric) extent instance.

void	ExpandExtent (G4double xO, G4double rx, G4double y0, G4double ry, G4double z0, G4double rz)

void	ExpandExtent (G4double x0, G4double xLow, G4double xHigh, G4double y0, G4double yLow, G4double yHigh, G4double z0, G4double zLow, G4double zHigh)
	Expand the extent but asymmetrically.

BDSExtent	Extent () const

Private Member Functions
void	ReplaceStringInFile (const G4String &filename, const G4String &outputFileName, const G4String &key, const G4String &replacement)

void	GetAllLogicalPhysicalAndMaterials (const G4VPhysicalVolume volume, std::set< G4VPhysicalVolume > &pvs, std::set< G4LogicalVolume * > &lvs, std::map< G4String, G4Material * > &materialsGDML)

Additional Inherited Members
Protected Attributes inherited from BDSGeometryFactoryBase
G4double	xmin
	Extent in one dimension.

G4double	xmax
	Extent in one dimension.

G4double	ymin
	Extent in one dimension.

G4double	ymax
	Extent in one dimension.

G4double	zmin
	Extent in one dimension.

G4double	zmax
	Extent in one dimension.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Interface to Geant4's GDML loader.

Author: Stewart Boogert, Lawrence Deacon, Laurie Nevay

Definition at line 44 of file BDSGeometryFactoryGDML.hh.

Constructor & Destructor Documentation

◆ BDSGeometryFactoryGDML()

BDSGeometryFactoryGDML::BDSGeometryFactoryGDML ( )

Definition at line 53 of file BDSGeometryFactoryGDML.cc.

◆ ~BDSGeometryFactoryGDML()

virtual BDSGeometryFactoryGDML::~BDSGeometryFactoryGDML ( )

inlinevirtual

Definition at line 48 of file BDSGeometryFactoryGDML.hh.

Member Function Documentation

◆ Build()

BDSGeometryExternal * BDSGeometryFactoryGDML::Build	(	G4String	componentName,
		G4String	fileName,
		std::map< G4String, G4Colour * > *	colourMapping = `nullptr`,
		G4bool	autoColour = `true`,
		G4double	suggestedLength = `0`,
		G4double	suggestedHorizontalWidth = `0`,
		std::vector< G4String > *	namedVacuumVolumes = `nullptr`,
		G4bool	makeSensitive = `true`,
		BDSSDType	sensitivityType = `BDSSDType::energydep`,
		BDSSDType	vacuumSensitivityType = `BDSSDType::energydepvacuum`,
		G4UserLimits *	userLimitsToAttachToAllLVs = `nullptr`
	)

virtual

Main interface overrides base class method to construct a file with optional colour mapping.

Implements BDSGeometryFactoryBase.

Definition at line 56 of file BDSGeometryFactoryGDML.cc.

References BDSGeometryFactoryBase::ApplyColourMapping(), BDSGeometryFactoryBase::ApplySensitivity(), BDSGeometryFactoryBase::ApplyUserLimits(), BDSMaterials::CacheMaterialsFromGDML(), BDSMaterials::CheckForConflictingMaterialsAfterLoad(), BDSGeometryFactoryBase::CleanUp(), BDS::DetermineExtents(), GetAllLogicalPhysicalAndMaterials(), BDSGeometryComponent::GetAllLogicalVolumes(), BDSColourFromMaterial::GetColour(), BDSColours::GetColour(), BDSGeometryFactoryBase::GetVolumes(), BDSColourFromMaterial::Instance(), BDSColours::Instance(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryExternal::RegisterVacuumVolumes(), BDSGeometryComponent::RegisterVisAttributes(), and BDSGeometryExternal::VacuumVolumes().

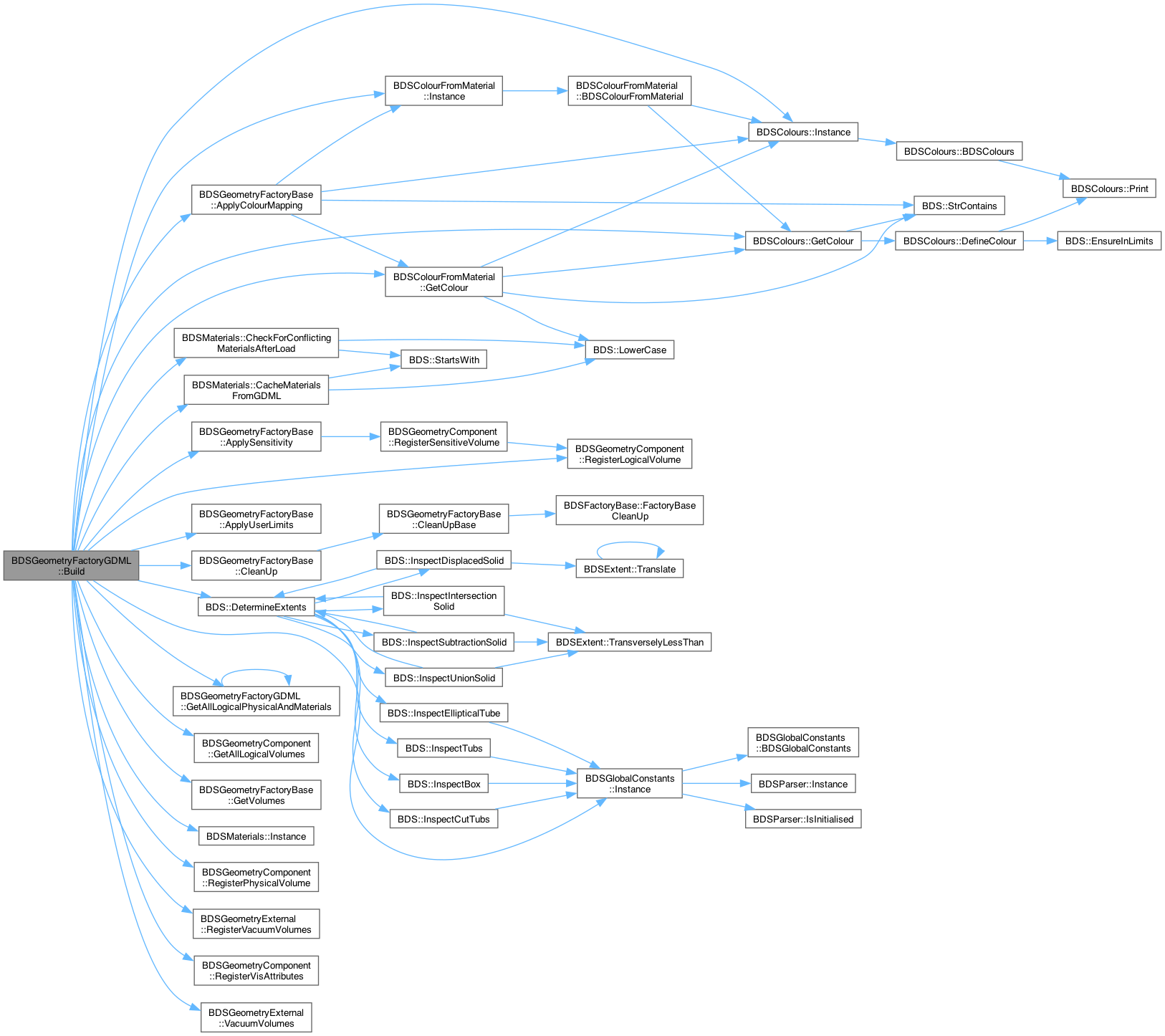

Here is the call graph for this function:

◆ GetAllLogicalPhysicalAndMaterials()

void BDSGeometryFactoryGDML::GetAllLogicalPhysicalAndMaterials	(	const G4VPhysicalVolume *	volume,
		std::set< G4VPhysicalVolume * > &	pvs,
		std::set< G4LogicalVolume * > &	lvs,
		std::map< G4String, G4Material * > &	materialsGDML
	)

private

Recursively append pvs and lvs from a given mother volume. Pass by reference the output vectors

Definition at line 194 of file BDSGeometryFactoryGDML.cc.

References GetAllLogicalPhysicalAndMaterials().

Referenced by Build(), and GetAllLogicalPhysicalAndMaterials().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PreprocessedName()

G4String BDSGeometryFactoryGDML::PreprocessedName	(	const G4String &	objectName,
		const G4String &	acceleratorComponentName
	)		const

protectedvirtual

Use the GDML preprocessing scheme to prepare the preprocesseed volume names.

Reimplemented from BDSGeometryFactoryBase.

Definition at line 190 of file BDSGeometryFactoryGDML.cc.

References BDSGDMLPreprocessor::ProcessedNodeName().

Here is the call graph for this function:

◆ ReplaceStringInFile()

void BDSGeometryFactoryGDML::ReplaceStringInFile	(	const G4String &	filename,
		const G4String &	outputFileName,
		const G4String &	key,
		const G4String &	replacement
	)

private

Create a temporary file in the current working directory (even though the geometry file may not exist there) and create a copy of the input geometry file line by line, but replacing a 'key' with 'replacement'. Returns the temporary file name created. Naming only allows one temporary file per component - so far, not a problem.

Definition at line 211 of file BDSGeometryFactoryGDML.cc.

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSGeometryFactoryGDML.hh
/Users/lnevay/physics/reps/bdsim/src/BDSGeometryFactoryGDML.cc
