BDSIntegratorMultipoleThin Class Reference

Integrator that ignores the field and uses the analytical solution to a multipole. More...

#include <BDSIntegratorMultipoleThin.hh>

Inheritance diagram for BDSIntegratorMultipoleThin:

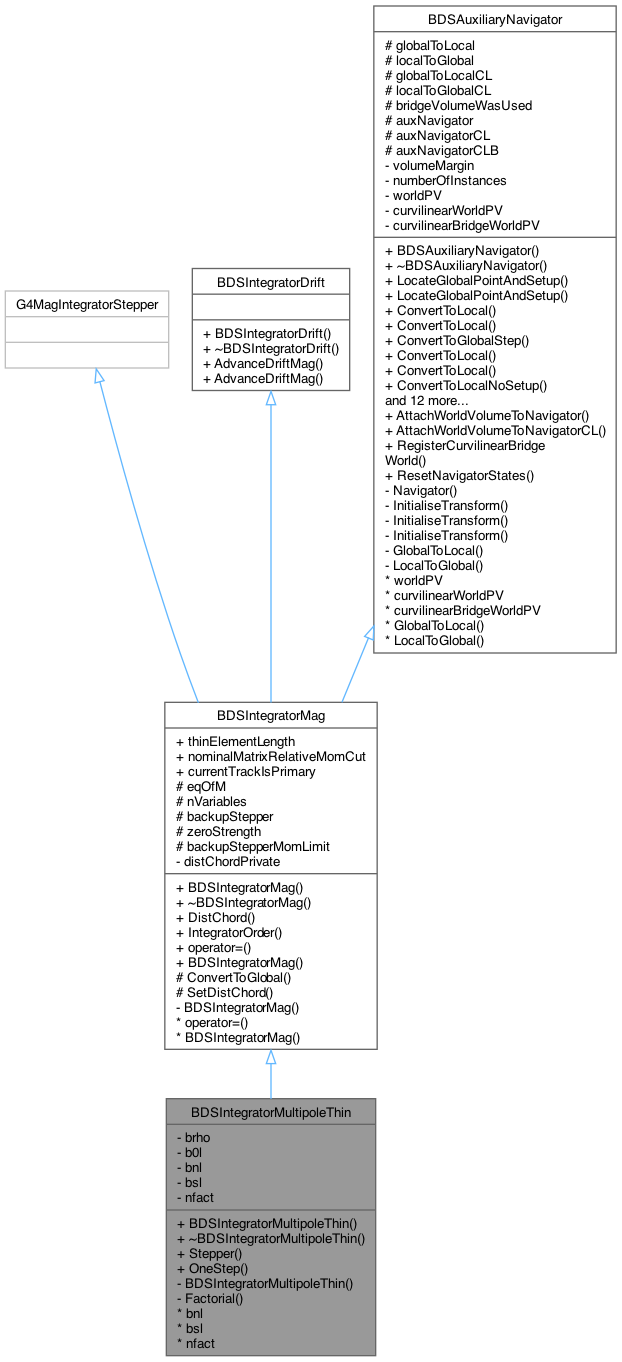

Inheritance graph
Collaboration diagram for BDSIntegratorMultipoleThin:

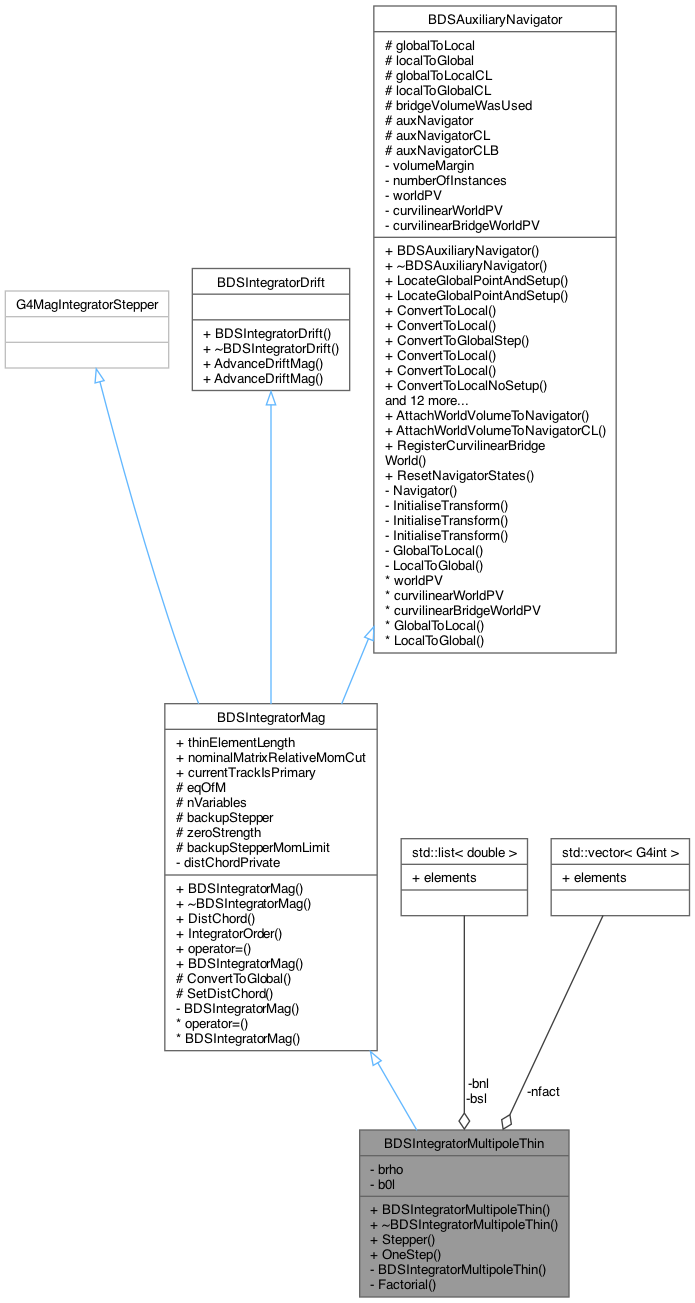

Collaboration graph

Public Member Functions

 BDSIntegratorMultipoleThin (BDSMagnetStrength const *strength, G4double brhoIn, G4Mag_EqRhs *eqOfMIn)

virtual void Stepper (const G4double yIn[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])

void OneStep (const G4ThreeVector &posIn, const G4ThreeVector &momUIn, const G4double momIn, G4ThreeVector &posOut, G4ThreeVector &momOut, G4double h) const

- Public Member Functions inherited from BDSIntegratorMag
 BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double DistChord () const
 Estimate maximum distance of curved solution and chord.

virtual G4int IntegratorOrder () const
 Geant4 requires that the integrator order must be supplied by the derived class.

BDSIntegratorMag & operator= (const BDSIntegratorMag &)=delete
 Assignment and copy constructor not implemented nor used.

 BDSIntegratorMag (BDSIntegratorMag &)=delete
 Assignment and copy constructor not implemented nor used.

- Public Member Functions inherited from BDSIntegratorDrift
void AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
 Error array [6] all 0.

void AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

- Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume * LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
 A wrapper for the underlying static navigator instance located within this class.

G4VPhysicalVolume * LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
 Vector version - see notes above.

G4ThreeVector ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
 Similar to above function but does NOT initialise the transforms.

G4ThreeVector ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
 Vector version.

G4ThreeVector ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector > ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)


Private Member Functions

 BDSIntegratorMultipoleThin ()=delete
 Private default constructor to enforce use of supplied constructor.

G4int Factorial (G4int n)
 Calculate the factorial of n.


Private Attributes

G4double brho
 Magnetic rigidity for momentum scaling.

G4double b0l
 Dipole component.

std::list< double > bnl
 Higher order components.

std::list< double > bsl
 Higher order components.

std::vector< G4int > nfact
 Higher order components.


Additional Inherited Members

- Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
 Setup the navigator w.r.t. to a world volume - typically real world.

static void AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void ResetNavigatorStates ()

- Static Public Attributes inherited from BDSIntegratorMag
static G4double thinElementLength = -1

static G4double nominalMatrixRelativeMomCut = -1

static G4bool currentTrackIsPrimary = false

- Protected Member Functions inherited from BDSIntegratorMag
void ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
 scaling of momentum in case localMom is a unit vector

void SetDistChord (G4double distChordIn)
 Setter for distChord to private member.

- Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs * eqOfM

const G4int nVariables
 Cache of the number of variables.

G4MagIntegratorStepper * backupStepper

G4bool zeroStrength

G4double backupStepperMomLimit

- Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform globalToLocal

G4AffineTransform localToGlobal

G4AffineTransform globalToLocalCL

G4AffineTransform localToGlobalCL

G4bool bridgeVolumeWasUsed

- Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator * auxNavigator = new G4Navigator()

static G4Navigator * auxNavigatorCL = new G4Navigator()

static G4Navigator * auxNavigatorCLB = new G4Navigator()


Detailed Description

Integrator that ignores the field and uses the analytical solution to a multipole.

Author
Will Shields

Definition at line 37 of file BDSIntegratorMultipoleThin.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorMultipoleThin()

BDSIntegratorMultipoleThin::BDSIntegratorMultipoleThin ( BDSMagnetStrength const *  strength,
G4double  brhoIn,
G4Mag_EqRhs *  eqOfMIn
)

Definition at line 33 of file BDSIntegratorMultipoleThin.cc.

◆ ~BDSIntegratorMultipoleThin()

virtual BDSIntegratorMultipoleThin::~BDSIntegratorMultipoleThin ( )
inlinevirtual

Definition at line 44 of file BDSIntegratorMultipoleThin.hh.

Member Function Documentation

◆ Factorial()

G4int BDSIntegratorMultipoleThin::Factorial ( G4int  n)
private

Calculate the factorial of n.

Definition at line 216 of file BDSIntegratorMultipoleThin.cc.

◆ OneStep()

void BDSIntegratorMultipoleThin::OneStep ( const G4ThreeVector &  posIn,
const G4ThreeVector &  momUIn,
const G4double  momIn,
G4ThreeVector &  posOut,
G4ThreeVector &  momOut,
G4double  h
) const

Calculate a single step using thin multipole matrix. Unit momentum, momentum magnitude, and normalised bending radius are provided as arguments because they already calculated in the Stepper method.

Definition at line 122 of file BDSIntegratorMultipoleThin.cc.

References bnl, brho, bsl, BDSIntegratorMag::eqOfM, BDS::IsFinite(), and nfact.

Referenced by BDSIntegratorDipoleFringe::MultipoleStep(), and Stepper().

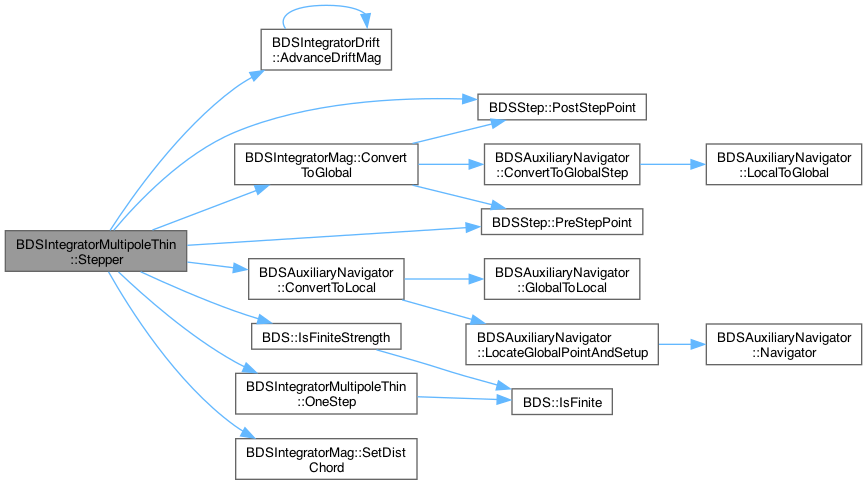

Here is the call graph for this function:

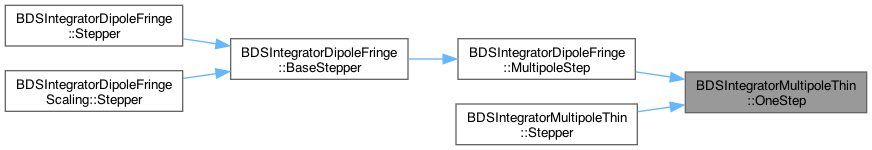

Here is the caller graph for this function:

◆ Stepper()

void BDSIntegratorMultipoleThin::Stepper ( const G4double  yIn[],
const G4double  dydx[],
const G4double  h,
G4double  yOut[],
G4double  yErr[]
)
virtual

The stepper for integration. The stepsize is fixed, equal to h. The reason for this is so that intermediate steps can be calculated and therefore the error ascertained or distance from the chord. Error calculation is not currently implemented.

Definition at line 63 of file BDSIntegratorMultipoleThin.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), BDSIntegratorMag::backupStepperMomLimit, BDSIntegratorMag::ConvertToGlobal(), BDSAuxiliaryNavigator::ConvertToLocal(), BDSIntegratorMag::eqOfM, BDS::IsFiniteStrength(), OneStep(), BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), BDSIntegratorMag::SetDistChord(), BDSIntegratorMag::thinElementLength, and BDSIntegratorMag::zeroStrength.

Here is the call graph for this function:

Field Documentation

◆ b0l

G4double BDSIntegratorMultipoleThin::b0l
private

Dipole component.

Definition at line 76 of file BDSIntegratorMultipoleThin.hh.

◆ bnl

std::list<double> BDSIntegratorMultipoleThin::bnl
private

Higher order components.

Definition at line 78 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

◆ brho

G4double BDSIntegratorMultipoleThin::brho
private

Magnetic rigidity for momentum scaling.

Definition at line 73 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

◆ bsl

std::list<double> BDSIntegratorMultipoleThin::bsl
private

Higher order components.

Definition at line 79 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

◆ nfact

std::vector<G4int> BDSIntegratorMultipoleThin::nfact
private

Higher order components.

Definition at line 80 of file BDSIntegratorMultipoleThin.hh.

Referenced by OneStep().

The documentation for this class was generated from the following files:
