BDSIntegratorQuadrupole Class Reference

Integrator that ignores the field and uses the analytical solution to a quadrupole. More...

#include <BDSIntegratorQuadrupole.hh>

Inheritance diagram for BDSIntegratorQuadrupole:
Inheritance graph

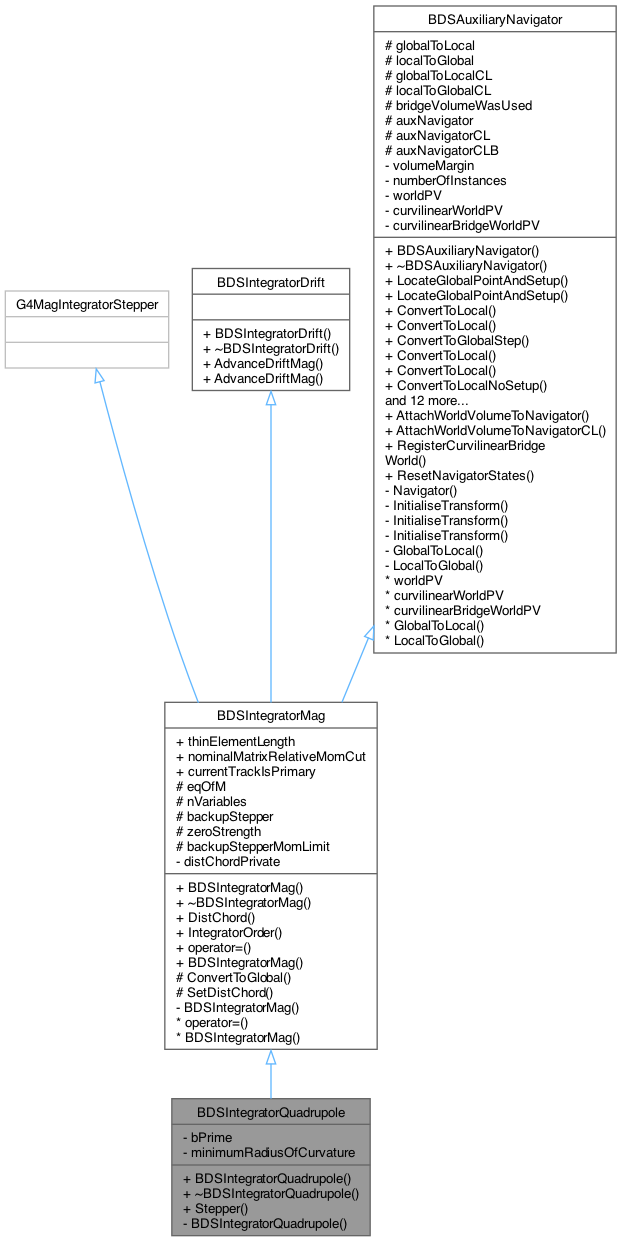

Collaboration diagram for BDSIntegratorQuadrupole:
Collaboration graph

Public Member Functions

 BDSIntegratorQuadrupole (BDSMagnetStrength const *strength, G4double brho, G4Mag_EqRhs *eqOfMIn, G4double minimumRadiusOfCurvatureIn)

virtual void Stepper (const G4double y[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])

- Public Member Functions inherited from BDSIntegratorMag
 BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double DistChord () const
 Estimate maximum distance of curved solution and chord.

virtual G4int IntegratorOrder () const
 Geant4 requires that the integrator order must be supplied by the derived class.

BDSIntegratorMag & operator= (const BDSIntegratorMag &)=delete
 Assignment and copy constructor not implemented nor used.

 BDSIntegratorMag (BDSIntegratorMag &)=delete
 Assignment and copy constructor not implemented nor used.

- Public Member Functions inherited from BDSIntegratorDrift
void AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
 Error array [6] all 0.

void AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

- Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume * LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
 A wrapper for the underlying static navigator instance located within this class.

G4VPhysicalVolume * LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
 Vector version - see notes above.

G4ThreeVector ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
 Similar to above function but does NOT initialise the transforms.

G4ThreeVector ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
 Vector version.

G4ThreeVector ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector > ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)


Private Member Functions

 BDSIntegratorQuadrupole ()
 Private default constructor to enforce use of supplied constructor.


Private Attributes

G4double bPrime
 B Field Gradient.

G4double minimumRadiusOfCurvature


Additional Inherited Members

- Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
 Setup the navigator w.r.t. to a world volume - typically real world.

static void AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void ResetNavigatorStates ()

- Static Public Attributes inherited from BDSIntegratorMag
static G4double thinElementLength = -1

static G4double nominalMatrixRelativeMomCut = -1

static G4bool currentTrackIsPrimary = false

- Protected Member Functions inherited from BDSIntegratorMag
void ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
 scaling of momentum in case localMom is a unit vector

void SetDistChord (G4double distChordIn)
 Setter for distChord to private member.

- Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs * eqOfM

const G4int nVariables
 Cache of the number of variables.

G4MagIntegratorStepper * backupStepper

G4bool zeroStrength

G4double backupStepperMomLimit

- Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform globalToLocal

G4AffineTransform localToGlobal

G4AffineTransform globalToLocalCL

G4AffineTransform localToGlobalCL

G4bool bridgeVolumeWasUsed

- Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator * auxNavigator = new G4Navigator()

static G4Navigator * auxNavigatorCL = new G4Navigator()

static G4Navigator * auxNavigatorCLB = new G4Navigator()


Detailed Description

Integrator that ignores the field and uses the analytical solution to a quadrupole.

Analytical solution to a quadrupole field. This integrator will use the analytical solution for a quadrupole (matrix) to transport a particle along a given step length. This will only do so for particles that are considered paraxial. For particles that don't meet this criteria the backupStepper from BDSIntegratorMag is used to integrate through the quadrupolar field. This ensures the integrator functions correctly with particles with large transverse momenta, or even ones that are travelling backwards such as secondaries.

Definition at line 42 of file BDSIntegratorQuadrupole.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorQuadrupole()

BDSIntegratorQuadrupole::BDSIntegratorQuadrupole ( BDSMagnetStrength const *  strength,
G4double  brho,
G4Mag_EqRhs *  eqOfMIn,
G4double  minimumRadiusOfCurvatureIn
)

Definition at line 34 of file BDSIntegratorQuadrupole.cc.

◆ ~BDSIntegratorQuadrupole()

virtual BDSIntegratorQuadrupole::~BDSIntegratorQuadrupole ( )
inlinevirtual

Definition at line 50 of file BDSIntegratorQuadrupole.hh.

Member Function Documentation

◆ Stepper()

void BDSIntegratorQuadrupole::Stepper ( const G4double  y[],
const G4double  dydx[],
const G4double  h,
G4double  yOut[],
G4double  yErr[]
)
virtual

Check if the quadrupole has finite strength and use drift if not. If finite strength, convert to local curvilinear coordinates and check for paraxial approximation. If paraxial, use thick quadrupole matrix for transport, else use the G4ClassicalRK4 backup stepper.

Definition at line 52 of file BDSIntegratorQuadrupole.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), BDSIntegratorMag::backupStepper, BDSIntegratorMag::backupStepperMomLimit, bPrime, BDSIntegratorMag::eqOfM, BDSAuxiliaryNavigator::GlobalToCurvilinear(), BDS::IsFiniteStrength(), minimumRadiusOfCurvature, BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), BDSIntegratorMag::SetDistChord(), and BDSIntegratorMag::zeroStrength.

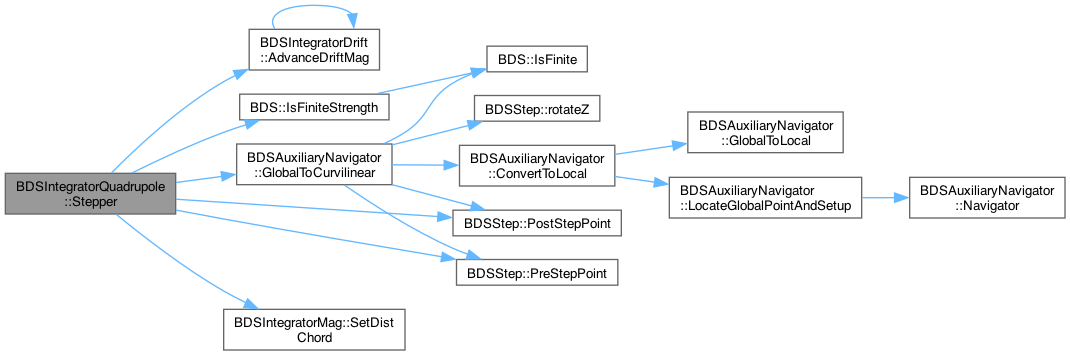

Here is the call graph for this function:

Field Documentation

◆ bPrime

G4double BDSIntegratorQuadrupole::bPrime
private

B Field Gradient.

Definition at line 66 of file BDSIntegratorQuadrupole.hh.

Referenced by Stepper().

◆ minimumRadiusOfCurvature

G4double BDSIntegratorQuadrupole::minimumRadiusOfCurvature
private

Minimum radius of curvature in field. Below this, the backup integrator is used. Rarely, a particle may meet paraxial requirements but experience near spiralling in which case the thick matrix won't produce accurate or numerically stable results.

Definition at line 71 of file BDSIntegratorQuadrupole.hh.

Referenced by Stepper().
