A class that hold multiple accelerator components. More...

#include <BDSLine.hh>

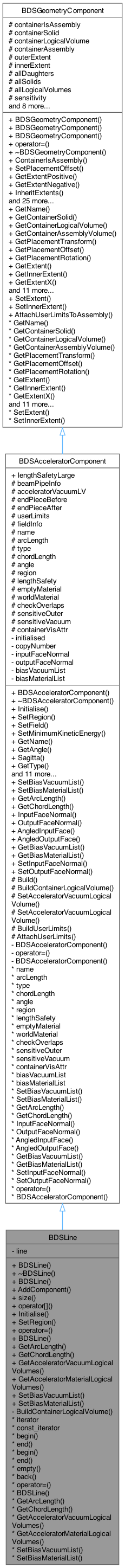

Inheritance diagram for BDSLine:

Collaboration diagram for BDSLine:

Public Member Functions
	BDSLine (G4String name)

void	AddComponent (BDSAcceleratorComponent *component)
	Add a component to the line.

size_t	size () const
	Size of line.

BDSAcceleratorComponent *const &	operator[] (G4int index) const
	Accessor for part - exposes functionality of the vector for iteration by index.

virtual void	Initialise ()

virtual void	SetRegion (const G4String &region)
	Set the region name for each component.


BDSLine &	operator= (const BDSLine &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSLine (BDSLine &)=delete
	Assignment and copy constructor not implemented nor used.


virtual G4double	GetArcLength () const
	Override base class method as BDSAcceleratorComponent::chordLength etc variables are const and we append to this.

virtual G4double	GetChordLength () const
	Override base class method as BDSAcceleratorComponent::chordLength etc variables are const and we append to this.


virtual std::set< G4LogicalVolume * >	GetAcceleratorVacuumLogicalVolumes () const
	Re-implement from BDSAcceleratorComponent.

virtual std::set< G4LogicalVolume * >	GetAcceleratorMaterialLogicalVolumes () const
	Re-implement from BDSAcceleratorComponent.


virtual void	SetBiasVacuumList (const std::list< std::string > &biasVacuumList)
	Copy the bias list to each component.

virtual void	SetBiasMaterialList (const std::list< std::string > &biasMaterialList)
	Copy the bias list to each component.

Public Member Functions inherited from BDSAcceleratorComponent
	BDSAcceleratorComponent (const G4String &name, G4double arcLength, G4double angle, const G4String &type, BDSBeamPipeInfo beamPipeInfo=nullptr, const G4ThreeVector &inputFaceNormalIn=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormalIn=G4ThreeVector(0, 0, 1), BDSFieldInfo fieldInfoIn=nullptr)

virtual void	Initialise ()

virtual void	SetRegion (const G4String &regionIn)
	Set the region name for this component.

void	SetField (BDSFieldInfo *fieldInfoIn)
	Set the field definition for the whole component.

virtual void	SetMinimumKineticEnergy (G4double)

virtual G4String	GetName () const
	The name of the component without modification.

G4double	GetAngle () const

G4double	Sagitta () const
	Calculate the sagitta - ie the distance between the chord and the arc at the centre.

G4String	GetType () const
	Get a string describing the type of the component.

G4String	GetRegion () const
	Get the region name for this component.

virtual G4bool	HasAField () const
	Whether this component has a field or not (ie is active). Implicit cast of pointer to bool.

virtual void	SetFieldUsePlacementWorldTransform ()

BDSBeamPipeInfo *	GetBeamPipeInfo () const

virtual G4String	Material () const
	Return the name of a material associated with the component - ie the primary material.

virtual std::set< G4LogicalVolume * >	GetAcceleratorVacuumLogicalVolumes () const
	Access the 'vacuum' volume(s) in this component if any. Default is empty set.

virtual std::set< G4LogicalVolume * >	GetAcceleratorMaterialLogicalVolumes () const
	Return a set of logical volumes excluding the ones in the 'vacuum' set.

void	IncrementCopyNumber ()
	Increment (+1) the number of times this component has been copied.

G4int	GetCopyNumber () const
	Get the number of times this component has been copied.

BDSSimpleComponent *	EndPieceBefore () const

BDSSimpleComponent *	EndPieceAfter () const

G4ThreeVector	InputFaceNormal () const

G4ThreeVector	OutputFaceNormal () const

G4bool	AngledInputFace () const
	Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

G4bool	AngledOutputFace () const
	Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory.

std::list< std::string >	GetBiasVacuumList () const
	Access the bias list copied from parser.

std::list< std::string >	GetBiasMaterialList () const
	Access the bias list copied from parser.

virtual void	SetInputFaceNormal (const G4ThreeVector &input)
	Allow updating of face normals. Virtual so derived class may apply it to daughters.

virtual void	SetOutputFaceNormal (const G4ThreeVector &output)
	Allow updating of face normals. Virtual so derived class may apply it to daughters.

Public Member Functions inherited from BDSGeometryComponent
	BDSGeometryComponent (G4VSolid containerSolidIn, G4LogicalVolume containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)

	BDSGeometryComponent (G4AssemblyVolume containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix placementRotationIn=nullptr)

	BDSGeometryComponent (const BDSGeometryComponent &component)
	Copy constructor (no copying of registered objects)

BDSGeometryComponent &	operator= (const BDSGeometryComponent &)=delete
	Assignment operator not used.

G4bool	ContainerIsAssembly () const
	Whether the container is an assembly. If not, it's a logical volume.

void	SetPlacementOffset (const G4ThreeVector &offsetIn)
	Set the offset from 0,0,0 that the object should ideally be placed in its parent.

G4ThreeVector	GetExtentPositive () const
	Get the extent of the object in the positive direction in all dimensions.

G4ThreeVector	GetExtentNegative () const
	Get the extent of the object in the negative direction in all dimensions.

void	InheritExtents (BDSGeometryComponent const *const anotherComponent)
	Update the extents of this object with those of another object.

void	InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset)

void	RegisterDaughter (BDSGeometryComponent *anotherComponent)

void	RegisterSolid (G4VSolid *solid)

void	RegisterSolid (const std::set< G4VSolid * > &solids)
	Similarly for a set of unique solids.

void	RegisterLogicalVolume (G4LogicalVolume *logicalVolume)

void	RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes)
	Apply RegisterLogicalVolume() to a set of logical volumes.

void	RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType)

void	RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType)

void	RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes)
	Copy in a mapping of sensitive volumes to sensitive detectors.

void	RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume)

void	RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes)
	Apply RegisterPhysicalVolume() to a set of physical volumes.

void	RegisterRotationMatrix (G4RotationMatrix *rotationMatrix)

void	RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices)
	Apply Register RotationMatrix() to a set of rotation matrices.

void	RegisterVisAttributes (G4VisAttributes *visAttribute)

void	RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes)
	Apply RegisterVisAttribute() to a set of visualisation attributes.

void	RegisterUserLimits (G4UserLimits *userLimit)

void	RegisterUserLimits (const std::set< G4UserLimits * > &userLimits)
	Apply RegisterUserLimit to a set of user limits.

void	InheritObjects (BDSGeometryComponent *component)

virtual std::set< G4LogicalVolume * >	GetAllLogicalVolumes () const
	Access all logical volumes belonging to this component.

virtual std::set< G4LogicalVolume * >	GetAllBiasingVolumes () const
	Return all logical volumes that should be used for biasing minus any that are in the excluded set.

virtual std::map< G4LogicalVolume *, BDSSDType >	GetAllSensitiveVolumes () const
	Access all sensitive volumes belonging to this component.

void	MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep)

virtual void	AttachSensitiveDetectors ()
	Attach a sensitive detector class to all registered sensitive volumes in this component.

virtual void	ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv)

void	StripOuterAndMakeAssemblyVolume ()
	Change from a container logical volume to an assembly volume.

G4VSolid *	GetContainerSolid () const
	Accessor - see member for more info.

G4LogicalVolume *	GetContainerLogicalVolume () const
	Accessor - see member for more info.

G4AssemblyVolume *	GetContainerAssemblyVolume () const
	Accessor - see member for more info.

G4Transform3D	GetPlacementTransform () const
	Accessor - see member for more info.

G4ThreeVector	GetPlacementOffset () const
	Accessor - see member for more info.

G4RotationMatrix *	GetPlacementRotation () const
	Accessor - see member for more info.

BDSExtent	GetExtent () const
	Accessor - see member for more info.

BDSExtent	GetInnerExtent () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentX () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentY () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetExtentZ () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentX () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentY () const
	Accessor - see member for more info.

std::pair< G4double, G4double >	GetInnerExtentZ () const
	Accessor - see member for more info.

virtual std::set< G4VPhysicalVolume * >	GetAllPhysicalVolumes () const
	Accessor - see member for more info.

virtual std::set< G4RotationMatrix * >	GetAllRotationMatrices () const
	Accessor - see member for more info.

virtual std::set< G4VisAttributes * >	GetAllVisAttributes () const
	Accessor - see member for more info.

virtual std::set< G4UserLimits * >	GetAllUserLimits () const
	Accessor - see member for more info.

virtual std::set< BDSGeometryComponent * >	GetAllDaughters () const
	Accessor - see member for more info.

virtual std::set< G4VSolid * >	GetAllSolids () const
	Accessor - see member for more info.

void	SetExtent (const BDSExtent &extIn)
	Set extent.

void	SetInnerExtent (const BDSExtent &extIn)
	Set extent.

Private Types
typedef std::vector< BDSAcceleratorComponent * >	BDSLineVector

Private Member Functions
virtual void	BuildContainerLogicalVolume ()
	define pure virtual method

Private Attributes
BDSLineVector	line
	Member vector to store components.

typedef BDSLineVector::iterator	iterator
	Iterator mechanics.

typedef BDSLineVector::const_iterator	const_iterator
	Iterator mechanics.

iterator	begin ()
	Iterator mechanics.

iterator	end ()
	Iterator mechanics.

const_iterator	begin () const
	Iterator mechanics.

const_iterator	end () const
	Iterator mechanics.

G4bool	empty () const
	Iterator mechanics.

const BDSAcceleratorComponent *	back () const
	Iterator mechanics.

Additional Inherited Members
Static Public Member Functions inherited from BDSGeometryComponent
static void	AttachUserLimitsToAssembly (G4AssemblyVolume av, G4UserLimits ul)
	Utility function to apply user limits to an assembly volume as there's not interface.

Static Public Attributes inherited from BDSAcceleratorComponent
static G4double	lengthSafetyLarge = 0

Protected Member Functions inherited from BDSAcceleratorComponent
virtual void	Build ()

virtual void	BuildContainerLogicalVolume ()=0

void	SetAcceleratorVacuumLogicalVolume (G4LogicalVolume *accVacLVIn)

void	SetAcceleratorVacuumLogicalVolume (const std::set< G4LogicalVolume * > &accVacLVIn)

virtual void	BuildUserLimits ()

virtual void	AttachUserLimits () const
	Doesn't change member variables, but may change their contents.

Protected Attributes inherited from BDSAcceleratorComponent
BDSBeamPipeInfo *	beamPipeInfo
	Optional beam pipe recipe that is written out to the survey if it exists.

std::set< G4LogicalVolume * >	acceleratorVacuumLV
	A set of logical volumes we classify as 'vacuum' for biasing purposes.

BDSSimpleComponent *	endPieceBefore

BDSSimpleComponent *	endPieceAfter

G4UserLimits *	userLimits
	Cache of user limits.

BDSFieldInfo *	fieldInfo
	Recipe for field that could overlay this whole component.

const G4String	name
	Const protected member variable that may not be changed by derived classes.

const G4double	arcLength
	Const protected member variable that may not be changed by derived classes.

const G4String	type
	Const protected member variable that may not be changed by derived classes.

G4double	chordLength
	Protected member variable that can be modified by derived classes.

G4double	angle
	Protected member variable that can be modified by derived classes.

G4String	region
	Protected member variable that can be modified by derived classes.

Protected Attributes inherited from BDSGeometryComponent
G4bool	containerIsAssembly
	True if the 'container' is really an assembly; false if an LV.

G4VSolid *	containerSolid

G4LogicalVolume *	containerLogicalVolume

G4AssemblyVolume *	containerAssembly

BDSExtent	outerExtent

BDSExtent	innerExtent

std::set< BDSGeometryComponent * >	allDaughters
	registry of all daughter geometry components

std::set< G4VSolid * >	allSolids
	registry of all solids belonging to this component

std::set< G4LogicalVolume * >	allLogicalVolumes

std::map< G4LogicalVolume *, BDSSDType >	sensitivity

G4bool	overrideSensitivity

std::set< G4VPhysicalVolume * >	allPhysicalVolumes
	registry of all physical volumes belonging to this component

std::set< G4RotationMatrix * >	allRotationMatrices
	registry of all rotation matrices belonging to this component

std::set< G4VisAttributes * >	allVisAttributes
	registry of all visualisation attributes belonging to this component

std::set< G4UserLimits * >	allUserLimits
	registry of all user limits belonging to this component

G4ThreeVector	placementOffset

G4RotationMatrix *	placementRotation

std::set< G4LogicalVolume * > *	lvsExcludedFromBiasing
	Volumes that should not be included when return GetAllBiasingVolumes().

Static Protected Attributes inherited from BDSAcceleratorComponent
static G4double	lengthSafety = -1
	Useful variable often used in construction.

static G4Material *	emptyMaterial = nullptr
	Useful variable often used in construction.

static G4Material *	worldMaterial = nullptr
	Useful variable often used in construction.

static G4bool	checkOverlaps = false
	Useful variable often used in construction.

static G4bool	sensitiveOuter = true
	Useful variable often used in construction.

static G4bool	sensitiveVacuum = false
	Useful variable often used in construction.

static G4VisAttributes *	containerVisAttr = nullptr
	Useful variable often used in construction.

Detailed Description

A class that hold multiple accelerator components.

Not physically used in Geant4, only as placeholder. Therefore virtual methods are not specified, but could be in the future.

Memory of components is not owned

Definition at line 37 of file BDSLine.hh.

Member Typedef Documentation

◆ BDSLineVector

typedef std::vector<BDSAcceleratorComponent*> BDSLine::BDSLineVector

private

Private typedef first so it can be used throughout. Typedef for member vector.

Definition at line 42 of file BDSLine.hh.

◆ const_iterator

typedef BDSLineVector::const_iterator BDSLine::const_iterator

Iterator mechanics.

Definition at line 73 of file BDSLine.hh.

◆ iterator

typedef BDSLineVector::iterator BDSLine::iterator

Iterator mechanics.

Definition at line 72 of file BDSLine.hh.

Constructor & Destructor Documentation

◆ BDSLine()

BDSLine::BDSLine ( G4String name )

explicit

Definition at line 24 of file BDSLine.cc.

◆ ~BDSLine()

virtual BDSLine::~BDSLine ( )

inlinevirtual

Definition at line 49 of file BDSLine.hh.

Member Function Documentation

◆ AddComponent()

void BDSLine::AddComponent ( BDSAcceleratorComponent * component )

Add a component to the line.

Definition at line 28 of file BDSLine.cc.

References line.

Referenced by BDS::BuildRBendLine(), and BDS::BuildSBendLine().

Here is the caller graph for this function:

◆ back()

const BDSAcceleratorComponent * BDSLine::back ( ) const

inline

Iterator mechanics.

Definition at line 79 of file BDSLine.hh.

References line.

◆ begin() [1/2]

iterator BDSLine::begin ( )

inline

Iterator mechanics.

Definition at line 74 of file BDSLine.hh.

References line.

◆ begin() [2/2]

const_iterator BDSLine::begin ( ) const

inline

Iterator mechanics.

Definition at line 76 of file BDSLine.hh.

References line.

◆ BuildContainerLogicalVolume()

virtual void BDSLine::BuildContainerLogicalVolume ( )

inlineprivatevirtual

define pure virtual method

Implements BDSAcceleratorComponent.

Definition at line 102 of file BDSLine.hh.

◆ empty()

G4bool BDSLine::empty ( ) const

inline

Iterator mechanics.

Definition at line 78 of file BDSLine.hh.

References line.

◆ end() [1/2]

iterator BDSLine::end ( )

inline

Iterator mechanics.

Definition at line 75 of file BDSLine.hh.

References line.

◆ end() [2/2]

const_iterator BDSLine::end ( ) const

inline

Iterator mechanics.

Definition at line 77 of file BDSLine.hh.

References line.

◆ GetAcceleratorMaterialLogicalVolumes()

std::set< G4LogicalVolume * > BDSLine::GetAcceleratorMaterialLogicalVolumes ( ) const

virtual

Re-implement from BDSAcceleratorComponent.

Reimplemented from BDSAcceleratorComponent.

Definition at line 58 of file BDSLine.cc.

◆ GetAcceleratorVacuumLogicalVolumes()

std::set< G4LogicalVolume * > BDSLine::GetAcceleratorVacuumLogicalVolumes ( ) const

virtual

Re-implement from BDSAcceleratorComponent.

Reimplemented from BDSAcceleratorComponent.

Definition at line 47 of file BDSLine.cc.

◆ GetArcLength()

G4double BDSLine::GetArcLength ( ) const

virtual

Override base class method as BDSAcceleratorComponent::chordLength etc variables are const and we append to this.

Reimplemented from BDSAcceleratorComponent.

Definition at line 31 of file BDSLine.cc.

◆ GetChordLength()

G4double BDSLine::GetChordLength ( ) const

virtual

Override base class method as BDSAcceleratorComponent::chordLength etc variables are const and we append to this.

Reimplemented from BDSAcceleratorComponent.

Definition at line 39 of file BDSLine.cc.

◆ Initialise()

void BDSLine::Initialise ( )

virtual

Override the BDSAccelerator::Initialise() function to loop over the line and call that function belonging to each member

Reimplemented from BDSAcceleratorComponent.

Definition at line 69 of file BDSLine.cc.

◆ operator[]()

BDSAcceleratorComponent *const & BDSLine::operator[] ( G4int index ) const

inline

Accessor for part - exposes functionality of the vector for iteration by index.

Definition at line 86 of file BDSLine.hh.

References line.

◆ SetBiasMaterialList()

void BDSLine::SetBiasMaterialList ( const std::list< std::string > & biasMaterialList )

virtual

Copy the bias list to each component.

Reimplemented from BDSAcceleratorComponent.

Definition at line 87 of file BDSLine.cc.

References BDSAcceleratorComponent::SetBiasMaterialList().

Here is the call graph for this function:

◆ SetBiasVacuumList()

void BDSLine::SetBiasVacuumList ( const std::list< std::string > & biasVacuumList )

virtual

Copy the bias list to each component.

Reimplemented from BDSAcceleratorComponent.

Definition at line 80 of file BDSLine.cc.

References BDSAcceleratorComponent::SetBiasVacuumList().

Here is the call graph for this function:

◆ SetRegion()

void BDSLine::SetRegion ( const G4String & region )

virtual

Set the region name for each component.

Reimplemented from BDSAcceleratorComponent.

Definition at line 94 of file BDSLine.cc.

References BDSAcceleratorComponent::SetRegion().

Here is the call graph for this function:

◆ size()

size_t BDSLine::size ( ) const

inline

Size of line.

Definition at line 83 of file BDSLine.hh.

References line.

Field Documentation

◆ line

BDSLineVector BDSLine::line

private

Member vector to store components.

Definition at line 45 of file BDSLine.hh.

Referenced by AddComponent(), back(), begin(), empty(), end(), operator[](), and size().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSLine.hh
/Users/lnevay/physics/reps/bdsim/src/BDSLine.cc

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BDSLineVector

◆ const_iterator

◆ iterator

Constructor & Destructor Documentation

◆ BDSLine()

◆ ~BDSLine()

Member Function Documentation

◆ AddComponent()

◆ back()

◆ begin() [1/2]

◆ begin() [2/2]

◆ BuildContainerLogicalVolume()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ GetAcceleratorMaterialLogicalVolumes()

◆ GetAcceleratorVacuumLogicalVolumes()

◆ GetArcLength()

◆ GetChordLength()

◆ Initialise()

◆ operator[]()

◆ SetBiasMaterialList()

◆ SetBiasVacuumList()

◆ SetRegion()

◆ size()

Field Documentation

◆ line
