Generates primary particle vertices using BDSBunch. More...

#include <BDSPrimaryGeneratorAction.hh>

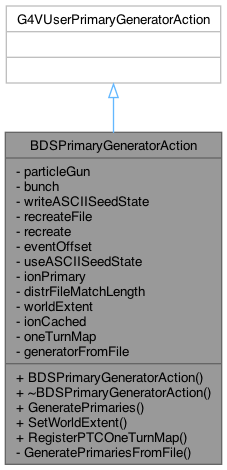

Inheritance diagram for BDSPrimaryGeneratorAction:

Collaboration diagram for BDSPrimaryGeneratorAction:

Public Member Functions
	BDSPrimaryGeneratorAction (BDSBunch *bunchIn, const GMAD::Beam &beam, G4bool batchMode)
	Bunch must have a valid particle definition (ie not nullptr).

virtual void	GeneratePrimaries (G4Event *)
	Main interface for Geant4. Prepare primary(ies) for the event.

void	SetWorldExtent (const BDSExtent worldExtentIn)
	Set the world extent that particle coordinates will be checked against.

void	RegisterPTCOneTurnMap (BDSPTCOneTurnMap *otmIn)

Private Member Functions
void	GeneratePrimariesFromFile (G4Event *anEvent)
	For a file-based event generator there are a few checks we have to do - put in a function to keep tidy.

Private Attributes
G4ParticleGun *	particleGun
	Geant4 particle gun that creates single particles.

BDSBunch *	bunch
	BDSIM particle generator.

G4bool	writeASCIISeedState
	Cache of whether to write seed state as ASCII per event.

BDSOutputLoader *	recreateFile
	Optional output handler for restoring seed state.

G4bool	recreate
	Whether to load seed state at start of event from rootevent file.

G4int	eventOffset
	The offset in the file to read events from when setting the seed.

G4bool	useASCIISeedState
	Whether to use the ascii seed state each time.

G4bool	ionPrimary
	The primary particle will be an ion.

G4bool	distrFileMatchLength
	Match external file length for event generator.

BDSExtent	worldExtent
	World extent that particle coordinates are checked against to ensure they're inside it.

G4bool	ionCached

BDSPTCOneTurnMap *	oneTurnMap
	Cached OTM for setting first turn primary coords.

BDSPrimaryGeneratorFile *	generatorFromFile

Detailed Description

Generates primary particle vertices using BDSBunch.

Definition at line 45 of file BDSPrimaryGeneratorAction.hh.

Constructor & Destructor Documentation

◆ BDSPrimaryGeneratorAction()

BDSPrimaryGeneratorAction::BDSPrimaryGeneratorAction	(	BDSBunch *	bunchIn,
		const GMAD::Beam &	beam,
		G4bool	batchMode
	)

Bunch must have a valid particle definition (ie not nullptr).

Definition at line 52 of file BDSPrimaryGeneratorAction.cc.

References BDSBunch::BeamParticleIsAnIon(), bunch, BDSPrimaryGeneratorFile::ConstructGenerator(), eventOffset, BDSGlobalConstants::Instance(), ionPrimary, particleGun, recreate, BDSBunch::RecreateAdvanceToEvent(), recreateFile, useASCIISeedState, and writeASCIISeedState.

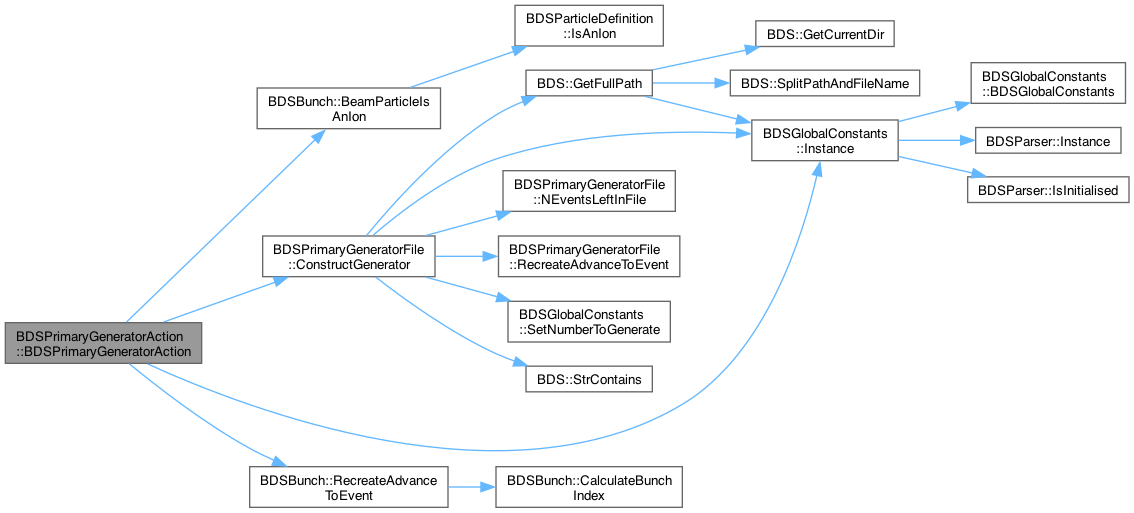

Here is the call graph for this function:

◆ ~BDSPrimaryGeneratorAction()

BDSPrimaryGeneratorAction::~BDSPrimaryGeneratorAction ( )

virtual

Definition at line 88 of file BDSPrimaryGeneratorAction.cc.

Member Function Documentation

◆ GeneratePrimaries()

void BDSPrimaryGeneratorAction::GeneratePrimaries ( G4Event * anEvent )

virtual

Main interface for Geant4. Prepare primary(ies) for the event.

Definition at line 95 of file BDSPrimaryGeneratorAction.cc.

References bunch, BDSBunch::CalculateBunchIndex(), BDSParticleDefinition::Charge(), BDSBunch::CurrentBunchIndex(), BDSExtent::Encompasses(), eventOffset, GeneratePrimariesFromFile(), BDSBunch::GetNextParticleValid(), BDSGlobalConstants::Instance(), ionCached, ionPrimary, BDSParticleDefinition::Mass(), oneTurnMap, BDSBunch::ParticleDefinition(), BDSParticleDefinition::ParticleDefinition(), particleGun, recreate, recreateFile, BDSOutputLoader::SeedState(), BDSEventInfo::SetBunchIndex(), BDSPTCOneTurnMap::SetInitialPrimaryCoordinates(), BDSEventInfo::SetSeedStateAtStart(), BDSBunch::UpdateIonDefinition(), useASCIISeedState, BDSBunch::UseCurvilinearTransform(), BDSException::what(), worldExtent, and writeASCIISeedState.

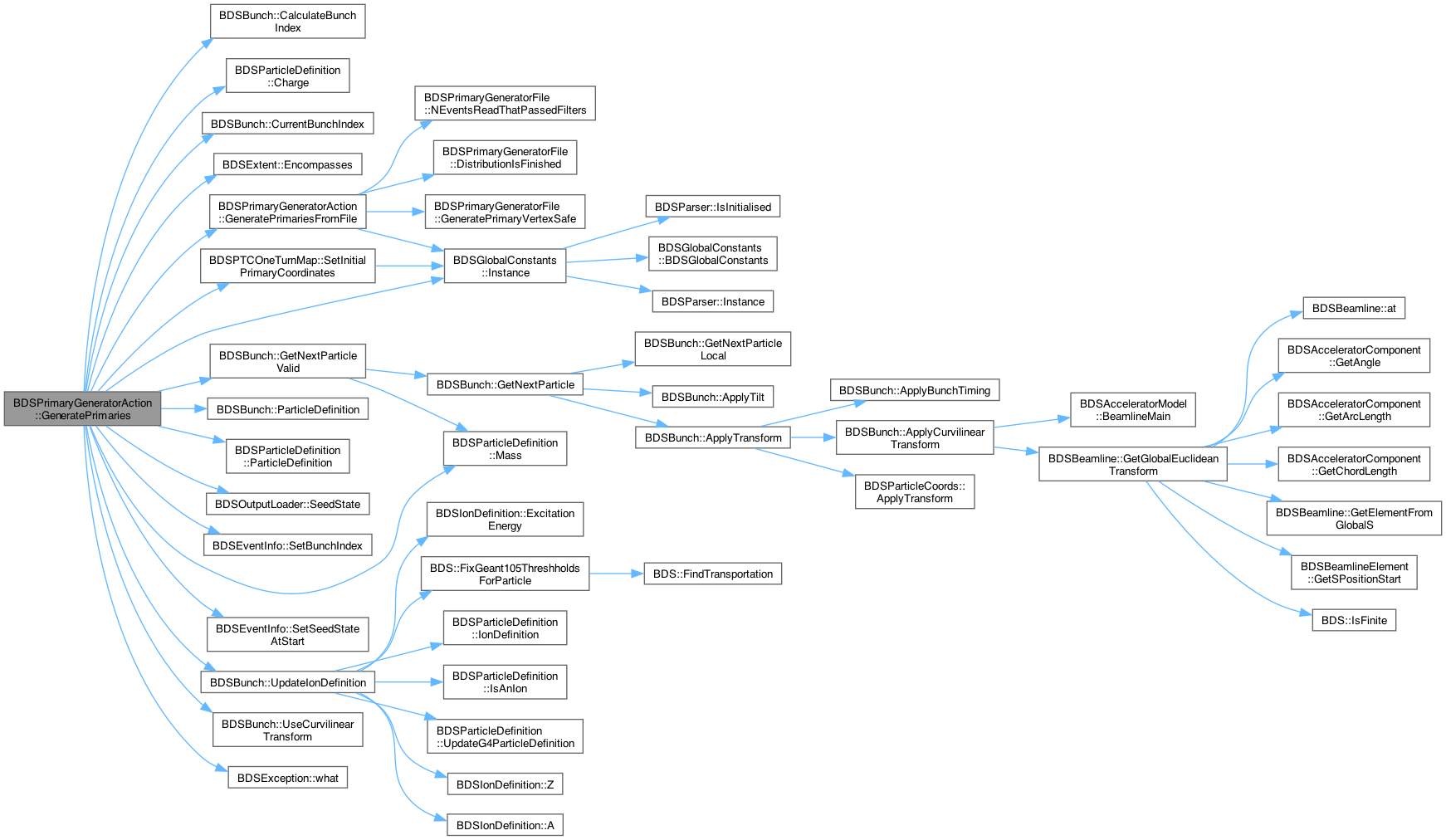

Here is the call graph for this function:

◆ GeneratePrimariesFromFile()

void BDSPrimaryGeneratorAction::GeneratePrimariesFromFile ( G4Event * anEvent )

private

For a file-based event generator there are a few checks we have to do - put in a function to keep tidy.

Definition at line 218 of file BDSPrimaryGeneratorAction.cc.

References distrFileMatchLength, BDSPrimaryGeneratorFile::DistributionIsFinished(), BDSPrimaryGeneratorFile::GeneratePrimaryVertexSafe(), BDSGlobalConstants::Instance(), and BDSPrimaryGeneratorFile::NEventsReadThatPassedFilters().

Referenced by GeneratePrimaries().

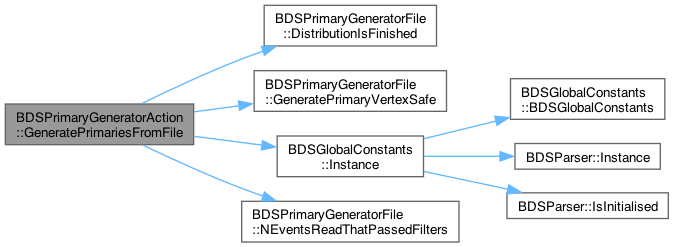

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RegisterPTCOneTurnMap()

void BDSPrimaryGeneratorAction::RegisterPTCOneTurnMap ( BDSPTCOneTurnMap * otmIn )

inline

Register a PTC map instance used in the teleporter which this class will set initial (first turn) primary coordinates for.

Definition at line 61 of file BDSPrimaryGeneratorAction.hh.

References oneTurnMap.

Referenced by BDSFieldFactory::CreateTeleporter().

Here is the caller graph for this function:

◆ SetWorldExtent()

void BDSPrimaryGeneratorAction::SetWorldExtent ( const BDSExtent worldExtentIn )

inline

Set the world extent that particle coordinates will be checked against.

Definition at line 58 of file BDSPrimaryGeneratorAction.hh.

References worldExtent.

Field Documentation

◆ bunch

BDSBunch* BDSPrimaryGeneratorAction::bunch

private

BDSIM particle generator.

Definition at line 68 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ distrFileMatchLength

G4bool BDSPrimaryGeneratorAction::distrFileMatchLength

private

Match external file length for event generator.

Definition at line 75 of file BDSPrimaryGeneratorAction.hh.

Referenced by GeneratePrimariesFromFile().

◆ eventOffset

G4int BDSPrimaryGeneratorAction::eventOffset

private

The offset in the file to read events from when setting the seed.

Definition at line 72 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ generatorFromFile

BDSPrimaryGeneratorFile* BDSPrimaryGeneratorAction::generatorFromFile

private

Definition at line 87 of file BDSPrimaryGeneratorAction.hh.

◆ ionCached

G4bool BDSPrimaryGeneratorAction::ionCached

private

Can only get a G4ParticleDefinition for an ion when primary generator is called so cache the first time. This is the flag of that cache.

Definition at line 82 of file BDSPrimaryGeneratorAction.hh.

Referenced by GeneratePrimaries().

◆ ionPrimary

G4bool BDSPrimaryGeneratorAction::ionPrimary

private

The primary particle will be an ion.

Definition at line 74 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ oneTurnMap

BDSPTCOneTurnMap* BDSPrimaryGeneratorAction::oneTurnMap

private

Cached OTM for setting first turn primary coords.

Definition at line 85 of file BDSPrimaryGeneratorAction.hh.

Referenced by GeneratePrimaries(), and RegisterPTCOneTurnMap().

◆ particleGun

G4ParticleGun* BDSPrimaryGeneratorAction::particleGun

private

Geant4 particle gun that creates single particles.

Definition at line 67 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ recreate

G4bool BDSPrimaryGeneratorAction::recreate

private

Whether to load seed state at start of event from rootevent file.

Definition at line 71 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ recreateFile

BDSOutputLoader* BDSPrimaryGeneratorAction::recreateFile

private

Optional output handler for restoring seed state.

Definition at line 70 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ useASCIISeedState

G4bool BDSPrimaryGeneratorAction::useASCIISeedState

private

Whether to use the ascii seed state each time.

Definition at line 73 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

◆ worldExtent

BDSExtent BDSPrimaryGeneratorAction::worldExtent

private

World extent that particle coordinates are checked against to ensure they're inside it.

Definition at line 78 of file BDSPrimaryGeneratorAction.hh.

Referenced by GeneratePrimaries(), and SetWorldExtent().

◆ writeASCIISeedState

G4bool BDSPrimaryGeneratorAction::writeASCIISeedState

private

Cache of whether to write seed state as ASCII per event.

Definition at line 69 of file BDSPrimaryGeneratorAction.hh.

Referenced by BDSPrimaryGeneratorAction(), and GeneratePrimaries().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSPrimaryGeneratorAction.hh
/Users/lnevay/physics/reps/bdsim/src/BDSPrimaryGeneratorAction.cc
