Class that represents a section of tunnel. More...
#include <BDSTunnelSection.hh>

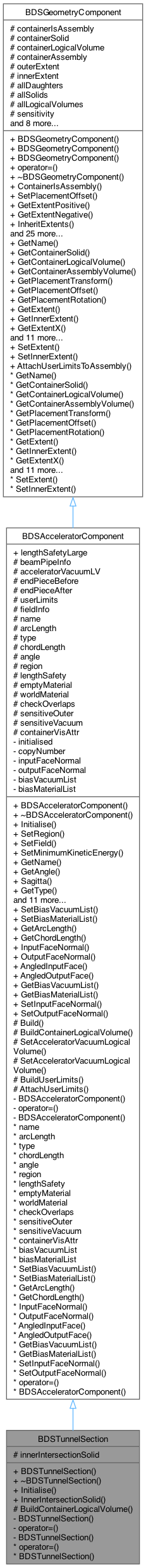

Inheritance diagram for BDSTunnelSection:

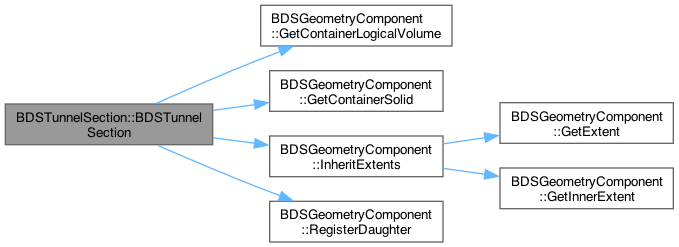

Collaboration diagram for BDSTunnelSection:
Public Member Functions | |
| BDSTunnelSection (G4String name, G4double chordLength, G4double angle, BDSGeometryComponent *tunnelGeometry, G4VSolid *innerIntersectionSolidIn) | |
| virtual void | Initialise () |
| G4VSolid * | InnerIntersectionSolid () const |
 Public Member Functions inherited from BDSAcceleratorComponent | |
| BDSAcceleratorComponent (const G4String &name, G4double arcLength, G4double angle, const G4String &type, BDSBeamPipeInfo *beamPipeInfo=nullptr, const G4ThreeVector &inputFaceNormalIn=G4ThreeVector(0, 0,-1), const G4ThreeVector &outputFaceNormalIn=G4ThreeVector(0, 0, 1), BDSFieldInfo *fieldInfoIn=nullptr) | |
| virtual void | Initialise () |
| virtual void | SetRegion (const G4String ®ionIn) |
| Set the region name for this component. | |
| void | SetField (BDSFieldInfo *fieldInfoIn) |
| Set the field definition for the whole component. | |
| virtual void | SetMinimumKineticEnergy (G4double) |
| virtual G4String | GetName () const |
| The name of the component without modification. | |
| G4double | GetAngle () const |
| G4double | Sagitta () const |
| Calculate the sagitta - ie the distance between the chord and the arc at the centre. | |
| G4String | GetType () const |
| Get a string describing the type of the component. | |
| G4String | GetRegion () const |
| Get the region name for this component. | |
| virtual G4bool | HasAField () const |
| Whether this component has a field or not (ie is active). Implicit cast of pointer to bool. | |
| virtual void | SetFieldUsePlacementWorldTransform () |
| BDSBeamPipeInfo * | GetBeamPipeInfo () const |
| virtual G4String | Material () const |
| Return the name of a material associated with the component - ie the primary material. | |
| virtual std::set< G4LogicalVolume * > | GetAcceleratorVacuumLogicalVolumes () const |
| Access the 'vacuum' volume(s) in this component if any. Default is empty set. | |
| virtual std::set< G4LogicalVolume * > | GetAcceleratorMaterialLogicalVolumes () const |
| Return a set of logical volumes excluding the ones in the 'vacuum' set. | |
| void | IncrementCopyNumber () |
| Increment (+1) the number of times this component has been copied. | |
| G4int | GetCopyNumber () const |
| Get the number of times this component has been copied. | |
| BDSSimpleComponent * | EndPieceBefore () const |
| BDSSimpleComponent * | EndPieceAfter () const |
| virtual void | SetBiasVacuumList (const std::list< std::string > &biasVacuumListIn) |
| Copy the bias list to this element. | |
| virtual void | SetBiasMaterialList (const std::list< std::string > &biasMaterialListIn) |
| Copy the bias list to this element. | |
| virtual G4double | GetArcLength () const |
| virtual G4double | GetChordLength () const |
| G4ThreeVector | InputFaceNormal () const |
| G4ThreeVector | OutputFaceNormal () const |
| G4bool | AngledInputFace () const |
| Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory. | |
| G4bool | AngledOutputFace () const |
| Whether the face normal is angled at all w.r.t. the incoming / outgoing reference trajectory. | |
| std::list< std::string > | GetBiasVacuumList () const |
| Access the bias list copied from parser. | |
| std::list< std::string > | GetBiasMaterialList () const |
| Access the bias list copied from parser. | |
| virtual void | SetInputFaceNormal (const G4ThreeVector &input) |
| Allow updating of face normals. Virtual so derived class may apply it to daughters. | |
| virtual void | SetOutputFaceNormal (const G4ThreeVector &output) |
| Allow updating of face normals. Virtual so derived class may apply it to daughters. | |
| Public Member Functions inherited from BDSGeometryComponent | |
| BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr) | |
| BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr) | |
| BDSGeometryComponent (const BDSGeometryComponent &component) | |
| Copy constructor (no copying of registered objects) | |
| BDSGeometryComponent & | operator= (const BDSGeometryComponent &)=delete |
| Assignment operator not used. | |
| G4bool | ContainerIsAssembly () const |
| Whether the container is an assembly. If not, it's a logical volume. | |
| void | SetPlacementOffset (const G4ThreeVector &offsetIn) |
| Set the offset from 0,0,0 that the object should ideally be placed in its parent. | |
| G4ThreeVector | GetExtentPositive () const |
| Get the extent of the object in the positive direction in all dimensions. | |
| G4ThreeVector | GetExtentNegative () const |
| Get the extent of the object in the negative direction in all dimensions. | |
| void | InheritExtents (BDSGeometryComponent const *const anotherComponent) |
| Update the extents of this object with those of another object. | |
| void | InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset) |
| void | RegisterDaughter (BDSGeometryComponent *anotherComponent) |
| void | RegisterSolid (G4VSolid *solid) |
| void | RegisterSolid (const std::set< G4VSolid * > &solids) |
| Similarly for a set of unique solids. | |
| void | RegisterLogicalVolume (G4LogicalVolume *logicalVolume) |
| void | RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes) |
| Apply RegisterLogicalVolume() to a set of logical volumes. | |
| void | RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType) |
| void | RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType) |
| void | RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes) |
| Copy in a mapping of sensitive volumes to sensitive detectors. | |
| void | RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume) |
| void | RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes) |
| Apply RegisterPhysicalVolume() to a set of physical volumes. | |
| void | RegisterRotationMatrix (G4RotationMatrix *rotationMatrix) |
| void | RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices) |
| Apply Register RotationMatrix() to a set of rotation matrices. | |
| void | RegisterVisAttributes (G4VisAttributes *visAttribute) |
| void | RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes) |
| Apply RegisterVisAttribute() to a set of visualisation attributes. | |
| void | RegisterUserLimits (G4UserLimits *userLimit) |
| void | RegisterUserLimits (const std::set< G4UserLimits * > &userLimits) |
| Apply RegisterUserLimit to a set of user limits. | |
| void | InheritObjects (BDSGeometryComponent *component) |
| virtual std::set< G4LogicalVolume * > | GetAllLogicalVolumes () const |
| Access all logical volumes belonging to this component. | |
| virtual std::set< G4LogicalVolume * > | GetAllBiasingVolumes () const |
| Return all logical volumes that should be used for biasing minus any that are in the excluded set. | |
| virtual std::map< G4LogicalVolume *, BDSSDType > | GetAllSensitiveVolumes () const |
| Access all sensitive volumes belonging to this component. | |
| void | MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep) |
| virtual void | AttachSensitiveDetectors () |
| Attach a sensitive detector class to all registered sensitive volumes in this component. | |
| virtual void | ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv) |
| void | StripOuterAndMakeAssemblyVolume () |
| Change from a container logical volume to an assembly volume. | |
| G4VSolid * | GetContainerSolid () const |
| Accessor - see member for more info. | |
| G4LogicalVolume * | GetContainerLogicalVolume () const |
| Accessor - see member for more info. | |
| G4AssemblyVolume * | GetContainerAssemblyVolume () const |
| Accessor - see member for more info. | |
| G4Transform3D | GetPlacementTransform () const |
| Accessor - see member for more info. | |
| G4ThreeVector | GetPlacementOffset () const |
| Accessor - see member for more info. | |
| G4RotationMatrix * | GetPlacementRotation () const |
| Accessor - see member for more info. | |
| BDSExtent | GetExtent () const |
| Accessor - see member for more info. | |
| BDSExtent | GetInnerExtent () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetExtentX () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetExtentY () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetExtentZ () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetInnerExtentX () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetInnerExtentY () const |
| Accessor - see member for more info. | |
| std::pair< G4double, G4double > | GetInnerExtentZ () const |
| Accessor - see member for more info. | |
| virtual std::set< G4VPhysicalVolume * > | GetAllPhysicalVolumes () const |
| Accessor - see member for more info. | |
| virtual std::set< G4RotationMatrix * > | GetAllRotationMatrices () const |
| Accessor - see member for more info. | |
| virtual std::set< G4VisAttributes * > | GetAllVisAttributes () const |
| Accessor - see member for more info. | |
| virtual std::set< G4UserLimits * > | GetAllUserLimits () const |
| Accessor - see member for more info. | |
| virtual std::set< BDSGeometryComponent * > | GetAllDaughters () const |
| Accessor - see member for more info. | |
| virtual std::set< G4VSolid * > | GetAllSolids () const |
| Accessor - see member for more info. | |
| void | SetExtent (const BDSExtent &extIn) |
| Set extent. | |
| void | SetInnerExtent (const BDSExtent &extIn) |
| Set extent. | |
Protected Member Functions | |
| virtual void | BuildContainerLogicalVolume () |
| Have to provide implementation - does nothing. | |
| Protected Member Functions inherited from BDSAcceleratorComponent | |
| virtual void | Build () |
| virtual void | BuildContainerLogicalVolume ()=0 |
| void | SetAcceleratorVacuumLogicalVolume (G4LogicalVolume *accVacLVIn) |
| void | SetAcceleratorVacuumLogicalVolume (const std::set< G4LogicalVolume * > &accVacLVIn) |
| virtual void | BuildUserLimits () |
| virtual void | AttachUserLimits () const |
| Doesn't change member variables, but may change their contents. | |
Protected Attributes | |
| G4VSolid * | innerIntersectionSolid |
| Protected Attributes inherited from BDSAcceleratorComponent | |
| BDSBeamPipeInfo * | beamPipeInfo |
| Optional beam pipe recipe that is written out to the survey if it exists. | |
| std::set< G4LogicalVolume * > | acceleratorVacuumLV |
| A set of logical volumes we classify as 'vacuum' for biasing purposes. | |
| BDSSimpleComponent * | endPieceBefore |
| BDSSimpleComponent * | endPieceAfter |
| G4UserLimits * | userLimits |
| Cache of user limits. | |
| BDSFieldInfo * | fieldInfo |
| Recipe for field that could overlay this whole component. | |
| const G4String | name |
| Const protected member variable that may not be changed by derived classes. | |
| const G4double | arcLength |
| Const protected member variable that may not be changed by derived classes. | |
| const G4String | type |
| Const protected member variable that may not be changed by derived classes. | |
| G4double | chordLength |
| Protected member variable that can be modified by derived classes. | |
| G4double | angle |
| Protected member variable that can be modified by derived classes. | |
| G4String | region |
| Protected member variable that can be modified by derived classes. | |
| Protected Attributes inherited from BDSGeometryComponent | |
| G4bool | containerIsAssembly |
| True if the 'container' is really an assembly; false if an LV. | |
| G4VSolid * | containerSolid |
| G4LogicalVolume * | containerLogicalVolume |
| G4AssemblyVolume * | containerAssembly |
| BDSExtent | outerExtent |
| BDSExtent | innerExtent |
| std::set< BDSGeometryComponent * > | allDaughters |
| registry of all daughter geometry components | |
| std::set< G4VSolid * > | allSolids |
| registry of all solids belonging to this component | |
| std::set< G4LogicalVolume * > | allLogicalVolumes |
| std::map< G4LogicalVolume *, BDSSDType > | sensitivity |
| G4bool | overrideSensitivity |
| std::set< G4VPhysicalVolume * > | allPhysicalVolumes |
| registry of all physical volumes belonging to this component | |
| std::set< G4RotationMatrix * > | allRotationMatrices |
| registry of all rotation matrices belonging to this component | |
| std::set< G4VisAttributes * > | allVisAttributes |
| registry of all visualisation attributes belonging to this component | |
| std::set< G4UserLimits * > | allUserLimits |
| registry of all user limits belonging to this component | |
| G4ThreeVector | placementOffset |
| G4RotationMatrix * | placementRotation |
| std::set< G4LogicalVolume * > * | lvsExcludedFromBiasing |
| Volumes that should not be included when return GetAllBiasingVolumes(). | |
Private Member Functions | |
| BDSTunnelSection ()=delete | |
| Private default constructor to force the use of the supplied one. | |
| BDSTunnelSection & | operator= (const BDSTunnelSection &)=delete |
| Assignment and copy constructor not implemented nor used. | |
| BDSTunnelSection (BDSTunnelSection &)=delete | |
| Assignment and copy constructor not implemented nor used. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from BDSGeometryComponent | |
| static void | AttachUserLimitsToAssembly (G4AssemblyVolume *av, G4UserLimits *ul) |
| Utility function to apply user limits to an assembly volume as there's not interface. | |
| Static Public Attributes inherited from BDSAcceleratorComponent | |
| static G4double | lengthSafetyLarge = 0 |
| Static Protected Attributes inherited from BDSAcceleratorComponent | |
| static G4double | lengthSafety = -1 |
| Useful variable often used in construction. | |
| static G4Material * | emptyMaterial = nullptr |
| Useful variable often used in construction. | |
| static G4Material * | worldMaterial = nullptr |
| Useful variable often used in construction. | |
| static G4bool | checkOverlaps = false |
| Useful variable often used in construction. | |
| static G4bool | sensitiveOuter = true |
| Useful variable often used in construction. | |
| static G4bool | sensitiveVacuum = false |
| Useful variable often used in construction. | |
| static G4VisAttributes * | containerVisAttr = nullptr |
| Useful variable often used in construction. | |
Detailed Description
Class that represents a section of tunnel.
Definition at line 34 of file BDSTunnelSection.hh.
Constructor & Destructor Documentation
◆ BDSTunnelSection()
| BDSTunnelSection::BDSTunnelSection | ( | G4String | name, |
| G4double | chordLength, | ||
| G4double | angle, | ||
| BDSGeometryComponent * | tunnelGeometry, | ||
| G4VSolid * | innerIntersectionSolidIn | ||
| ) |
Constructor takes BDSGeometryComponent instance of already constructed geometry. The inner intersection solid is a solid that represents the cavity inside the tunnel. It can be used to intersect with any geometry such as the supports to ensure they always fit without having detailed knowledge about the floor and tunnel geometry itself.
Definition at line 23 of file BDSTunnelSection.cc.
References BDSAcceleratorComponent::chordLength, BDSGeometryComponent::GetContainerLogicalVolume(), BDSGeometryComponent::GetContainerSolid(), BDSGeometryComponent::InheritExtents(), and BDSGeometryComponent::RegisterDaughter().
Here is the call graph for this function:
◆ ~BDSTunnelSection()
|
virtual |
Definition at line 43 of file BDSTunnelSection.cc.
Member Function Documentation
◆ BuildContainerLogicalVolume()
|
protectedvirtual |
Have to provide implementation - does nothing.
Implements BDSAcceleratorComponent.
Definition at line 51 of file BDSTunnelSection.cc.
◆ Initialise()
|
virtual |
Override BDSAcceleratorComponent::Initialise() method to avoid doing anything. Doing this avoids wrong and useless read out volume being created. Note, this will mean that the private internal variable 'initialised' will always be false even though it effectively 'is' initialised.
Reimplemented from BDSAcceleratorComponent.
Definition at line 48 of file BDSTunnelSection.cc.
◆ InnerIntersectionSolid()
|
inline |
Definition at line 56 of file BDSTunnelSection.hh.
Field Documentation
◆ innerIntersectionSolid
|
protected |
Definition at line 62 of file BDSTunnelSection.hh.
The documentation for this class was generated from the following files:
- /Users/lnevay/physics/reps/bdsim/include/BDSTunnelSection.hh
- /Users/lnevay/physics/reps/bdsim/src/BDSTunnelSection.cc
