Specification for 1D histogram. More...

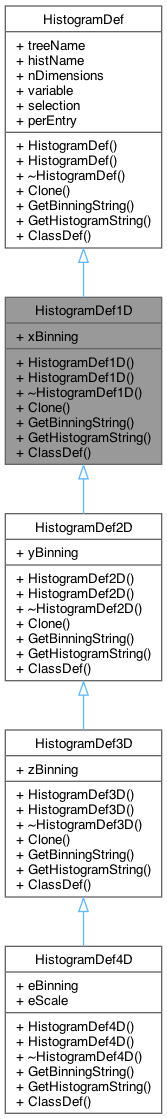

Inheritance diagram for HistogramDef1D:

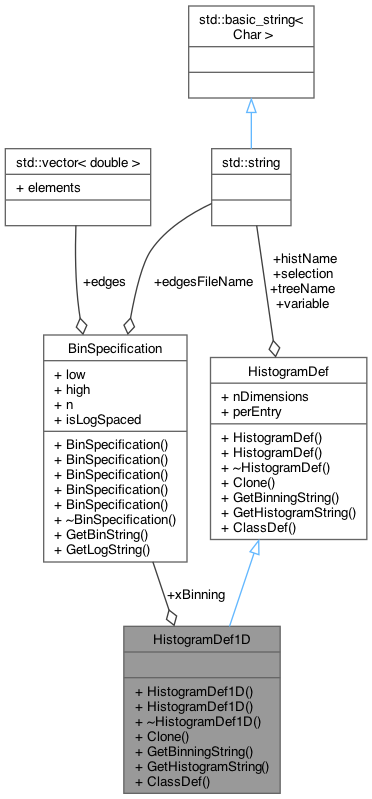

Collaboration diagram for HistogramDef1D:

Public Member Functions
	HistogramDef1D ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef1D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor.

virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes.

virtual std::string	GetBinningString () const
	Return n bins and ranges.

virtual std::string	GetHistogramString () const
	Get the first string that defines the histogram in rebdsim for feedback.

	ClassDef (HistogramDef1D, 1)

Public Member Functions inherited from HistogramDef
	HistogramDef ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef (const std::string &treeNameIn, const std::string &histNameIn, int nDimensionsIn, const std::string &variable, const std::string &selectionIn="1", bool perEnetry=true)
	Use this constructor.

virtual HistogramDef *	Clone () const =0
	Copy this instance. Virtual to be overridden in derived classes.

virtual std::string	GetBinningString () const =0
	Provide the binning string in the original input format for feedback.

virtual std::string	GetHistogramString () const =0
	Get the first string that defines the histogram in rebdsim for feedback.

	ClassDef (HistogramDef, 1)

Data Fields
BinSpecification	xBinning

Data Fields inherited from HistogramDef
std::string	treeName

std::string	histName

int	nDimensions

std::string	variable

std::string	selection

bool	perEntry

Detailed Description

Specification for 1D histogram.

Definition at line 34 of file HistogramDef1D.hh.

Constructor & Destructor Documentation

HistogramDef1D::HistogramDef1D	(	const std::string &	treeNameIn,
		const std::string &	histNameIn,
		const BinSpecification &	xBinningIn,
		const std::string &	variableIn,
		const std::string &	selectionIn = `"1"`,
		bool	perEntryIn = `true`
	)
