HistogramDef2D Class Reference

Specification for 2D histogram. More...

#include <HistogramDef2D.hh>

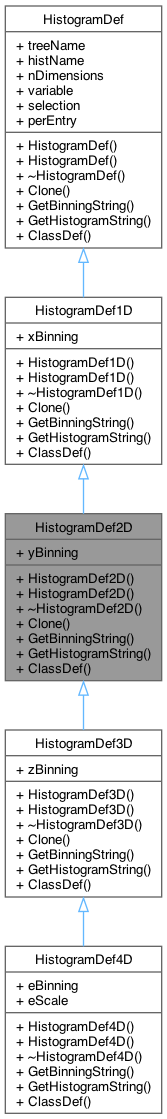

Inheritance diagram for HistogramDef2D:

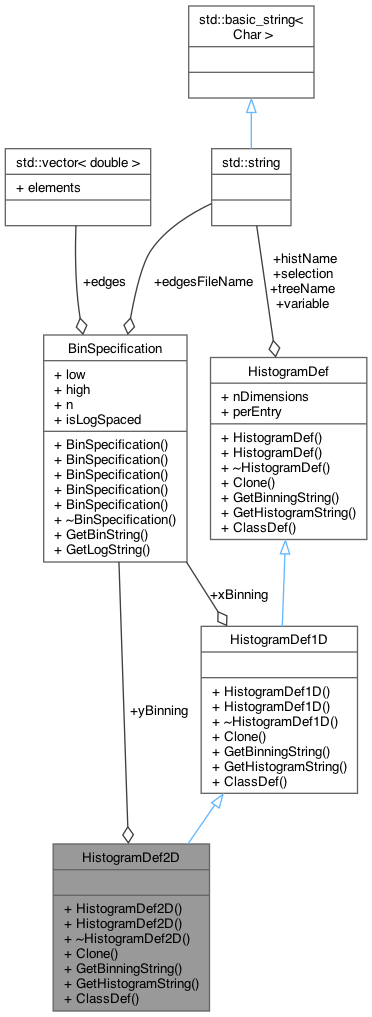

Collaboration diagram for HistogramDef2D:

Public Member Functions
	HistogramDef2D ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistogramDef2D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const BinSpecification &yBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor.
virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes.
virtual std::string	GetBinningString () const
	Return n bins and ranges.
virtual std::string	GetHistogramString () const
	Get the first string that defines the histogram in rebdsim for feedback.
	ClassDef (HistogramDef2D, 1)
Public Member Functions inherited from HistogramDef1D
	HistogramDef1D ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistogramDef1D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor.
virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes.
virtual std::string	GetBinningString () const
	Return n bins and ranges.
virtual std::string	GetHistogramString () const
	Get the first string that defines the histogram in rebdsim for feedback.
	ClassDef (HistogramDef1D, 1)
Public Member Functions inherited from HistogramDef
	HistogramDef ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistogramDef (const std::string &treeNameIn, const std::string &histNameIn, int nDimensionsIn, const std::string &variable, const std::string &selectionIn="1", bool perEnetry=true)
	Use this constructor.
virtual HistogramDef *	Clone () const =0
	Copy this instance. Virtual to be overridden in derived classes.
virtual std::string	GetBinningString () const =0
	Provide the binning string in the original input format for feedback.
virtual std::string	GetHistogramString () const =0
	Get the first string that defines the histogram in rebdsim for feedback.
	ClassDef (HistogramDef, 1)

Data Fields
BinSpecification	yBinning
Data Fields inherited from HistogramDef1D
BinSpecification	xBinning
Data Fields inherited from HistogramDef
std::string	treeName
std::string	histName
int	nDimensions
std::string	variable
std::string	selection
bool	perEntry

Detailed Description

Specification for 2D histogram.

Author

L. Nevay

Definition at line 34 of file HistogramDef2D.hh.

Constructor & Destructor Documentation

HistogramDef2D()

HistogramDef2D::HistogramDef2D	(	const std::string &	treeNameIn,
		const std::string &	histNameIn,
		const BinSpecification &	xBinningIn,
		const BinSpecification &	yBinningIn,
		const std::string &	variableIn,
		const std::string &	selectionIn = "1",
		bool	perEntryIn = true
	)

Use this constructor.

Definition at line 30 of file HistogramDef2D.cc.

~HistogramDef2D()

HistogramDef2D::~HistogramDef2D ( )

virtual

Definition at line 43 of file HistogramDef2D.cc.

Member Function Documentation

Clone()

virtual HistogramDef * HistogramDef2D::Clone ( ) const

inlinevirtual

Copy this instance. Virtual to be overridden in derived classes.

Reimplemented from HistogramDef1D.

Reimplemented in HistogramDef3D.

Definition at line 52 of file HistogramDef2D.hh.

References HistogramDef2D().

Here is the call graph for this function:

GetBinningString()

std::string HistogramDef2D::GetBinningString ( ) const

virtual

Return n bins and ranges.

Reimplemented from HistogramDef1D.

Reimplemented in HistogramDef3D, and HistogramDef4D.

Definition at line 46 of file HistogramDef2D.cc.

References BinSpecification::GetBinString().

Here is the call graph for this function:

GetHistogramString()

std::string HistogramDef2D::GetHistogramString ( ) const

virtual

Get the first string that defines the histogram in rebdsim for feedback.

Reimplemented from HistogramDef1D.

Reimplemented in HistogramDef3D, and HistogramDef4D.

Definition at line 53 of file HistogramDef2D.cc.

References BinSpecification::GetLogString().

Here is the call graph for this function:

Field Documentation

yBinning

BinSpecification HistogramDef2D::yBinning

Definition at line 60 of file HistogramDef2D.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/analysis/HistogramDef2D.hh
• /Users/lnevay/physics/reps/bdsim/analysis/HistogramDef2D.cc
