Public Member Functions | Data Fields
GMAD::Parameters Struct Reference

Parameters - Element class with booleans. More...

#include <parameters.h>

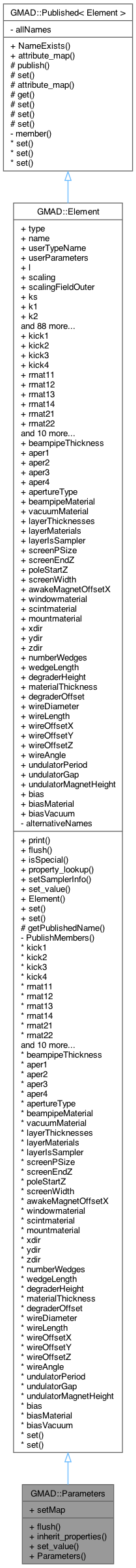

Inheritance diagram for GMAD::Parameters:
Inheritance graph
Collaboration diagram for GMAD::Parameters:
Collaboration graph

Public Member Functions

void flush ()
 Reset the parameters to defaults and setMap.

void inherit_properties (const Element &e)

template<typename T >
void set_value (std::string property, T value)
 Set method by property name and value.

 Parameters ()
 Constructor.

- Public Member Functions inherited from GMAD::Element
void print (int ident=0) const
 print method

void flush ()
 flush method

bool isSpecial () const
 check if element is of a special type

double property_lookup (std::string property_name) const

void setSamplerInfo (std::string samplerType, std::string samplerName, double samplerRadius, int samplerParticleSetIDIn=-1)
 set sampler info

template<typename T >
void set_value (std::string property, T value)

 Element ()
 constructor

void set (const Parameters &params)
 set method from Parameters structure

void set (const Parameters &params, std::string nameIn, ElementType typeIn)
 set method from Parameters structure

- Public Member Functions inherited from GMAD::Published< Element >
bool NameExists (const std::string &name) const

Published< Element >::template AttributeMap< T > & attribute_map () const


Data Fields

std::map< std::string, bool > setMap
 Map that holds booleans for every member of element.

- Data Fields inherited from GMAD::Element
ElementType type
 element enum

std::string name

std::string userTypeName
 User component element type name.

std::string userParameters
 String for passing user parameters through.

double l
 length in metres

double scaling
 Overall scaling of field strength.

double scalingFieldOuter
 Extra arbitrary scaling for outer field - compounded with 'scaling'.

double ks
 solenoid

double k1
 quadrupole

double k2
 sextupole

double k3
 octupole

double k4
 decapole

double angle
 bending angle

double B
 magnetic field

double e1
 input pole face rotation for bends

double e2
 output pole face rotation for bends

double fint
 fringe field integral at the dipole entrance

double fintx
 fringe field integral at the dipole exit

double fintK2
 second fringe field integral at the dipole entrance - for TRANSPORT matching

double fintxK2
 second fringe field integral at the dipole exit - for TRANSPORT matching

double hgap
 half distance of pole separation for purposes of fringe fields - 'half gap'

double h1
 input pole face curvature for bends

double h2
 output pole face curvature for bends

double kick
 fractional delta p for either h or v kicker

double hkick
 fractional delta px for hkicker

double vkick
 fractional delta py for vkicker

std::list< double > knl
 multipole expansion coefficients

std::list< double > ksl
 skew multipole expansion

double gradient
 for rf cavities in V / m

double E
 voltage for rf cavities in V that will be assumed over length l

double frequency
 frequency for rf cavity in Hz

double phase
 phase of rf cavity (rad)

double tOffset
 time offset used for phase calculation (ns)

std::string fieldModulator

std::string magnetGeometryType

double horizontalWidth

bool yokeOnInside

int hStyle
 -1 = unset; 0 = false (ie c style); 1 = true, use hstyle

double vhRatio
 ratio of vertial to horizontal for some magnets

double coilWidthFraction
 Fraction of available h space the coil will take up.

double coilHeightFraction
 Fraction of availalbe v space the coil will take up.

double tilt
 tilt

double xsize

double ysize
 collimator aperture or laser spotsize for laser

double xsizeOut

double ysizeOut
 collimator aperture or laser spotsize for laser

double xsizeLeft

double xsizeRight
 individual collimator jaw half widths

double jawTiltLeft

double jawTiltRight
 jaw collimator jaw tilts (angle in x-z plane)

double offsetX
 offset X

double offsetY
 offset Y

double tscint
 thickness of scintillating part of screen

double twindow
 thickness of window

double tmount
 thickness of the screen mount

double windowScreenGap
 air gap between window and screen

double screenXSize

double screenYSize

double waveLength
 for laser wire and 3d transforms

double phi

double theta

double psi
 for 3d transforms

double axisX

double axisY

double axisZ

bool axisAngle

std::list< std::string > biasMaterialList

std::list< std::string > biasVacuumList
 physics biasing list for the vacuum

double minimumKineticEnergy
 minimum kinetic energy for user limits - respected on element by element basis

std::string samplerName
 name of sampler (default empty)

std::string samplerType
 element has a sampler of this type (default "none")

double samplerRadius

int samplerParticleSetID

std::string region
 region with range cuts

std::string fieldOuter
 Outer field.

std::string fieldVacuum
 Vacuum field.

std::string fieldAll
 Field for everything.

std::string geometryFile
 For Element. File for external geometry.

bool stripOuterVolume
 For Element. Make it an assembly.

bool autoColour
 Automagically colour the external geometry.

bool elementLengthIsArcLength
 For Element. Treat the length as arc length, if not chord.

std::string material

std::string namedVacuumVolumes
 For imported geometry - identify vacuum volumes.

bool markAsCollimator

std::string spec
 Arbitrary specification to pass to beamline builder.

std::string cavityModel
 Name of geometry model object for rfconstantinz cavities.

std::string cavityFieldType
 Name for type of field to use in a cavity.

std::string dicomDataPath
 for CT, file for DICOM construction data

std::string dicomDataFile
 for CT, file for DICOM construction data

std::string colour
 Override colour for certain items.

std::string crystalLeft

std::string crystalRight

std::string crystalBoth

double crystalAngleYAxisLeft

double crystalAngleYAxisRight

bool angleSet

bool scalingFieldOuterSet

std::list< Element > * lst
 in case the element is a list itself (line)

double kick1
 rmatrix elements, only 4x4

double kick2
 rmatrix elements, only 4x4

double kick3
 rmatrix elements, only 4x4

double kick4
 rmatrix elements, only 4x4

double rmat11
 rmatrix elements, only 4x4

double rmat12
 rmatrix elements, only 4x4

double rmat13
 rmatrix elements, only 4x4

double rmat14
 rmatrix elements, only 4x4

double rmat21
 rmatrix elements, only 4x4

double rmat22
 rmatrix elements, only 4x4

double rmat23
 rmatrix elements, only 4x4

double rmat24
 rmatrix elements, only 4x4

double rmat31
 rmatrix elements, only 4x4

double rmat32
 rmatrix elements, only 4x4

double rmat33
 rmatrix elements, only 4x4

double rmat34
 rmatrix elements, only 4x4

double rmat41
 rmatrix elements, only 4x4

double rmat42
 rmatrix elements, only 4x4

double rmat43
 rmatrix elements, only 4x4

double rmat44
 rmatrix elements, only 4x4

double beampipeThickness
 beampipe information, new aperture model

double aper1
 beampipe information, new aperture model

double aper2
 beampipe information, new aperture model

double aper3
 beampipe information, new aperture model

double aper4
 beampipe information, new aperture model

std::string apertureType
 beampipe information, new aperture model

std::string beampipeMaterial
 beampipe information, new aperture model

std::string vacuumMaterial
 beampipe information, new aperture model

std::list< double > layerThicknesses
 for screen

std::list< std::string > layerMaterials
 for screen

std::list< int > layerIsSampler
 for screen

double screenPSize
 for AWAKE spectrometer

double screenEndZ
 for AWAKE spectrometer

double poleStartZ
 for AWAKE spectrometer

double screenWidth
 for AWAKE spectrometer

double awakeMagnetOffsetX
 for AWAKE spectrometer

std::string windowmaterial
 for AWAKE spectrometer

std::string scintmaterial
 for AWAKE spectrometer

std::string mountmaterial
 for AWAKE spectrometer

double xdir
 for 3d transform and laser

double ydir
 for 3d transform and laser

double zdir
 for 3d transform and laser

int numberWedges
 for degrader

double wedgeLength
 for degrader

double degraderHeight
 for degrader

double materialThickness
 for degrader

double degraderOffset
 for degrader

double wireDiameter
 for wirescanner

double wireLength
 for wirescanner

double wireOffsetX
 for wirescanner

double wireOffsetY
 for wirescanner

double wireOffsetZ
 for wirescanner

double wireAngle
 for wirescanner

double undulatorPeriod
 for undulator

double undulatorGap
 for undulator

double undulatorMagnetHeight
 for undulator

std::string bias
 temporary string for bias setting

std::string biasMaterial
 temporary string for bias setting

std::string biasVacuum
 temporary string for bias setting


Additional Inherited Members

- Protected Types inherited from GMAD::Published< Element >
using AttributeMap = typename std::unordered_map< std::string, T C::* >
 Define AttributeMap of string and class member pointer.

- Protected Member Functions inherited from GMAD::Element
std::string getPublishedName (const std::string &name) const
 returns 'official' member name for property

- Protected Member Functions inherited from GMAD::Published< Element >
void publish (const std::string &name, T C::*mp)
 Make pointer to member from class C and type T with accessible with a name.

void set (Element *instance, const Element *instance2, const std::string &name)
 Set member with name of class instance to value of second instance.

AttributeMap< T > & attribute_map () const
 Access method to static map for type T and class C.

get (const Element *instance, const std::string &name) const
 Get method for class C.

void set (Element *instance, const std::string &name, double value)

void set (Element *instance, const std::string &name, GMAD::Array *const &value)

void set (Element *instance, const std::string &name, const T &value)


Detailed Description

Parameters - Element class with booleans.

This is a temporary storage class of the parameters before the actual Element is created. The booleans are needed for inheritance and extension of already created Elements. The class is a singleton.

Author
Jochem Snuverink (based on I. Agapov)

Definition at line 44 of file parameters.h.

Constructor & Destructor Documentation

◆ Parameters()

Parameters::Parameters ( )

Constructor.

Definition at line 31 of file parameters.cc.

References setMap.

Member Function Documentation

◆ flush()

void Parameters::flush ( )

Reset the parameters to defaults and setMap.

Definition at line 205 of file parameters.cc.

References GMAD::Element::flush(), and setMap.

Referenced by GMAD::Parser::ClearParams(), and GMAD::Parser::Initialise().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ inherit_properties()

void Parameters::inherit_properties ( const Element e)

Copy parameters into temporary buffer params from element e Parameters already set in params have priority and are not overridden

Definition at line 213 of file parameters.cc.

References GMAD::Published< C >::set(), and setMap.

Referenced by GMAD::Parser::copy_element_to_params().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ set_value()

template<typename T >
void GMAD::Parameters::set_value ( std::string  property,
value
)

Set method by property name and value.

Definition at line 65 of file parameters.h.

References GMAD::Element::getPublishedName(), GMAD::Published< C >::set(), and setMap.

Here is the call graph for this function:

Field Documentation

◆ setMap

std::map<std::string,bool> GMAD::Parameters::setMap

Map that holds booleans for every member of element.

Definition at line 47 of file parameters.h.

Referenced by flush(), inherit_properties(), Parameters(), GMAD::Element::set(), and set_value().


The documentation for this struct was generated from the following files:
