Target

  • Based on bdsim/examples/target/target-p-cu.gmad

A simple example of a BDSIM model. It has a drift followed by a closed collimator which forms a solid block of material, which is copper. This example is used in the worked example in detail - see Analysis of Thin Target Products.

How to run:

bdsim --file=target-p-cu.gmad --outfile=data

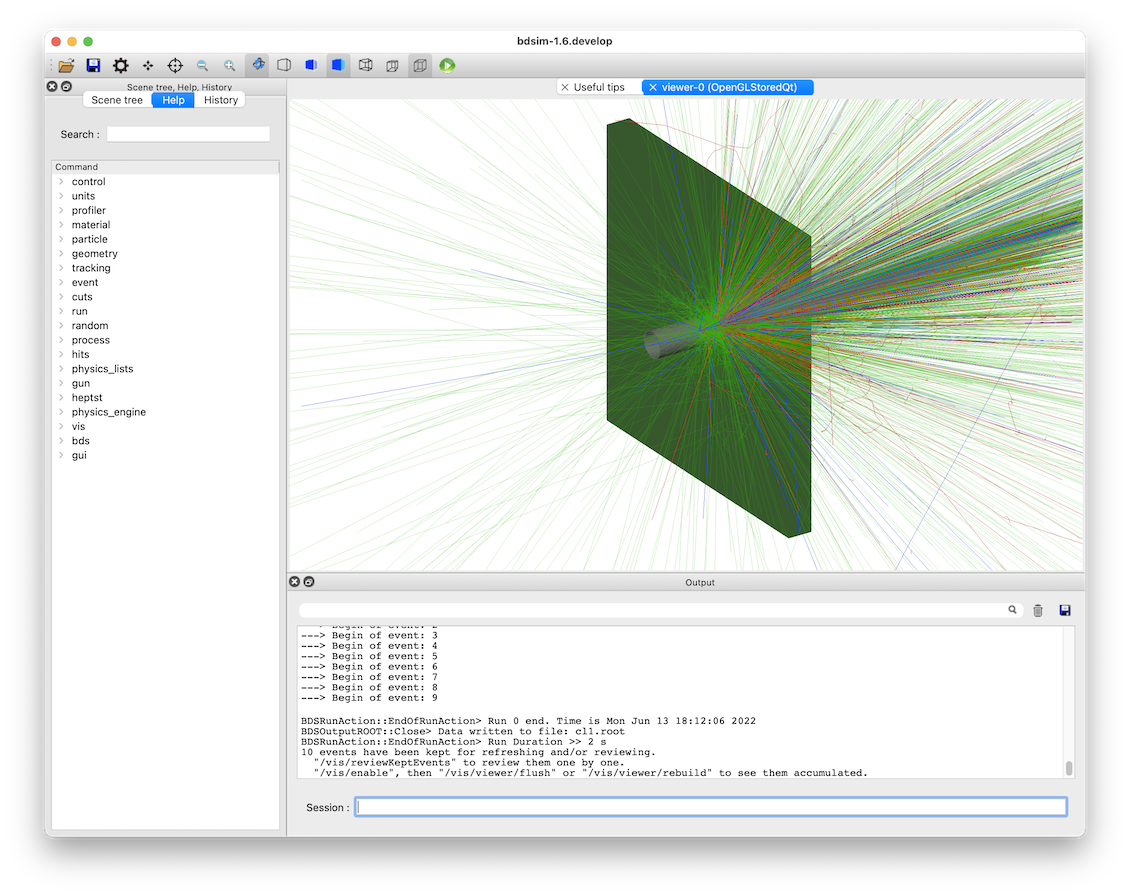

../_images/target-p-cu-10events.png

When the visualiser starts, the following command can be used:

/run/beamOn 5

As a lot of secondary particles are produced it is recommneded to only run a small number of events.
