HistogramDef1D Class Reference

Specification for 1D histogram. More...

#include <HistogramDef1D.hh>

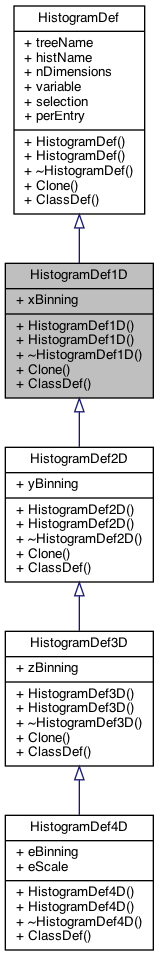

Inheritance diagram for HistogramDef1D:

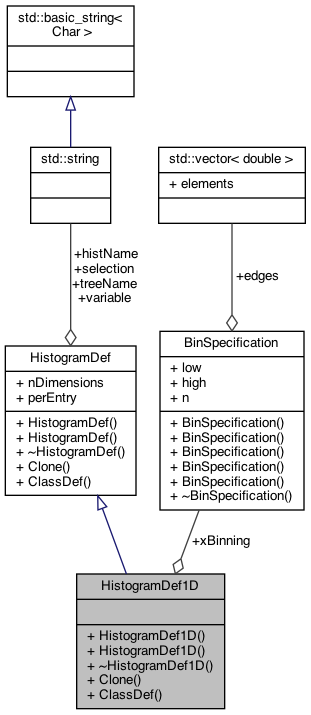

Collaboration diagram for HistogramDef1D:

Public Member Functions
	HistogramDef1D ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistogramDef1D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor. More...
virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...
	ClassDef (HistogramDef1D, 1)
Public Member Functions inherited from HistogramDef
	HistogramDef ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistogramDef (const std::string &treeNameIn, const std::string &histNameIn, int nDimensionsIn, const std::string &variable, const std::string &selectionIn="1", bool perEnetry=true)
	Use this constructor. More...
virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...
	ClassDef (HistogramDef, 1)

Data Fields
BinSpecification	xBinning
Data Fields inherited from HistogramDef
std::string	treeName
std::string	histName
int	nDimensions
std::string	variable
std::string	selection
bool	perEntry

Detailed Description

Specification for 1D histogram.

Author

L. Nevay

Definition at line 34 of file HistogramDef1D.hh.

Constructor & Destructor Documentation

HistogramDef1D()

HistogramDef1D::HistogramDef1D	(	const std::string &	treeNameIn,
		const std::string &	histNameIn,
		const BinSpecification &	xBinningIn,
		const std::string &	variableIn,
		const std::string &	selectionIn = "1",
		bool	perEntryIn = true
	)

Use this constructor.

Definition at line 28 of file HistogramDef1D.cc.

~HistogramDef1D()

HistogramDef1D::~HistogramDef1D ( )

virtual

Definition at line 38 of file HistogramDef1D.cc.

Member Function Documentation

Clone()

virtual HistogramDef * HistogramDef1D::Clone ( ) const

inlinevirtual

Copy this instance. Virtual to be overridden in derived classes.

Reimplemented from HistogramDef.

Reimplemented in HistogramDef2D, and HistogramDef3D.

Definition at line 51 of file HistogramDef1D.hh.

References HistogramDef1D().

Here is the call graph for this function:

Field Documentation

xBinning

BinSpecification HistogramDef1D::xBinning

Definition at line 53 of file HistogramDef1D.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/analysis/HistogramDef1D.hh
• /Users/nevay/physics/reps/bdsim/analysis/HistogramDef1D.cc
