Specification for 3D Histogram. More...

#include <HistogramDef3D.hh>

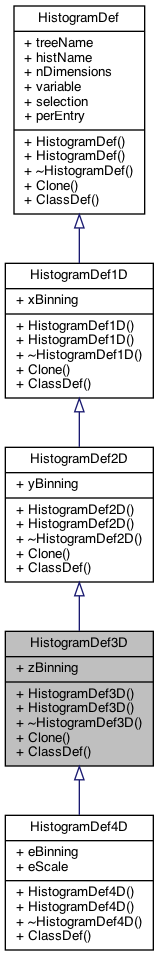

Inheritance diagram for HistogramDef3D:

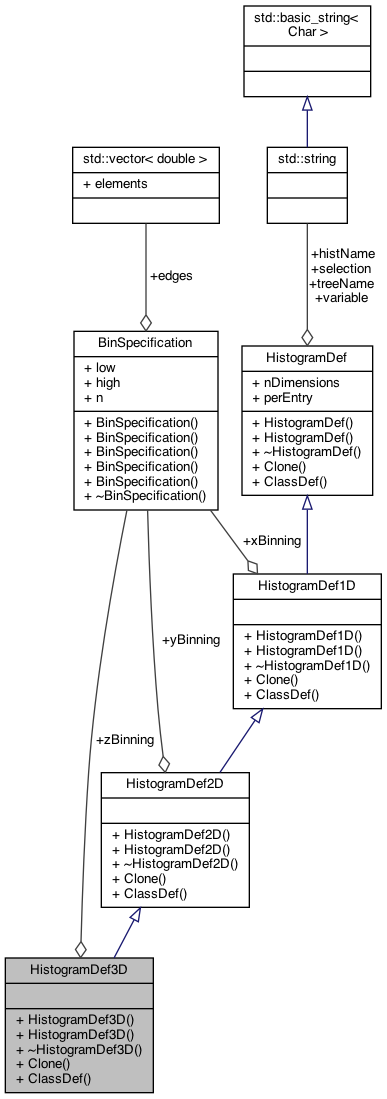

Collaboration diagram for HistogramDef3D:

Public Member Functions
	HistogramDef3D ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef3D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const BinSpecification &yBinningIn, const BinSpecification &zBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor. More...

virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...

	ClassDef (HistogramDef3D, 1)

Public Member Functions inherited from HistogramDef2D
	HistogramDef2D ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef2D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const BinSpecification &yBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor. More...

virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...

	ClassDef (HistogramDef2D, 1)

Public Member Functions inherited from HistogramDef1D
	HistogramDef1D ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef1D (const std::string &treeNameIn, const std::string &histNameIn, const BinSpecification &xBinningIn, const std::string &variableIn, const std::string &selectionIn="1", bool perEntryIn=true)
	Use this constructor. More...

virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...

	ClassDef (HistogramDef1D, 1)

Public Member Functions inherited from HistogramDef
	HistogramDef ()
	Public constructor only for compatibility with ROOT - not intended for use.

	HistogramDef (const std::string &treeNameIn, const std::string &histNameIn, int nDimensionsIn, const std::string &variable, const std::string &selectionIn="1", bool perEnetry=true)
	Use this constructor. More...

virtual HistogramDef *	Clone () const
	Copy this instance. Virtual to be overridden in derived classes. More...

	ClassDef (HistogramDef, 1)

Data Fields
BinSpecification	zBinning

Data Fields inherited from HistogramDef2D
BinSpecification	yBinning

Data Fields inherited from HistogramDef1D
BinSpecification	xBinning

Data Fields inherited from HistogramDef
std::string	treeName

std::string	histName

int	nDimensions

std::string	variable

std::string	selection

bool	perEntry

Detailed Description

Specification for 3D Histogram.

Author: L. Nevay

Definition at line 34 of file HistogramDef3D.hh.

Constructor & Destructor Documentation

◆ HistogramDef3D()

HistogramDef3D::HistogramDef3D	(	const std::string &	treeNameIn,
		const std::string &	histNameIn,
		const BinSpecification &	xBinningIn,
		const BinSpecification &	yBinningIn,
		const BinSpecification &	zBinningIn,
		const std::string &	variableIn,
		const std::string &	selectionIn = `"1"`,
		bool	perEntryIn = `true`
	)

Use this constructor.

Definition at line 28 of file HistogramDef3D.cc.

◆ ~HistogramDef3D()

HistogramDef3D::~HistogramDef3D ( )

virtual

Definition at line 42 of file HistogramDef3D.cc.

Member Function Documentation

◆ Clone()

virtual HistogramDef * HistogramDef3D::Clone ( ) const

inlinevirtual

Copy this instance. Virtual to be overridden in derived classes.

Reimplemented from HistogramDef2D.

Definition at line 53 of file HistogramDef3D.hh.

References HistogramDef3D().

Here is the call graph for this function:

Field Documentation

◆ zBinning

BinSpecification HistogramDef3D::zBinning

Definition at line 55 of file HistogramDef3D.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/analysis/HistogramDef3D.hh
/Users/nevay/physics/reps/bdsim/analysis/HistogramDef3D.cc
