BDSBeamPipeFactoryLHC Class Reference

factory for simple lhc aperture model beam pipes More...

#include <BDSBeamPipeFactoryLHC.hh>

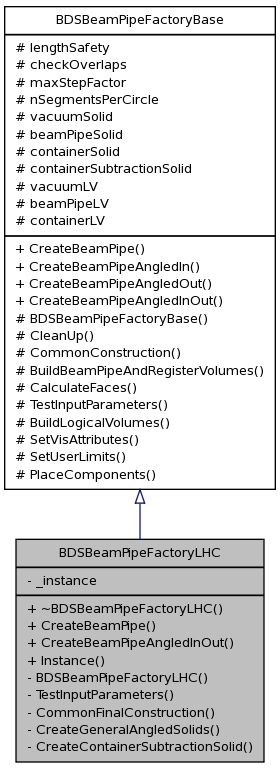

Inheritance diagram for BDSBeamPipeFactoryLHC:

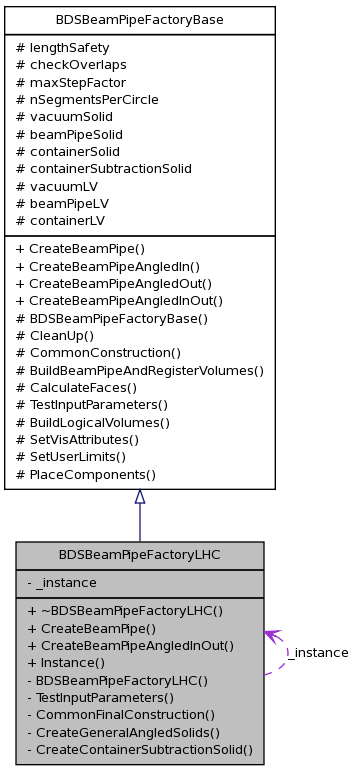

[legend]Collaboration diagram for BDSBeamPipeFactoryLHC:

[legend]

Public Member Functions
virtual	~BDSBeamPipeFactoryLHC ()
virtual BDSBeamPipe *	CreateBeamPipe (G4String nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
	create a flat ended beampipe
virtual BDSBeamPipe *	CreateBeamPipeAngledInOut (G4String nameIn, G4double lengthIn, G4double angleInIn, G4double angleOutIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
	create beampipe with an angled face on both input adn output sides
Static Public Member Functions
static BDSBeamPipeFactoryLHC *	Instance ()
	singleton accessor
Private Member Functions
	BDSBeamPipeFactoryLHC ()
	private default constructor - singleton pattern
void	TestInputParameters (G4Material *&vacuumMaterialIn, G4double &beamPipeThicknessIn, G4Material *&beamPipeMaterialIn, G4double &aper1In, G4double &aper2In, G4double &aper3In)
	test input parameters - if not set use global defaults for this simulation
BDSBeamPipe *	CommonFinalConstruction (G4String nameIn, G4Material *vacuumMaterialIn, G4Material *beamPipeMaterialIn, G4double lengthIn, G4double widthIn, G4double heightIn)
void	CreateGeneralAngledSolids (G4String nameIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double aper3In, G4double beamPipeThicknessIn, G4ThreeVector inputfaceIn, G4ThreeVector outputfaceIn)
void	CreateContainerSubtractionSolid (G4String &nameIn, G4double &lengthIn, G4double &beamPipeThicknessIn, G4double &aper1In, G4double &aper2In, G4double &aper3In)
	function to create the container subtraction solid and avoid passing aper1,2,3 around further
Static Private Attributes
static BDSBeamPipeFactoryLHC *	_instance = 0

---

Detailed Description

factory for simple lhc aperture model beam pipes

singleton pattern

Author:

Laurie Nevay <laurie.nevay@rhul.ac.uk>

Definition at line 15 of file BDSBeamPipeFactoryLHC.hh.

---

Member Function Documentation

BDSBeamPipe * BDSBeamPipeFactoryLHC::CommonFinalConstruction	(	G4String	nameIn,
		G4Material *	vacuumMaterialIn,
		G4Material *	beamPipeMaterialIn,
		G4double	lengthIn,
		G4double	containerWidthIn,
		G4double	containerHeightIn
	)			[private]

only the solids are unique, once we have those, the logical volumes and placement in the container are the same. group all this functionality together

Definition at line 202 of file BDSBeamPipeFactoryLHC.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), and BDSBeamPipeFactoryBase::CommonConstruction().

Referenced by CreateBeamPipe(), and CreateBeamPipeAngledInOut().

Here is the call graph for this function:

Here is the caller graph for this function:

void BDSBeamPipeFactoryLHC::CreateGeneralAngledSolids	(	G4String	nameIn,
		G4double	lengthIn,
		G4double	aper1In,
		G4double	aper2In,
		G4double	aper3In,
		G4double	beamPipeThicknessIn,
		G4ThreeVector	inputfaceIn,
		G4ThreeVector	outputfaceIn
	)			[private]

the angled ones have degeneracy in the geant4 solids they used so we can avoid code duplication by grouping common construction tasks

Definition at line 230 of file BDSBeamPipeFactoryLHC.cc.

References BDSBeamPipeFactoryBase::beamPipeSolid, BDSBeamPipeFactoryBase::containerSolid, BDSBeamPipeFactoryBase::lengthSafety, and BDSBeamPipeFactoryBase::vacuumSolid.

Referenced by CreateBeamPipeAngledInOut().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSBeamPipeFactoryLHC.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSBeamPipeFactoryLHC.cc

---
