BDSBeamPipeFactoryLHCDetailed Class Reference

Factory for detailed lhc aperture model beam pipes. More...

#include <BDSBeamPipeFactoryLHCDetailed.hh>

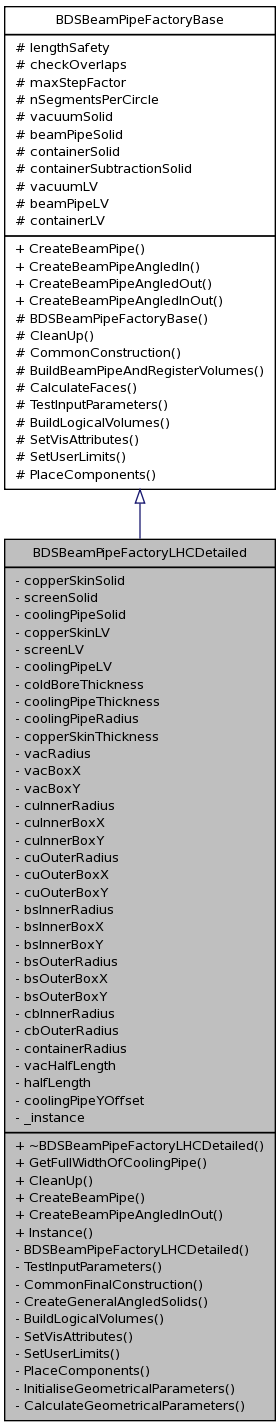

Inheritance diagram for BDSBeamPipeFactoryLHCDetailed:

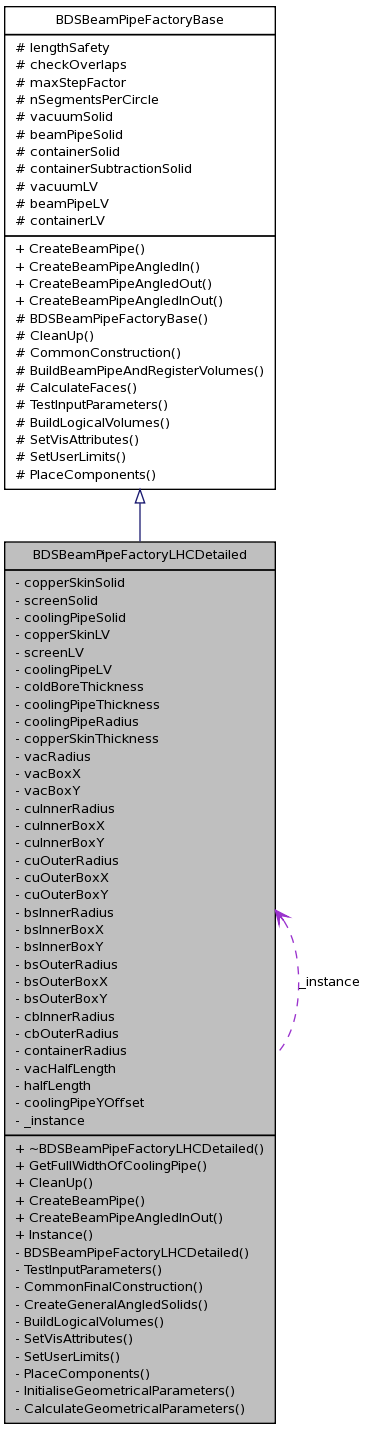

[legend]Collaboration diagram for BDSBeamPipeFactoryLHCDetailed:

[legend]

Public Member Functions
virtual	~BDSBeamPipeFactoryLHCDetailed ()
G4double	GetFullWidthOfCoolingPipe ()
	Access cooling pipe information from factory for parameter tests.
virtual void	CleanUp ()
	Clean up extra pointers particular to this factory before use.
virtual BDSBeamPipe *	CreateBeamPipe (G4String nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
	create a flat ended beampipe
virtual BDSBeamPipe *	CreateBeamPipeAngledInOut (G4String nameIn, G4double lengthIn, G4double angleInIn, G4double angleOutIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
	create beampipe with an angled face on both input adn output sides
Static Public Member Functions
static BDSBeamPipeFactoryLHCDetailed *	Instance ()
	singleton accessor
Private Member Functions
	BDSBeamPipeFactoryLHCDetailed ()
	private default constructor - singleton pattern
void	TestInputParameters (G4Material *&vacuumMaterialIn, G4double &beamPipeThicknessIn, G4Material *&beamPipeMaterialIn, G4double &aper1In, G4double &aper2In, G4double &aper3In)
	test input parameters - if not set use global defaults for this simulation
BDSBeamPipe *	CommonFinalConstruction (G4String name, G4Material *vacuumMaterial, G4Material *beamPipeMaterial, G4double length, G4double containerRadius)
G4double	CreateGeneralAngledSolids (G4String name, G4double length, G4ThreeVector inputface, G4ThreeVector outputface)
virtual void	BuildLogicalVolumes (G4String nameIn, G4Material *vacuumMaterialIn, G4Material *beamPipeMaterialIn)
	build logical volumes
virtual void	SetVisAttributes ()
	set visual attributes
virtual G4UserLimits *	SetUserLimits (G4double lengthIn)
	set user limits
virtual void	PlaceComponents (G4String nameIn)
	place volumes
void	InitialiseGeometricalParameters ()
	Utility function to initialise the geometry parameters.
void	CalculateGeometricalParameters (G4double aper1, G4double aper2, G4double aper3, G4double beamPipeThickness, G4double length)
Private Attributes
G4VSolid *	copperSkinSolid
G4VSolid *	screenSolid
G4VSolid *	coolingPipeSolid
G4LogicalVolume *	copperSkinLV
G4LogicalVolume *	screenLV
G4LogicalVolume *	coolingPipeLV
G4double	coldBoreThickness
G4double	coolingPipeThickness
G4double	coolingPipeRadius
G4double	copperSkinThickness
G4double	vacRadius
G4double	vacBoxX
G4double	vacBoxY
G4double	cuInnerRadius
G4double	cuInnerBoxX
G4double	cuInnerBoxY
G4double	cuOuterRadius
G4double	cuOuterBoxX
G4double	cuOuterBoxY
G4double	bsInnerRadius
G4double	bsInnerBoxX
G4double	bsInnerBoxY
G4double	bsOuterRadius
G4double	bsOuterBoxX
G4double	bsOuterBoxY
G4double	cbInnerRadius
G4double	cbOuterRadius
G4double	containerRadius
G4double	vacHalfLength
G4double	halfLength
G4double	coolingPipeYOffset
Static Private Attributes
static BDSBeamPipeFactoryLHCDetailed *	_instance = 0

---

Detailed Description

Factory for detailed lhc aperture model beam pipes.

singleton pattern

Author:

Laurie Nevay <laurie.nevay@rhul.ac.uk>

Definition at line 15 of file BDSBeamPipeFactoryLHCDetailed.hh.

---

Member Function Documentation

void BDSBeamPipeFactoryLHCDetailed::CalculateGeometricalParameters	(	G4double	aper1,
		G4double	aper2,
		G4double	aper3,
		G4double	beamPipeThickness,
		G4double	length
	)			[private]

Calculate the various radii and geometrical parameters for this design based on the input aperture parameters

Definition at line 92 of file BDSBeamPipeFactoryLHCDetailed.cc.

References bsInnerBoxX, bsInnerBoxY, bsInnerRadius, bsOuterBoxX, bsOuterBoxY, bsOuterRadius, cbInnerRadius, cbOuterRadius, coldBoreThickness, containerRadius, coolingPipeRadius, coolingPipeThickness, coolingPipeYOffset, copperSkinThickness, cuInnerBoxX, cuInnerBoxY, cuInnerRadius, cuOuterBoxX, cuOuterBoxY, cuOuterRadius, halfLength, BDSBeamPipeFactoryBase::lengthSafety, vacBoxX, vacBoxY, vacHalfLength, and vacRadius.

Referenced by CreateBeamPipe(), and CreateBeamPipeAngledInOut().

Here is the caller graph for this function:

BDSBeamPipe * BDSBeamPipeFactoryLHCDetailed::CommonFinalConstruction	(	G4String	name,
		G4Material *	vacuumMaterial,
		G4Material *	beamPipeMaterial,
		G4double	length,
		G4double	containerRadius
	)			[private]

only the solids are unique, once we have those, the logical volumes and placement in the container are the same. group all this functionality together

Definition at line 345 of file BDSBeamPipeFactoryLHCDetailed.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), BDSBeamPipeFactoryBase::CommonConstruction(), coolingPipeLV, copperSkinLV, BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterSensitiveVolume(), and screenLV.

Referenced by CreateBeamPipe(), and CreateBeamPipeAngledInOut().

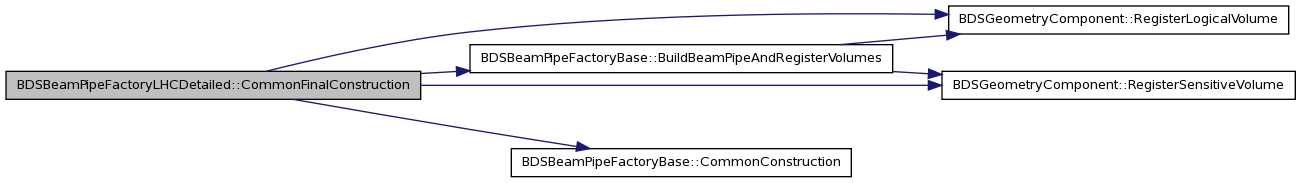

Here is the call graph for this function:

Here is the caller graph for this function:

G4double BDSBeamPipeFactoryLHCDetailed::CreateGeneralAngledSolids	(	G4String	name,
		G4double	length,
		G4ThreeVector	inputface,
		G4ThreeVector	outputface
	)			[private]

the angled ones have degeneracy in the geant4 solids they used so we can avoid code duplication by grouping common construction tasks

Definition at line 478 of file BDSBeamPipeFactoryLHCDetailed.cc.

References BDSBeamPipeFactoryBase::beamPipeSolid, bsInnerBoxX, bsInnerBoxY, bsInnerRadius, bsOuterBoxX, bsOuterBoxY, bsOuterRadius, cbInnerRadius, cbOuterRadius, containerRadius, BDSBeamPipeFactoryBase::containerSolid, BDSBeamPipeFactoryBase::containerSubtractionSolid, coolingPipeRadius, coolingPipeSolid, coolingPipeThickness, copperSkinSolid, cuInnerBoxX, cuInnerBoxY, cuInnerRadius, cuOuterBoxX, cuOuterBoxY, cuOuterRadius, halfLength, BDSBeamPipeFactoryBase::lengthSafety, screenSolid, vacBoxX, vacBoxY, vacHalfLength, vacRadius, and BDSBeamPipeFactoryBase::vacuumSolid.

Referenced by CreateBeamPipeAngledInOut().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSBeamPipeFactoryLHCDetailed.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSBeamPipeFactoryLHCDetailed.cc

---
