BDSBeamPipeFactoryRectangular Class Reference

Factory for rectangular beam pipes. More...

#include <BDSBeamPipeFactoryRectangular.hh>

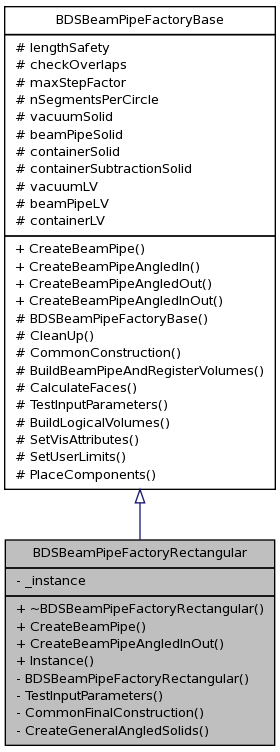

Inheritance diagram for BDSBeamPipeFactoryRectangular:

Inheritance graph
[legend]

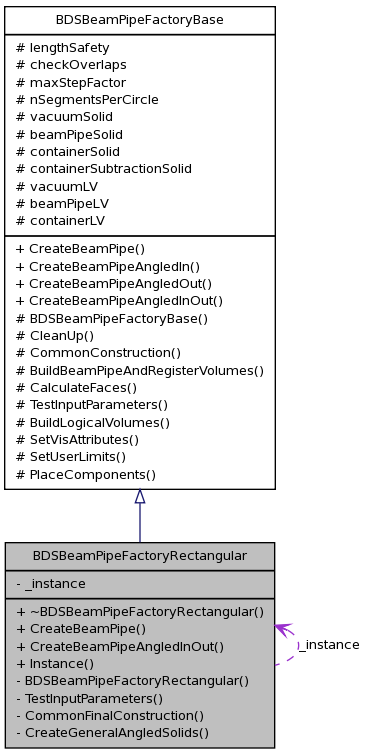

Collaboration diagram for BDSBeamPipeFactoryRectangular:

Collaboration graph
[legend]

Public Member Functions

virtual ~BDSBeamPipeFactoryRectangular ()
 singleton accessor
virtual BDSBeamPipe * CreateBeamPipe (G4String nameIn, G4double lengthIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
 create a flat ended beampipe
virtual BDSBeamPipe * CreateBeamPipeAngledInOut (G4String nameIn, G4double lengthIn, G4double angleInIn, G4double angleOutIn, G4double aper1=0, G4double aper2=0, G4double aper3=0, G4double aper4=0, G4Material *vacuumMaterialIn=NULL, G4double beamPipeThicknessIn=0, G4Material *beamPipeMaterialIn=NULL)
 create beampipe with an angled face on both input adn output sides

Static Public Member Functions

static BDSBeamPipeFactoryRectangular * Instance ()

Private Member Functions

 BDSBeamPipeFactoryRectangular ()
void TestInputParameters (G4Material *&vacuumMaterialIn, G4double &beamPipeThicknessIn, G4Material *&beamPipeMaterialIn, G4double &aper1In, G4double &aper2In)
 test input parameters - if not set use global defaults for this simulation
BDSBeamPipe * CommonFinalConstruction (G4String nameIn, G4Material *vacuumMaterialIn, G4Material *beamPipeMaterialIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double beamPipeThicknessIn)
void CreateGeneralAngledSolids (G4String nameIn, G4double lengthIn, G4double aper1In, G4double aper2In, G4double beamPipeThicknessIn, G4ThreeVector inputfaceIn, G4ThreeVector outputfaceIn)

Static Private Attributes

static BDSBeamPipeFactoryRectangular * _instance = 0
 private default constructor - singelton pattern

Detailed Description

Factory for rectangular beam pipes.

singleton pattern

Author:
Laurie Nevay <laurie.nevay@rhul.ac.uk>

Definition at line 15 of file BDSBeamPipeFactoryRectangular.hh.

Member Function Documentation

BDSBeamPipe * BDSBeamPipeFactoryRectangular::CommonFinalConstruction ( G4String  nameIn,
G4Material *  vacuumMaterialIn,
G4Material *  beamPipeMaterialIn,
G4double  lengthIn,
G4double  aper1In,
G4double  aper2In,
G4double  beamPipeThicknessIn
) [private]

only the solids are unique, once we have those, the logical volumes and placement in the container are the same. group all this functionality together

Definition at line 148 of file BDSBeamPipeFactoryRectangular.cc.

References BDSBeamPipeFactoryBase::BuildBeamPipeAndRegisterVolumes(), BDSBeamPipeFactoryBase::CommonConstruction(), BDSBeamPipeFactoryBase::containerSubtractionSolid, and BDSBeamPipeFactoryBase::lengthSafety.

Referenced by CreateBeamPipe(), and CreateBeamPipeAngledInOut().

Here is the call graph for this function:

Here is the caller graph for this function:

void BDSBeamPipeFactoryRectangular::CreateGeneralAngledSolids ( G4String  nameIn,
G4double  lengthIn,
G4double  aper1In,
G4double  aper2In,
G4double  beamPipeThicknessIn,
G4ThreeVector  inputfaceIn,
G4ThreeVector  outputfaceIn
) [private]

the angled ones have degeneracy in the geant4 solids they used so we can avoid code duplication by grouping common construction tasks

Definition at line 188 of file BDSBeamPipeFactoryRectangular.cc.

References BDSBeamPipeFactoryBase::beamPipeSolid, BDSBeamPipeFactoryBase::containerSolid, BDSBeamPipeFactoryBase::lengthSafety, and BDSBeamPipeFactoryBase::vacuumSolid.

Referenced by CreateBeamPipeAngledInOut().

Here is the caller graph for this function:
