BDSBeamline Class Reference

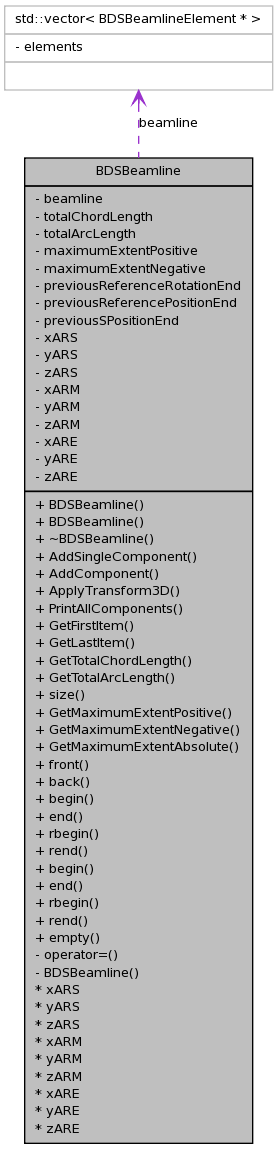

Collaboration diagram for BDSBeamline:


Public Member Functions
	BDSBeamline ()
	BDSBeamline (G4ThreeVector initialGlobalPosition, G4RotationMatrix *initialGlobalRotation)
	~BDSBeamline ()
void	AddSingleComponent (BDSAcceleratorComponent *component)
void	AddComponent (BDSAcceleratorComponent *component)
void	ApplyTransform3D (BDSTransform3D *component)
void	PrintAllComponents (std::ostream &out) const
BDSBeamlineElement *	GetFirstItem ()
	Return a reference to the first element.
BDSBeamlineElement *	GetLastItem ()
	Return a reference to the last element.
G4double	GetTotalChordLength () const
	Get the total length of the beamline - the sum of the chord length of each element.
G4double	GetTotalArcLength () const
	Get the total ARC length fo the beamline - ie the maximum s position.
std::vector< BDSBeamlineElement * >::size_type	size () const
	Get the number of elements.
G4ThreeVector	GetMaximumExtentPositive () const
	Get the maximum positive extent in all dimensions.
G4ThreeVector	GetMaximumExtentNegative () const
	Get the maximum negative extent in all dimensions.
G4ThreeVector	GetMaximumExtentAbsolute () const
	Get the maximum extent absolute in each dimension.
BDSBeamlineElement *	front () const
	Return a reference to the first element.
BDSBeamlineElement *	back () const
	Return a reference to the last element.
std::vector< BDSBeamlineElement * >::iterator	begin ()
	Return iterator to the beginning.
std::vector< BDSBeamlineElement * >::iterator	end ()
	Return iterator to the end.
std::vector< BDSBeamlineElement * >::reverse_iterator	rbegin ()
	Return reverse iterator to the reverse beginning.
std::vector< BDSBeamlineElement * >::reverse_iterator	rend ()
	Return reverse iterator to the reverse end.
std::vector< BDSBeamlineElement * >::const_iterator	begin () const
	Return iterator to the beginning.
std::vector< BDSBeamlineElement * >::const_iterator	end () const
	Return iterator to the end.
std::vector< BDSBeamlineElement * >::const_reverse_iterator	rbegin () const
	Return reverse iterator to the reverse beginning.
std::vector< BDSBeamlineElement * >::const_reverse_iterator	rend () const
	Return reverse iterator to the reverse end.
G4bool	empty () const
	Return whether the beamline is empty or not.
Private Member Functions
BDSBeamline &	operator= (const BDSBeamline &)
	assignment and copy constructor not implemented nor used
	BDSBeamline (BDSBeamline &)
Private Attributes
std::vector< BDSBeamlineElement * >	beamline
	Beamline vector - the data.
G4double	totalChordLength
G4double	totalArcLength
G4ThreeVector	maximumExtentPositive
	maximum extent in the positive coordinates in each dimension
G4ThreeVector	maximumExtentNegative
	maximum extent in the negative coordinates in each dimension
G4RotationMatrix *	previousReferenceRotationEnd
	Current reference rotation at the end of the previous element.
G4ThreeVector	previousReferencePositionEnd
	Current reference position at the end of the previous element.
G4double	previousSPositionEnd
	Current s coordinate at the end of the previous element.

G4ThreeVector	xARS
G4ThreeVector	yARS
G4ThreeVector	zARS
G4ThreeVector	xARM
G4ThreeVector	yARM
G4ThreeVector	zARM
G4ThreeVector	xARE
G4ThreeVector	yARE
G4ThreeVector	zARE
Friends
std::ostream &	operator<< (std::ostream &out, BDSBeamline const &bl)
	output stream

Detailed Description

Definition at line 42 of file BDSBeamline.hh.

Constructor & Destructor Documentation

BDSBeamline::BDSBeamline ( )

Default constructor. Beamline started at 0,0,0 with beamline built along the z axis.

Definition at line 20 of file BDSBeamline.cc.

References maximumExtentNegative, maximumExtentPositive, previousReferencePositionEnd, previousReferenceRotationEnd, previousSPositionEnd, totalArcLength, totalChordLength, xARE, xARM, xARS, yARE, yARM, yARS, zARE, zARM, and zARS.

BDSBeamline::BDSBeamline	(	G4ThreeVector	initialGlobalPosition,
		G4RotationMatrix *	initialGlobalRotation
	)

Auxiliary constructor that allows a finite poition and rotation to be applied at the beginning of the beamline in global coordinates. Rembmer the maximum extents of the beamline will also be displaced.

Definition at line 46 of file BDSBeamline.cc.

Member Function Documentation

void BDSBeamline::AddComponent ( BDSAcceleratorComponent * component )

Add a component, but check to see if can be dynamically upcast to a line in which case, loop over it and apply AddSingleComponent(BDSAcceleratorComponent* component) to each component

Definition at line 105 of file BDSBeamline.cc.

References AddSingleComponent().

Referenced by BDSDetectorConstruction::BuildBeamline().

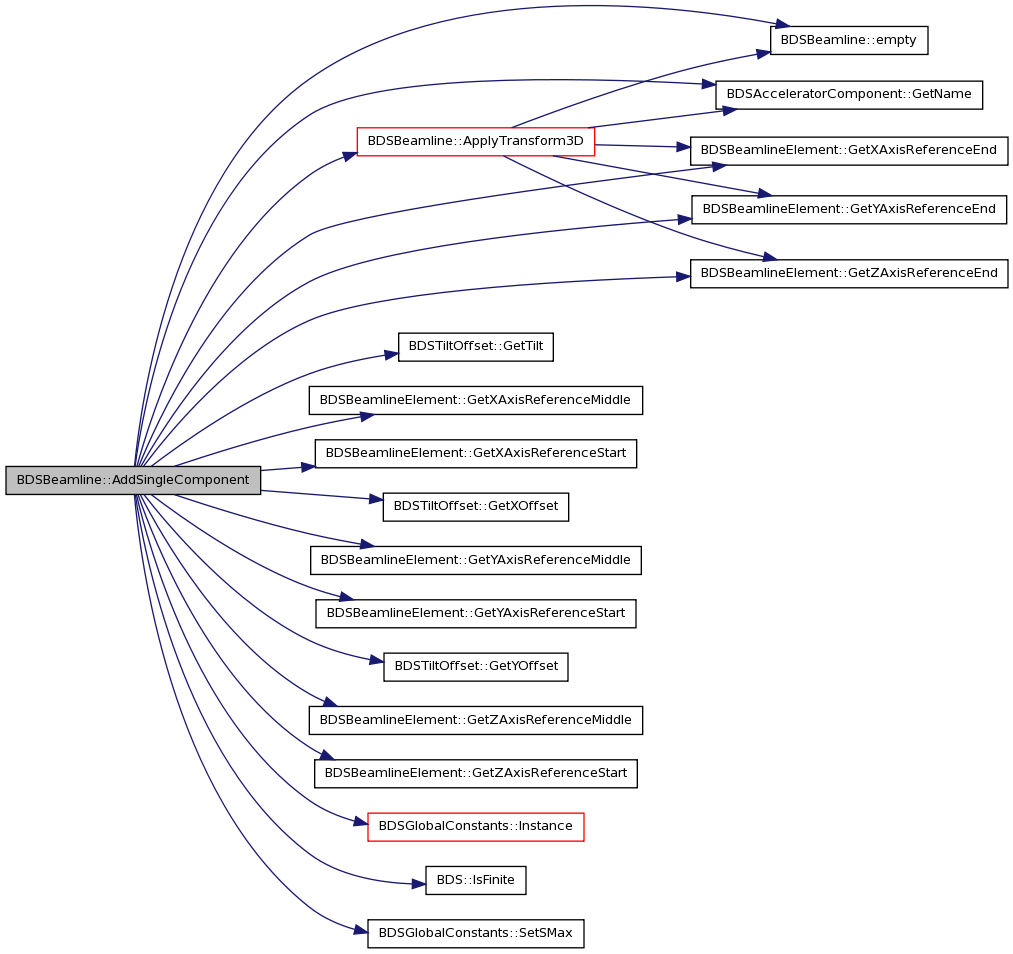

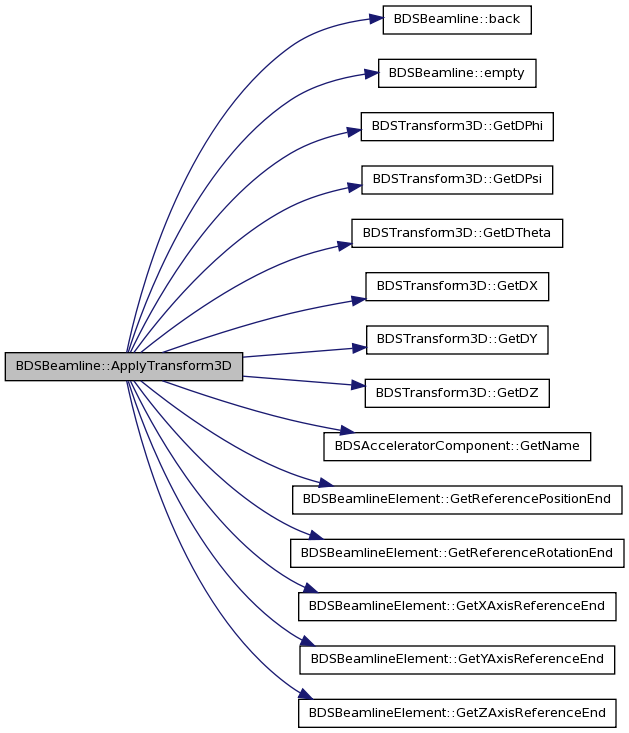

Here is the call graph for this function:

Here is the caller graph for this function:

void BDSBeamline::AddSingleComponent ( BDSAcceleratorComponent * component )

Add a single component and calculate its position and rotation with respect to the beginning of the beamline

Definition at line 116 of file BDSBeamline.cc.

Referenced by AddComponent().

Here is the call graph for this function:

Here is the caller graph for this function:

void BDSBeamline::ApplyTransform3D ( BDSTransform3D * component )

Apply a Transform3D rotation and translation to the reference coordinates. Special method for the special case of unique component Transform3D. Modifies the end rotation and position of the last element in the beamline. Note this applies the offset dx,dy,dz first, then the rotation of coordinates

Definition at line 370 of file BDSBeamline.cc.
