#include <BDSAcceleratorComponent.hh>

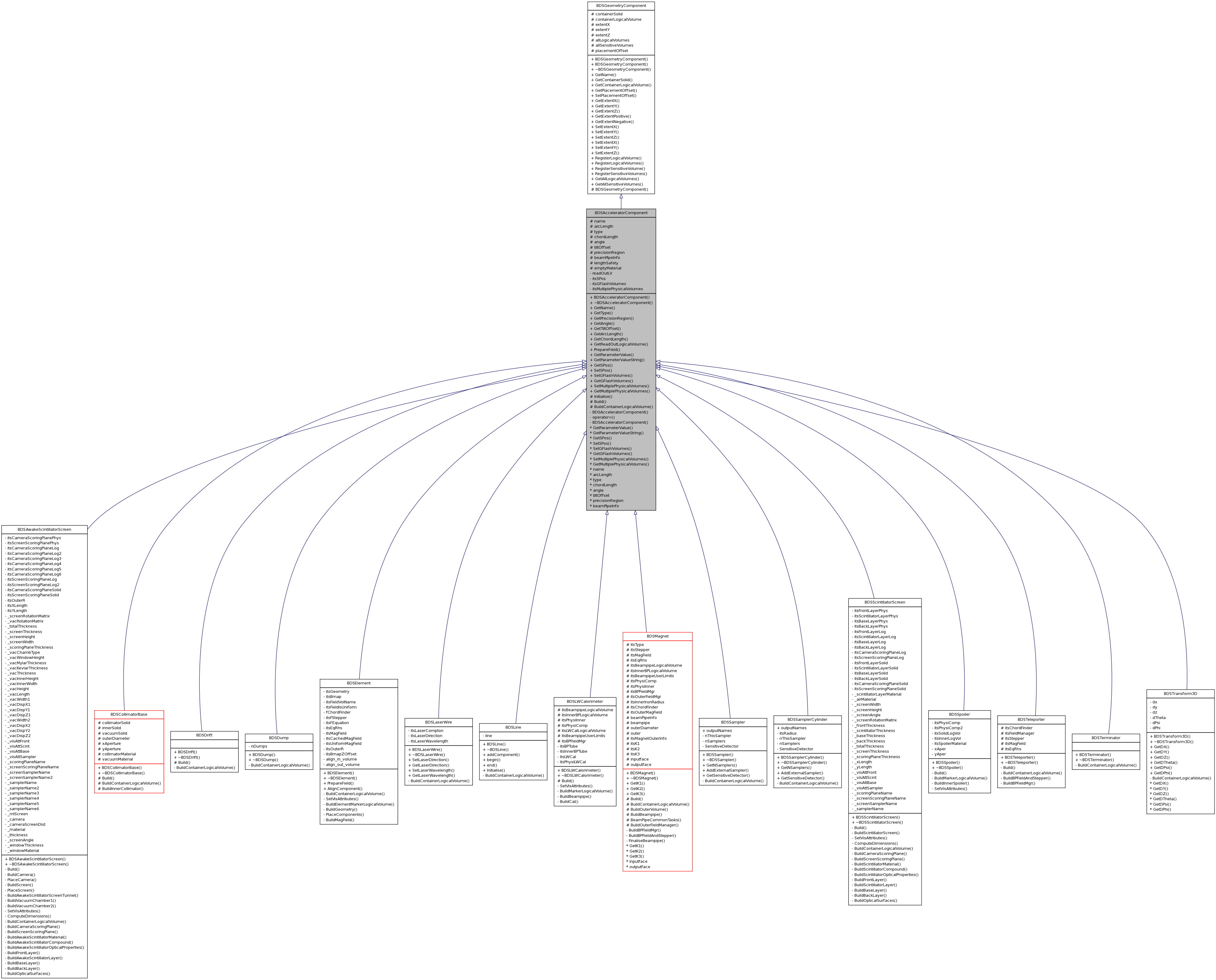

Inheritance diagram for BDSAcceleratorComponent:
Public Member Functions | |
| BDSAcceleratorComponent (G4String name, G4double arcLength, G4double angle, G4String type, BDSTiltOffset tiltOffset=BDSTiltOffset(), G4int precisionRegion=0, BDSBeamPipeInfo *beamPipeInfo=NULL) | |
| virtual | ~BDSAcceleratorComponent () |
| G4String | GetName () const |
| The name of the component without modification. | |
| G4String | GetType () const |
| Get a string describing the type of the component. | |
| G4int | GetPrecisionRegion () const |
| 0 = no precision region, 1 = precision region 1, 2 = precision region 2. | |
| G4double | GetAngle () const |
| BDSTiltOffset | GetTiltOffset () const |
| Accessor for tilt offset information. | |
| virtual G4double | GetArcLength () const |
| Access the length of the component. | |
| virtual G4double | GetChordLength () const |
| G4LogicalVolume * | GetReadOutLogicalVolume () const |
| Access the read out geometry. | |
| virtual void | PrepareField (G4VPhysicalVolume *referenceVolume) |
| G4double | GetParameterValue (G4String spec, G4String name) const |
| Get parameter value from the specification ('spec') string. | |
| G4String | GetParameterValueString (G4String spec, G4String name) const |
| Get parameter value from the specification ('spec') string. | |
| G4double | GetSPos () const |
| This function should be revisited given recent changes (v0.7). | |
| void | SetSPos (G4double spos) |
| This function should be revisited given recent changes (v0.7). | |
| void | SetGFlashVolumes (G4LogicalVolume *aLogVol) |
| This function should be revisited given recent changes (v0.7). | |
| std::vector< G4LogicalVolume * > | GetGFlashVolumes () const |
| This function should be revisited given recent changes (v0.7). | |
| void | SetMultiplePhysicalVolumes (G4VPhysicalVolume *aPhysVol) |
| This function should be revisited given recent changes (v0.7). | |
| std::vector< G4VPhysicalVolume * > | GetMultiplePhysicalVolumes () const |
| This function should be revisited given recent changes (v0.7). | |
Protected Member Functions | |
| virtual void | Initialise () |
| virtual void | Build () |
| virtual void | BuildContainerLogicalVolume ()=0 |
Protected Attributes | |
| const G4String | name |
| Const protected member variable that may not be changed by derived classes. | |
| const G4double | arcLength |
| Const protected member variable that may not be changed by derived classes. | |
| const G4String | type |
| Const protected member variable that may not be changed by derived classes. | |
| G4double | chordLength |
| Protected member variable that can be modified by derived classes. | |
| G4double | angle |
| Protected member variable that can be modified by derived classes. | |
| BDSTiltOffset | tiltOffset |
| Protected member variable that can be modified by derived classes. | |
| G4int | precisionRegion |
| Protected member variable that can be modified by derived classes. | |
| BDSBeamPipeInfo * | beamPipeInfo |
| Protected member variable that can be modified by derived classes. | |
Static Protected Attributes | |
| static G4double | lengthSafety = -1 |
| Useful variables often used in construction. | |
| static G4Material * | emptyMaterial = NULL |
Private Member Functions | |
| BDSAcceleratorComponent () | |
| BDSAcceleratorComponent & | operator= (const BDSAcceleratorComponent &) |
| Assignment and copy constructor not implemented nor used. | |
| BDSAcceleratorComponent (BDSAcceleratorComponent &) | |
Private Attributes | |
| G4LogicalVolume * | readOutLV |
| Read out geometry volume. | |
| G4double | itsSPos |
| S coordinate - to be revisited / moved to BDSBeamlineElement. | |
| std::vector< G4LogicalVolume * > | itsGFlashVolumes |
| std::vector< G4VPhysicalVolume * > | itsMultiplePhysicalVolumes |
Friends | |
| class | BDSComponentFactory |
| BDSComponentFactory creates BDSAcceleratorComponents. | |
| class | BDSLine |
| class | BDSDetectorConstruction |
This is an abstract class as the derived class must provide the implementation of BuildContainerLogicalVolume() that constructs the basic container. This is the minimum required so that an instance of the derived class will operate with the rest of the placement machinery in BDSIM. Typically, a derived class overrides the Build() function as well.
The class provides deferred construction through the Initialise() function to allow two stage construction if it's required.
Note, the geometry of any derived component should be nominally constructed along local z axis (beam direction) and x,y are transverse dimensions in a right-handed coordinate system.
This was significantly reworked in version 0.7 from the original. The indicator author is the maintainer of the new version.
Definition at line 42 of file BDSAcceleratorComponent.hh.
| BDSAcceleratorComponent::BDSAcceleratorComponent | ( | G4String | name, | |
| G4double | arcLength, | |||
| G4double | angle, | |||
| G4String | type, | |||
| BDSTiltOffset | tiltOffset = BDSTiltOffset(), |
|||
| G4int | precisionRegion = 0, |
|||
| BDSBeamPipeInfo * | beamPipeInfo = NULL | |||
| ) |
Constructor - this is the minimum information needed to create a BDSAcceleratorComponent instance. Methods in the class will allow the derived class to associate the appropraite volumes to the members of BDSGeometryComponent - the base class. The developer of a derived class should take care to set all members of BDSGeometryComponent in the derived class, including extents. Note, this class has arc length and chord length which are initially set to be the same, unless angle is != 0 in which case, the chord length is calculated from arc length
Definition at line 17 of file BDSAcceleratorComponent.cc.
References chordLength, emptyMaterial, BDSGlobalConstants::GetLengthSafety(), BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDS::IsFinite(), itsSPos, lengthSafety, and readOutLV.

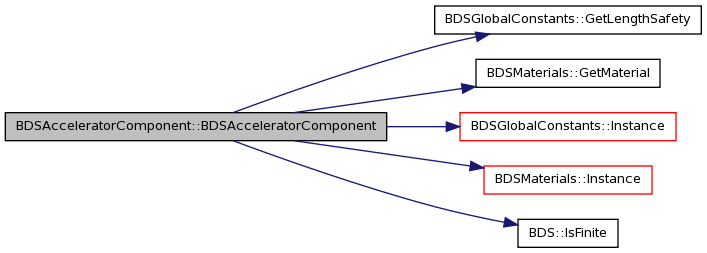

Here is the call graph for this function:
| BDSAcceleratorComponent::BDSAcceleratorComponent | ( | ) | [private] |
Private default constructor to force use of provided constructors, which ensure an object meets the requirements for the rest of the construction and placement machinery in BDSIM
| void BDSAcceleratorComponent::Build | ( | ) | [protected, virtual] |
Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.
Reimplemented in BDSAwakeScintillatorScreen, BDSCollimatorBase, BDSDecapole, BDSDrift, BDSKicker, BDSLWCalorimeter, BDSMagnet, BDSOctupole, BDSQuadrupole, BDSRBend, BDSScintillatorScreen, BDSSectorBend, BDSSextupole, BDSSolenoid, BDSSpoiler, and BDSTeleporter.
Definition at line 67 of file BDSAcceleratorComponent.cc.
References BuildContainerLogicalVolume(), BDSGeometryComponent::containerLogicalVolume, BDSGlobalConstants::Instance(), and BDSExecOptions::Instance().
Referenced by BDSTeleporter::Build(), BDSSpoiler::Build(), BDSMagnet::Build(), BDSLWCalorimeter::Build(), BDSCollimatorBase::Build(), and Initialise().

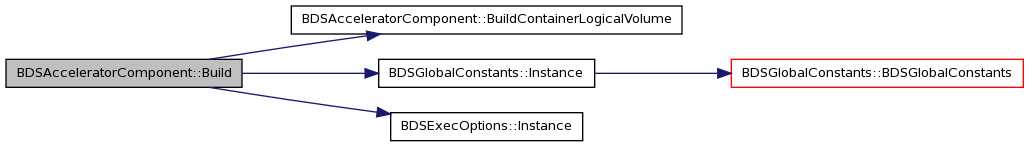

Here is the call graph for this function:

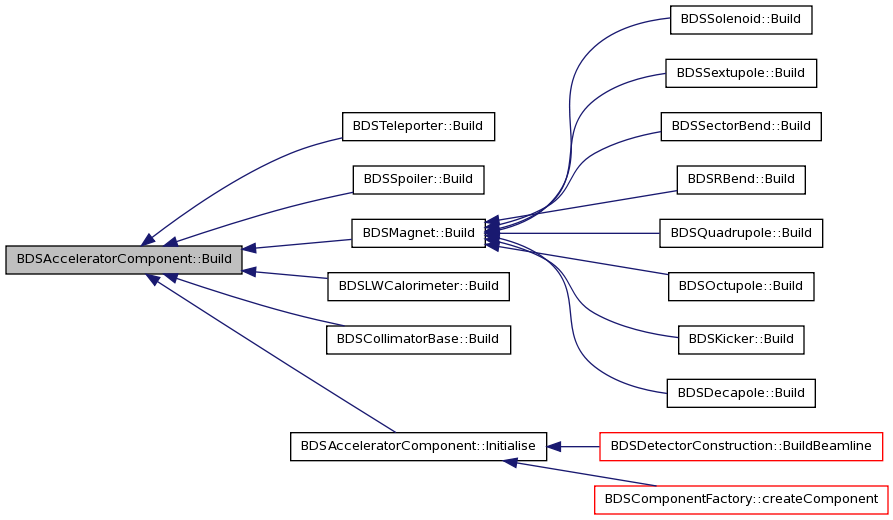

Here is the caller graph for this function:
| virtual void BDSAcceleratorComponent::BuildContainerLogicalVolume | ( | ) | [protected, pure virtual] |
Build the container solid and logical volume that all parts of the component will contained within - must be provided by derived class.
Implemented in BDSAwakeScintillatorScreen, BDSCollimatorBase, BDSDrift, BDSDump, BDSElement, BDSLaserWire, BDSLine, BDSMagnet, BDSSampler, BDSSamplerCylinder, BDSScintillatorScreen, BDSTeleporter, BDSTerminator, and BDSTransform3D.
Referenced by Build().
Here is the caller graph for this function:
| G4double BDSAcceleratorComponent::GetAngle | ( | ) | const [inline] |
Get the angle the component induces in the reference trajector (rad). Note, this is 0 for h and v kickers
Definition at line 174 of file BDSAcceleratorComponent.hh.
References angle.
| void BDSAcceleratorComponent::Initialise | ( | ) | [protected, virtual] |
initialise method checks if marker logical volume already exists and builds new one if not
Reimplemented in BDSLine.
Definition at line 58 of file BDSAcceleratorComponent.cc.
References angle, Build(), BDS::BuildReadOutVolume(), chordLength, name, and readOutLV.
Referenced by BDSDetectorConstruction::BuildBeamline(), and BDSComponentFactory::createComponent().

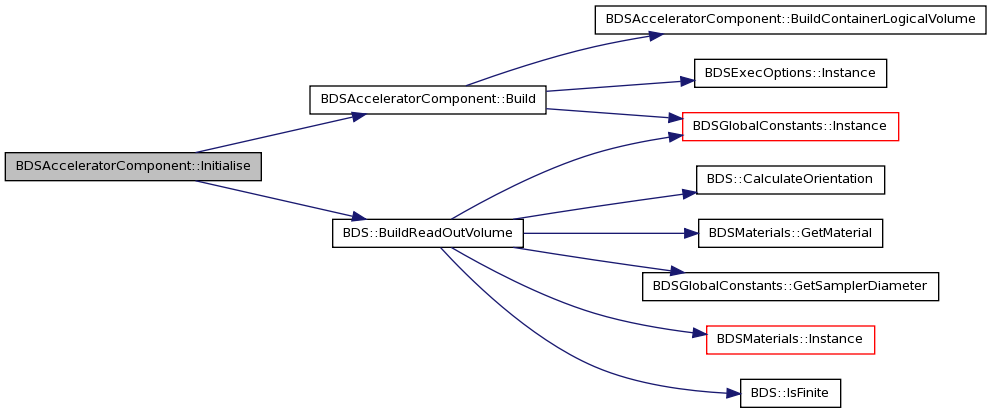

Here is the call graph for this function:
Here is the caller graph for this function:
