BDSScintillatorScreen Class Reference

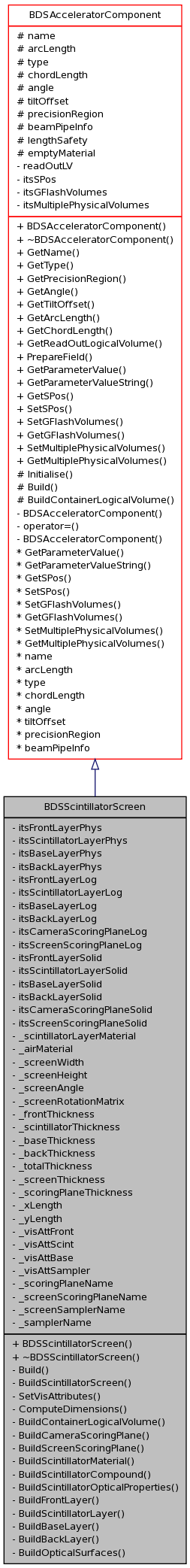

Inheritance diagram for BDSScintillatorScreen:

[legend]Collaboration diagram for BDSScintillatorScreen:

[legend]

Public Member Functions
	BDSScintillatorScreen (G4String aName, G4double tScint=0.3 *CLHEP::mm, G4double angle=0, G4String scintMaterial="lanex", G4String airMaterial="air", BDSTiltOffset tiltOffset=BDSTiltOffset())
	~BDSScintillatorScreen ()
Private Member Functions
virtual void	Build ()
void	BuildScintillatorScreen ()
void	SetVisAttributes ()
void	ComputeDimensions ()
virtual void	BuildContainerLogicalVolume ()
void	BuildCameraScoringPlane ()
void	BuildScreenScoringPlane ()
void	BuildScintillatorMaterial ()
void	BuildScintillatorCompound ()
void	BuildScintillatorOpticalProperties ()
void	BuildFrontLayer ()
void	BuildScintillatorLayer ()
void	BuildBaseLayer ()
void	BuildBackLayer ()
void	BuildOpticalSurfaces ()
Private Attributes
G4VPhysicalVolume *	itsFrontLayerPhys
G4VPhysicalVolume *	itsScintillatorLayerPhys
G4VPhysicalVolume *	itsBaseLayerPhys
G4VPhysicalVolume *	itsBackLayerPhys
G4LogicalVolume *	itsFrontLayerLog
G4LogicalVolume *	itsScintillatorLayerLog
G4LogicalVolume *	itsBaseLayerLog
G4LogicalVolume *	itsBackLayerLog
G4LogicalVolume *	itsCameraScoringPlaneLog
G4LogicalVolume *	itsScreenScoringPlaneLog
G4VSolid *	itsFrontLayerSolid
G4VSolid *	itsScintillatorLayerSolid
G4VSolid *	itsBaseLayerSolid
G4VSolid *	itsBackLayerSolid
G4VSolid *	itsCameraScoringPlaneSolid
G4VSolid *	itsScreenScoringPlaneSolid
G4Material *	_scintillatorLayerMaterial
G4Material *	_airMaterial
G4double	_screenWidth
G4double	_screenHeight
G4double	_screenAngle
G4RotationMatrix *	_screenRotationMatrix
G4double	_frontThickness
G4double	_scintillatorThickness
G4double	_baseThickness
G4double	_backThickness
G4double	_totalThickness
G4double	_screenThickness
G4double	_scoringPlaneThickness
G4double	_xLength
G4double	_yLength
G4VisAttributes *	_visAttFront
G4VisAttributes *	_visAttScint
G4VisAttributes *	_visAttBase
G4VisAttributes *	_visAttSampler
G4String	_scoringPlaneName
G4String	_screenScoringPlaneName
G4String	_screenSamplerName
G4String	_samplerName

---

Detailed Description

Definition at line 18 of file BDSScintillatorScreen.hh.

---

Member Function Documentation

void BDSScintillatorScreen::Build

(

)

[private, virtual]

Build the container only. Should be overridden by derived class to add more geometry apart from the container volume. The overridden Build() function can however, call make use of this function to call BuildContainerLogicalVolume() by calling BDSAcceleratorComponent::Build() at the beginning.

Reimplemented from BDSAcceleratorComponent.

Definition at line 41 of file BDSScintillatorScreen.cc.

References BuildContainerLogicalVolume(), BuildScintillatorScreen(), ComputeDimensions(), and SetVisAttributes().

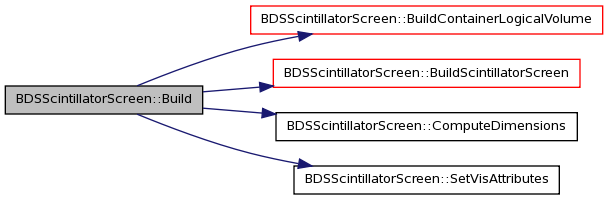

Here is the call graph for this function:

void BDSScintillatorScreen::BuildContainerLogicalVolume

(

)

[private, virtual]

Build the container solid and logical volume that all parts of the component will contained within - must be provided by derived class.

Implements BDSAcceleratorComponent.

Definition at line 332 of file BDSScintillatorScreen.cc.

References _airMaterial, _xLength, _yLength, BDSAcceleratorComponent::chordLength, BDSGeometryComponent::containerLogicalVolume, BDSGeometryComponent::containerSolid, BDSGlobalConstants::Instance(), and BDSAcceleratorComponent::name.

Referenced by Build().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSScintillatorScreen.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSScintillatorScreen.cc

---
